Page 1497 of 4500

LEXUS LS430 2003 Factory Repair Manual 32.CONNECT CONNECTOR
a. Reconnect the yaw rate sensor sub bus line connector (J44) to the P-CAN J/C A side (w/earth
terminal).
33.CHECK CAN BUS LINE FOR SHORT TO GND (YAW RATE SENSOR SUB BUS LINE)

Page 1498 of 4500

LEXUS LS430 2003 Factory Repair Manual NG: REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-H,
CAN-L)

Page 1499 of 4500

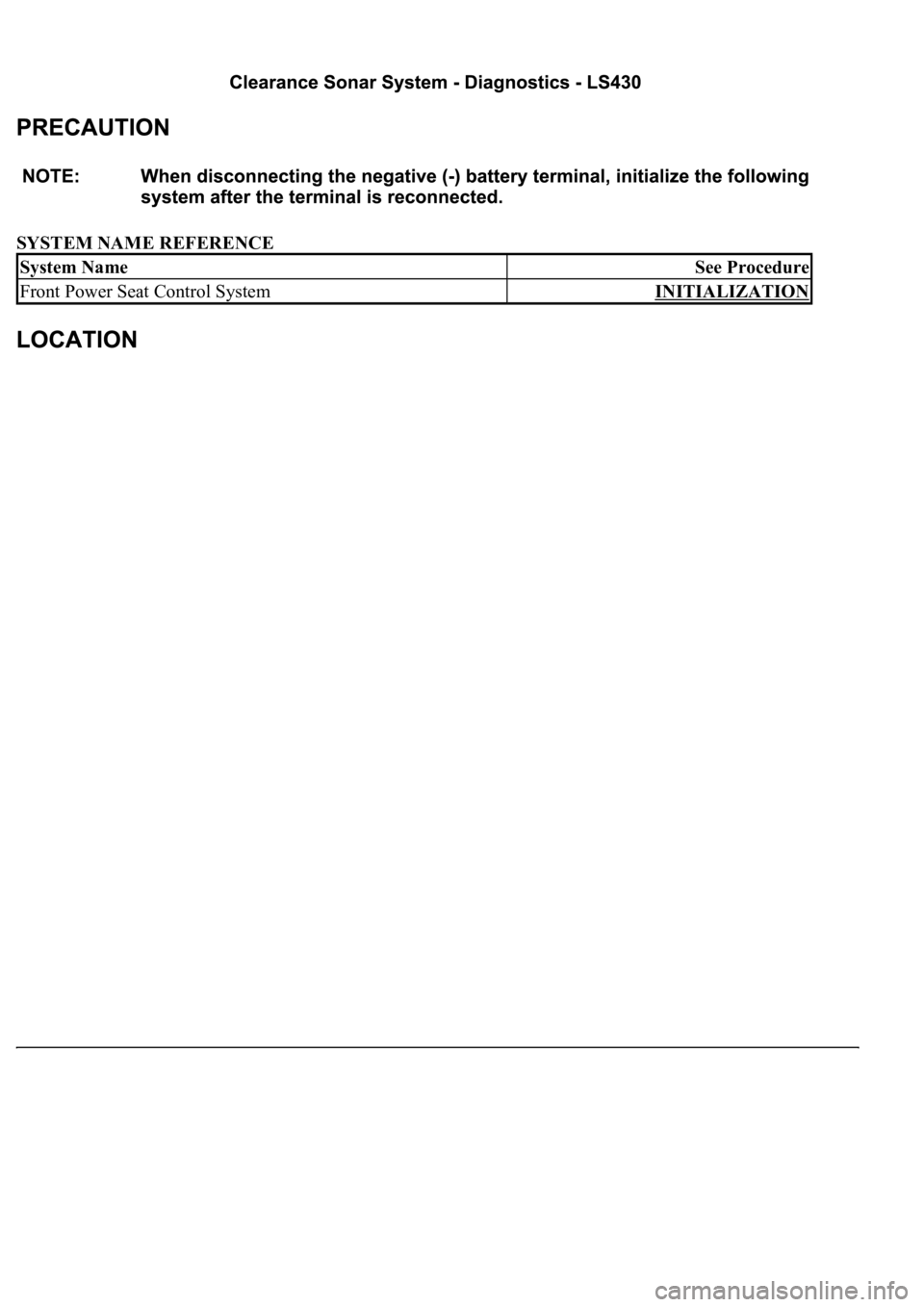

LEXUS LS430 2003 Factory Repair Manual SYSTEM NAME REFERENCE
System NameSee Procedure
Front Power Seat Control SystemINITIALIZATION

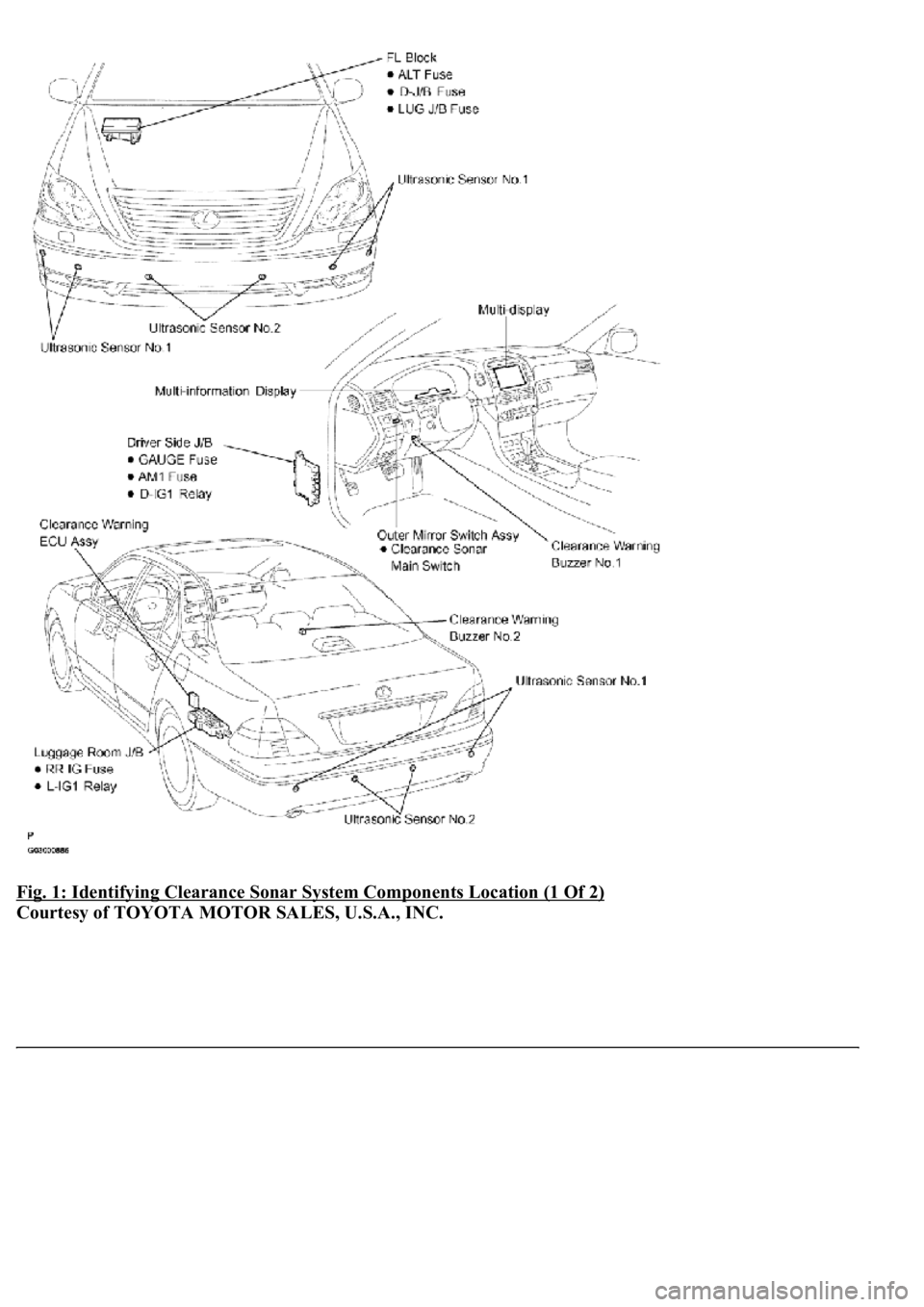

Page 1500 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a001100030014001d0003002c0047004800510057004c0049005c004c0051004a00030026004f004800440055004400510046004800030036005200510044005500030036005c00560057004800500003002600520050005300520051004

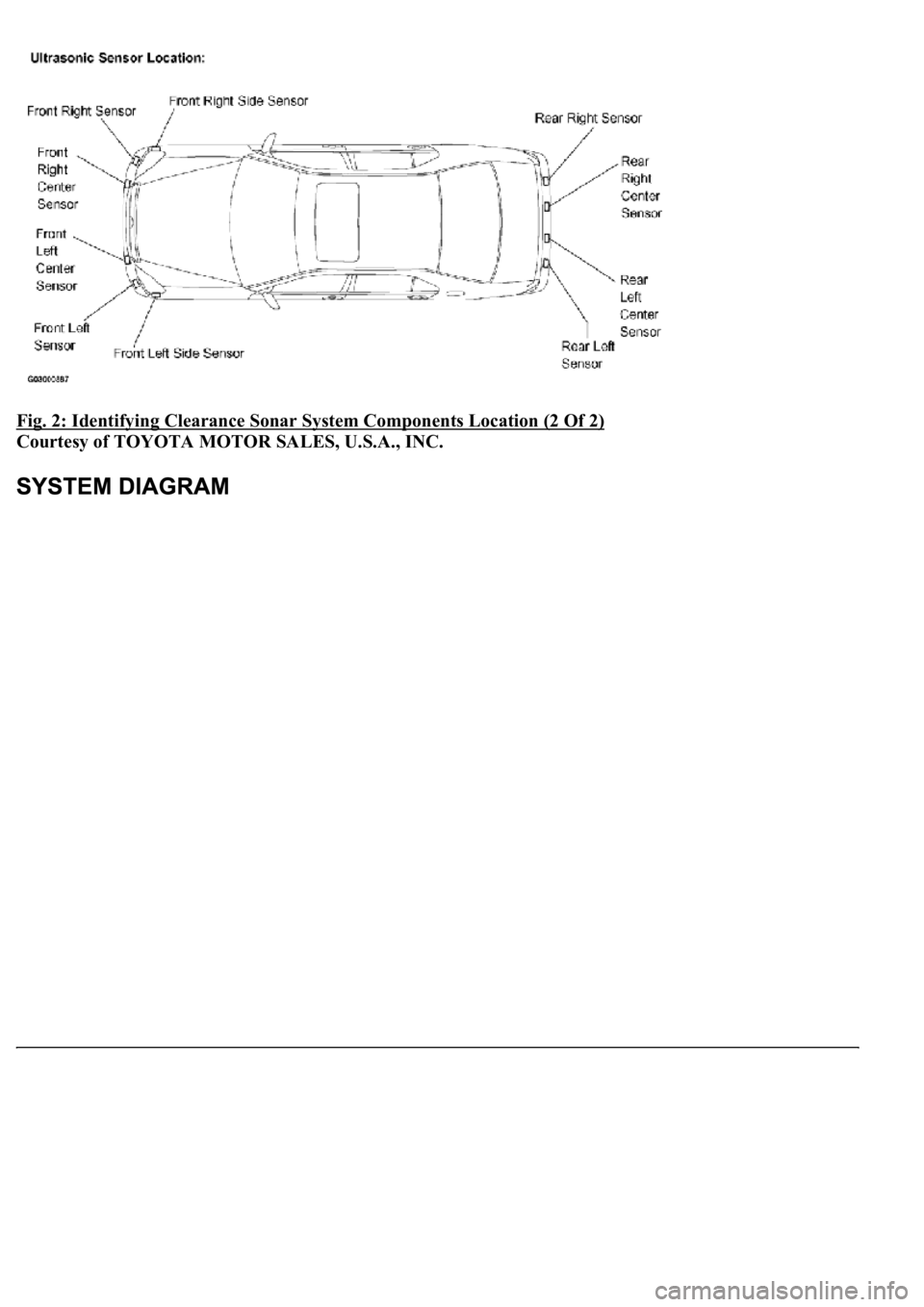

Page 1501 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a001100030015001d0003002c0047004800510057004c0049005c004c0051004a00030026004f004800440055004400510046004800030036005200510044005500030036005c00560057004800500003002600520050005300520051004

Page 1502 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 3: Clearance Sonar System Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1.GENERAL

Page 1503 of 4500

LEXUS LS430 2003 Factory Repair Manual a. This system uses ultrasonic sensors to detect any obstacles at the corners, the front or the rear of the
vehicle. The system then informs the driver of the distance between the sensors and the obs

a. This system uses ultrasonic sensors to detect any obstacles at the corners, the front or the rear of the
vehicle. The system then informs the driver of the distance between the sensors and the obstacles,
as well as their positions by displaying them on the multi-information display in the combination
meter and by sounding a buzzer. This information also appears on the multi-display on the models
equipped with a LEXUS navigation system.
2.FUNCTIONS OF COMPONENTS
FUNCTIONS OF COMPONENTS
3.OPERATION EXPLANATION
a. The clearance warning ECU assy determines whether the clearance sonar system should be
operated or not based on the clearance sonar main switch, the shift position, the vehicle speed and
the engine speed signals.
b. When the system operates, the clearance warning ECU transmits ultrasonic waves from the
ultrasonic sensor. If these waves encounter an obstacle within the sensor's range, the waves are
reflected back to the sensor, which transmits them to the clearance warning ECU assy.
Based on this information, the clearance warning ECU assy sends signals to the multi-information
display, the multi-display and the clearance warning buzzer. The appropriate distance between the vehicle
and the obstacle is then displayed, and the buzzer sounds.
HINT:
Refer to "OPERATION CHECK
" for detailed operation .
ComponentsFunction
Ultrasonic Sensor
Ultrasonic sensor consists of a sensor portion that transmits and receives
ultrasonic waves and a pre-amplifier that amplifies them. The ultrasonic
sensor outputs the ultrasonic transmission and reception signals to the
clearance warning ECU assy.
Clearance Sonar Main
SwitchTurns the clearance sonar system on and off.
Buzzer (No.1 & No.2)Emits an intermittent sound to inform the driver that the ECU has detected
an obstacle within a prescribed range.
Clearance Warning ECU
AssyJudges the approximate distance between the vehicle and the obstacle based
on the signals from the ultrasonic sensors and sends the display signal to the
display panel and buzzer signal to the buzzer.
Gateway ECU
Sends the display signal of the clearance warning ECU assy to the
combination meter and the multi-display. The signal for the multi-display is
output by converting it to an AVC-LAN signal.
Combination Meter (Multi-
information Display) &
Multi-displayDisplays the location of the obstacle and the approximate distance between
the vehicle and the obstacle. On the multi-display, the sound volume, buzzer
sounding distance, and sensor operating condition can be set on the setup
screen for this system.

Page 1504 of 4500

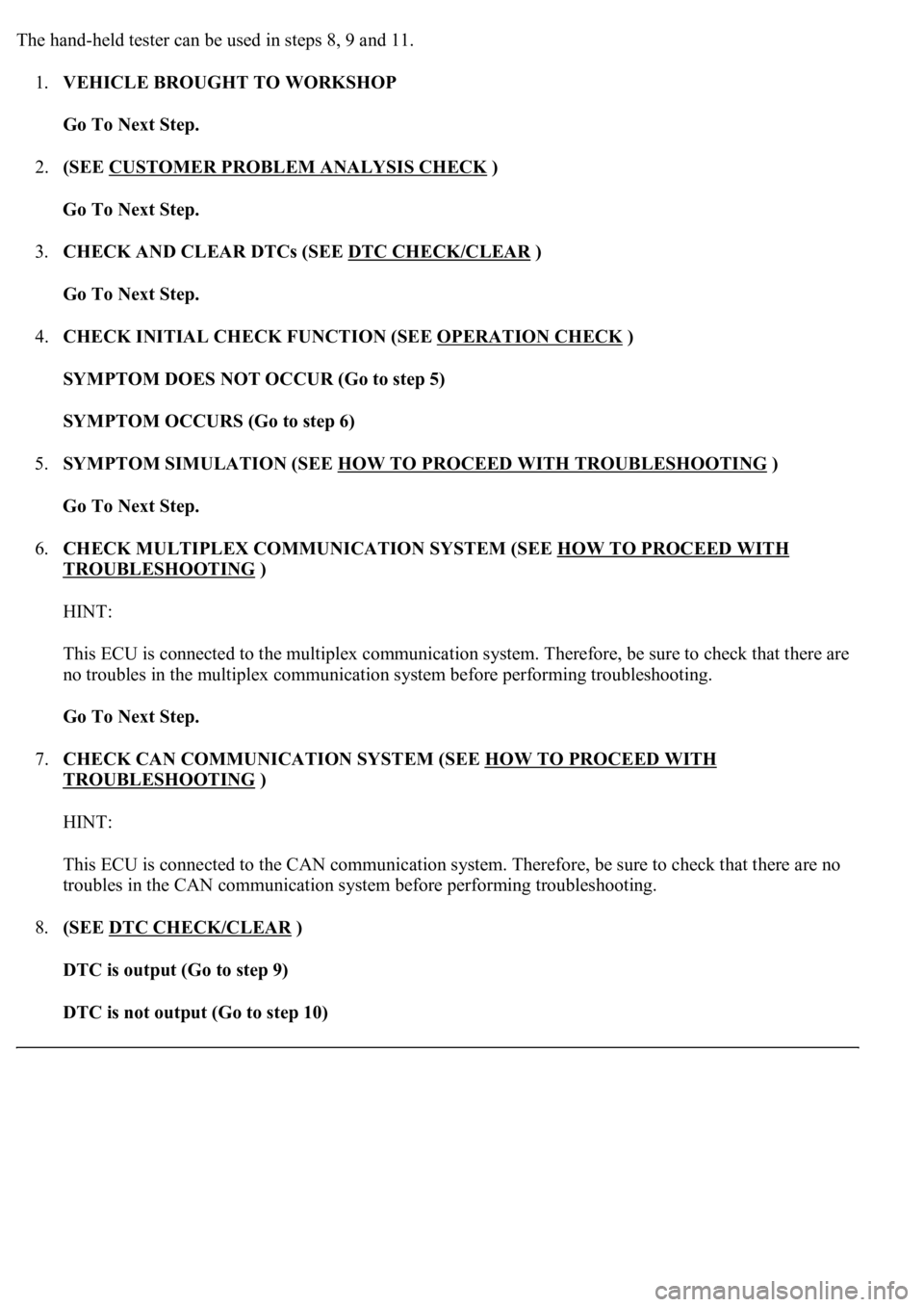

LEXUS LS430 2003 Factory Repair Manual The hand-held tester can be used in steps 8, 9 and 11.
1.VEHICLE BROUGHT TO WORKSHOP
Go To Next Step.
2.(SEE CUSTOMER PROBLEM ANALYSIS CHECK
)
Go To Next Step.
3.CHECK AND CLEAR DTCs (SEE DTC C
