LEXUS LS430 2003 Factory Repair Manual Fig. 45: Climate Control Does Not Operate (Blinking Pattern 4) Wiring Diagram (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.CHECK SEAT HEATER (INDICATOR) a. Check th

Page 1658 of 4500

LEXUS LS430 2003 Factory Repair Manual RESULT REFERENCE B: Go to step 5 A: Go to next step 2.INSPECT FRONT SEAT HEATER SWITCH (THERMISTOR OF SEATBACK) (SEE INSPECTION ) NG: REPLACE FRONT SEAT HEATER SWITCH OK: Go to next step 3

Page 1659 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 1660 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 46: Identifying Seat Climate Control Blower Connector Terminals And Seat Climate Controller Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND C

Page 1661 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 47: Identifying Seat Climate Controller Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE FRONT SEAT HEATER SWITCH OK: REPLACE SEAT CLIMATE CONTROL CONTROLLER 5.I

Page 1662 of 4500

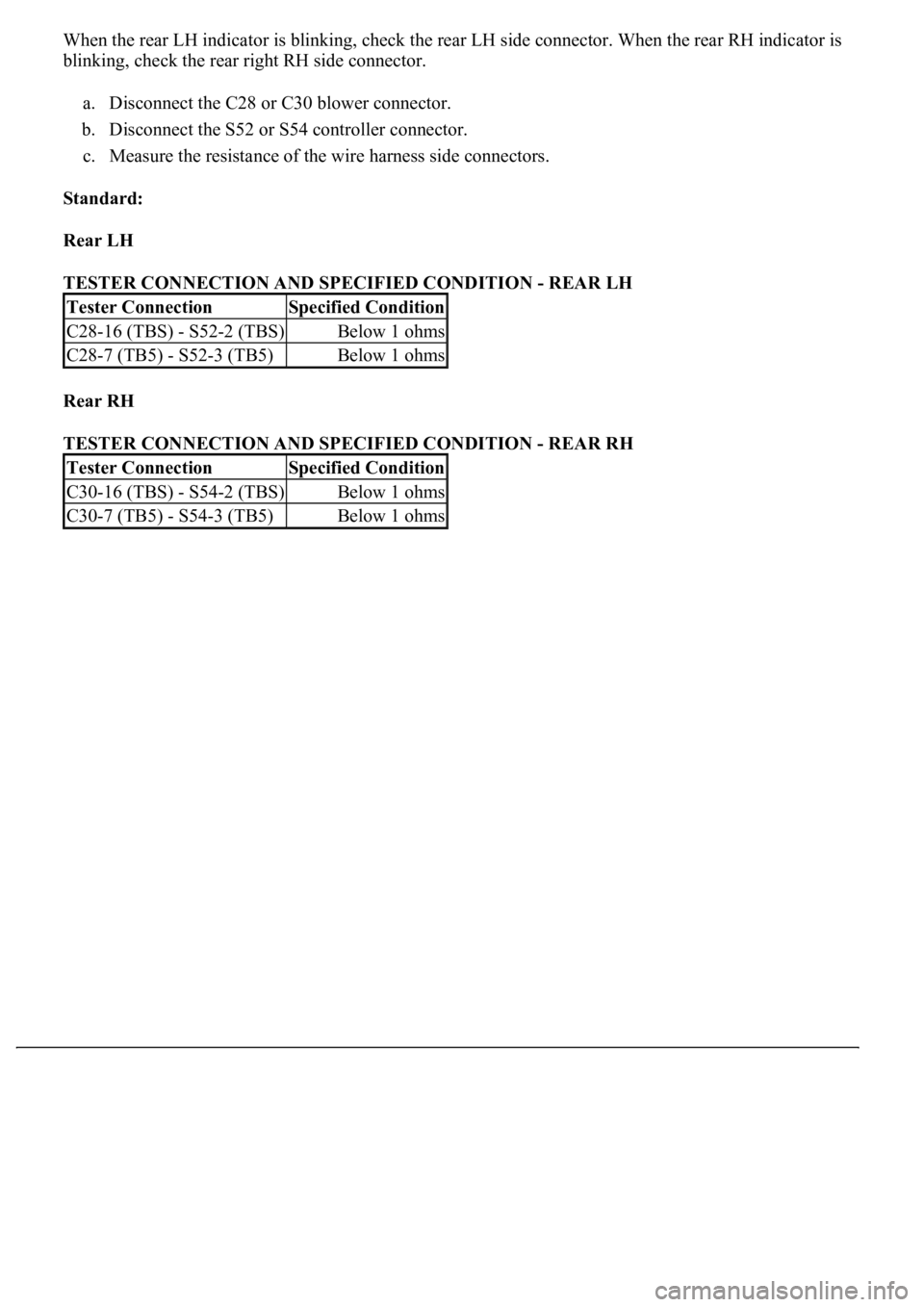

LEXUS LS430 2003 Factory Repair Manual When the rear LH indicator is blinking, check the rear LH side connector. When the rear RH indicator is blinking, check the rear right RH side connector. a. Disconnect the C28 or C30 blower connecto

Page 1663 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 1664 of 4500

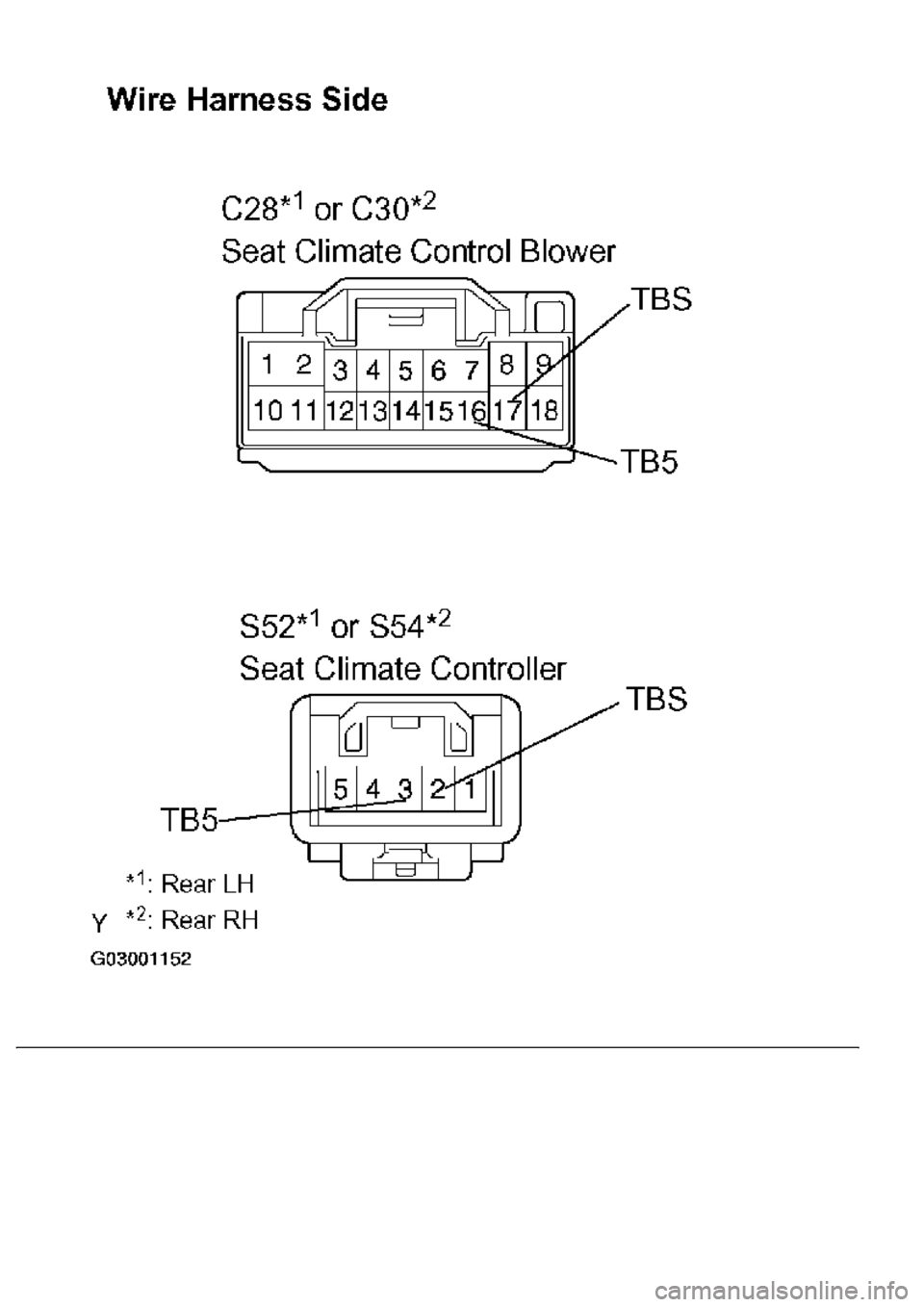

LEXUS LS430 2003 Factory Repair Manual Fig. 48: Identifying Seat Climate Control Blower Connector Terminals And Seat Climate Controller Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND C
