Page 4361 of 4500

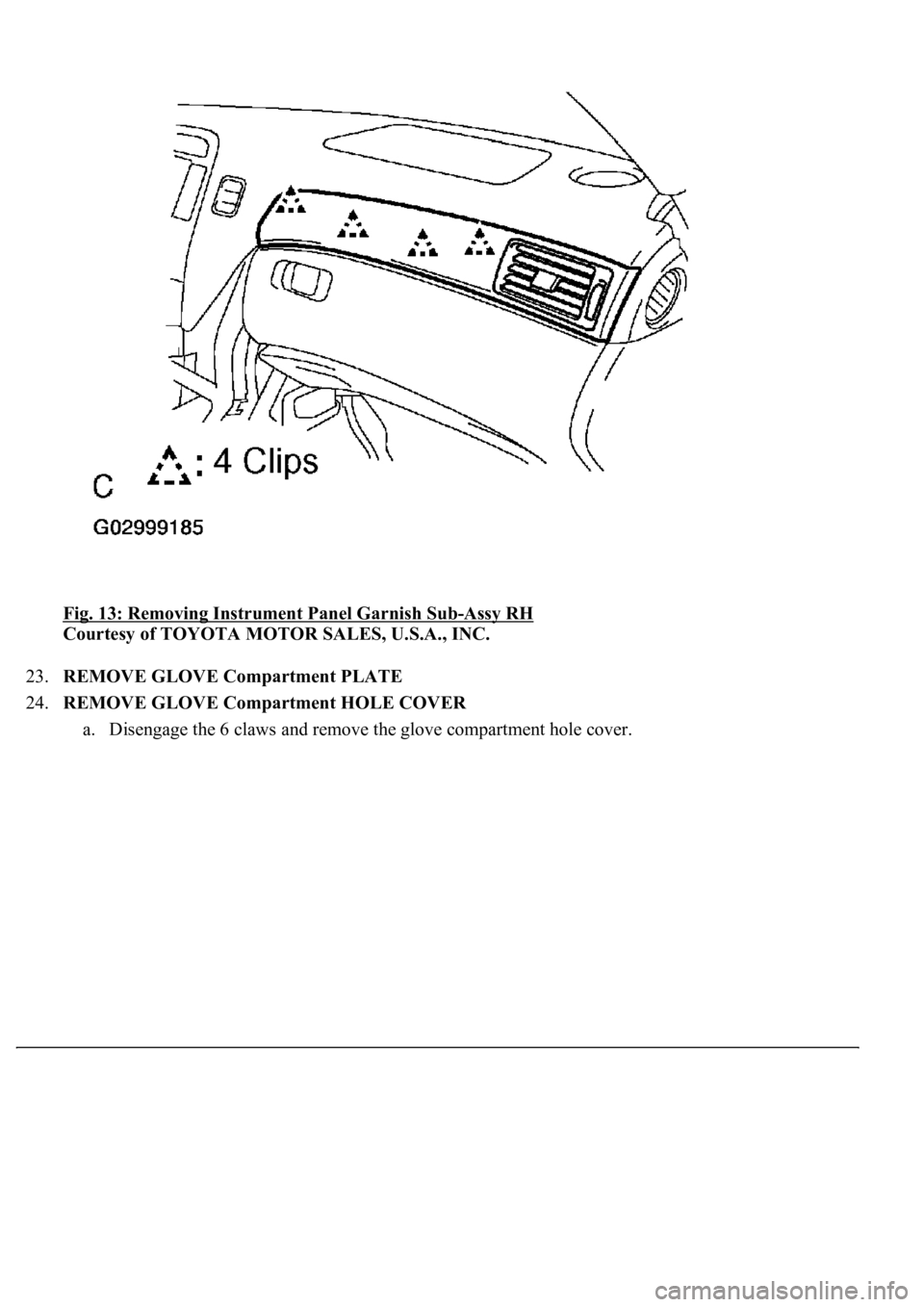

LEXUS LS430 2003 Factory Repair Manual Fig. 13: Removing Instrument Panel Garnish Sub-Assy RH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 23.REMOVE GLOVE Compartment PLATE 24.REMOVE GLOVE Compartment HOLE COVER a. Disengage the 6 cla

Page 4362 of 4500

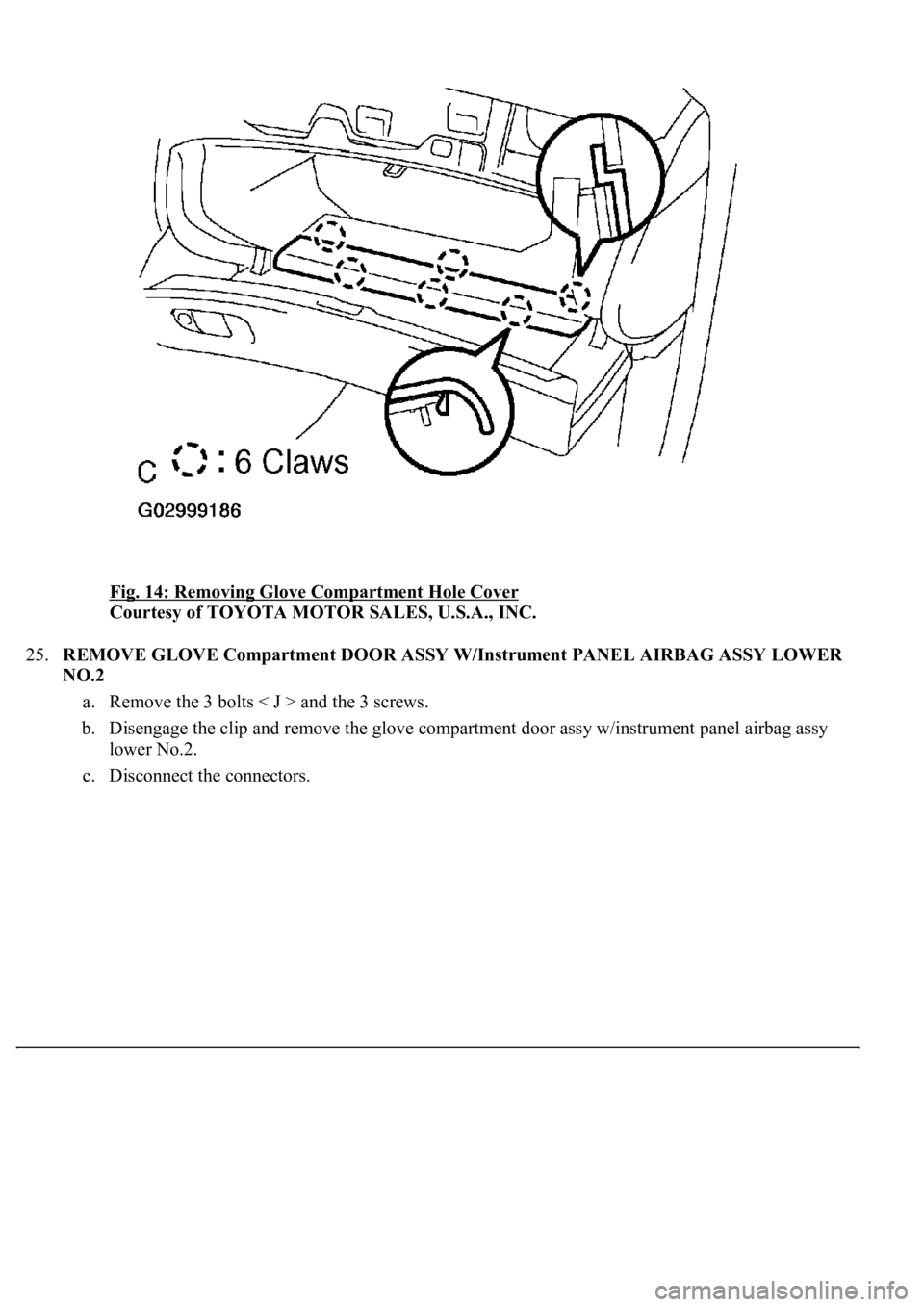

LEXUS LS430 2003 Factory Repair Manual Fig. 14: Removing Glove Compartment Hole Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 25.REMOVE GLOVE Compartment DOOR ASSY W/Instrument PANEL AIRBAG ASSY LOWER NO.2 a. Remove the 3 bolts <

Page 4363 of 4500

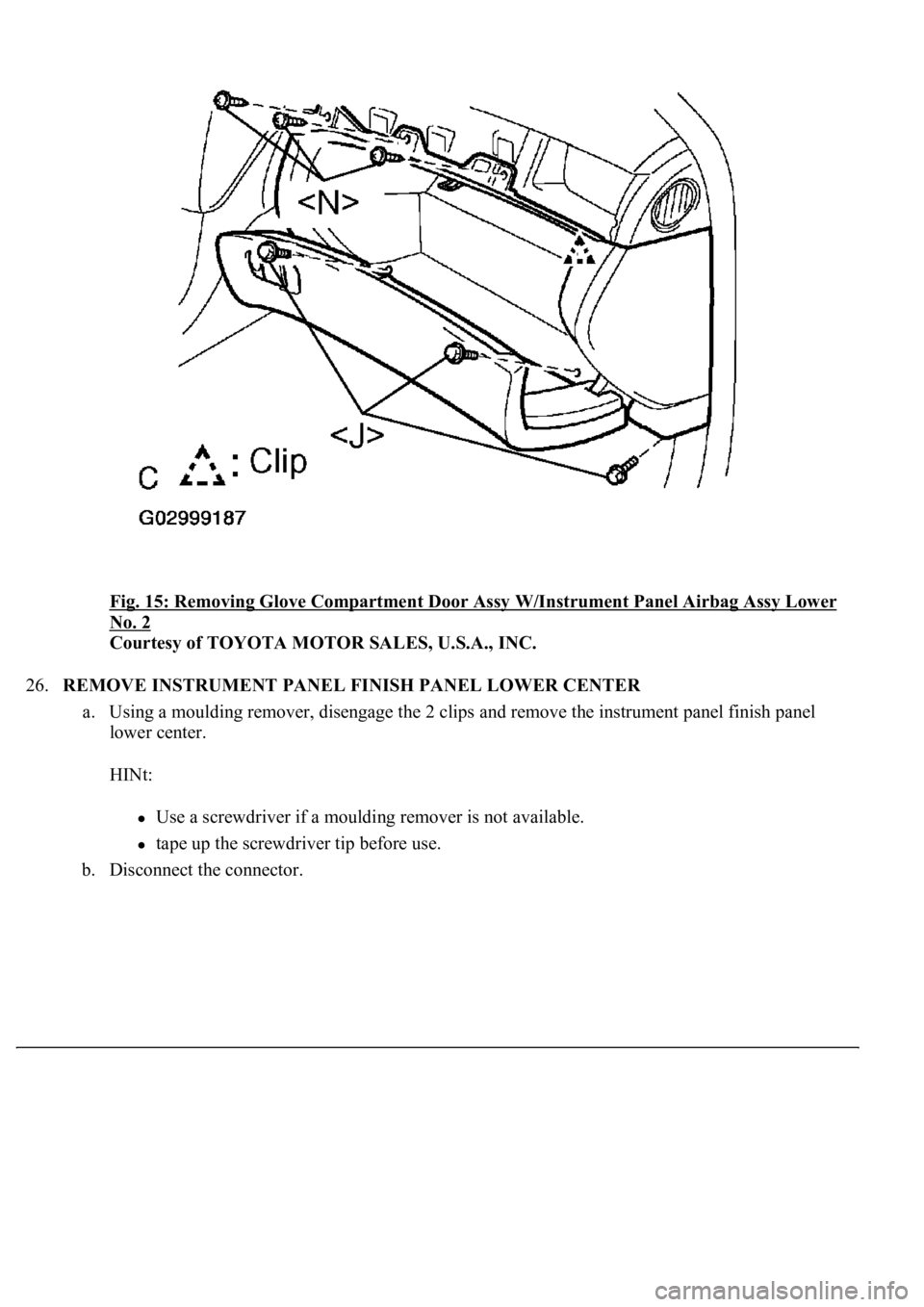

LEXUS LS430 2003 Factory Repair Manual Fig. 15: Removing Glove Compartment Door Assy W/Instrument Panel Airbag Assy Lower No. 2 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 26.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER a. Using

Page 4364 of 4500

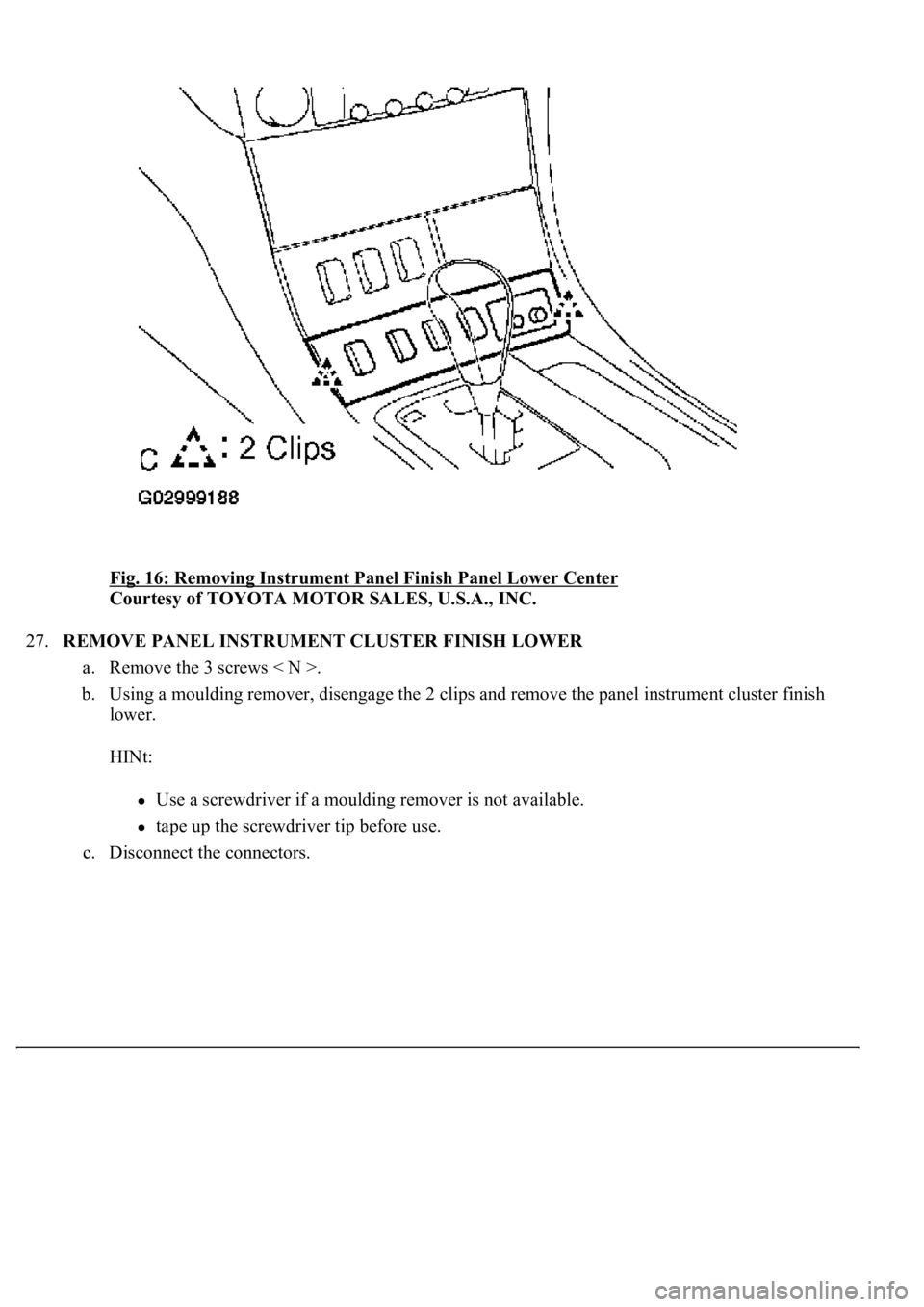

LEXUS LS430 2003 Factory Repair Manual Fig. 16: Removing Instrument Panel Finish Panel Lower Center Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 27.REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER a. Remove the 3 screws < N >. b. Using a

Page 4365 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 17: Removing Panel Instrument Cluster Finish Lower Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 28.REMOVE RADIO RECEIVER ASSY W/BRACKET (SEE REPLACEMENT ) 29.REMOVE TEMPERATURE CONTROL SWITC

Page 4366 of 4500

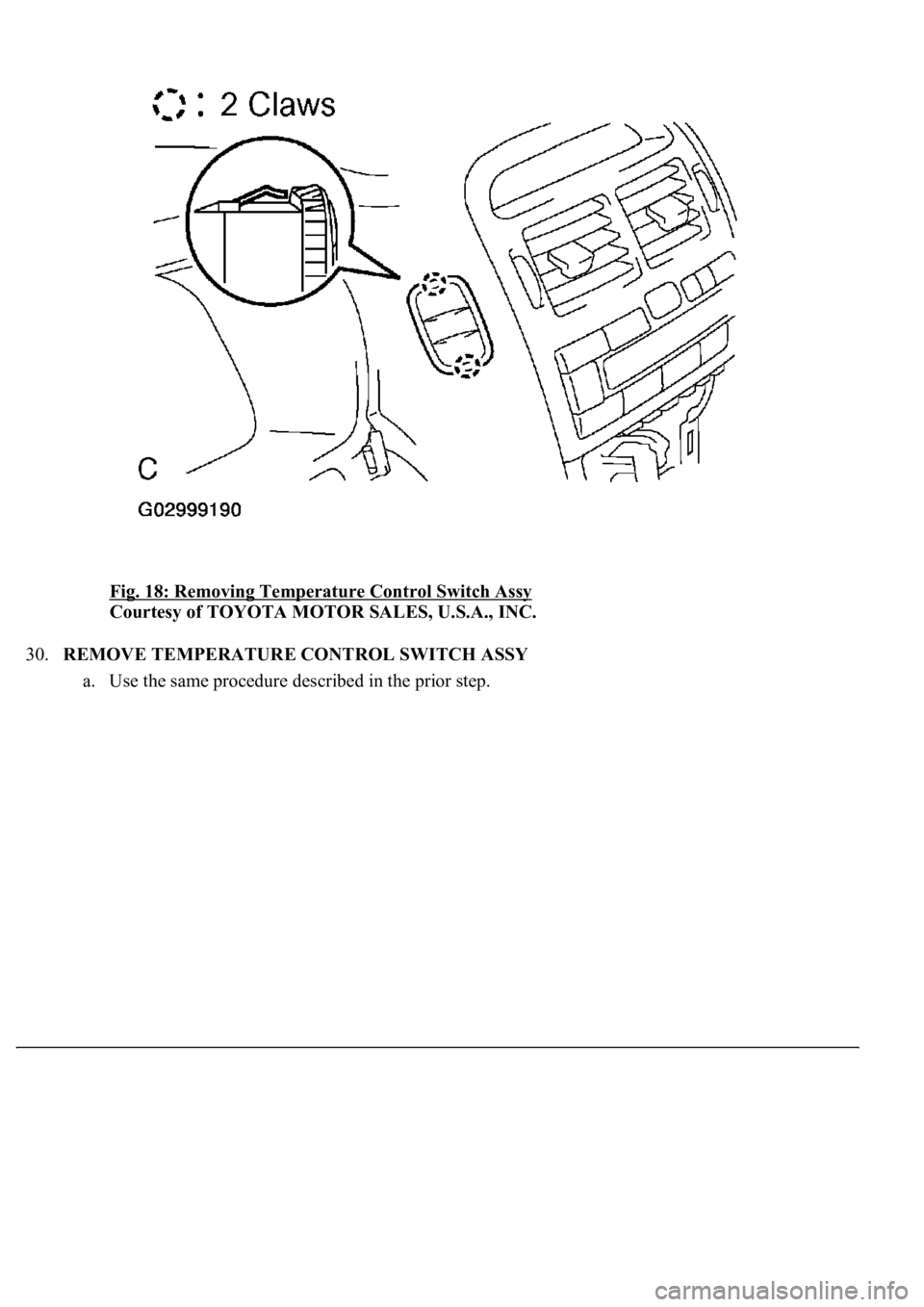

LEXUS LS430 2003 Factory Repair Manual Fig. 18: Removing Temperature Control Switch Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 30.REMOVE TEMPERATURE CONTROL SWITCH ASSY a. Use the same procedure described in the prior step.

Page 4367 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 19: Removing Instrument Cluster Finish Panel Sub-Assy Center (W/ Lexus Navigation System) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 31.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER

Page 4368 of 4500

LEXUS LS430 2003 Factory Repair Manual c. Disconnect the connectors. 32.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (W/O LEXUS NAVIGATION SYSTEM) a. Remove the 2 bolts. HINt: Be careful not to drop the bolts when removing
