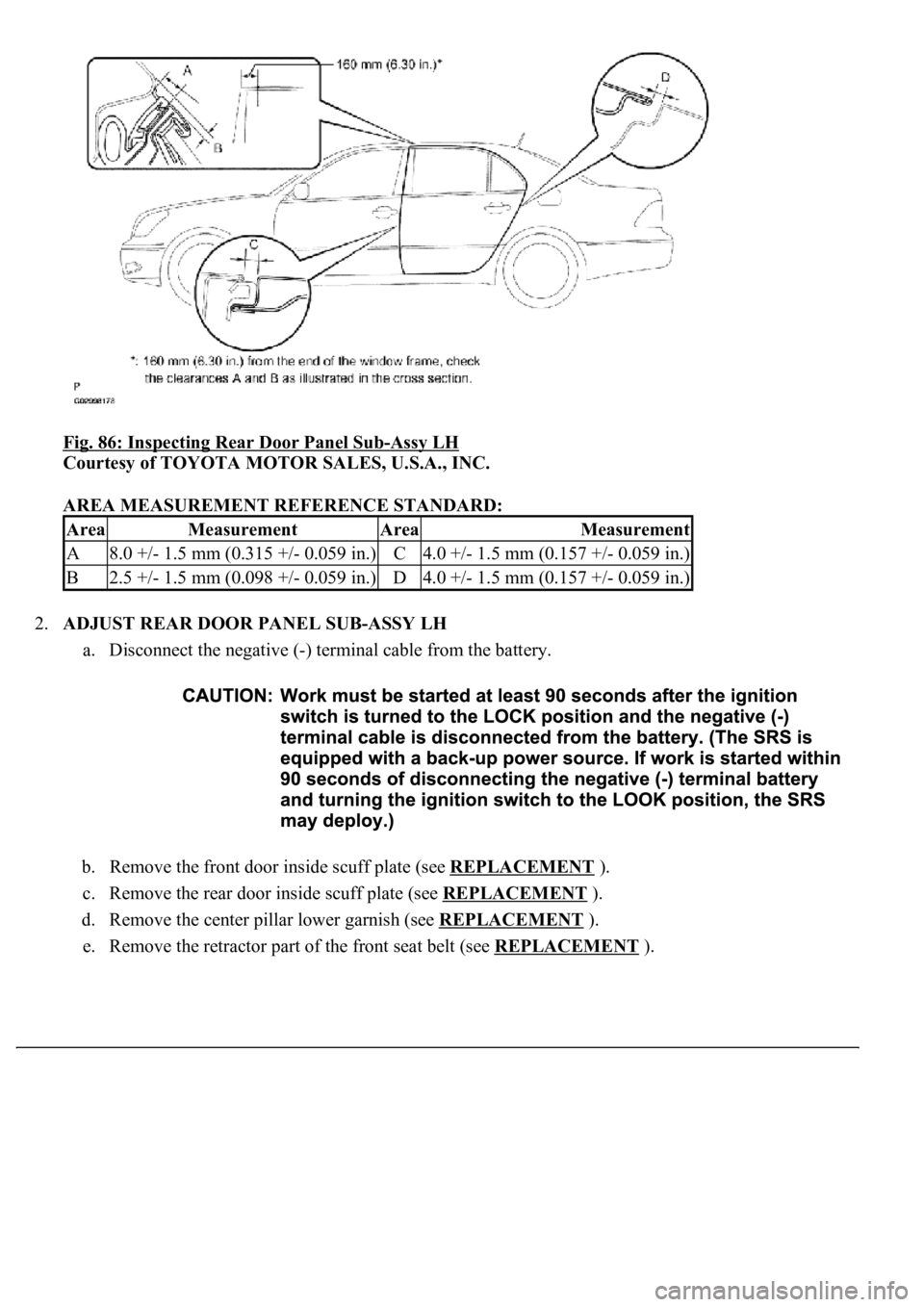

Fig. 86: Inspecting Rear Door Panel Sub-Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
AREA MEASUREMENT REFERENCE STANDARD:
2.ADJUST REAR DOOR PANEL SUB-ASSY LH
a. Disconnect the negative (-) terminal cable from the battery.
b. Remove the front door inside scuff plate (see REPLACEMENT
).
c. Remove the rear door inside scuff plate (see REPLACEMENT
).
d. Remove the center pillar lower garnish (see REPLACEMENT
).
e. Remove the retractor part of the front seat belt (see REPLACEMENT
).
AreaMeasurementAreaMeasurement
A8.0 +/- 1.5 mm (0.315 +/- 0.059 in.)C4.0 +/- 1.5 mm (0.157 +/- 0.059 in.)
B2.5 +/- 1.5 mm (0.098 +/- 0.059 in.)D4.0 +/- 1.5 mm (0.157 +/- 0.059 in.)
Page 3074 of 4500
Fig. 87: Removing Front Door Inside Scuff Plate
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
f. As shown in the illustration, horizontally and vertically adjust the door by loosening the body side
hinge nuts.
g. Tighten the body side hinge nuts after the adjustment.
Torque: 32.5 N.m (332 kgf.cm, 24 ft.lbf)
Page 3075 of 4500
Fig. 88: Tightening Body Side Hinge Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
h. Horizontally and vertically adjust the door by loosening the door side hinge bolts.
i. Tighten the door side hinge bolts after the adjustment.
Torque: 30 N.m (306 kgf.cm. 22 ft.lbf
Page 3076 of 4500
Fig. 89: Tightening Door Side Hinge Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
j. Using a screwdriver, disengage the 4 claws and remove the cover.
HINT:
Tape the screwdriver tip before use.
Page 3077 of 4500
Fig. 90: Removing Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
k. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker
with a plastic-faced hammer.
l. Tighten the striker mounting screws after the adjustment.
Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)
m. Connect the negative (-) terminal cable to the battery.
n. Initialize both systems (see INITIALIZATION
).
o. Inspect the SRS warning lamp (see DIAGNOSIS SYSTEM
).
Page 3078 of 4500
Fig. 91: Inspecting SRS Warning Lamp
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OVERHAUL
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation
procedures requiring additional information are included.
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
1.REMOVE REAR DOOR INSIDE HANDLE BEZEL LH
a. Using a screwdriver, disengage the 3 claws and remove the bezel.
HINT:
Tape the screwdriver tip before use.
Page 3079 of 4500
Fig. 92: Removing Rear Door Inside Handle Bezel LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.REMOVE REAR DOOR ARMREST BASE PANEL UPPER
a. Using a screwdriver, pry the armrest panel assembly.
HINT:
Tape the screwdriver tip before use.
b. Using a screwdriver, disengage the 2 claws and remove the window control switch from the
armrest panel assembly.
HINT:
Tape the screwdriver tip before use.
c. Disconnect the connector and ash receptacle light, and remove the armrest base panel assembly.
d. Remove the 2 screws and armrest base panel lower from the armrest base panel upper.
Page 3080 of 4500

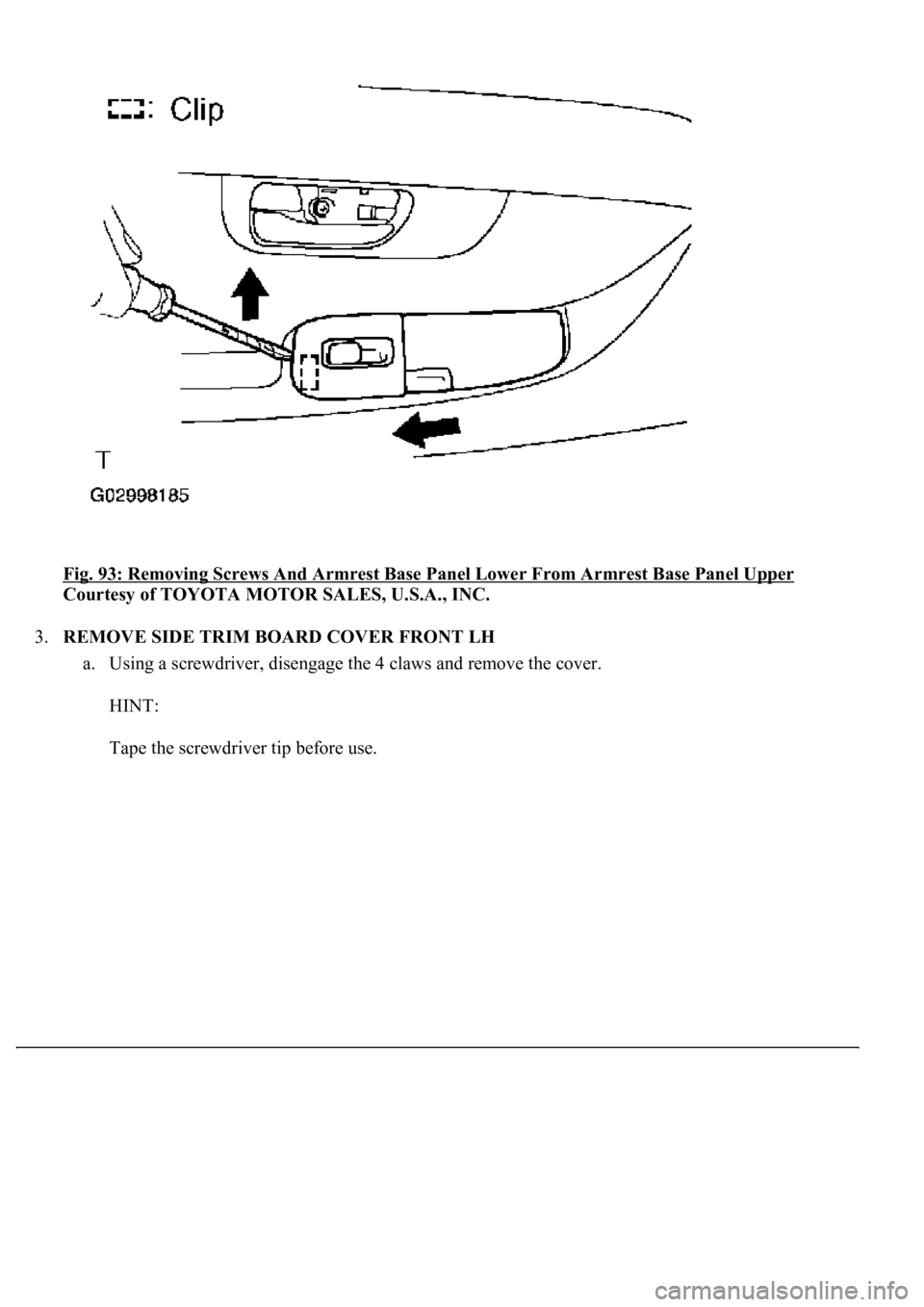

Fig. 93: Removing Screws And Armrest Base Panel Lower From Armrest Base Panel Upper
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.REMOVE SIDE TRIM BOARD COVER FRONT LH
a. Using a screwdriver, disengage the 4 claws and remove the cover.
HINT:
Tape the screwdriver tip before use.
