Page 4161 of 4500

LEXUS LS430 2003 Factory Repair Manual ENGINE ROOM JUNCTION & RELAY BLOCK Fig. 1: Locating Engine Room Fusible Link, Junction & Relay Blocks Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 4162 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 2: Identifying Engine Room No. 1 Junction & Relay Block Components Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Engine Room No. 1 Junction & Relay Block Fuses FuseSystem 7.5AA/C IGAutomatic Ai

Page 4163 of 4500

LEXUS LS430 2003 Factory Repair Manual Dynamic Radar/Laser Cruise Control System Electronically Controlled Transmission and A/T Indicator Headlight Cleaner Key Reminder (w/ Smart Key System) LEXUS Navigation System LEXUS Parking Assis

Page 4164 of 4500

LEXUS LS430 2003 Factory Repair Manual FUSIBLE LINK BLOCK Wireless Door Lock Control (w/ Smart Key System) 10AINJEngine Control Starting and Ignition 15AFR FOGFront Fog Light Multiplex Communication System (BEAN - Steering Column Bus) 1

Page 4165 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 4166 of 4500

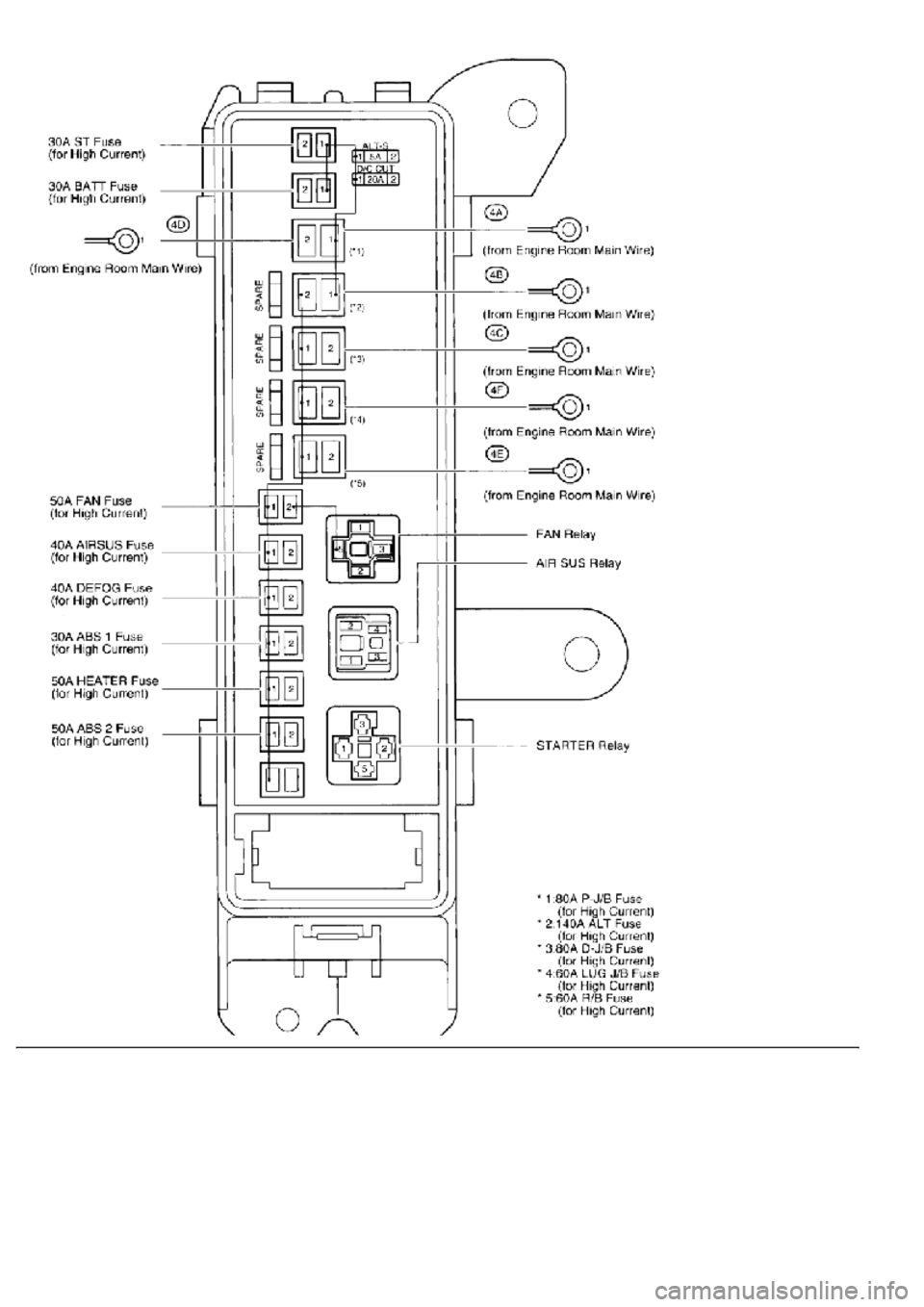

LEXUS LS430 2003 Factory Repair Manual Fig. 3: Identifying Fusible Link Block Components Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Fusible Link Block Fuses FuseSystem 5AALT-SCharging 30AABS 1Dynamic Radar/Laser Cruise Control System

Page 4167 of 4500

LEXUS LS430 2003 Factory Repair Manual DRIVER SIDE JUNCTION BLOCK Fig. 4: Locating Instrument Panel Junction & Relay Blocks Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Theft Deterrent (w/ Smart Key System) Wireless Door Lock Control (

Page 4168 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 5: Identifying Driver Side Junction Block Components (Fuses) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
