Fig. 1: Identifying ABS With EBD & BA & TRAC & VSC System Components Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 24 of 4500
Fig. 17: Identifying VSC Test
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Check that the display changes to "VSC Test" on the multi-information display.
HINT:
"VSC" is displayed while obtaining the zero point. "VSC Test" is displayed when it is
completed.
The zero point calibration is performed only once after the system enters the test mode.
Calibration cannot be performed again until the stored data is cleared once.
f. Turn the ignition switch off.
1.WARNING LIGHT AND INDICATOR LIGHT CHECK
a. Release the parking brake pedal.
Page 26 of 4500

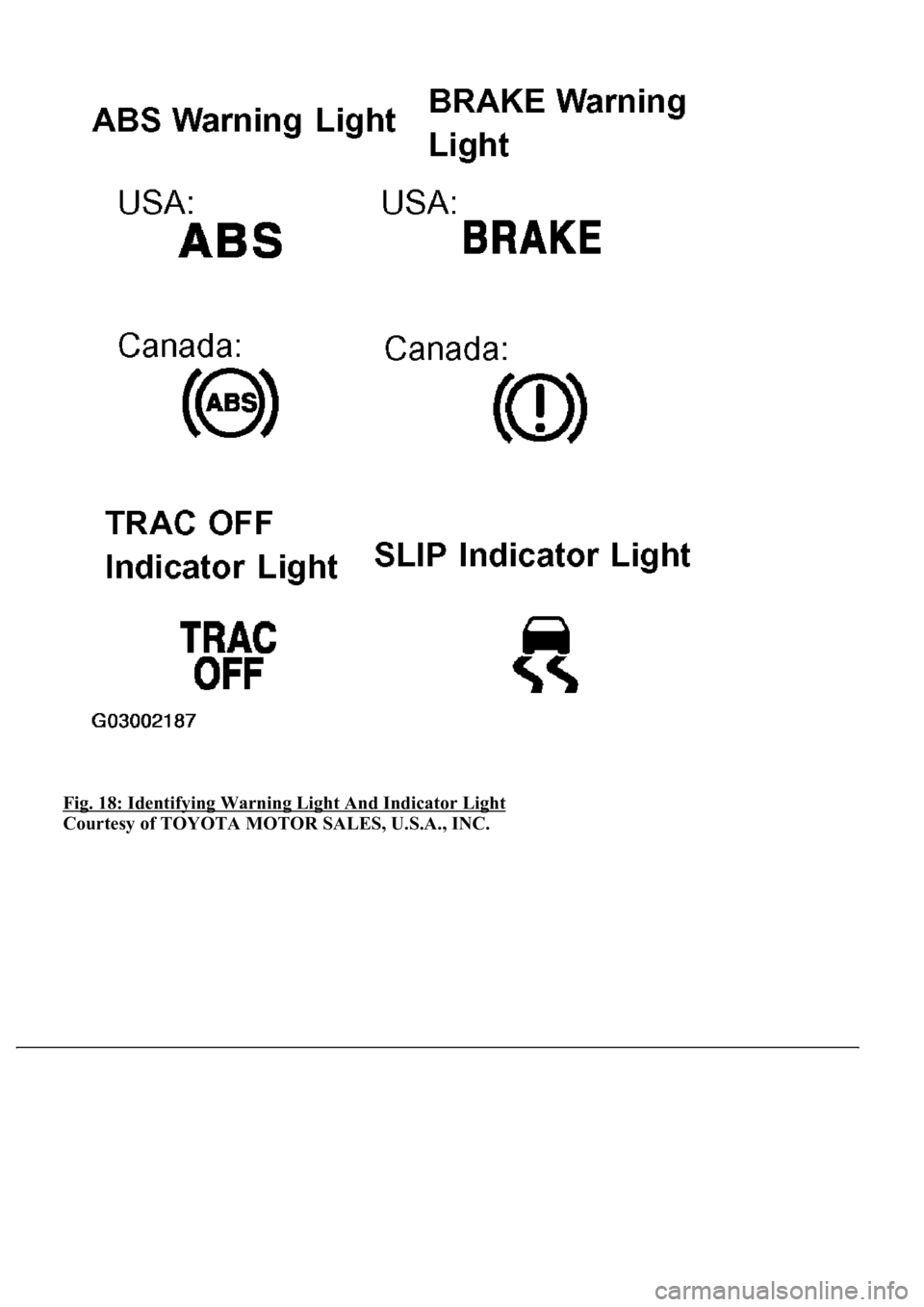

Fig. 18: Identifying Warning Light And Indicator Light
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 27 of 4500
Fig. 19: Identifying VSC Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
If the indicator remains on, proceed to troubleshooting for the light circuit below.
TROUBLE AREA REFERENCE
2.SENSOR SIGNAL CHECK BY TEST MODE
HINT:
If the ignition switch is turned from ON to the ACC or LOCK position during test mode, DTC of
Trouble areaSee Procedure
ABS warning light circuitABS WARNING LIGHT CIRCUIT (REMAINS ON)
BRAKE warning light circuitBRAKE WARNING LIGHT CIRCUIT
TRAC OFF indicator light
circuitTRAC OFF INDICATOR LIGHT, TRAC OFF SWITCH
CIRCUIT
SLIP indicator light circuitSLIP INDICATOR LIGHT CIRCUIT
Page 30 of 4500
HINT:
The blinking pattern of the ABS warning lamp and the "VSC Test" display on the multi-
information do not change. When the sensor is normal and in the test mode, if the above conditions
are met, the check is completed.
Fig. 22: Identifying VSC Test Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. CHECK THE MASTER CYLINDER PRESSURE SENSOR
1. Leaving the vehicle in a stationary condition engine is off and the brake pedal in a free
condition for 1 second. or more, continue to quickly depress the brake pedal with a force of
98 N (10 kgf, 22 lbf) or more for 1 second, or more.
HINT:
At this time, the ABS warnin
g light stays on for 3 seconds.
Page 33 of 4500
Fig. 24: Identifying VSC Test Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. BRAKE PEDAL LOAD SENSING SWITCH CHECK
1. Keep depressing the brake pedal for one second or more with a brake pedal load of
approximately 59 N (6kgf) with the ignition switch in the ON position (engine is off).
2. Check if the brake warning lamp comes on and the ABS motor operating sound can be heard.
HINT:
If rechecking the brake pedal load sensing switch after the engine starts, exit the test mode
and enter the test mode to release the negative pressure in the booster by pumping the brake
pedal.
3. Start the engine and depress the brake pedal with a brake pedal load of approximately 59 N
(6 kgf) or more to check if the brake warning lamp goes off.
f. SPEED SENSOR CHECK
1. Check the ABS warnin
g lamp is blinking in TEST MODE.
Page 34 of 4500
2. Drive the vehicle straight forward.
Drive the vehicle at a speed of 28 to 50 mph (45 to 80 km/h) or higher for several seconds and
check that the ABS warning light goes off.
Fig. 25: Identifying ABS Warning Light Blinking Pattern
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
VEHICLE SPEED SPECIFICATIONS
HINT:
Vehicle SpeedTestCheck
0 to 28 mph (0 to 45 km/h)Low speed testResponse of sensors
28 to 50 mph (45 to 80 km/h)Middle speed testDeviations of sensor signal
Page 36 of 4500

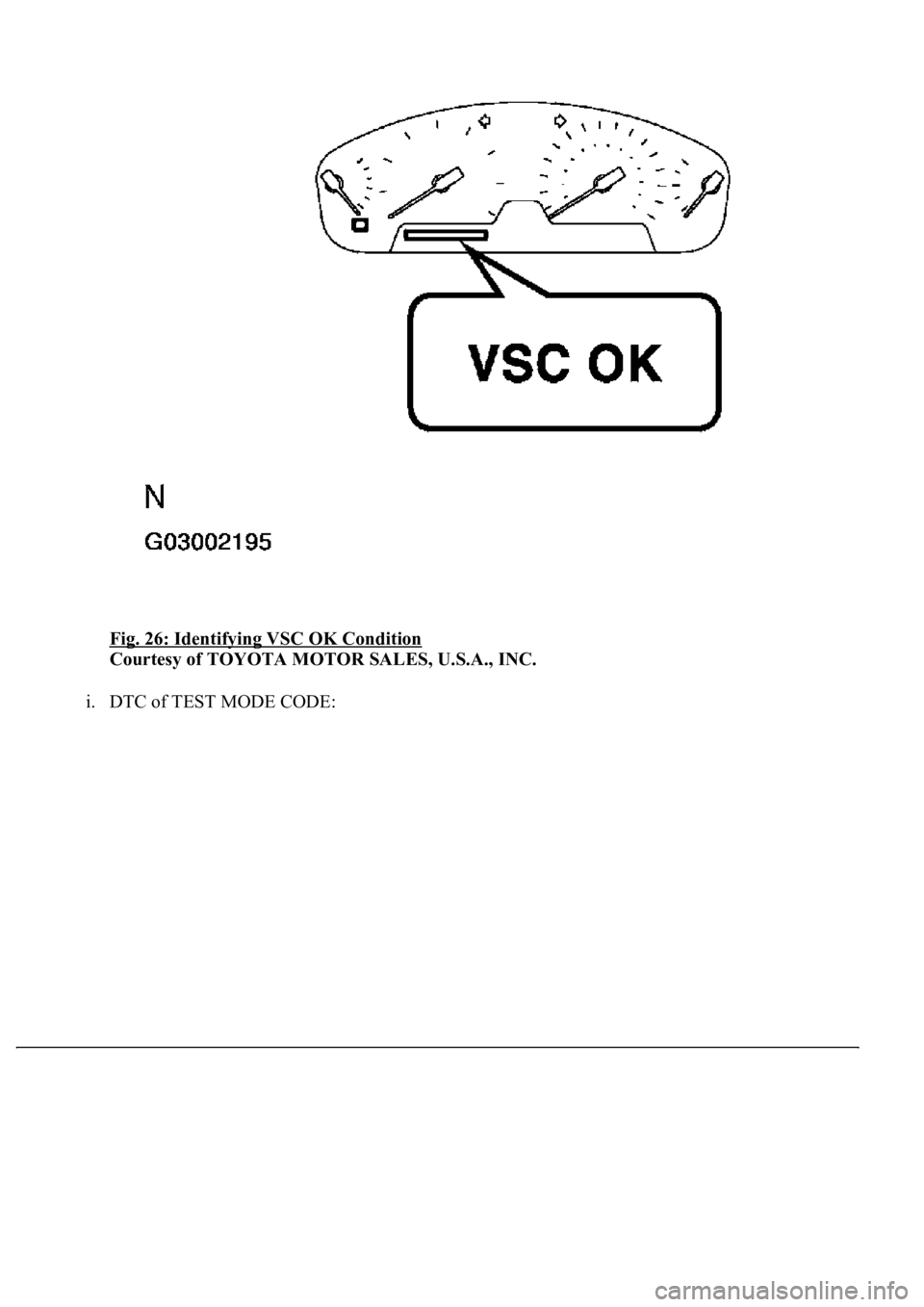

Fig. 26: Identifying VSC OK Condition
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
i. DTC of TEST MODE CODE:
