2003 LEXUS LS430 fuel type

Fluid SpecificationsSee FLUIDS under MAINTENANCE tab.
Flywheel/Flex Plate
(Drive Plate) TorqueStep1: 49 N.m (500 kgf.cm, 36 ft lbs)
Step2: Turn 90°
Fuel System
Pressure
Specification304 to 343 kPa (3.1 to 3.5 kgf/cm2 , 44 to 50 psi)
Fuel Pressure Test
ProcedureON-VEHICLE INSPECTION
Fuel Filter
LocationCOMPONENTS
Ignition
Firing Order &
Cylinder
IdentificationFIRING ORDER & CYLINDER IDENTIFICATION
Spark Plug
TypeND SK20R11
NGK 1FR6A11
GapStandard electrode gap: 1.0 - 1.1 mm (0.039 - 0.043 in.)
Maximum electrode gap: 1.3 mm (0.051 in.)
Torque7.5 N.m (76 kgf.cm, 66 ft.lbf)
Starting
StarterSERVICE DATA
TorqueTORQUE SPECIFICATION
Wheel Alignment
Front
Adjustment
SpecificationsSERVICE DATA
TorqueTORQUE SPECIFICATION
Rear
Adjustment
SpecificationsSERVICE DATA
TorqueTORQUE SPECIFICATION
Wheel & Tire
Wheel Lug Nut
Torque103 N.m (1,050 kgf.cm 76 ft.lbf)

LS 430
CEC
Computerized Engine Controls
EVAP
Fuel Evaporative System
EVAP-CCVVSV
EVAP Canister Closed Valve Vacuum Switching Valve
EVAP-VC
EVAP Vapor Canister
EVAP-VPS
EVAP Vapor Pressure Sensor
EVAP-VPSVSV
Vapor Pressure Sensor Vacuum Switching Valve
Engine & Fuel System(1) Emission Control Systems & Devices
2006

4.3L (261") V8 SFIPCV, EVAP, (2) TWC, FR, SPK, (3) HO2S, CEC,
MIL, EVAP-VSV, EVAP-VC, EVAP-VPS, EVAP-
VPSVSV, EVAP-CCVVSV, ORVR-COV, ORVR-
OCKV
(1)For quick reference, major emission control systems and devices are listed in bold type; components
and other related devices are listed in light type.
(2)Equipped with 3.
(3)Equipped with 4.

Fig. 8: Installing Injector To Delivery Pipe And Lower Intake Manifold
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. Observe these precautions when disconnecting the fuel tube connector (quick type):
1. Disen
gage the lock claw by lifting up the cover, as shown in the illustration.

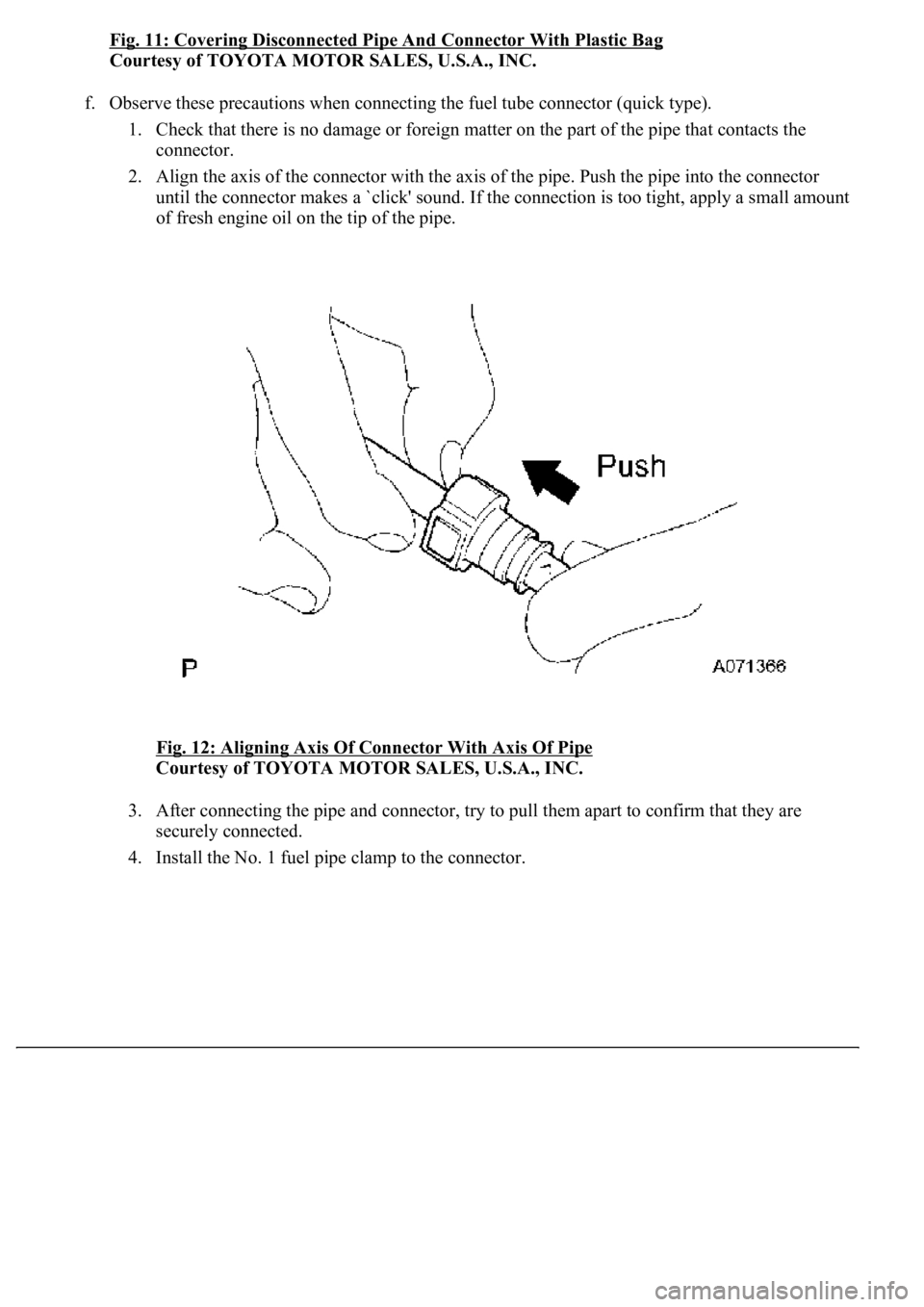

Fig. 11: Covering Disconnected Pipe And Connector With Plastic Bag
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
f. Observe these precautions when connecting the fuel tube connector (quick type).
1. Check that there is no damage or foreign matter on the part of the pipe that contacts the
connector.
2. Align the axis of the connector with the axis of the pipe. Push the pipe into the connector
until the connector makes a `click' sound. If the connection is too tight, apply a small amount
of fresh engine oil on the tip of the pipe.
Fig. 12: Aligning Axis Of Connector With Axis Of Pipe

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. After connecting the pipe and connector, try to pull them apart to confirm that they are
securely connected.
4. Install the No. 1 fuel pipe clamp to the connector.

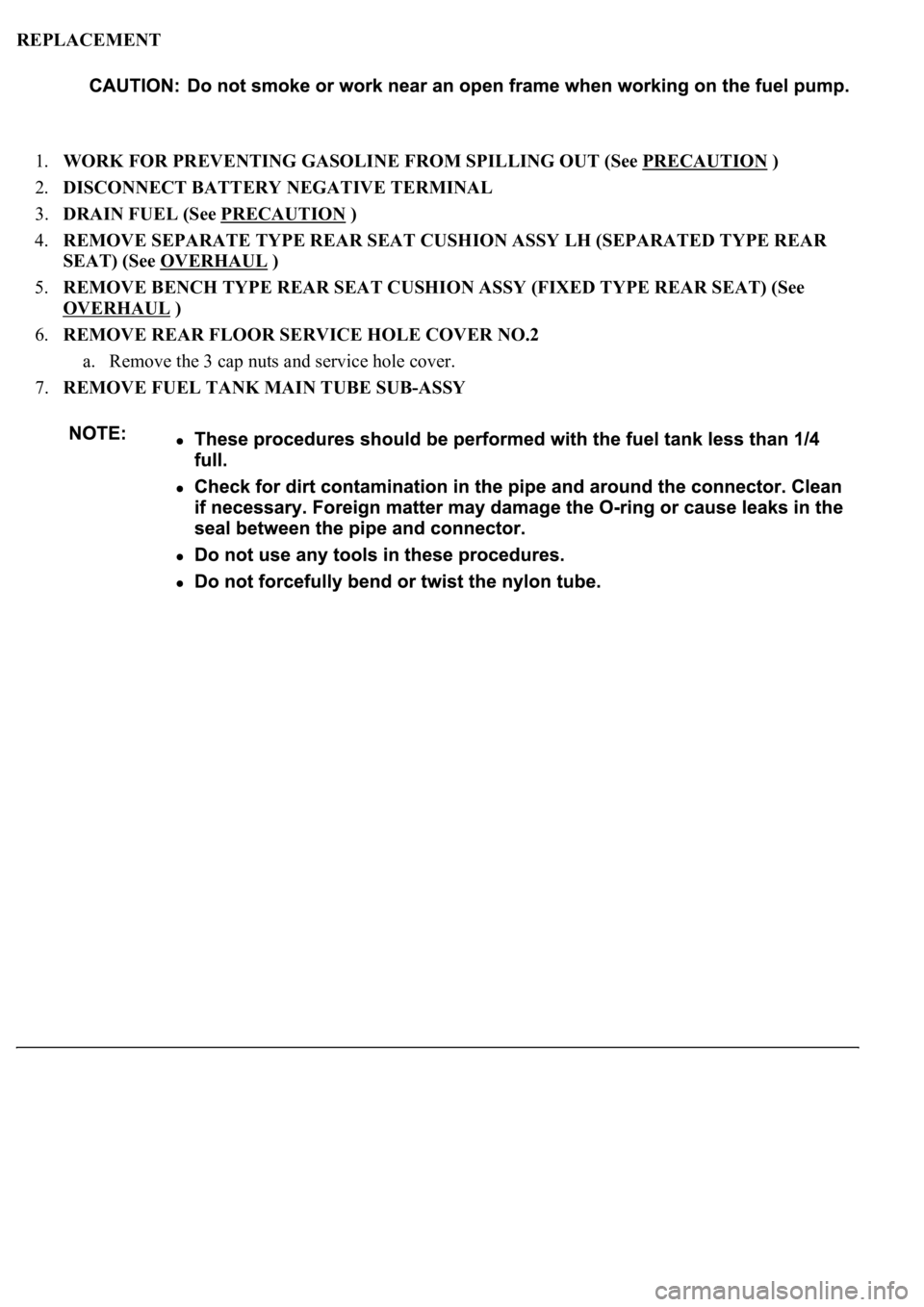

REPLACEMENT
1.WORK FOR PREVENTING GASOLINE FROM SPILLING OUT (See PRECAUTION
)
2.DISCONNECT BATTERY NEGATIVE TERMINAL
3.DRAIN FUEL (See PRECAUTION
)
4.REMOVE SEPARATE TYPE REAR SEAT CUSHION ASSY LH (SEPARATED TYPE REAR
SEAT) (See OVERHAUL
)
5.REMOVE BENCH TYPE REAR SEAT CUSHION ASSY (FIXED TYPE REAR SEAT) (See
OVERHAUL
)
6.REMOVE REAR FLOOR SERVICE HOLE COVER NO.2
a. Remove the 3 cap nuts and service hole cover.
7.REMOVE FUEL TANK MAIN TUBE SUB-ASSY

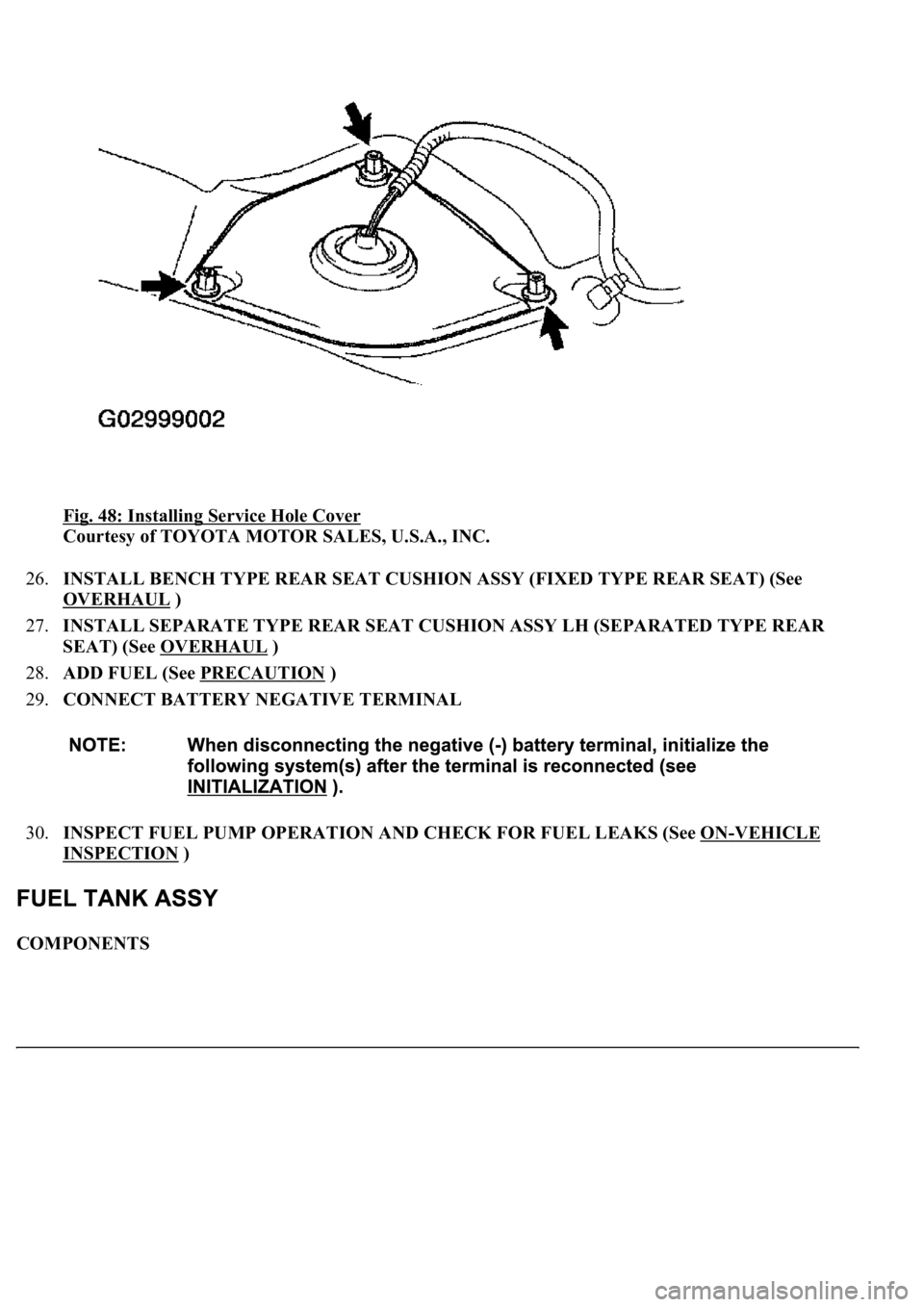

Fig. 48: Installing Service Hole Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.INSTALL BENCH TYPE REAR SEAT CUSHION ASSY (FIXED TYPE REAR SEAT) (See
OVERHAUL
)
27.INSTALL SEPARATE TYPE REAR SEAT CUSHION ASSY LH (SEPARATED TYPE REAR
SEAT) (See OVERHAUL
)
28.ADD FUEL (See PRECAUTION
)
29.CONNECT BATTERY NEGATIVE TERMINAL
30.INSPECT FUEL PUMP OPERATION AND CHECK FOR FUEL LEAKS (See ON
-VEHICLE
INSPECTION )
COMPONENTS

1.WORK FOR PREVENTING GASOLINE FROM SPILLING OUT (See PRECAUTION )
2.DISCONNECT BATTERY NEGATIVE TERMINAL
3.DRAIN FUEL (See PRECAUTION
)
4.REMOVE SEPARATE TYPE REAR SEAT CUSHION ASSY LH (SEPARATED TYPE REAR
SEAT) (See OVERHAUL
)
5.REMOVE BENCH TYPE REAR SEAT CUSHION ASSY (FIXED TYPE REAR SEAT) (See
OVERHAUL
)
6.REMOVE REAR FLOOR SERVICE HOLE COVER NO.2 (See REPLACEMENT
)

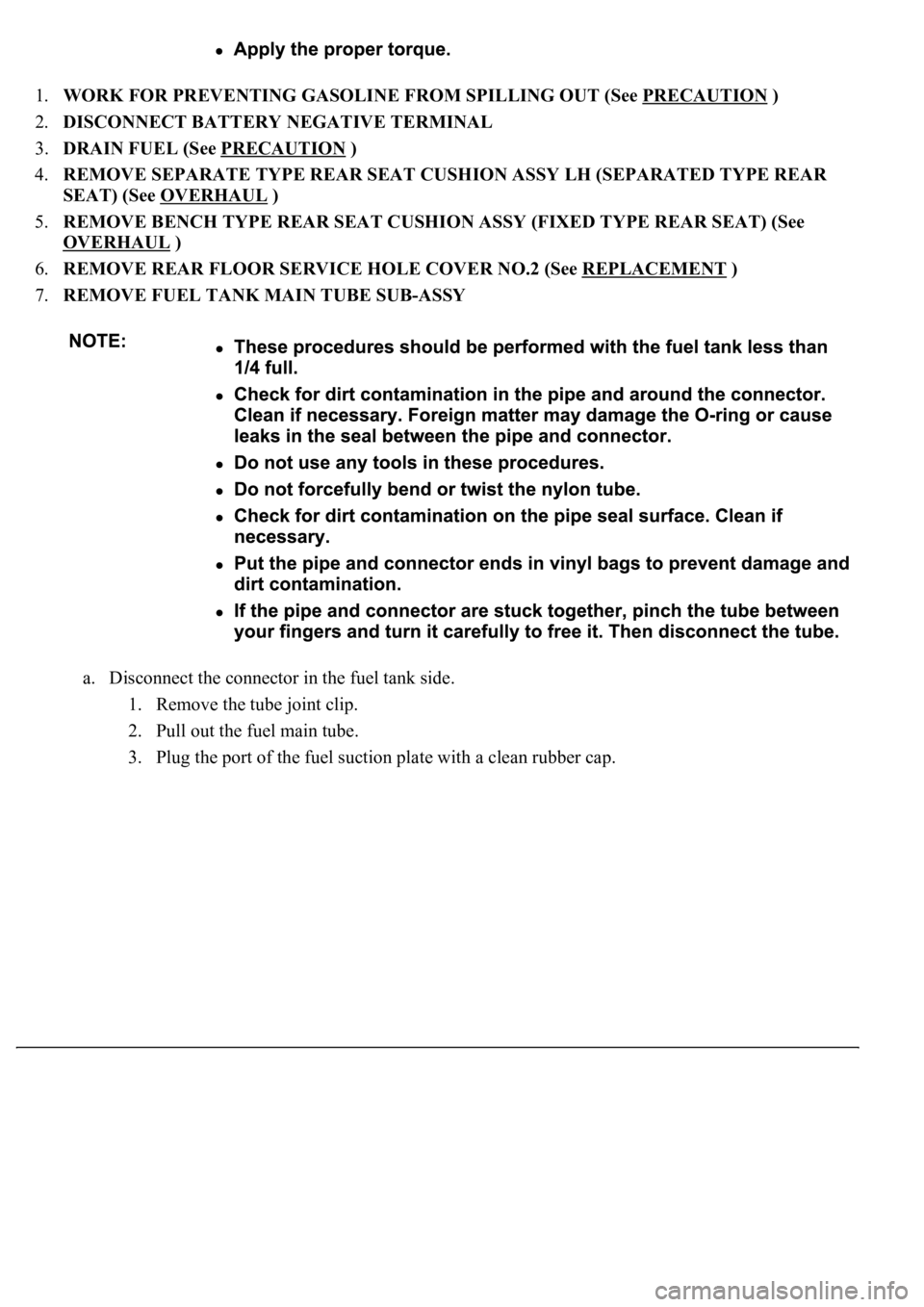

7.REMOVE FUEL TANK MAIN TUBE SUB-ASSY
a. Disconnect the connector in the fuel tank side.
1. Remove the tube joint clip.
2. Pull out the fuel main tube.
3. Plu
g the port of the fuel suction plate with a clean rubber cap.

Fig. 56: Connecting Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
54.INSTALL REAR FLOOR SERVICE HOLE COVER NO.2 (See REPLACEMENT
)
55.INSTALL BENCH TYPE REAR SEAT CUSHION ASSY (FIXED TYPE REAR SEAT) (See
OVERHAUL
)
56.INSTALL SEPARATE TYPE REAR SEAT CUSHION ASSY LH (SEPARATED TYPE REAR
SEAT) (See OVERHAUL
)
57.ADD FUEL (See PRECAUTION
)
58.CONNECT BATTERY NEGATIVE TERMINAL
