2003 LEXUS LS430 Identifying ac

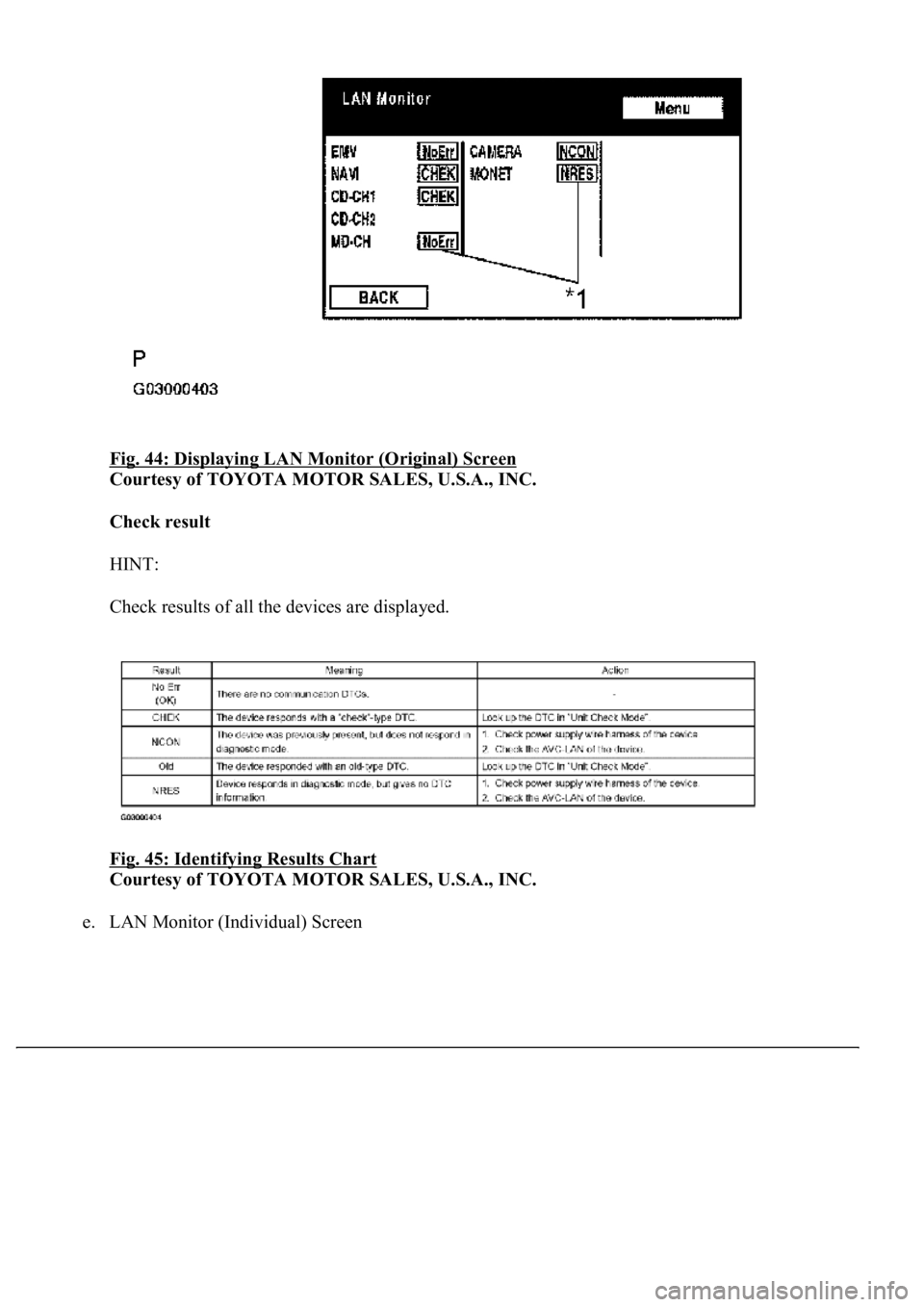

Fig. 44: Displaying LAN Monitor (Original) Screen
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Check result
HINT:
Check results of all the devices are displayed.
Fig. 45: Identifying Results Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. LAN Monitor (Individual) Screen

Fig. 53: Identifying System Normal Condition
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
(g) The following symptoms are not a malfunction, but are caused by errors inherent in the GPS, gyro
sensor, speed sensor, and navigation ECU.
1. The current position mark may be displayed on a nearby parallel road the vehicle actually runs on.

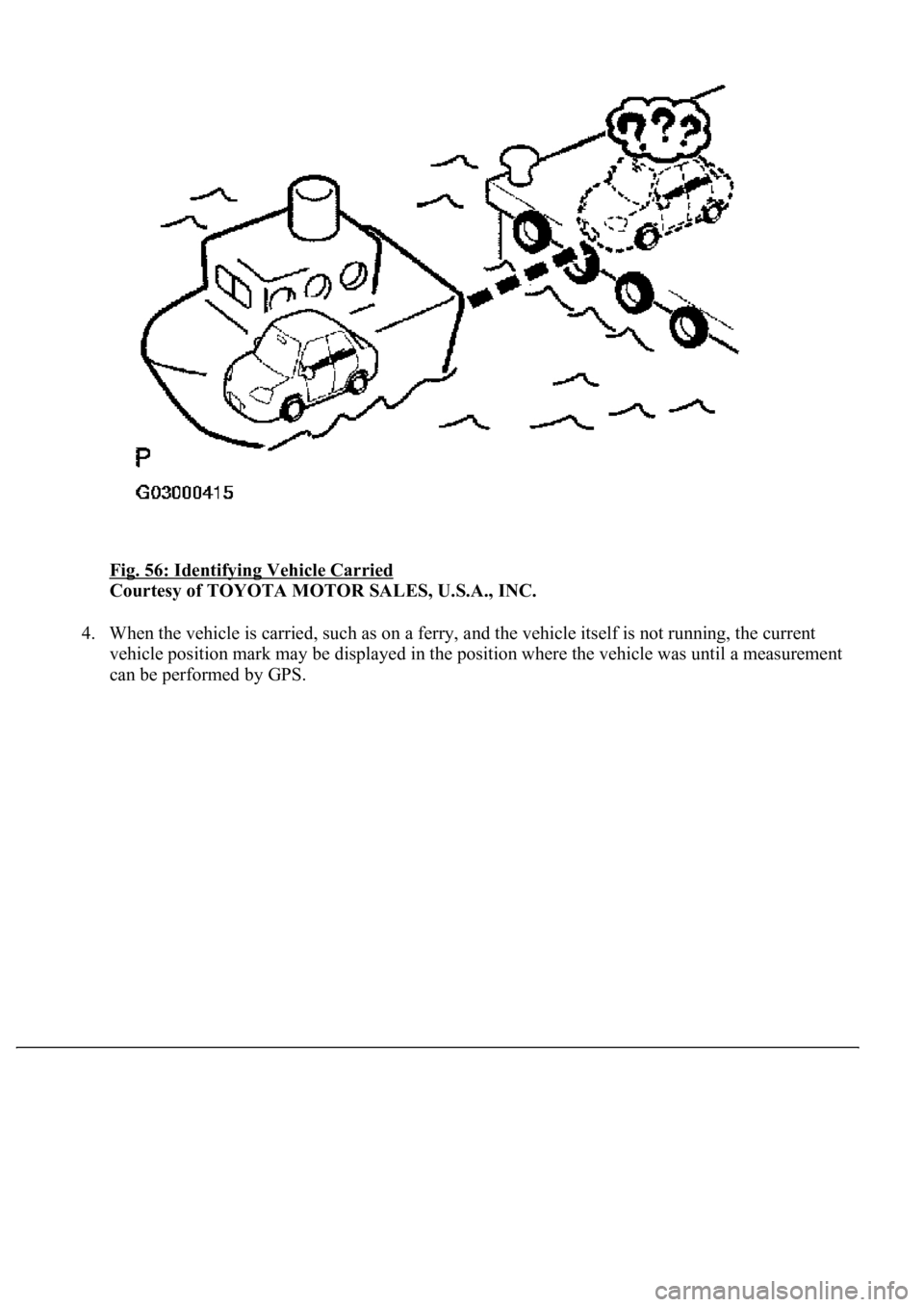

Fig. 56: Identifying Vehicle Carried
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4. When the vehicle is carried, such as on a ferry, and the vehicle itself is not running, the current
vehicle position mark may be displayed in the position where the vehicle was until a measurement
can be performed b
y GPS.

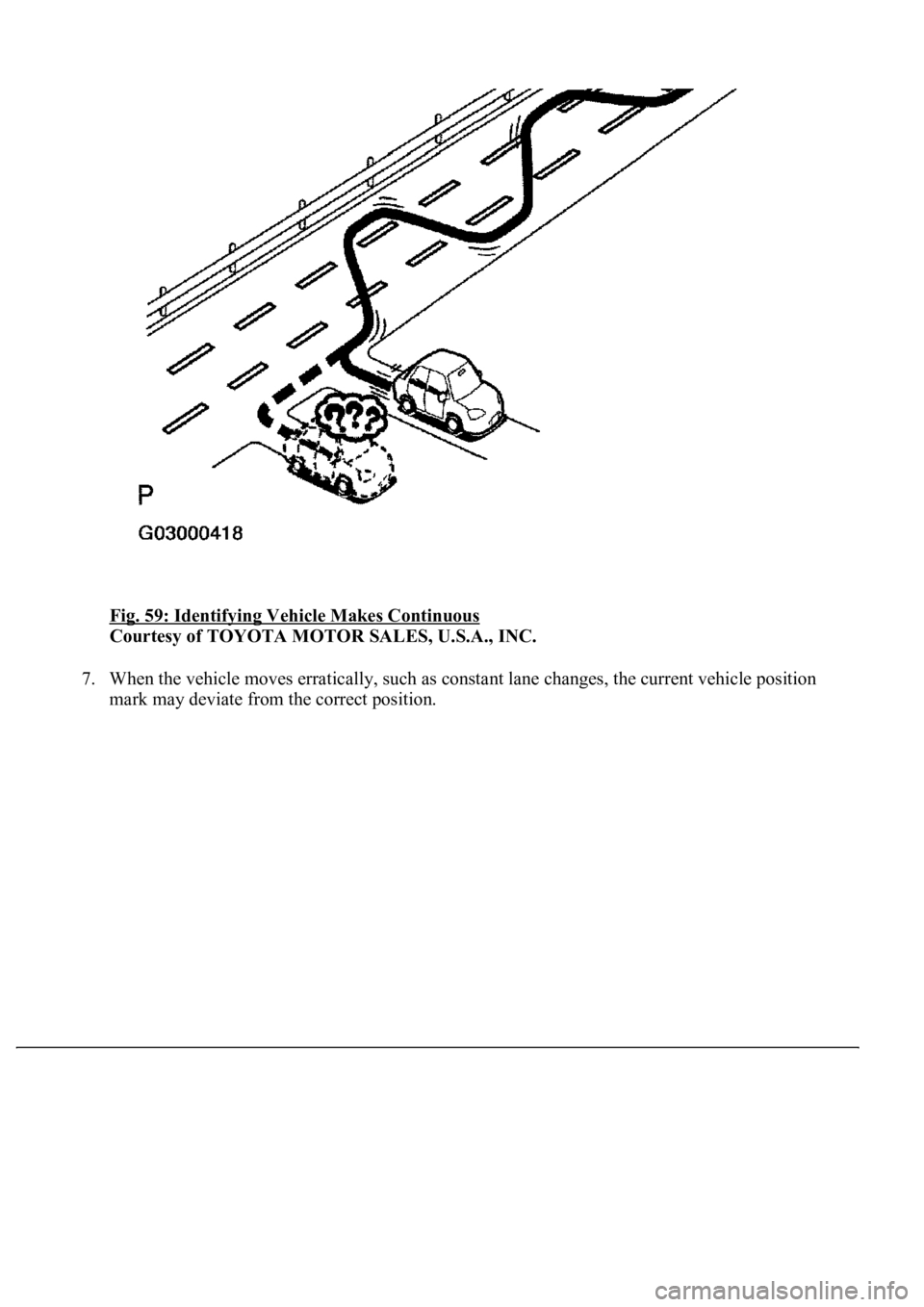

Fig. 59: Identifying Vehicle Makes Continuous
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7. When the vehicle moves erratically, such as constant lane changes, the current vehicle position
mark may deviate from the correct position.
