Page 2329 of 4500

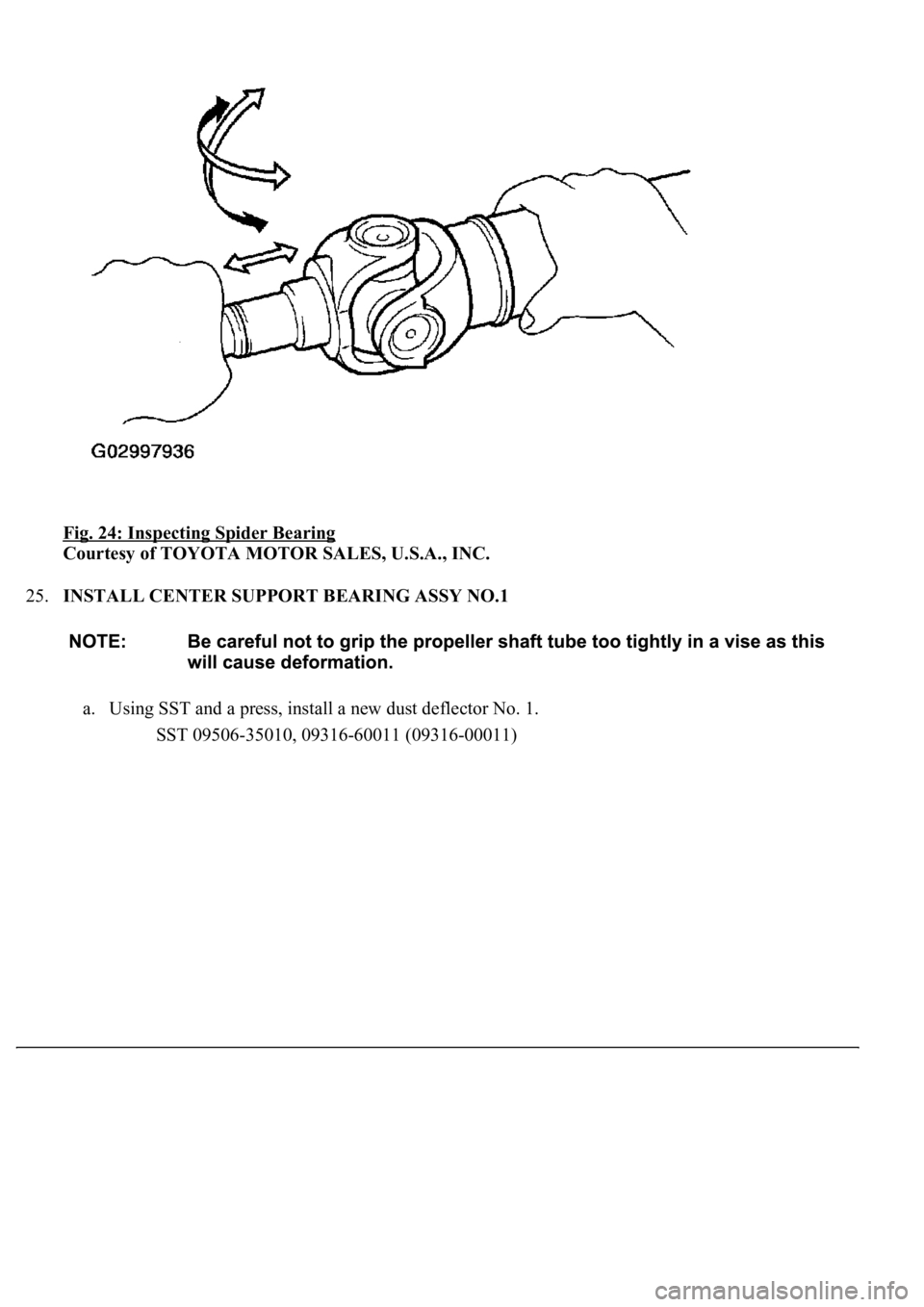

LEXUS LS430 2003 Factory Repair Manual Fig. 24: Inspecting Spider Bearing Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 25.INSTALL CENTER SUPPORT BEARING ASSY NO.1 a. Using SST and a press, install a new dust deflector No. 1. SST 09506-

Page 2330 of 4500

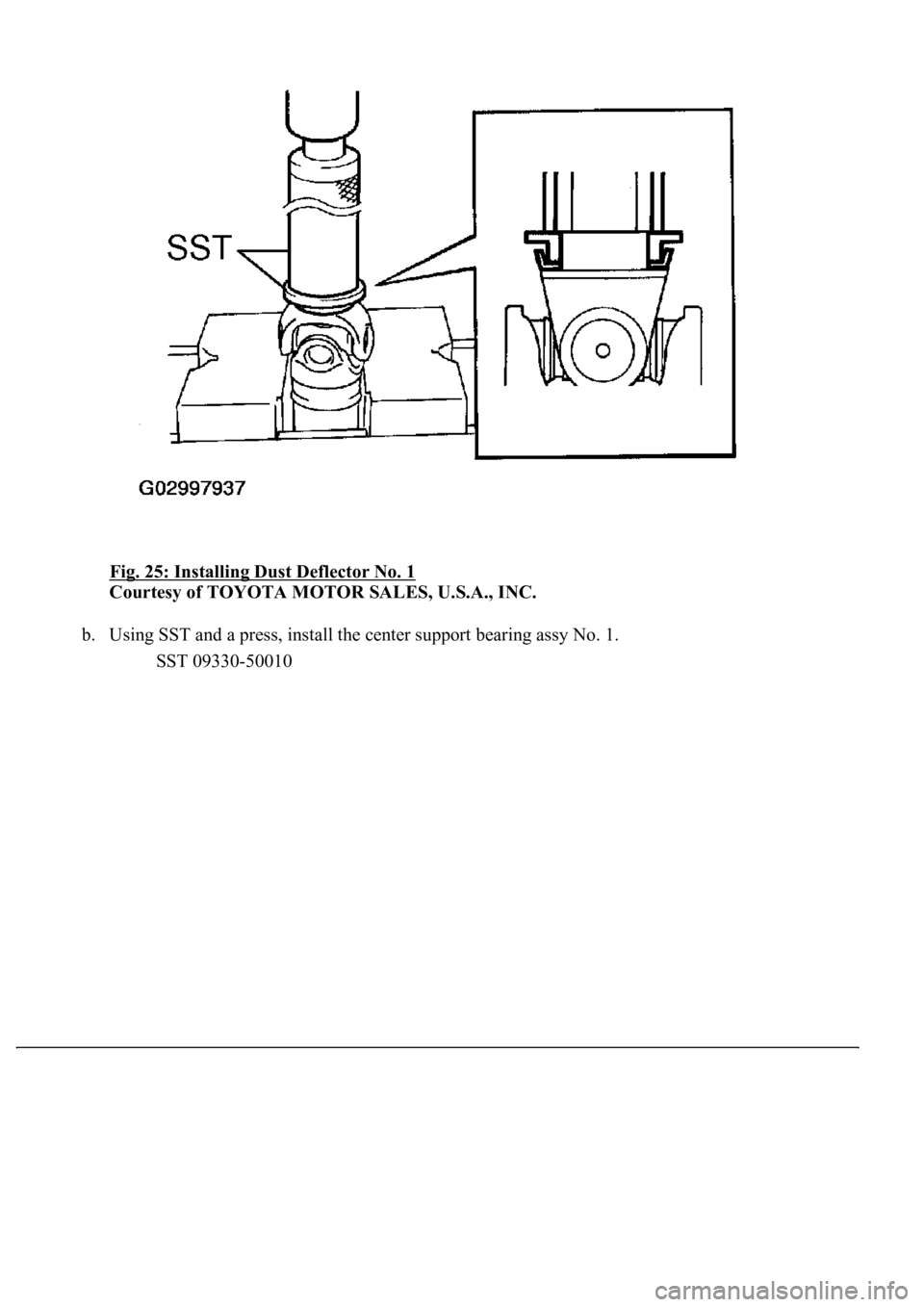

LEXUS LS430 2003 Factory Repair Manual Fig. 25: Installing Dust Deflector No. 1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Using SST and a press, install the center support bearing assy No. 1. SST 09330-50010

Page 2331 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 26: Installing Center Support Bearing Assy No. 1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Using SST and a press, insert a new dust deflector until it almost touches the rubber of the cen

Page 2332 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 27: Installing Dust Deflector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Using SST and a press, install a new dust deflector No. 2. SST 09330-50010

Page 2333 of 4500

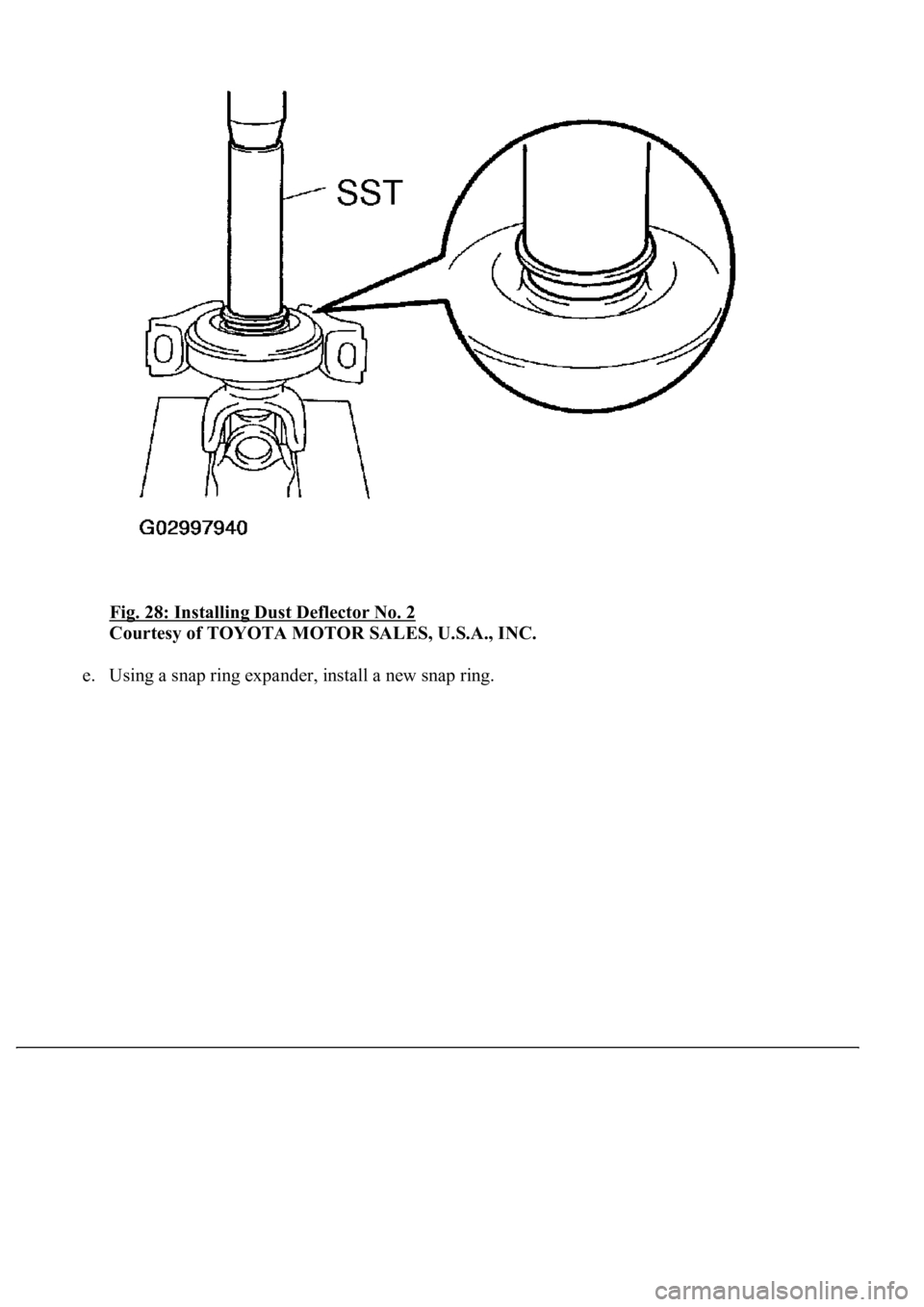

LEXUS LS430 2003 Factory Repair Manual Fig. 28: Installing Dust Deflector No. 2 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Using a snap ring expander, install a new snap ring.

Page 2334 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 29: Installing Snap Ring Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 26.INSTALL PROPELLER INTERMEDIATE SHAFT ASSY a. Install the dust boot. b. Apply grease to the spline. Grease: Molybden

Page 2335 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 30: Wrapping Vinyl Tape Around Spline Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Align the matchmarks and assemble the intermediate shaft and propeller shaft. d. Cover the ad justing nut

Page 2336 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 31: Aligning Matchmarks Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Fully tighten the adjusting nut by hand.
