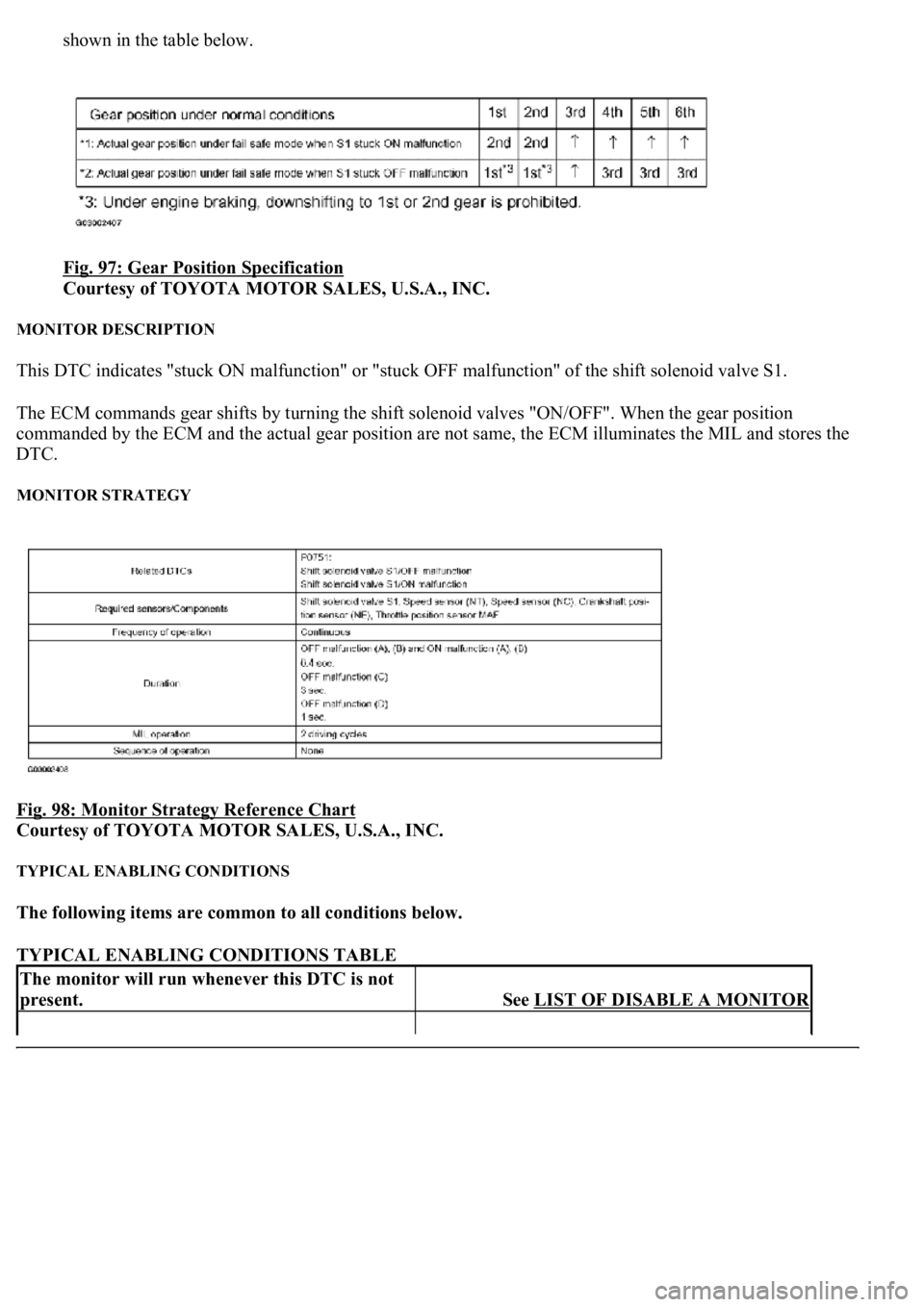

Page 2777 of 4500
shown in the table below.
Fig. 97: Gear Position Specification
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
MONITOR DESCRIPTION
This DTC indicates "stuck ON malfunction" or "stuck OFF malfunction" of the shift solenoid valve S1.
The ECM commands gear shifts by turning the shift solenoid valves "ON/OFF". When the gear position
commanded by the ECM and the actual gear position are not same, the ECM illuminates the MIL and stores the
DTC.
MONITOR STRATEGY
Fig. 98: Monitor Strategy Reference Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
TYPICAL ENABLING CONDITIONS
The following items are common to all conditions below.
TYPICAL ENABLING CONDITIONS TABLE
The monitor will run whenever this DTC is not
present.
See LIST OF DISABLE A MONITOR
Page 2778 of 4500

OFF malfunction (A)
TYPICAL ENABLING CONDITIONS TABLE - OFF MALFUNCTION A
OFF malfunction (B)
TYPICAL ENABLING CONDITIONS TABLE - OFF MALFUNCTION B
OFF malfunction (C)
TYPICAL ENABLING CONDITIONS TABLE - OFF MALFUNCTION C
Turbine speed sensor circuitNot circuit malfunction
Output speed sensor circuitNot circuit malfunction
Shift solenoid valve S1 circuitNot circuit malfunction
Shift solenoid valve S2 circuitNot circuit malfunction
Shift solenoid valve S3 circuitNot circuit malfunction
Shift solenoid valve S4 circuitNot circuit malfunction
Shift solenoid valve SR circuitNot circuit malfunction
Shift solenoid valve SL1 circuitNot circuit malfunction
Shift solenoid valve SL2 circuitNot circuit malfunction
ECT (Engine coolant temperature) sensor circuitNot circuit malfunction
KCS sensor circuitNot circuit malfunction
ETCS (Electric throttle control system)Not system down
Transmission range"D"
ECT40°C (104°F) or more
Spark advance from Max. retard timing by KCS
control0° CA or more
EngineStarting
ECM selected gear5th
Vehicle speed2 km/h (1.2 mph) or more
Throttle valve opening angle6.5% or more at 2,000 rpm (Conditions vary with
engine speed)
ECM selected gear2nd
Vehicle speed2 km/h (1.2 mph) or more
Output speed2nd --> 1st down shift point or more
Throttle valve opening angle6.5% or more at 2,000 rpm (Conditions vary with
engine speed)
Current ECM selected gear6th
Last ECM selected gear5th
Vehicle speed (During transition from 5th to 6th
gear)Less than 100 km/h (62.2 mph)
Page 2779 of 4500

OFF malfunction (D)
TYPICAL ENABLING CONDITIONS TABLE - OFF MALFUNCTION D
ON malfunction (A)
TYPICAL ENABLING CONDITIONS TABLE - ON MALFUNCTION A
ON malfunction (B)
TYPICAL ENABLING CONDITIONS TABLE - ON MALFUNCTION B
TYPICAL MALFUNCTION THRESHOLDS
[OFF malfunction]
Both of the following conditions are met:
OFF malfunction (A)
OFF malfunction (B), (C) or (D)
OFF malfunction (A)
TYPICAL MALFUNCTION THRESHOLDS TABLE - OFF MALFUNCTION A
OFF malfunction (B)
TYPICAL MALFUNCTION THRESHOLDS TABLE - OFF MALFUNCTION B
ECM selected gear6th
Engine speed-Turbine speed (NE-NT) (After
transition from 5th to 6th gear)Less than 150 rpm
Vehicle speedLess than 100 km/h (62.2 mph)
ECM selected gear1st
Vehicle speed2 km/h (1.2 mph) or more and Less than 40 km/h
(24.9 mph)
Engine speed-Turbine speed (NE-NT)50 rpm or more
ECM selected gear5th
Vehicle speed2 km/h (1.2 mph) or more
Throttle valve opening angle6.5% or more at 2,000 rpm (Conditions vary with
engine speed)
Turbine speed/Output speed (NT/NO)0.66 or more and 0.80 or less (This means actual
gear is 5th)
Turbine speed/Output speed (NT/NO)3.08 or more and 7.50 or less (This means actual
gear is 1st)
Page 2780 of 4500
![LEXUS LS430 2003 Factory Repair Manual OFF malfunction (C)
TYPICAL MALFUNCTION THRESHOLDS TABLE - OFF MALFUNCTION C
OFF malfunction (D)
TYPICAL MALFUNCTION THRESHOLDS TABLE - OFF MALFUNCTION D
[ON malfunction]
Both of the following LEXUS LS430 2003 Factory Repair Manual OFF malfunction (C)
TYPICAL MALFUNCTION THRESHOLDS TABLE - OFF MALFUNCTION C
OFF malfunction (D)
TYPICAL MALFUNCTION THRESHOLDS TABLE - OFF MALFUNCTION D
[ON malfunction]
Both of the following](/manual-img/36/57050/w960_57050-2779.png)
OFF malfunction (C)
TYPICAL MALFUNCTION THRESHOLDS TABLE - OFF MALFUNCTION C
OFF malfunction (D)
TYPICAL MALFUNCTION THRESHOLDS TABLE - OFF MALFUNCTION D
[ON malfunction]
Both of the following conditions are met: ON malfunction (A) and (B)
2 detections are necessary per driving cycle:
1st detection; temporary flag ON
2nd detection; pending fault code ON
ON malfunction (A)
TYPICAL MALFUNCTION THRESHOLDS TABLE - ON MALFUNCTION A
ON malfunction (B)
TYPICAL MALFUNCTION THRESHOLDS TABLE - ON MALFUNCTION B
INSPECTION PROCEDURE
HINT:
Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to operate
without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one method to
shorten labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
a. Warm up the engine.
b. Turn the ignition switch off.
Turbine speed-Output speed x 5th gear ratio (NT-
NO x 5th gear ratio)1,000 rpm or more
Turbine speed-Output speed x 6th gear ratio (NT-
NO x 6th gear ratio)1,000 rpm or more
Turbine speed/Output speed (NT/NO)1.83 or more and 2.27 or less (This means actual
gear is 2nd)
Turbine speed/Output speed (NT/NO)0.66 or more and 0.80 or less (This means actual
gear is 5th)
Page 2781 of 4500

c. Connect the hand-held tester together with the CAN VIM (controller area network vehicle interface
module) to the DLC3.
d. Turn the ignition switch to the ON position.
e. Push the "ON" button of the hand-held tester.
f. Clear the DTC.
g. Select the item "DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST/SHIFT",
h. According to the display on tester, perform the "ACTIVE TEST".
HINT:
While driving, the shift position can be forcibly changed with the hand-held tester.
Comparing the shift position commanded by the ACTIVE TEST with the actual shift position enables you to
confirm the problem (see FAIL
-SAFE CHART ).
Fig. 99: Test Item Reference Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
This test can be conducted when the vehicle speed is 50 km/h (31 mph) or less.
The 4th to 5th and 5th to 6th up-shiftings must be performed with the accelerator pedal released.
The 6th to 5th and 5th to 4th down-shiftings must be performed with the accelerator pedal released.
Do not operate the accelerator pedal for at least 2 seconds after shifting and do not shift successively.
The shift position commanded by the ECM is shown in the DATA LIST/SHIFT display on the hand-held
tester.
<0037004b004800030056004b004c00490057000300560052004f004800510052004c0047000300590044004f005900480003003600140003004c00560003005700580055005100480047000300520051001200520049004900030051005200550050004400
4f004f005c0003005a004b0048005100030057004b00480003[shift lever is in the D position:
GEARSHIFT SPECIFICATION TABLE
ECM
command
gearshift
1st2nd3rd4th5th6th
Shift solenoid
valve S1OFFONONONONON
Page 2782 of 4500

1.CHECK OTHER DTCS OUTPUT (IN ADDITION TO DTC P0751)
a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position and push the hand-held tester main switch ON.
c. Select the item "DIAGNOSIS/ENHANCED OBD II/DTC INFO/CURRENT CODES".
d. Read the DTCs using the hand-held tester.
Result:
DTC OUTPUT RESULT TABLE
HINT:
If any other codes besides "P0751" are output, perform troubleshooting for those DTCs first.
B: GO TO RELEVANT DTC CHART (See DIAGNOSTIC TROUBLE CODE CHART
)
A: Go to next step
2.INSPECT SHIFT SOLENOID VALVE (S1)
a. Remove the shift solenoid valve S1.
b. Measure the resistance according to the value(s) in the table below.
Standard:
SHIFT SOLENOID VALVE (S1) - RESISTANCE TABLE
c. Connect positive (+) lead to the terminal of solenoid connector, negative (-) lead to the solenoid
body.
OK:
The solenoid makes an operating noise.
Display (DTC output)Proceed to
Only "P0751" is outputA
"P0751" and other DTCsB
Tester ConnectionSpecified Condition 20°C (68°F)
Solenoid Connector (S1) - Solenoid Body (S1)11 to 15ohms
Page 2783 of 4500
Fig. 100: Inspecting Shift Solenoid Valve (S1)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE SHIFT SOLENOID VALVE (S1)
OK: Go to next step
3.INSPECT TRANSMISSION VALVE BODY ASSY (See chapter 2 in PROBLEM SYMPTOMS
TABLE )
OK:
There are no foreign objects on each valve and they operate smoothly.
NG: REPAIR OR REPLACE TRANSMISSION VALVE BODY ASSY (See step 6 on
REPLACEMENT
)
OK: Go to next step
4.INSPECT TORQUE CONVERTER CLUTCH ASSY (See INSPECTION
)
Page 2784 of 4500
OK:
The torque converter clutch operates normally.
NG: REPLACE TORQUE CONVERTER CLUTCH ASSY
OK: REPAIR OR REPLACE AUTOMATIC TRANSMISSION ASSY (See COMPONENTS
)
DTC P0756: SHIFT SOLENOID "B" PERFORMANCE (SHIFT SOLENOID VALVE S2)
SYSTEM DESCRIPTION
The ECM uses signals from the output shaft speed sensor and input speed sensor to detect the actual gear
position (1st, 2nd, 3rd, 4th, 5th or 6th gear).
Then the ECM compares the actual gear with the shift schedule in the ECM memory to detect mechanical
problems of the shift solenoid valves and valve body.
Fig. 101: DTC Reference Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
Gear positions in the event of a solenoid valve mechanical problem:
