Page 137 of 4500

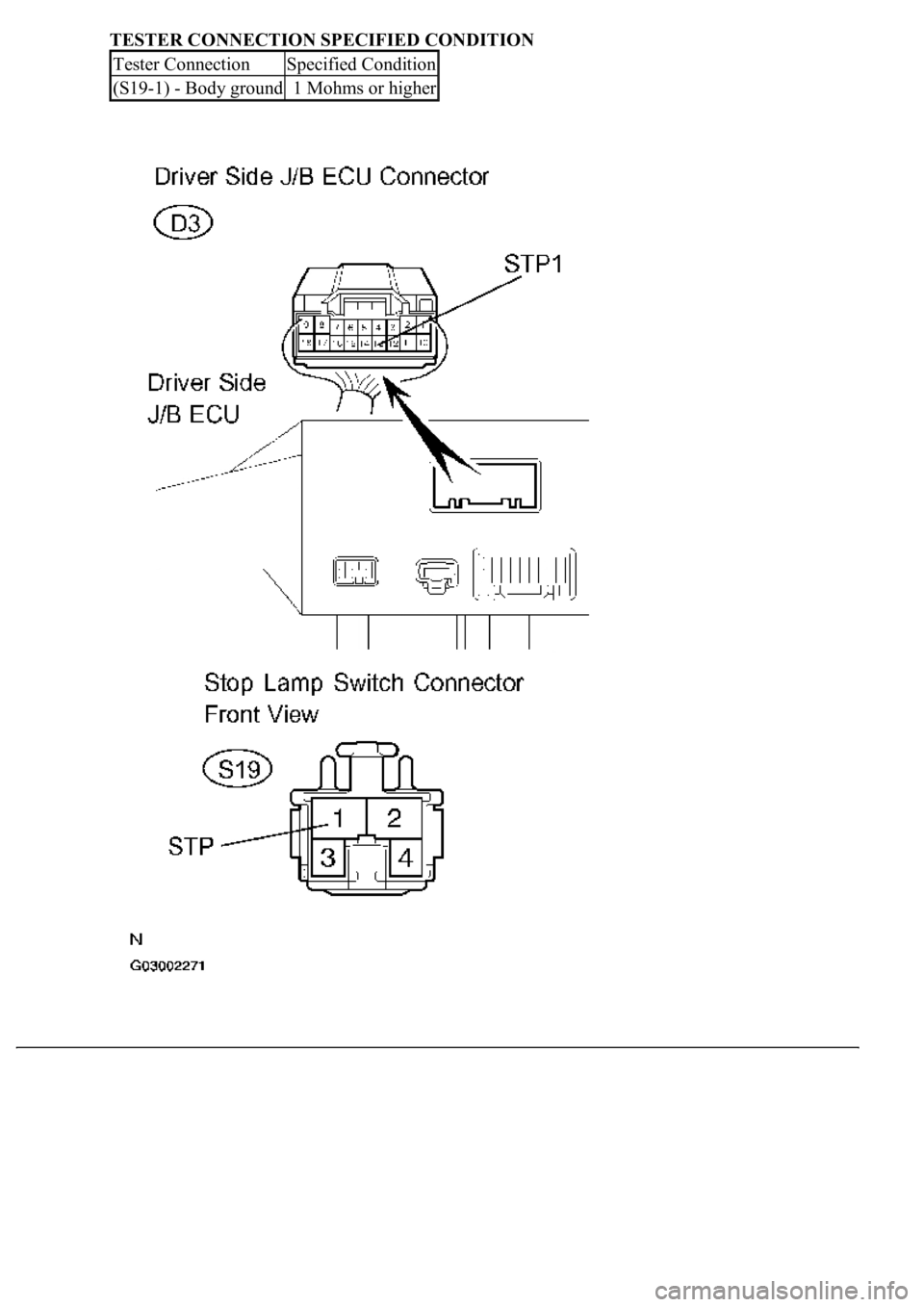

LEXUS LS430 2003 Factory Repair Manual TESTER CONNECTION SPECIFIED CONDITION Tester ConnectionSpecified Condition (S19-1) - Body ground1 Mohms or higher

Page 138 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 102: Identifying Stop Lamp Switch Connector And Driver Side J/B Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: Go to next step

Page 139 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 103: Identifying Driver Side J/B Connector And Skid Control ECU Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

Page 140 of 4500

LEXUS LS430 2003 Factory Repair Manual OK: Go to next step 9.RECONFIRM DTC a. Clear the DTC (see DTC CHECK/CLEAR ). b. Turn the ignition switch to the ON position. c. Check that the same DTC is recorded (see DTC CHECK/CLEAR ). OK

Page 141 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 105: Pump Motor Wiring Diagram Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.PERFORM ACTIVE TEST BY HAND-HELD TESTER (ABS MOTOR RELAY OPERATION) a. Connect the hand-held

Page 142 of 4500

LEXUS LS430 2003 Factory Repair Manual VEHICLE CONDITION / TEST DETAILS OK: Go to next step The operation sound of the ABS motor is heard. OK: Go to step 2 NG: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT ) 2.INSPECT HARN

Page 143 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 106: Identifying Skid Control ECU Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT ) CIRCUIT DESCRIPTION The brake pedal load

Page 144 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 107: DTC C1267/67 Detection Condition And Trouble Area Description Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. WIRING DIAGRAM Fig. 108: Brake Pedal Load Sensing Switch Wiring Diagram
