LEXUS LS430 2003 Factory Repair Manual Fig. 253: Removing Snap Ring Using Snap Ring Pliers

Page 3538 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Using snap ring pliers, remove the snap ring. Remove the wave washer, sub gear and bolt washer. HINT: Arrange the driven sub gears and bolt washers (RH

Page 3539 of 4500

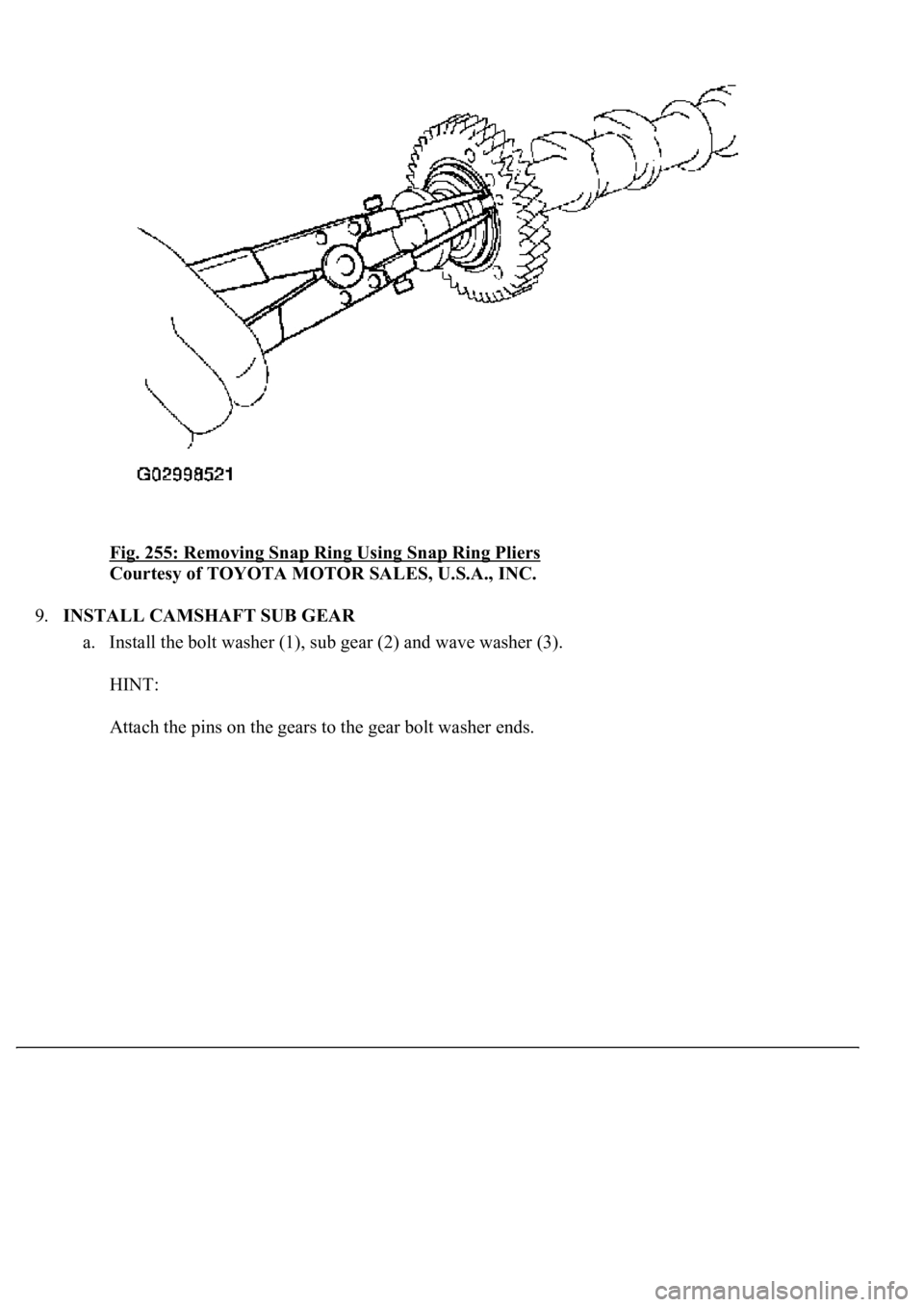

LEXUS LS430 2003 Factory Repair Manual Fig. 255: Removing Snap Ring Using Snap Ring Pliers Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.INSTALL CAMSHAFT SUB GEAR a. Install the bolt washer (1), sub gear (2) and wave washer (3). HINT:

Page 3540 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 256: Mounting Hexagon Wrench Head Portion Of Camshaft In Vise Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b.Using snap ring pliers, install the snap ring.

Page 3541 of 4500

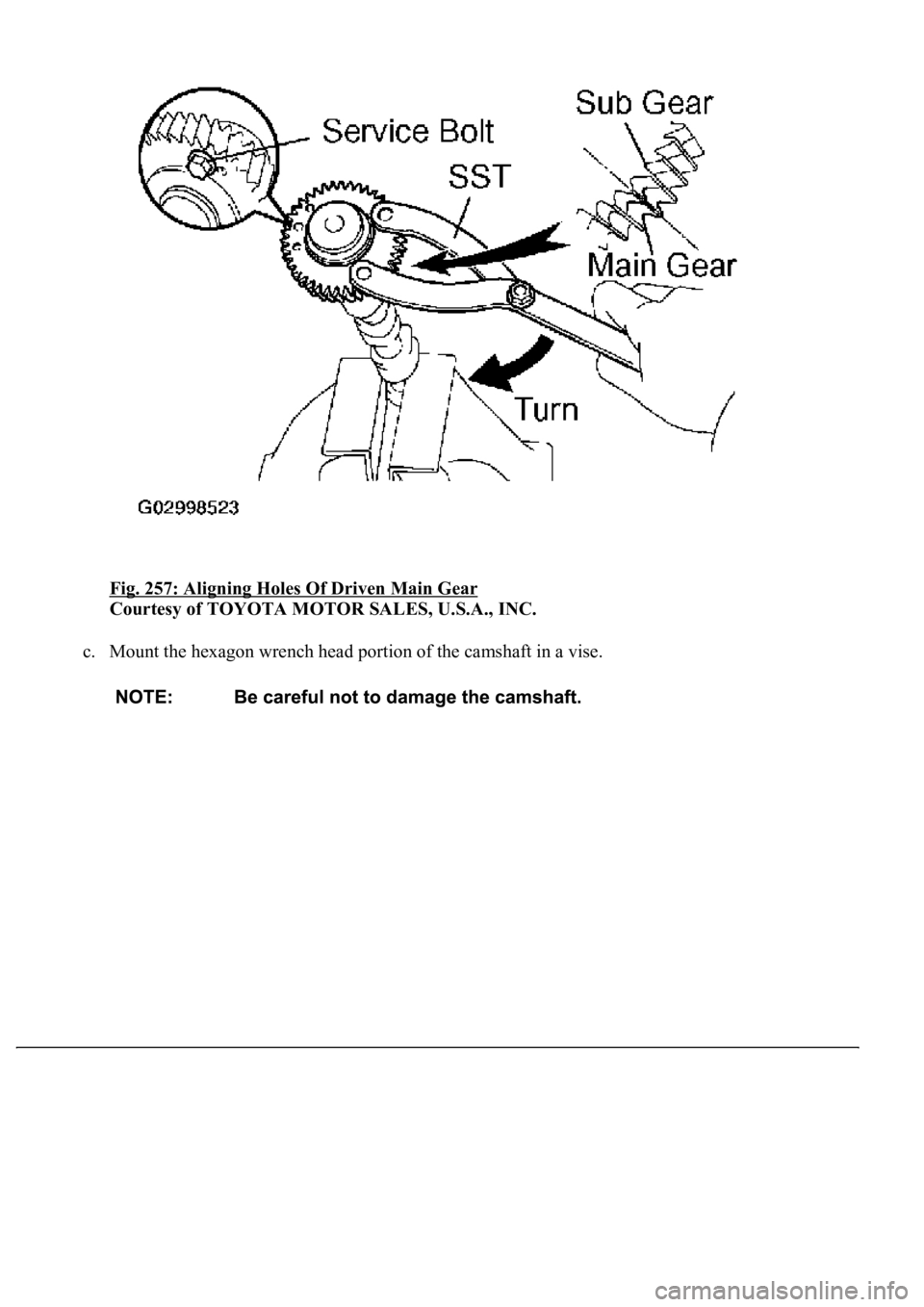

LEXUS LS430 2003 Factory Repair Manual Fig. 257: Aligning Holes Of Driven Main Gear Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Mount the hexagon wrench head portion of the camshaft in a vise.

Page 3542 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 258: Inserting Oil Seal Into Camshaft Timing Tube Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Using SST, align the holes of the driven main gear and sub gear by turning the sub gear clockwi

Page 3543 of 4500

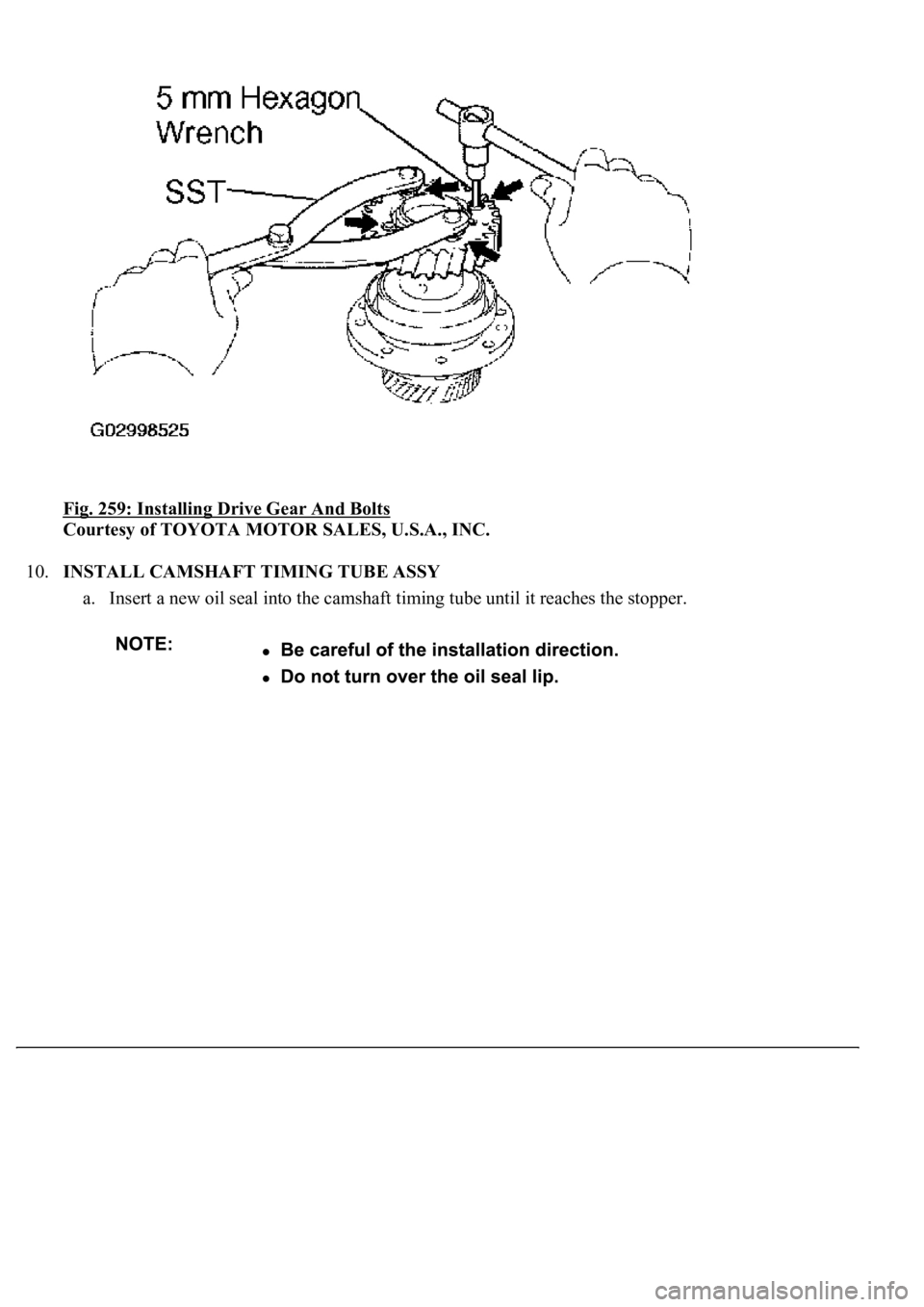

LEXUS LS430 2003 Factory Repair Manual Fig. 259: Installing Drive Gear And Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.INSTALL CAMSHAFT TIMING TUBE ASSY a. Insert a new oil seal into the camshaft timing tube until it reaches t

Page 3544 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 260: Mounting Hexagon Wrench Head Portion Of Camshaft In Vise Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Align the timing tube knock pin with the knock pin groove of the drive gear, and te
