Page 3809 of 4500

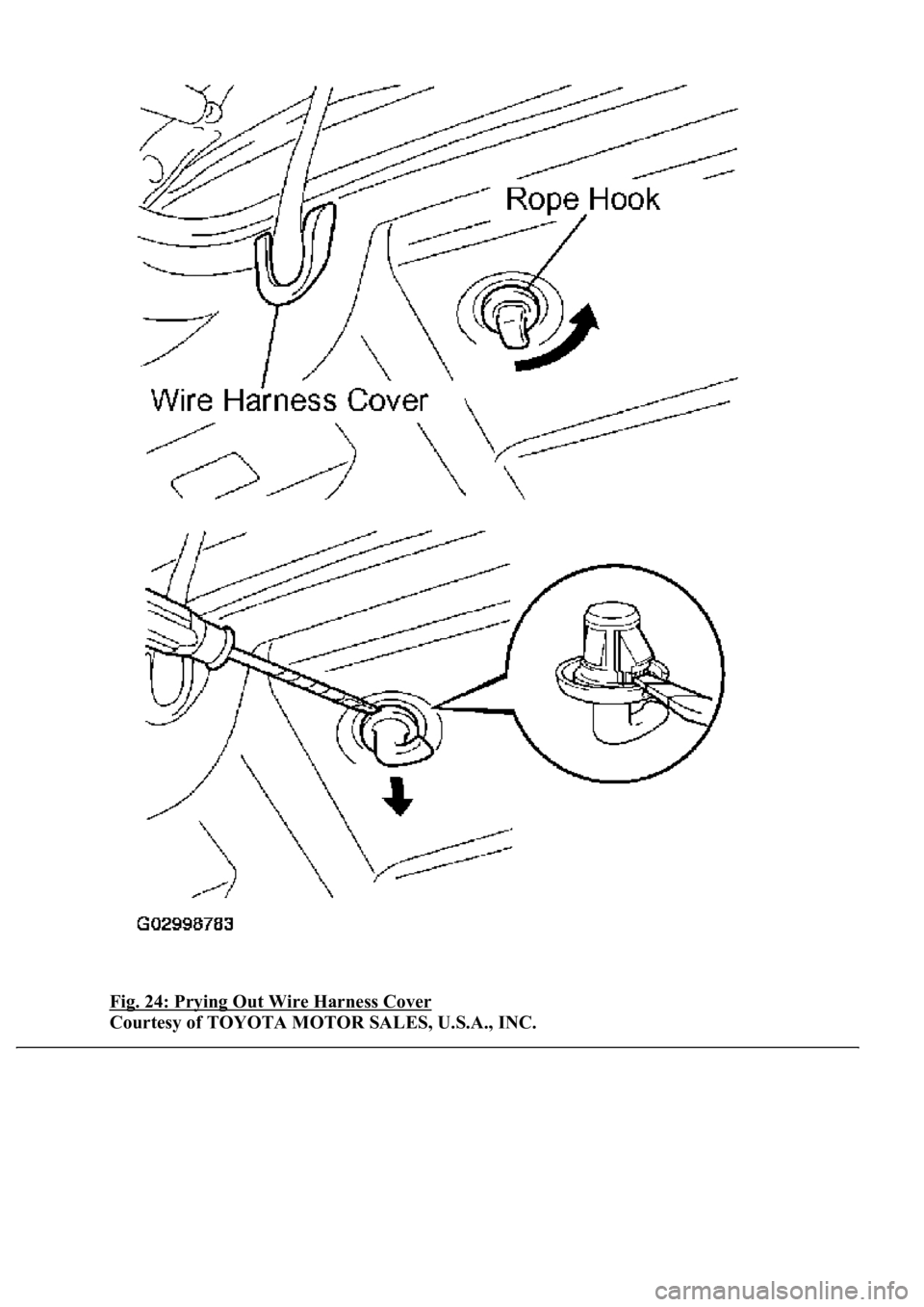

LEXUS LS430 2003 Factory Repair Manual Fig. 24: Prying Out Wire Harness Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3810 of 4500

LEXUS LS430 2003 Factory Repair Manual e. Using a screwdriver, remove the 2 rope hooks. HINT: Turn the rope hook 90 degrees counterclockwise. Insert a screwdriver (with its tip taped) into the slit in the side of the rope hook. Hold dow

Page 3811 of 4500

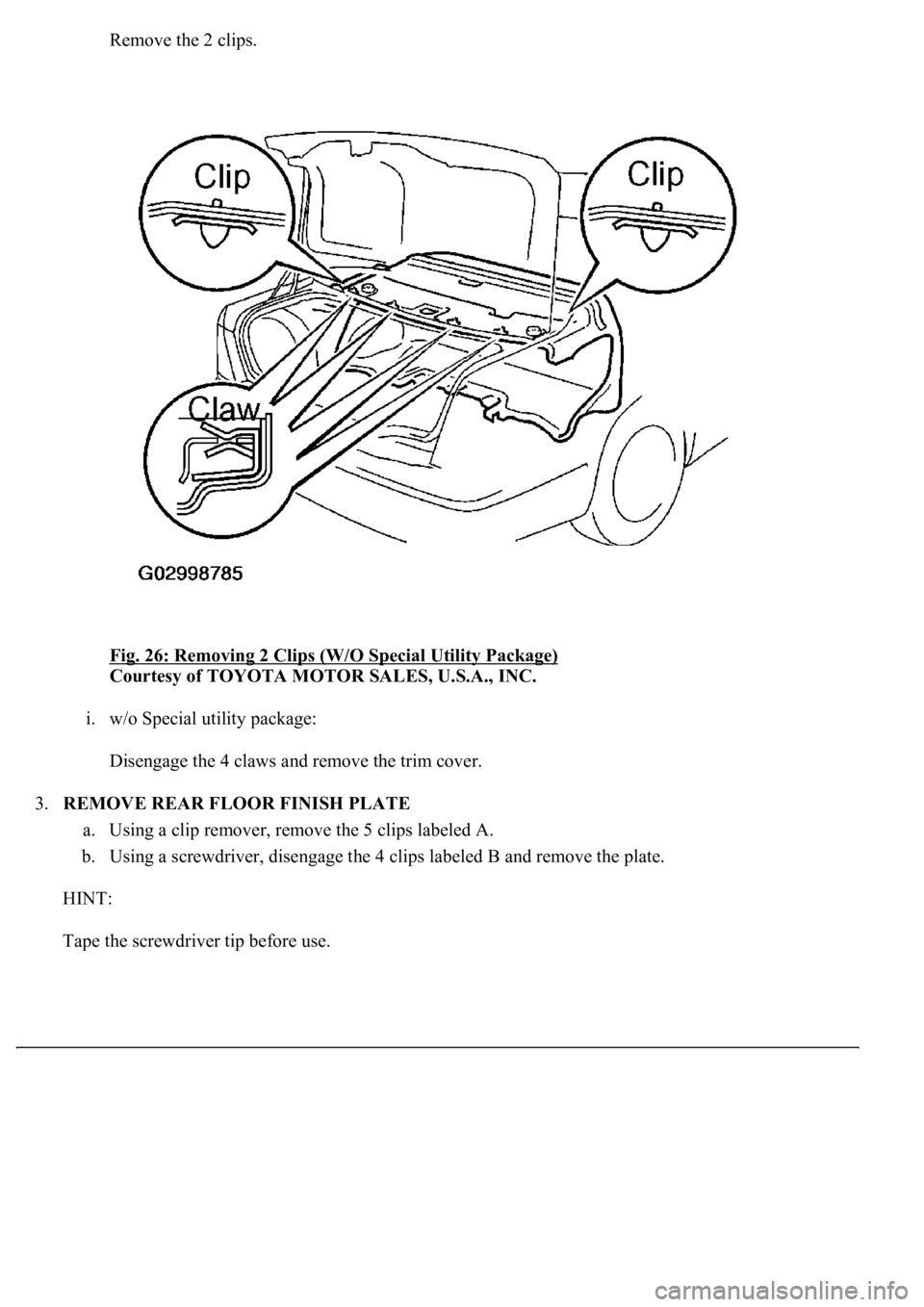

LEXUS LS430 2003 Factory Repair Manual Remove the 2 clips. Fig. 26: Removing 2 Clips (W/O Special Utility Package) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. i. w/o Special utility package: Disengage the 4 claws and remove the trim

Page 3812 of 4500

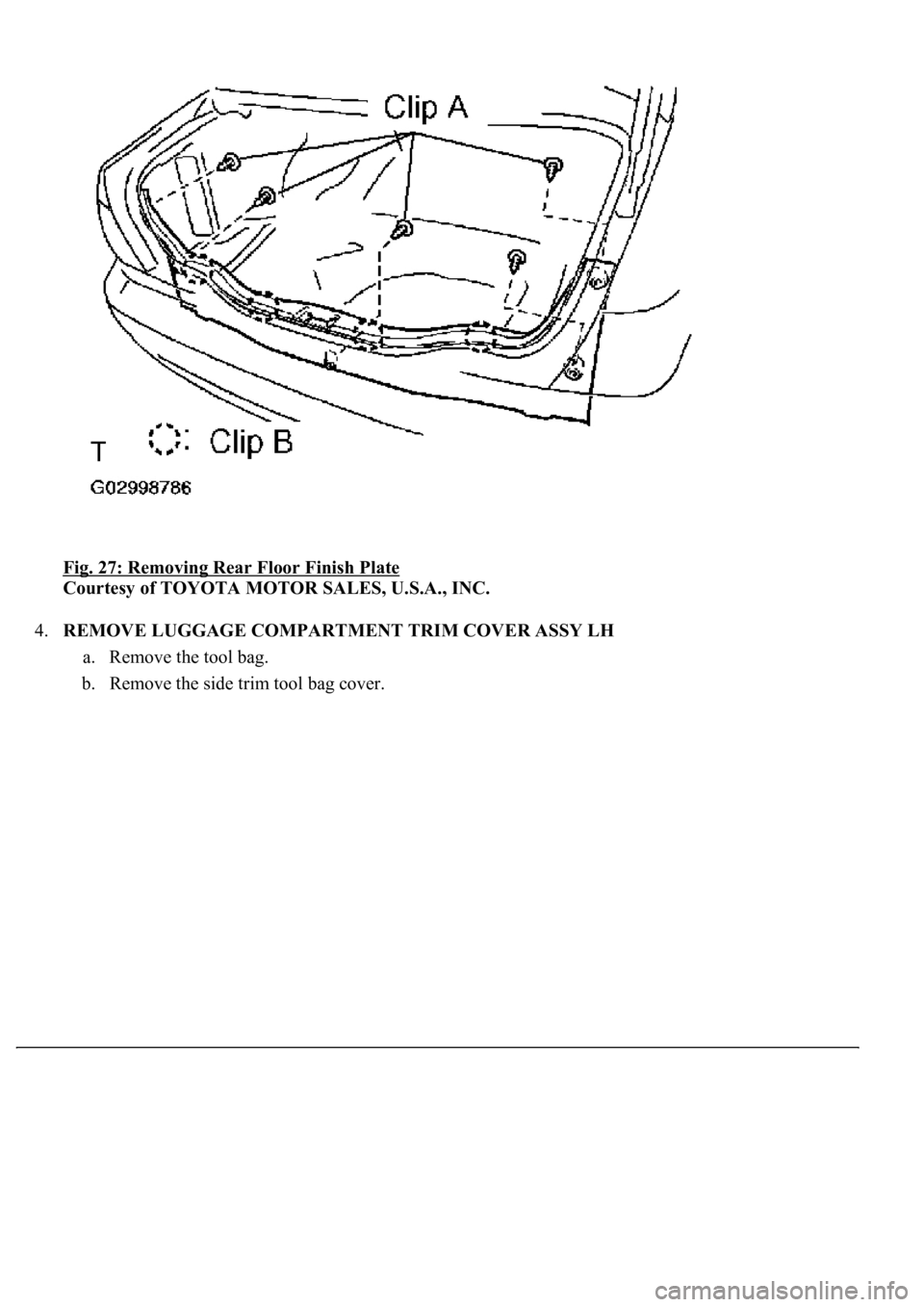

LEXUS LS430 2003 Factory Repair Manual Fig. 27: Removing Rear Floor Finish Plate Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4.REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY LH a. Remove the tool bag. b. Remove the side trim tool bag cov

Page 3813 of 4500

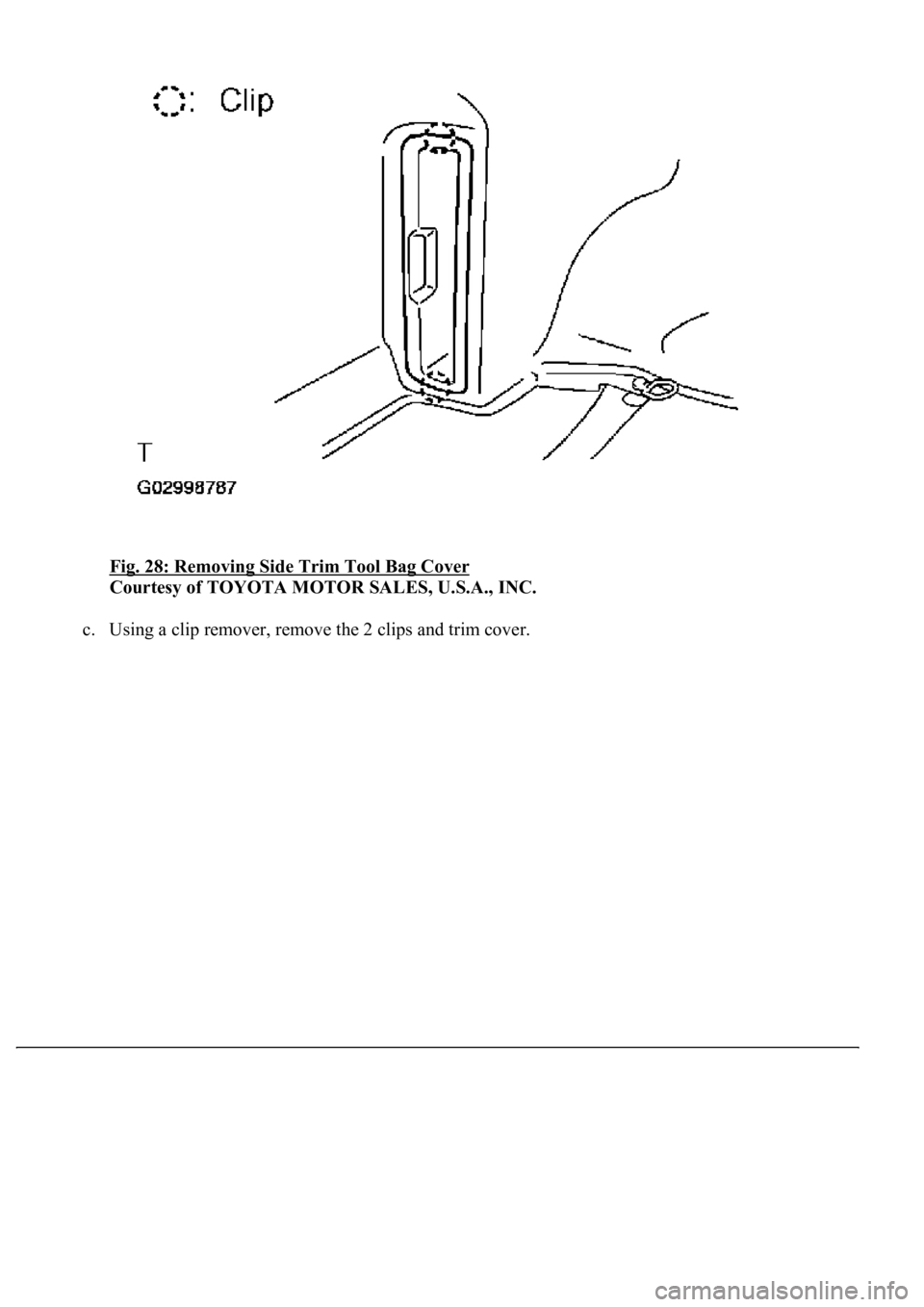

LEXUS LS430 2003 Factory Repair Manual Fig. 28: Removing Side Trim Tool Bag Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Using a clip remover, remove the 2 clips and trim cover.

Page 3814 of 4500

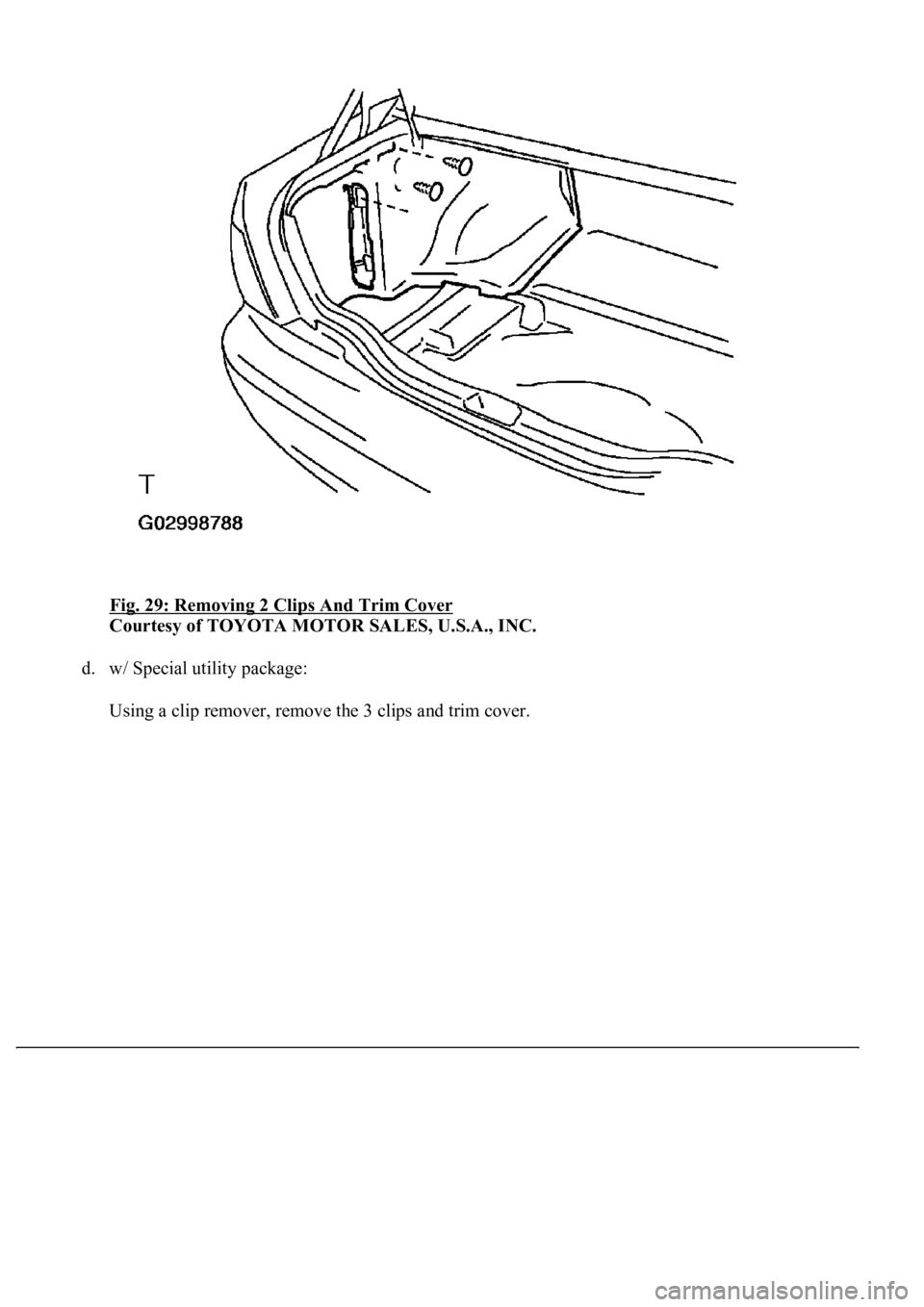

LEXUS LS430 2003 Factory Repair Manual Fig. 29: Removing 2 Clips And Trim Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. w/ Special utility package: Usin g a clip remover, remove the 3 clips and trim cover.

Page 3815 of 4500

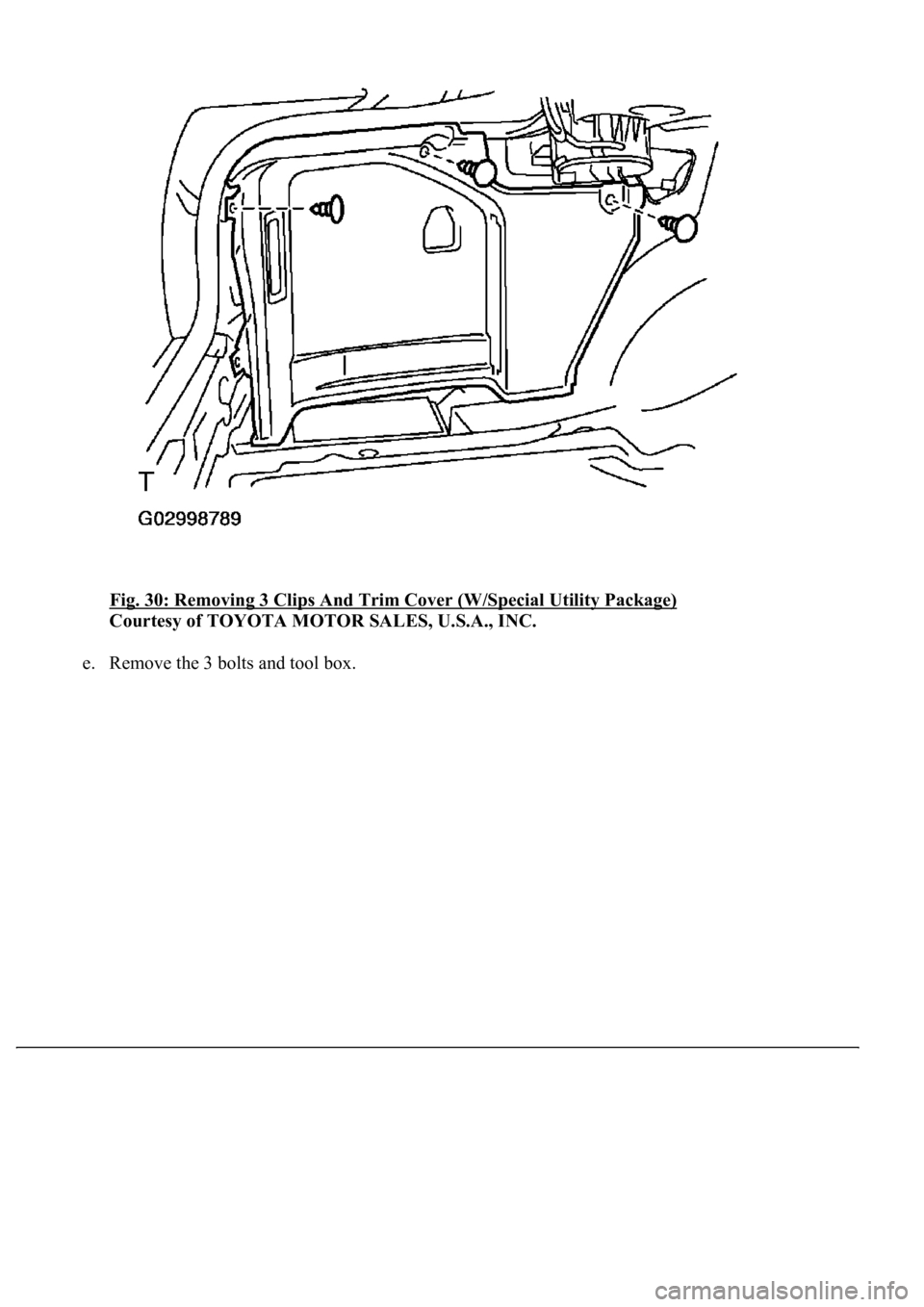

LEXUS LS430 2003 Factory Repair Manual Fig. 30: Removing 3 Clips And Trim Cover (W/Special Utility Package) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Remove the 3 bolts and tool box.

Page 3816 of 4500

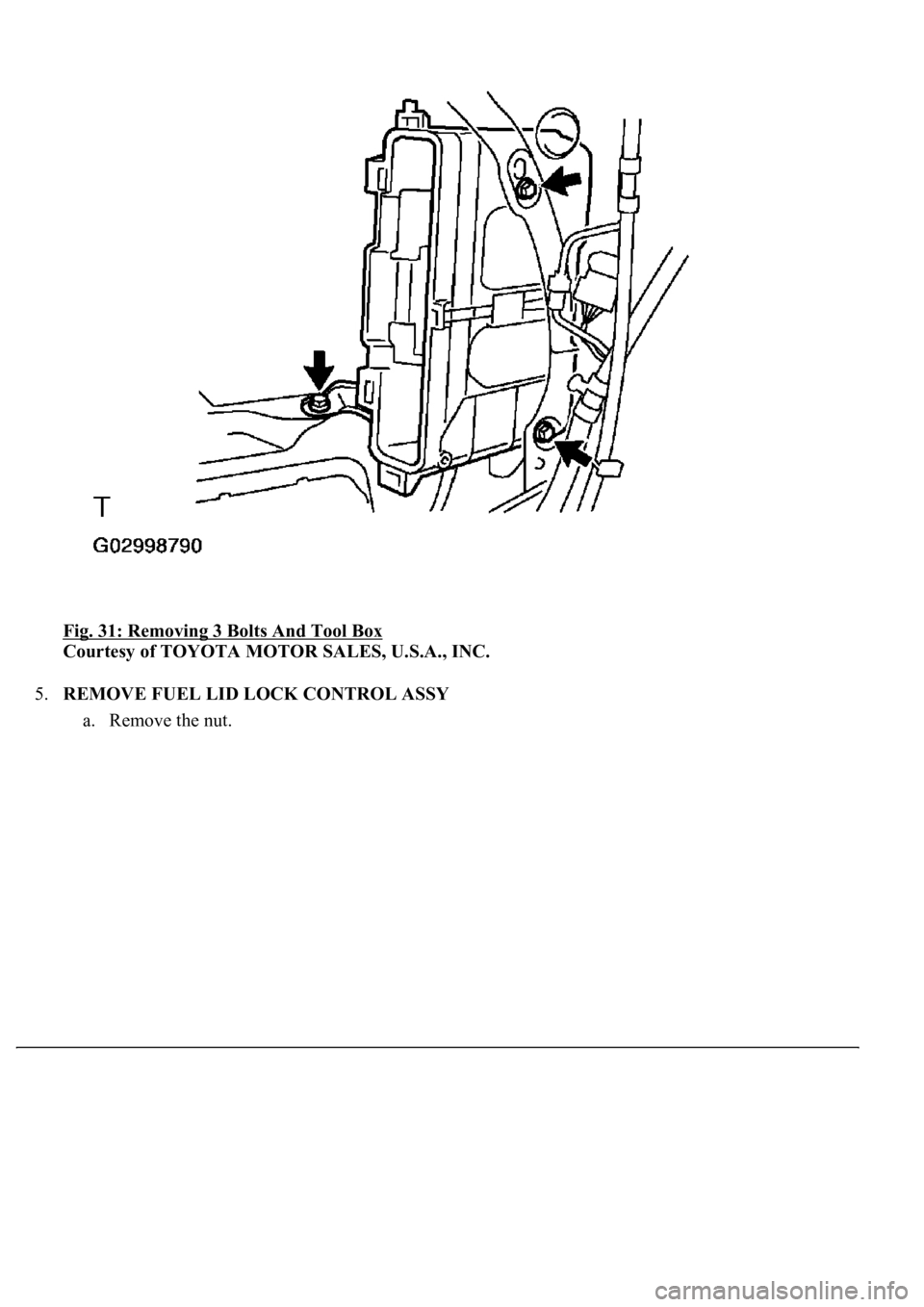

LEXUS LS430 2003 Factory Repair Manual Fig. 31: Removing 3 Bolts And Tool Box Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.REMOVE FUEL LID LOCK CONTROL ASSY a. Remove the nut.
