Fig. 7: Identifying Closer Motor And Cam Position Switch
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 2186 of 4500
Fig. 8: Identifying Switches ON/OFF Patterns
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
When rotation operation is normal, the operation starts from the top of the list. During reverse
rotation, operation starts from the bottom of the list.
CLOSER MOTOR CONDITION
e. Fail-safe
The door ECU stops the door closer system if it detects a malfunction in the system. However, the
doors can be opened or closed manually.
HINT:
Use this procedure to troubleshoot the door closer system.
The hand-held tester should be used in steps 3, 4 and 6.
1.VEHICLE BROUGHT TO WORKSHOP
Go To Next Step.
Closer Motor ConditionCPS1CPS2CPS3
(Error range)OFFOFFOFF
Cam position switch pattern 1OFFONON
Cam position switch pattern 2OFFONOFF
Cam position switch pattern 3ONONOFF
Cam position switch pattern (4)ONOFFON
(Error range)OFFOFFOFF
Page 2187 of 4500

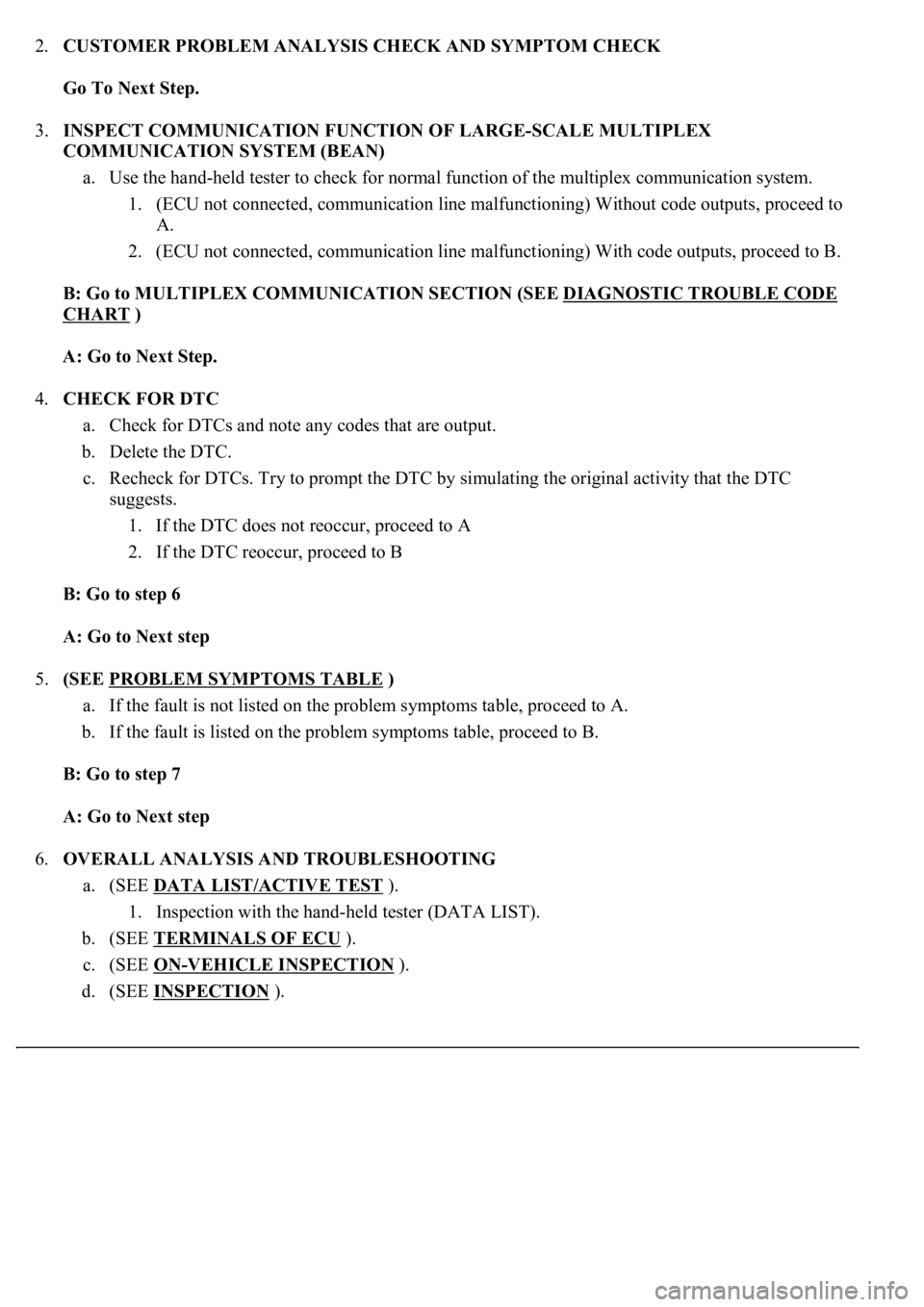

2.CUSTOMER PROBLEM ANALYSIS CHECK AND SYMPTOM CHECK
Go To Next Step.
3.INSPECT COMMUNICATION FUNCTION OF LARGE-SCALE MULTIPLEX
COMMUNICATION SYSTEM (BEAN)
a. Use the hand-held tester to check for normal function of the multiplex communication system.
1. (ECU not connected, communication line malfunctioning) Without code outputs, proceed to
A.
2. (ECU not connected, communication line malfunctioning) With code outputs, proceed to B.
B: Go to MULTIPLEX COMMUNICATION SECTION (SEE DIAGNOSTIC TROUBLE CODE
CHART )
A: Go to Next Step.
4.CHECK FOR DTC
a. Check for DTCs and note any codes that are output.
b. Delete the DTC.
c. Recheck for DTCs. Try to prompt the DTC by simulating the original activity that the DTC
suggests.
1. If the DTC does not reoccur, proceed to A
2. If the DTC reoccur, proceed to B
B: Go to step 6
A: Go to Next step
5.(SEE PROBLEM SYMPTOMS TABLE
)
a. If the fault is not listed on the problem symptoms table, proceed to A.
b. If the fault is listed on the problem symptoms table, proceed to B.
B: Go to step 7
A: Go to Next step
6.OVERALL ANALYSIS AND TROUBLESHOOTING
a. (SEE DATA LIST/ACTIVE TEST
).
1. Inspection with the hand-held tester (DATA LIST).
b. (SEE TERMINALS OF ECU
).
c. (SEE ON
-VEHICLE INSPECTION ).
d. (SEE INSPECTION
).
Page 2188 of 4500
Go To Next Step.
7.ADJUST, REPAIR OR REPLACE
8.CONFIRMATION TEST
END

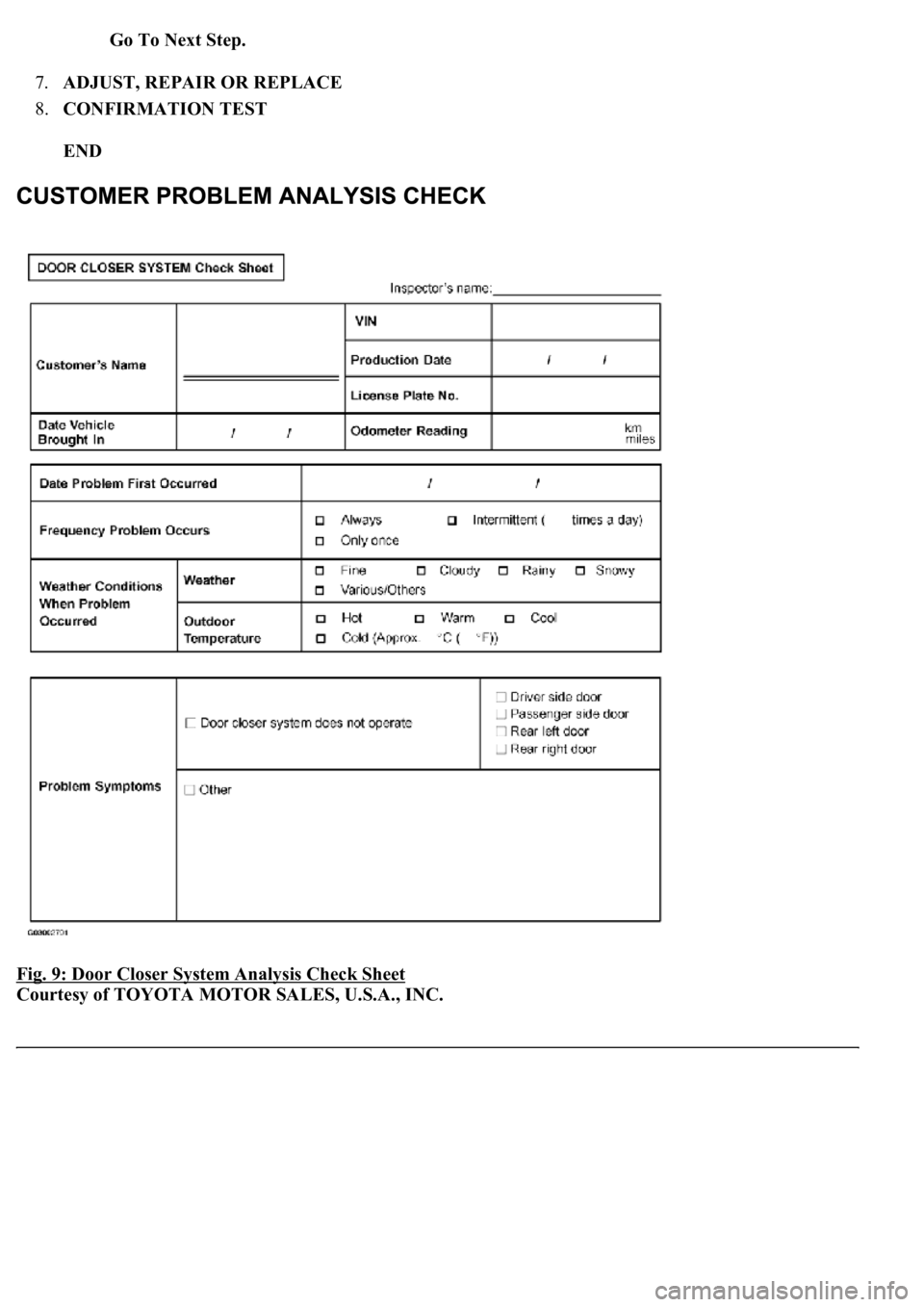

Fig. 9: Door Closer System Analysis Check Sheet
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 2189 of 4500

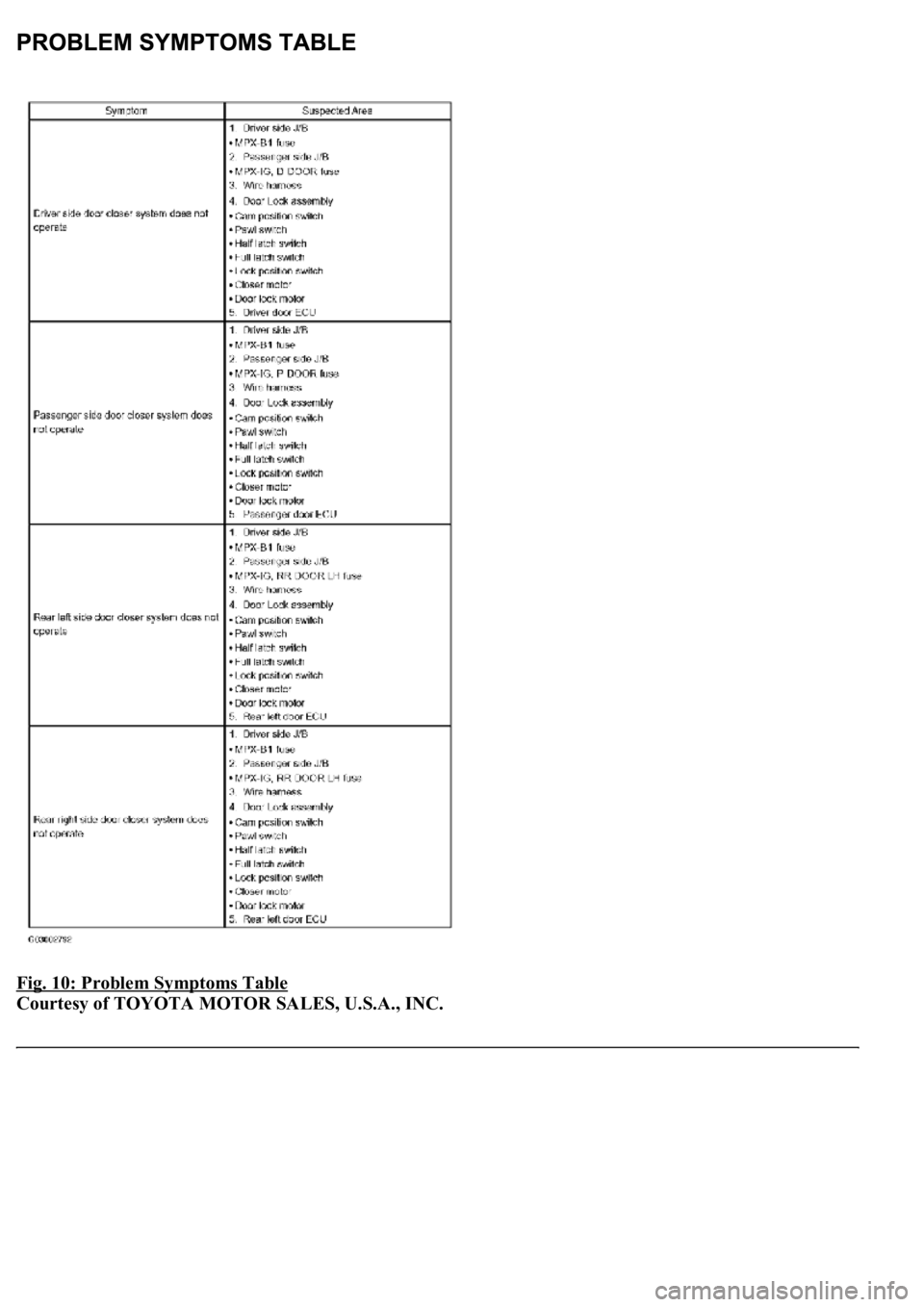

Fig. 10: Problem Symptoms Table
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 2190 of 4500
1.DRIVER DOOR ECU
Fig. 11: Identifying Driver Door ECU Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the F23 and D25 ECU connectors
b. Measure the voltage and resistance of the wire harness side connectors.
Fig. 12: Driver Door ECU Terminals Reference Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the F23 and D25 ECU connectors.
d. Measure the volta
ge of the connectors.
Page 2191 of 4500
Fig. 13: Driver Door ECU Terminals Reference Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
If the result is not as specified, the driver door ECU may have a malfunction.
2.PASSENGER DOOR ECU
Fig. 14: Identifying Passenger Door ECU Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the F17 and F24 ECU connectors.
b. Measure the voltage and resistance of the wire harness side connectors.
Page 2192 of 4500

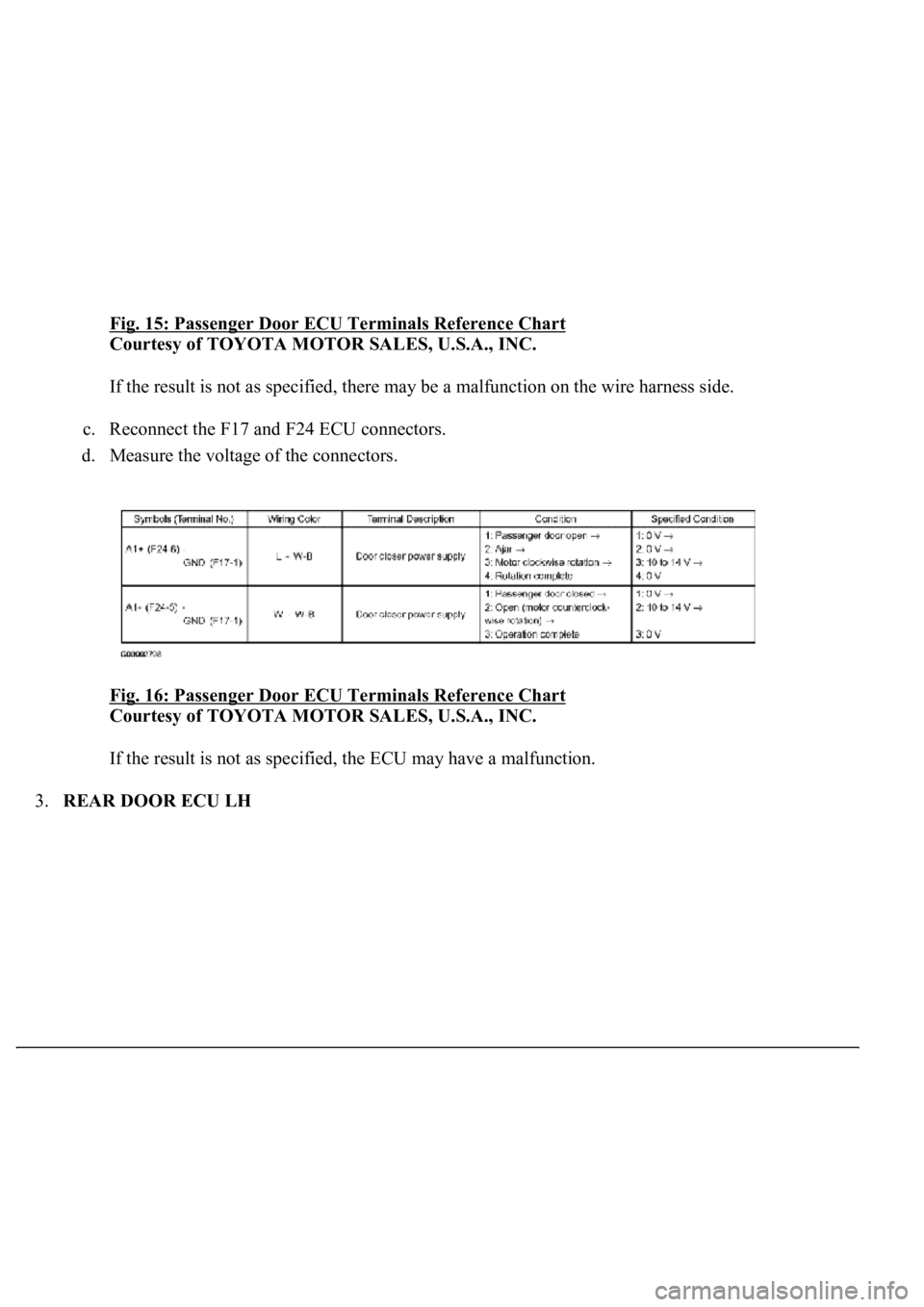

Fig. 15: Passenger Door ECU Terminals Reference Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the F17 and F24 ECU connectors.
d. Measure the voltage of the connectors.
Fig. 16: Passenger Door ECU Terminals Reference Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
If the result is not as specified, the ECU may have a malfunction.
3.REAR DOOR ECU LH
