Page 2337 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 32: Identifying Direction Of Intermediate Shaft And Propeller Shaft Companion Flange Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 27.INSTALL FLEXIBLE COUPLING a. Install and torque the 3 bolts,

Page 2338 of 4500

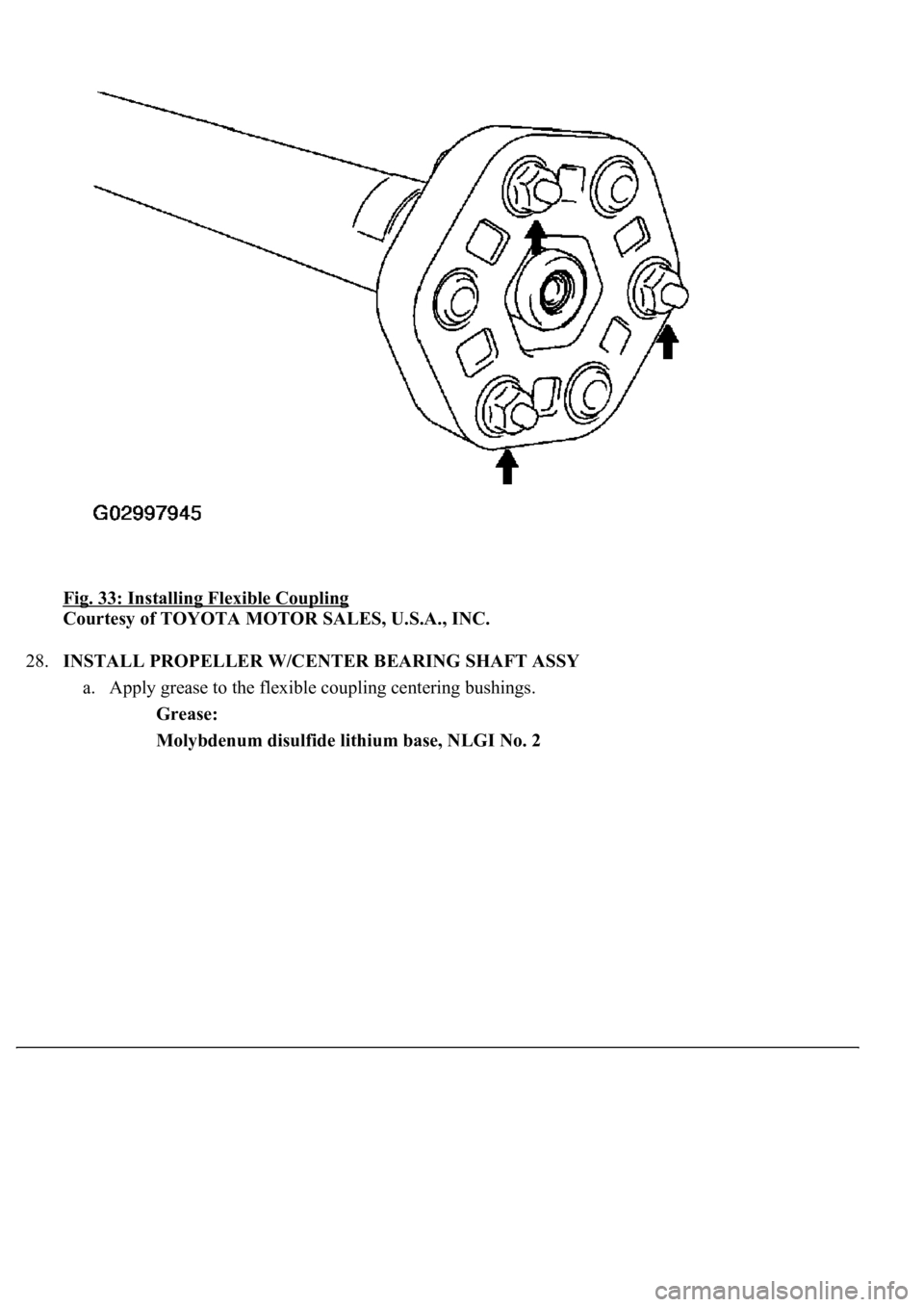

LEXUS LS430 2003 Factory Repair Manual Fig. 33: Installing Flexible Coupling Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 28.INSTALL PROPELLER W/CENTER BEARING SHAFT ASSY a. Apply grease to the flexible coupling centering bushings. Gre

Page 2339 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 34: Applying Grease To Flexible Coupling Centering Bushing Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Install the propeller shaft from the vehicle's rear and connect the transmission a

Page 2340 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 35: Installing Center Support Bearing Bolts And Adjusting Washers Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. HINT: Use the adjusting washers which were removed. d. Align the matchmarks and

Page 2341 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 36: Aligning Matchmarks Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. f. If using a new propeller shaft (w/phasemarks): Install the propeller shaft phasemarks and differential/transmission phas

Page 2342 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 37: Aligning Propeller Shaft And Differential/Transmission Phasemarks Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 29.FULLY TIGHTEN CENTER SUPPORT BEARING ASSY NO. 1 a. Torque the 2 center sup

Page 2343 of 4500

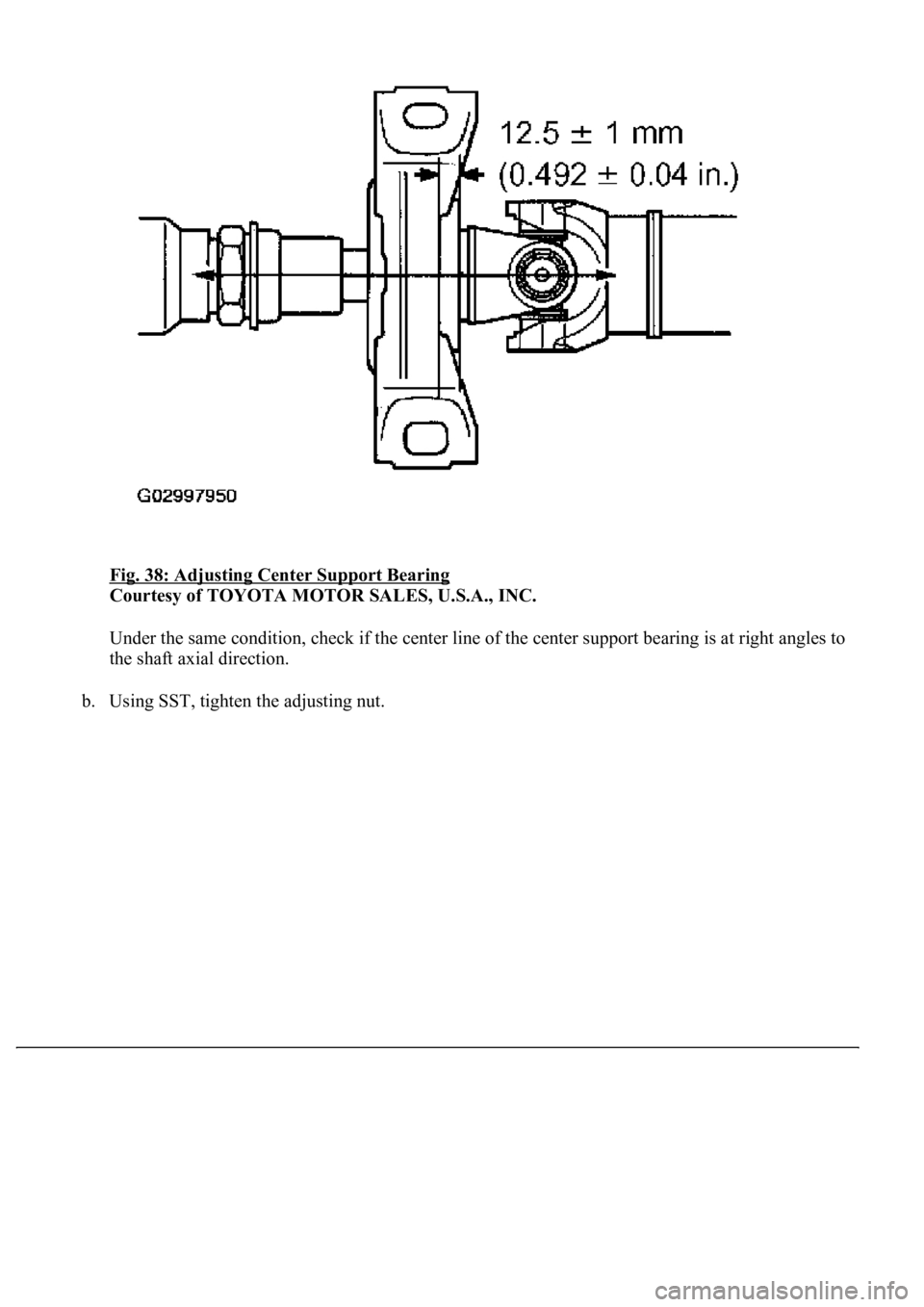

LEXUS LS430 2003 Factory Repair Manual Fig. 38: Adjusting Center Support Bearing Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Under the same condition, check if the center line of the center support bearing is at right angles to the sha

Page 2344 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 39: Tightening Adjusting Nut Using SST Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. SST 09922-10010 Torque: 69 N.m (700 kgf.cm, 51 ft.lbf) HINT: Use a torque wrench with a fulcrum length o
