Page 3025 of 4500

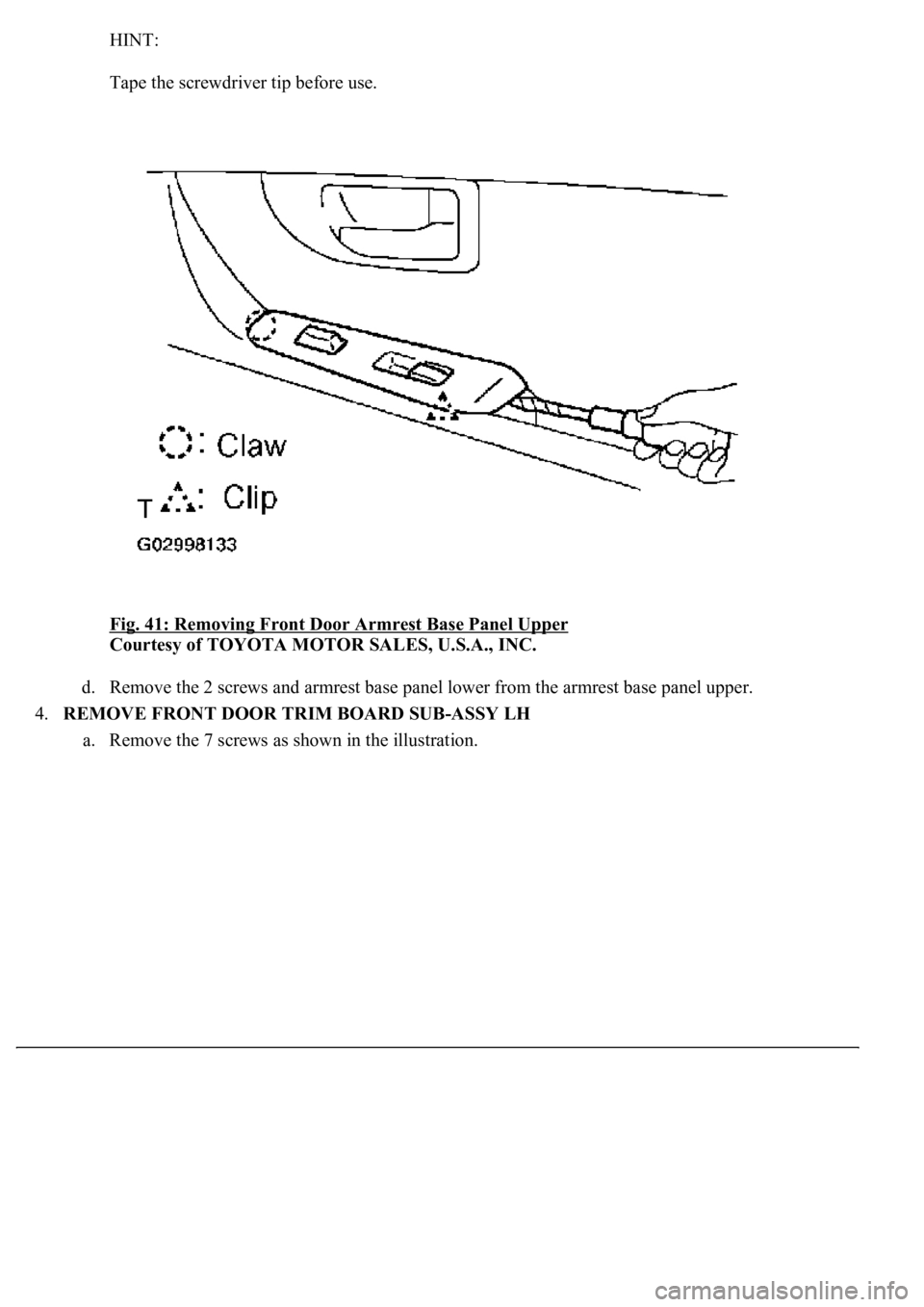

LEXUS LS430 2003 Factory Repair Manual HINT: Tape the screwdriver tip before use. Fig. 41: Removing Front Door Armrest Base Panel Upper Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Remove the 2 screws and armrest base panel lower f

Page 3026 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 42: Removing Front Door Trim Board Sub-Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Using a screwdriver, disengage the 4 clips. HINT: Tape the screwdriver tip before use. c. Remov

Page 3027 of 4500

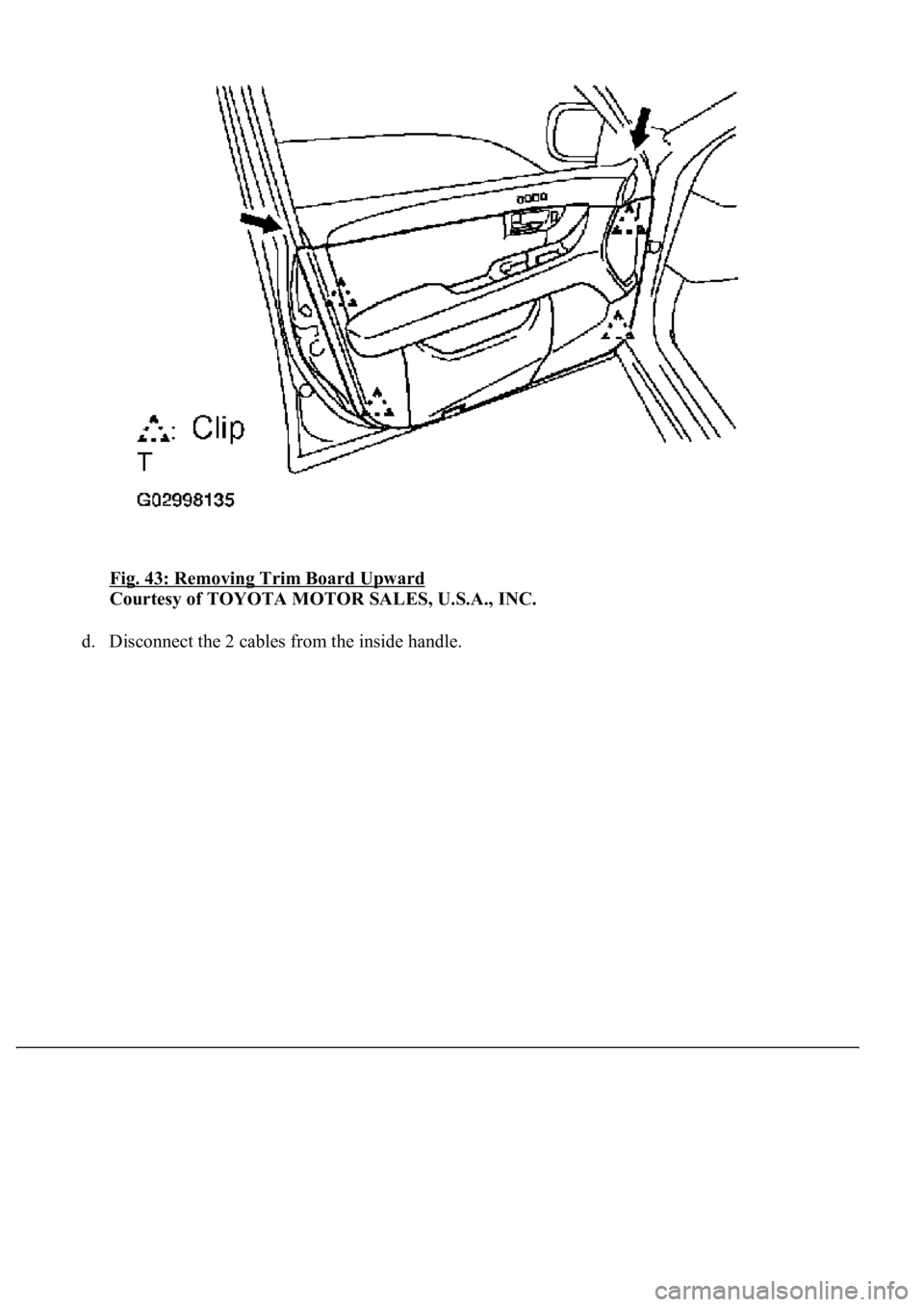

LEXUS LS430 2003 Factory Repair Manual Fig. 43: Removing Trim Board Upward Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Disconnect the 2 cables from the inside handle.

Page 3028 of 4500

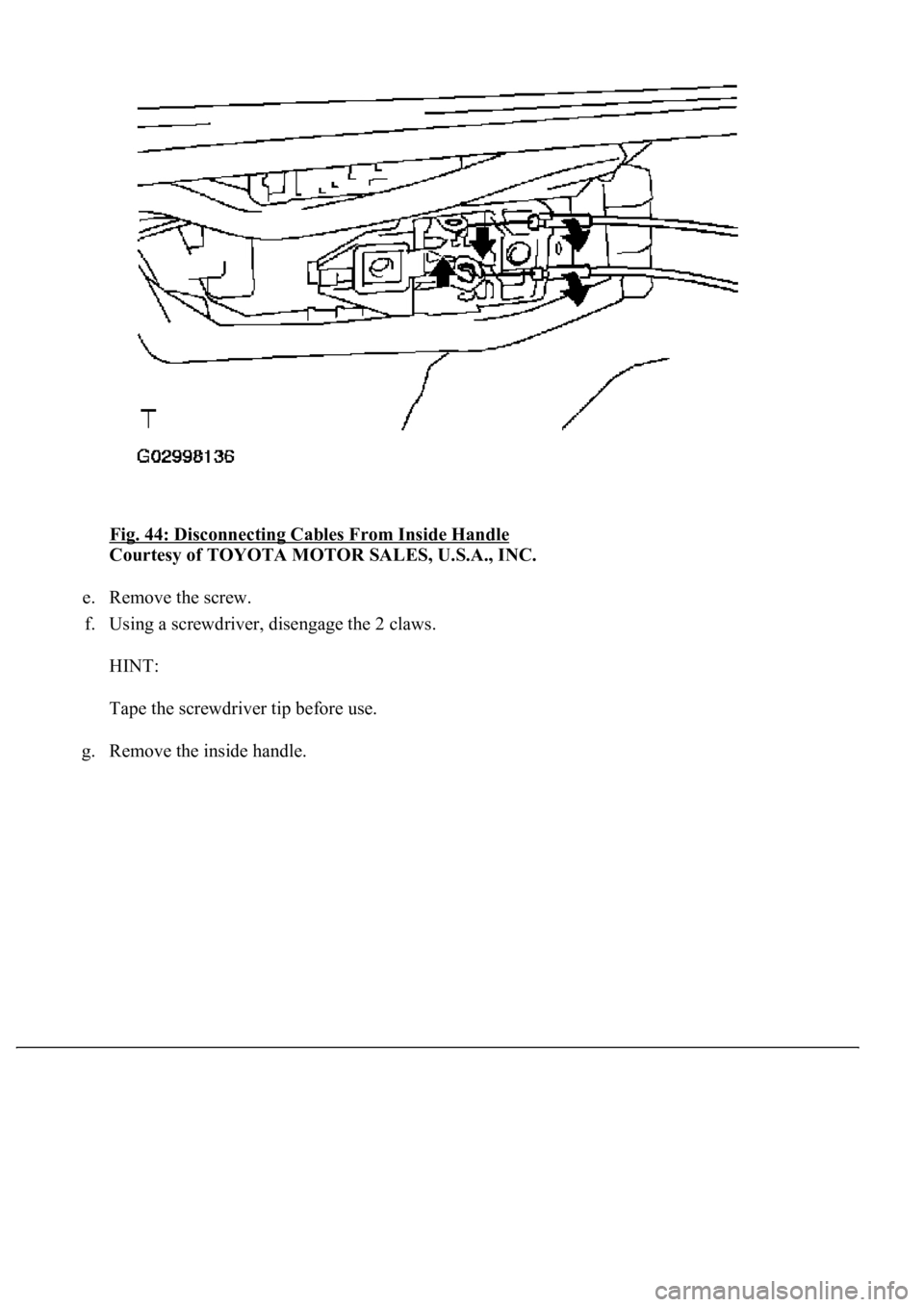

LEXUS LS430 2003 Factory Repair Manual Fig. 44: Disconnecting Cables From Inside Handle Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Remove the screw. f. Using a screwdriver, disengage the 2 claws. HINT: Tape the screwdriver tip b

Page 3029 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 45: Removing Inside Handle Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. h. Using a screwdriver, disengage the 2 clips and remove the courtesy lamp. i. Remove the 2 screws and seat memory swit

Page 3030 of 4500

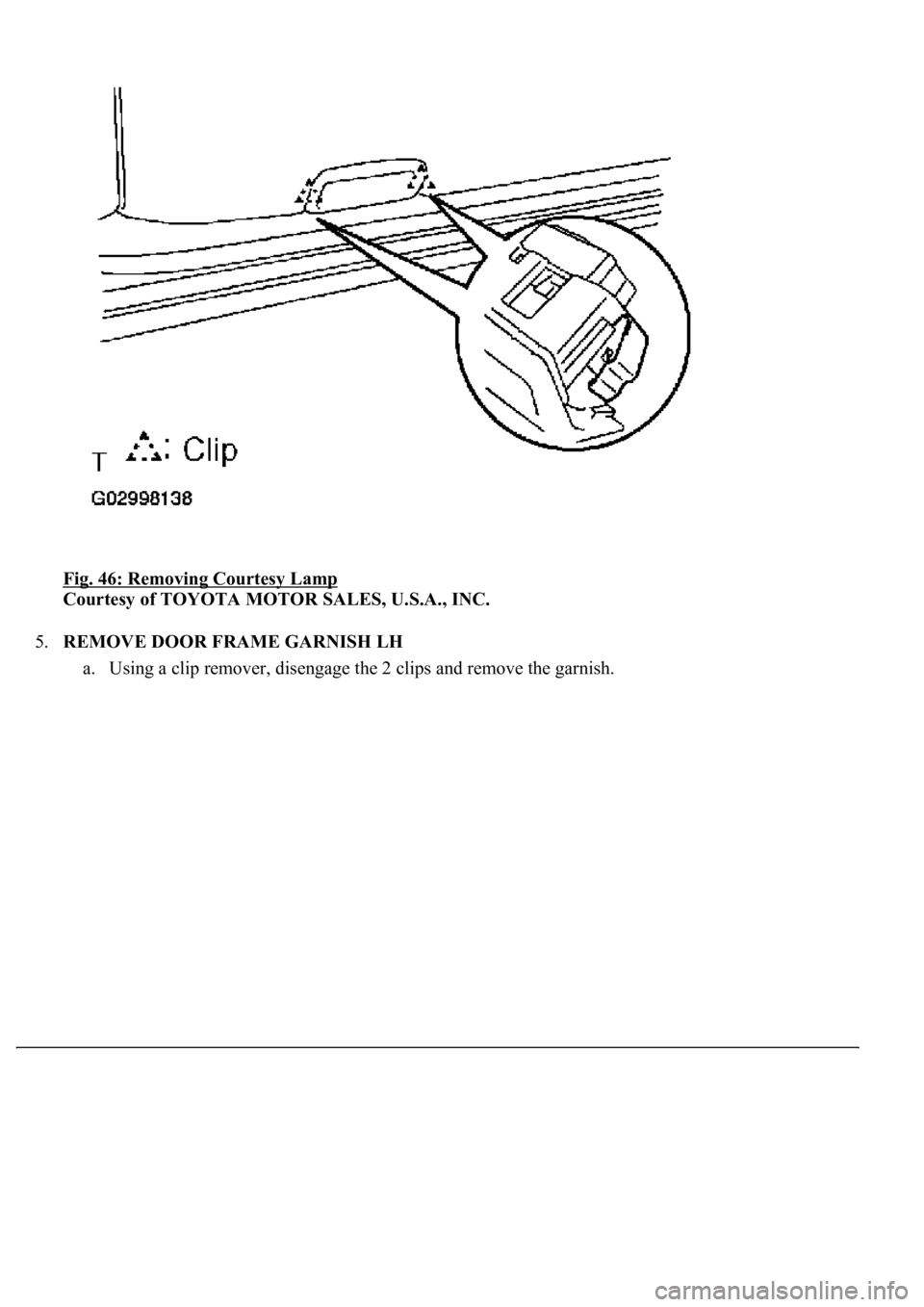

LEXUS LS430 2003 Factory Repair Manual Fig. 46: Removing Courtesy Lamp Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.REMOVE DOOR FRAME GARNISH LH a. Usin g a clip remover, disengage the 2 clips and remove the garnish.

Page 3031 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 47: Removing Door Frame Garnish LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.REMOVE FRONT DOOR SERVICE HOLE COVER LH a. Remove the 2 screws and door electrical key oscillator. b. Remove

Page 3032 of 4500

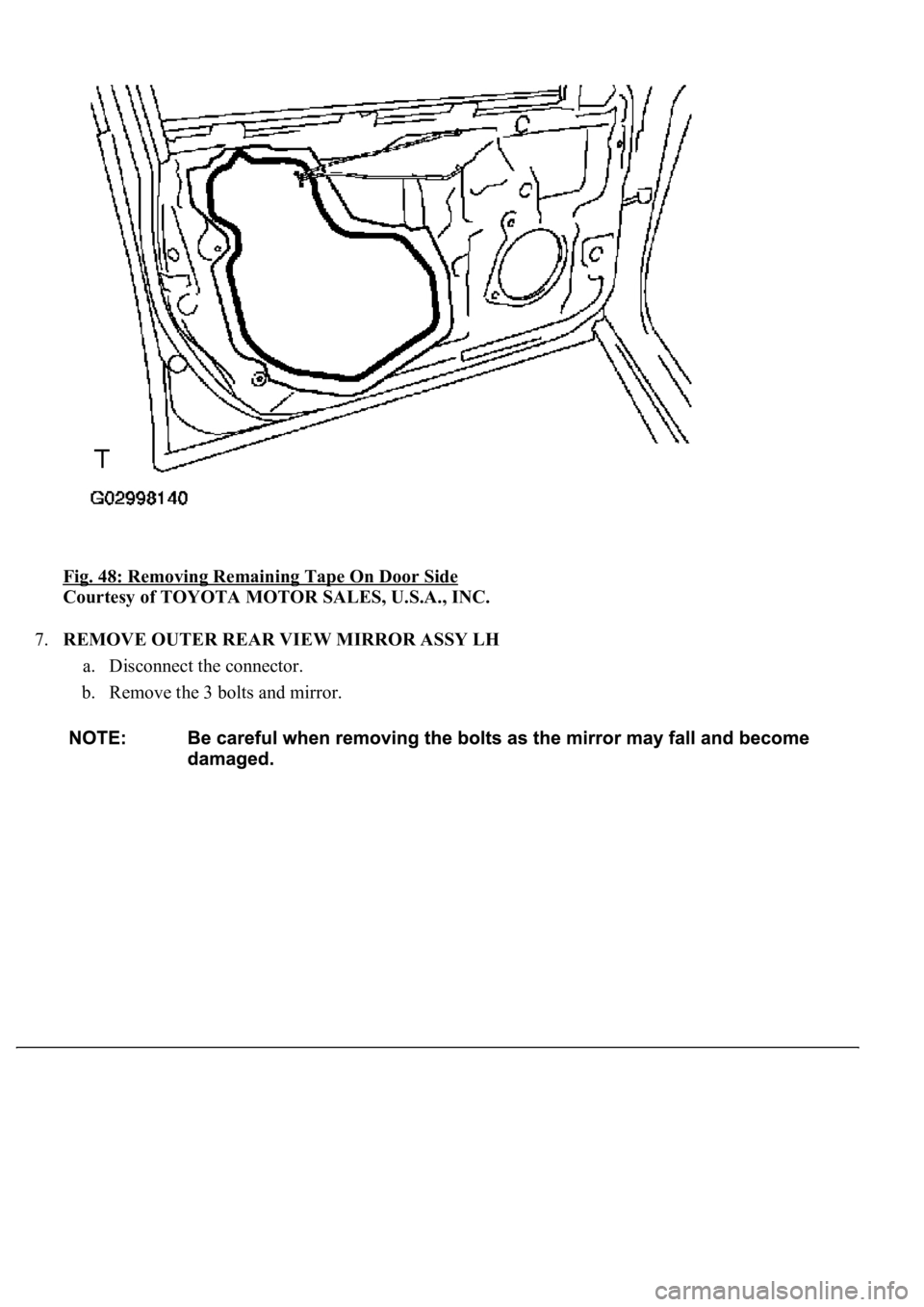

LEXUS LS430 2003 Factory Repair Manual Fig. 48: Removing Remaining Tape On Door Side Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.REMOVE OUTER REAR VIEW MIRROR ASSY LH a. Disconnect the connector. b. Remove the 3 bolts and mirror.
