Page 4313 of 4500

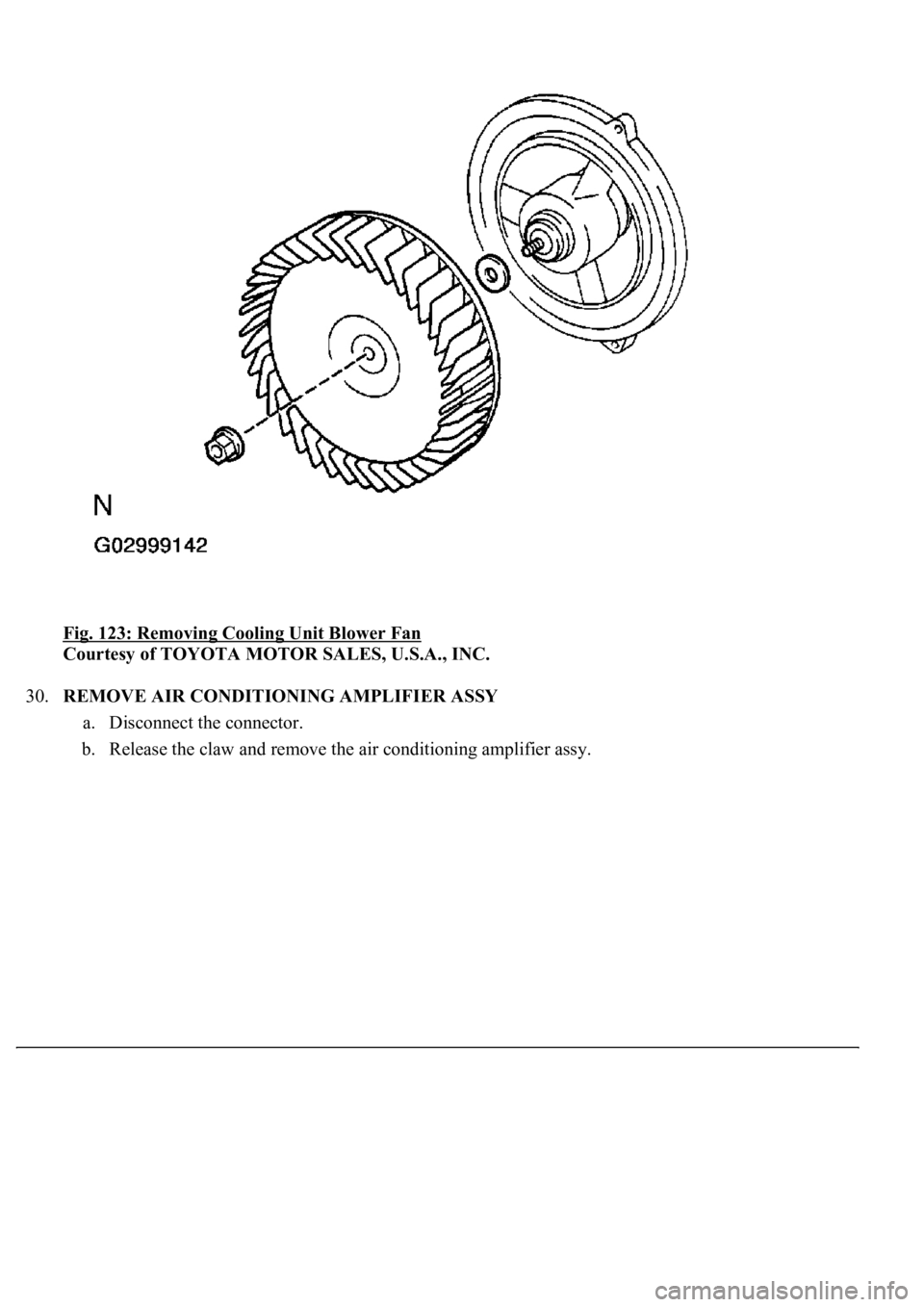

LEXUS LS430 2003 Factory Repair Manual Fig. 123: Removing Cooling Unit Blower Fan Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 30.REMOVE AIR CONDITIONING AMPLIFIER ASSY a. Disconnect the connector. b. Release the claw and remove the a

Page 4314 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 124: Removing Air Conditioning Amplifier Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 31.WIRING AIR INDICATOR HARNESS SUB-ASSY NO. 2 32.REMOVE BLOWER RESISTOR a. Remove the screw and bl

Page 4315 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 125: Removing Blower Resistor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 33.REMOVE EXHAUST DAMPER SERVOMOTOR a. Remove the 3 screws and exhaust damper servomotor.

Page 4316 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 126: Removing Exhaust Damper Servomotor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 34.REMOVE EVAPORATOR SUB-ASSY (REAR) a. Remove the 4 screws and cooler cover plate. b. Remove the evapora

Page 4317 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 127: Removing Evaporator Sub-Assy (Rear) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 35.REMOVE REAR COOLING UNIT EXPANSION VALVE a. Using a hexagon wrench 5 mm (0.20 in.), remove the 2 hexago

Page 4318 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 128: Removing Rear Cooling Unit Expansion Valve Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 36.INSTALL REAR COOLING UNIT EXPANSION VALVE a. Sufficiently apply compressor oil to 4 new O-rings

Page 4319 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300140015001c001d0003002c0051005600570044004f004f004c0051004a000300350048004400550003002600520052004f004c0051004a000300380051004c005700030028005b0053004400510056004c005200510003003

Page 4320 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a00110003001400160013001d0003002c0051005600570044004f004f004c0051004a00030033004c005300480003002600520052004f0048005500030035004800490055004c004a0048005500440051005700030036005800460057004
