Page 3705 of 4500

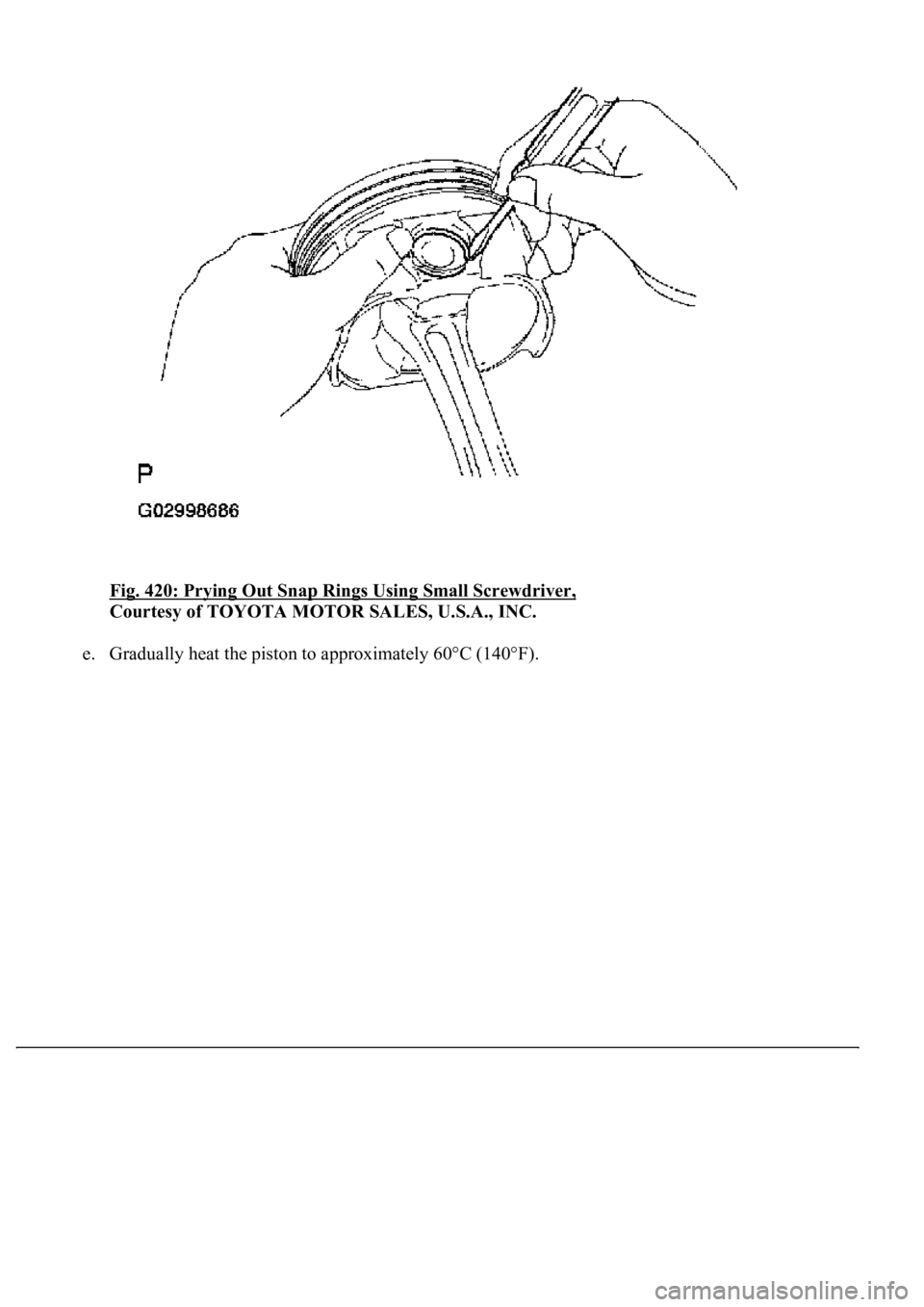

LEXUS LS430 2003 Factory Repair Manual Fig. 420: Prying Out Snap Rings Using Small Screwdriver, Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Gradually heat the piston to approximately 60°C (140°F).

Page 3706 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 421: Heating Piston Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. f. Using a plastic-faced hammer and brass bar, lightly tap out the piston and pin. Then remove the connecting rod. HINT: The

Page 3707 of 4500

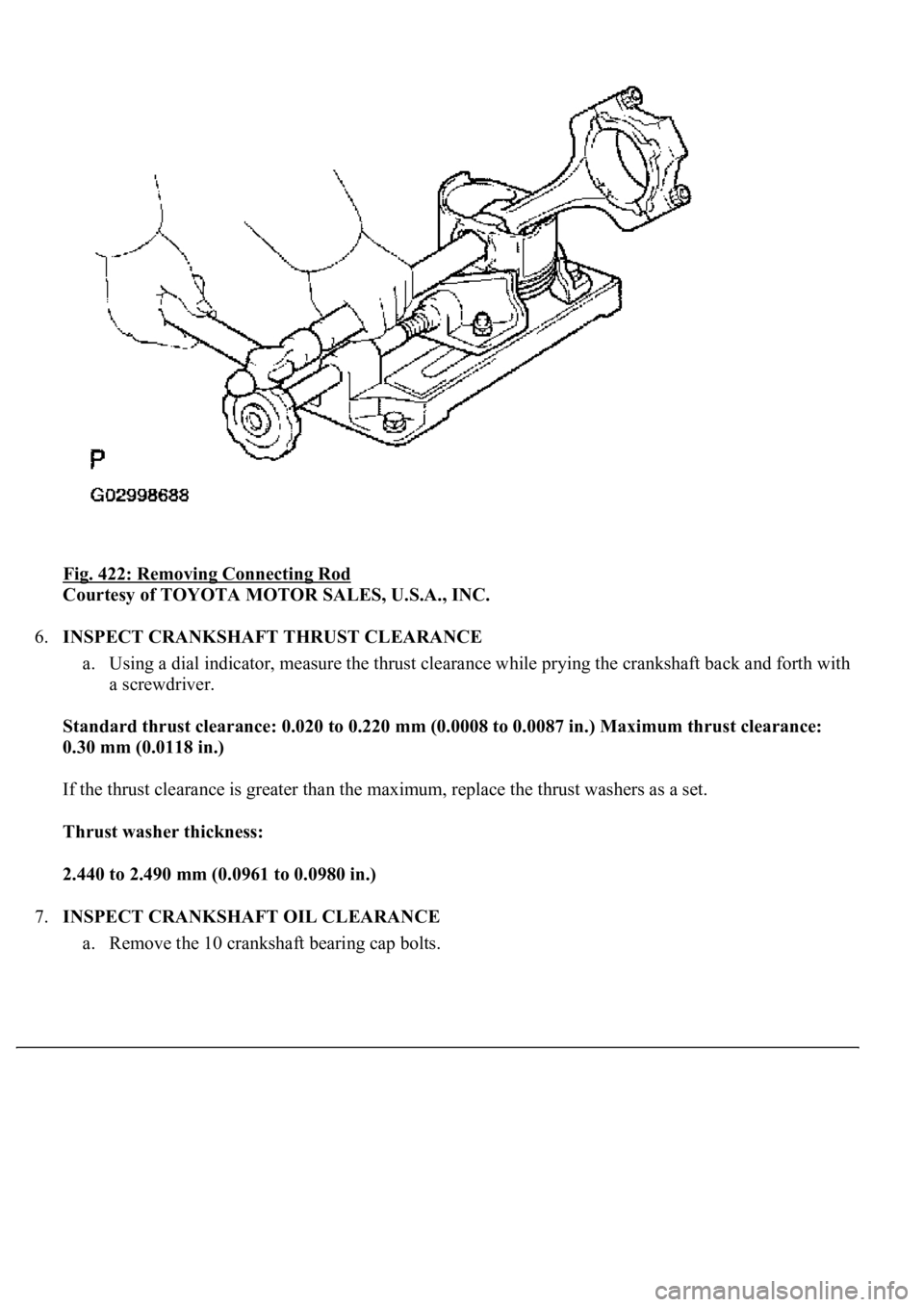

LEXUS LS430 2003 Factory Repair Manual Fig. 422: Removing Connecting Rod Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.INSPECT CRANKSHAFT THRUST CLEARANCE a. Using a dial indicator, measure the thrust clearance while prying the cranksh

Page 3708 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 423: Measuring Thrust Clearance Using Dial Indicator Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3709 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 424: Removing Crankshaft Bearing Cap Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3710 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 425: Identifying Crankshaft Bearing Cap Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Uniformly loosen and remove the 20 crankshaft bearing cap bolts in the sequence shown in the illus

Page 3711 of 4500

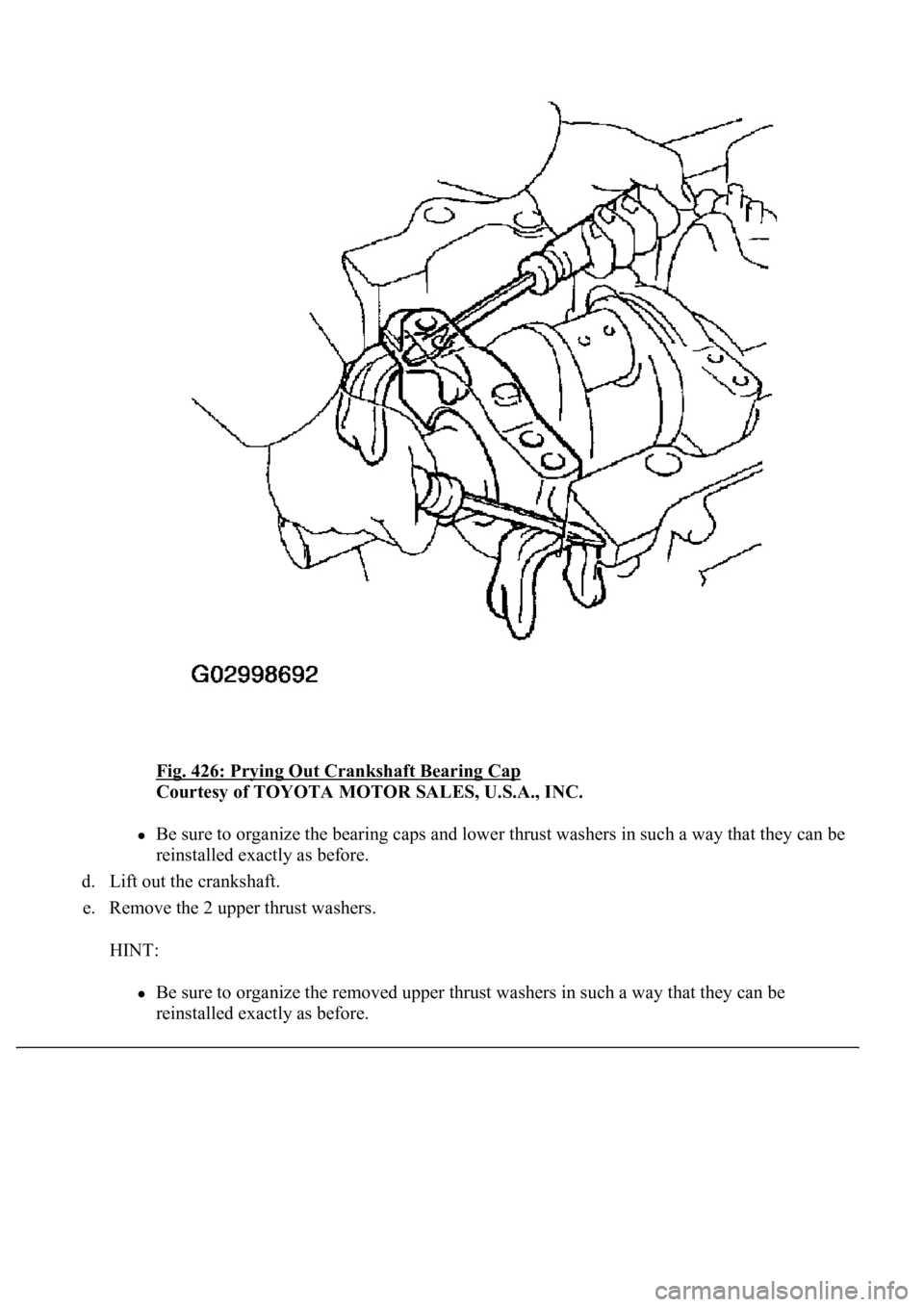

LEXUS LS430 2003 Factory Repair Manual Fig. 426: Prying Out Crankshaft Bearing Cap Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Be sure to organize the bearing caps and lower thrust washers in such a way that they can be reinstalled exa

Page 3712 of 4500

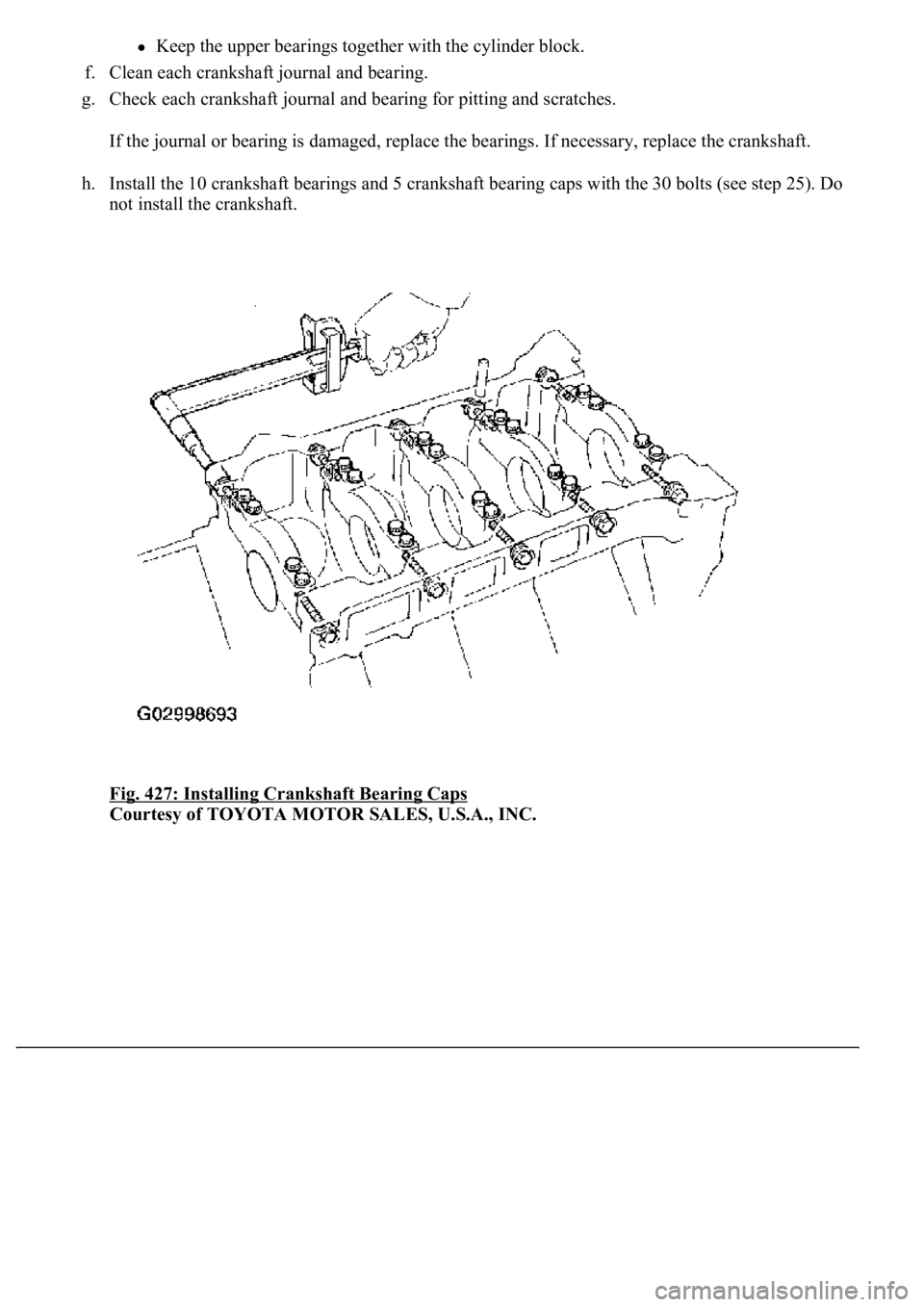

LEXUS LS430 2003 Factory Repair Manual Keep the upper bearings together with the cylinder block. f. Clean each crankshaft journal and bearing. g. Check each crankshaft journal and bearing for pitting and scratches. If the journal or b
