Fig. 95: Identifying Skid Control ECU Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
CIRCUIT DESCRIPTION
Recognition of brake operation by sending stop lamp signal to skid control ECU.
Fig. 96: DTC C1249/49 Detecting Condition And Trouble Area
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
Page 130 of 4500
Fig. 97: Stop Light Switch Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK STOP LAMP SWITCH OPERATION
a. Check that the stop light comes on when the brake pedal is depressed and turns off when the brake
pedal is released.
OK:
Page 131 of 4500
Fig. 98: Pedal Condition Reference Table
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: Go to step 6
HINT:
Check the stop lamp bulb as it may have burnt out.
OK:
2.INSPECT MULTIPLEX COMMUNICATION SYSTEM (SEE HOW TO PROCEED WITH
TROUBLESHOOTING )
a. Is DTC output Multiplex communication system?
Result:
DTC OUTPUT DESCRIPTION
B: REPAIR MULTIPLEX COMMUNICATION SYSTEM
A: Go to next step
3.CHECK HARNESS AND CONNECTOR (STP1 TERMINAL VOLTAGE OF DRIVER SIDE J/B
ECU)
a. Disconnect the driver side J/B ECU connector.
b. Measure the voltage according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION
DTC is not outputA
TDC is outputB
Tester ConnectionSwitch ConditionSpecified Condition
D3-13 (STP1) - Body ground Brakepedal depressed8 to 14 V
D3-13 (STP1) - Body groundBrake pedal releasedBelow 1 V
Page 132 of 4500
Fig. 99: Identifying Driver Side J/B ECU connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
4.CHECK HARNESS AND CONNECTOR (STPA OF DRIVER SIDE J/B ECU - STP OF SKID
CONTROL ECU)
a. Disconnect driver side J/B ECU connector and skid control ECU connector.
Page 133 of 4500

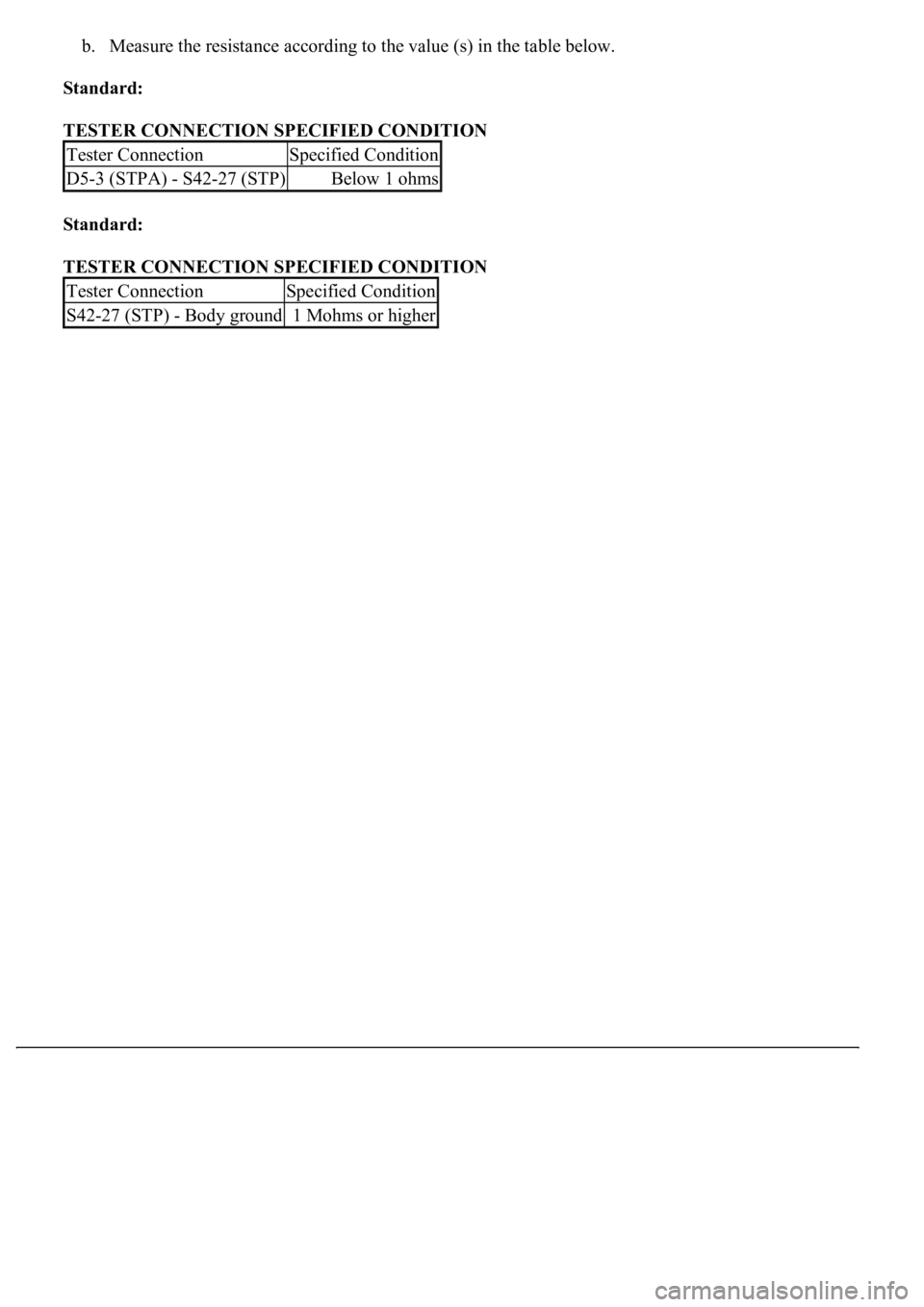

b. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION
Standard:
TESTER CONNECTION SPECIFIED CONDITION
Tester ConnectionSpecified Condition
D5-3 (STPA) - S42-27 (STP)Below 1 ohms
Tester ConnectionSpecified Condition
S42-27 (STP) - Body ground1 Mohms or higher
Page 134 of 4500
Fig. 100: Identifying Driver Side J/B ECU Connector And Skid Control ECU Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTO
R
Page 135 of 4500
OK: Go to next step
5.RECONFIRM DTC
a. Clear the DTC (see DTC CHECK/CLEAR
).
b. Turn the ignition switch to the ON position.
c. Check that the same DTC is recorded (see DTC CHECK/CLEAR
).
OK:
The same DTC is recorded.
NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS
TABLE
OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT
)
6.INSPECT STOP LAMP SWITCH ASSY
a. Disconnect the stop lamp switch assy connector.
b. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION
Switch ConditionTester ConnectionSpecified Condition
Switch pin free1 - 2Below 1 ohms
Switch pin pushed in1 - 21 Mohms or higher
Page 136 of 4500
Fig. 101: Identifying Stop Lamp Switch Assy Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE STOP LAMP SWITCH ASSY
OK: Go to next step
7.CHECK HARNESS AND CONNECTOR (STOP LAMP SWITCH - DRIVER SIDE J/B ECU)
a. Disconnect the stop lamp switch connector and driver side J/B connector.
b. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION
c. Measure the resistance according to the value (s) in the table below.
Standard:
Tester ConnectionSpecified Condition
(S19-1) - D3-13 (STP-1)Below 1 ohms
