Page 937 of 4500

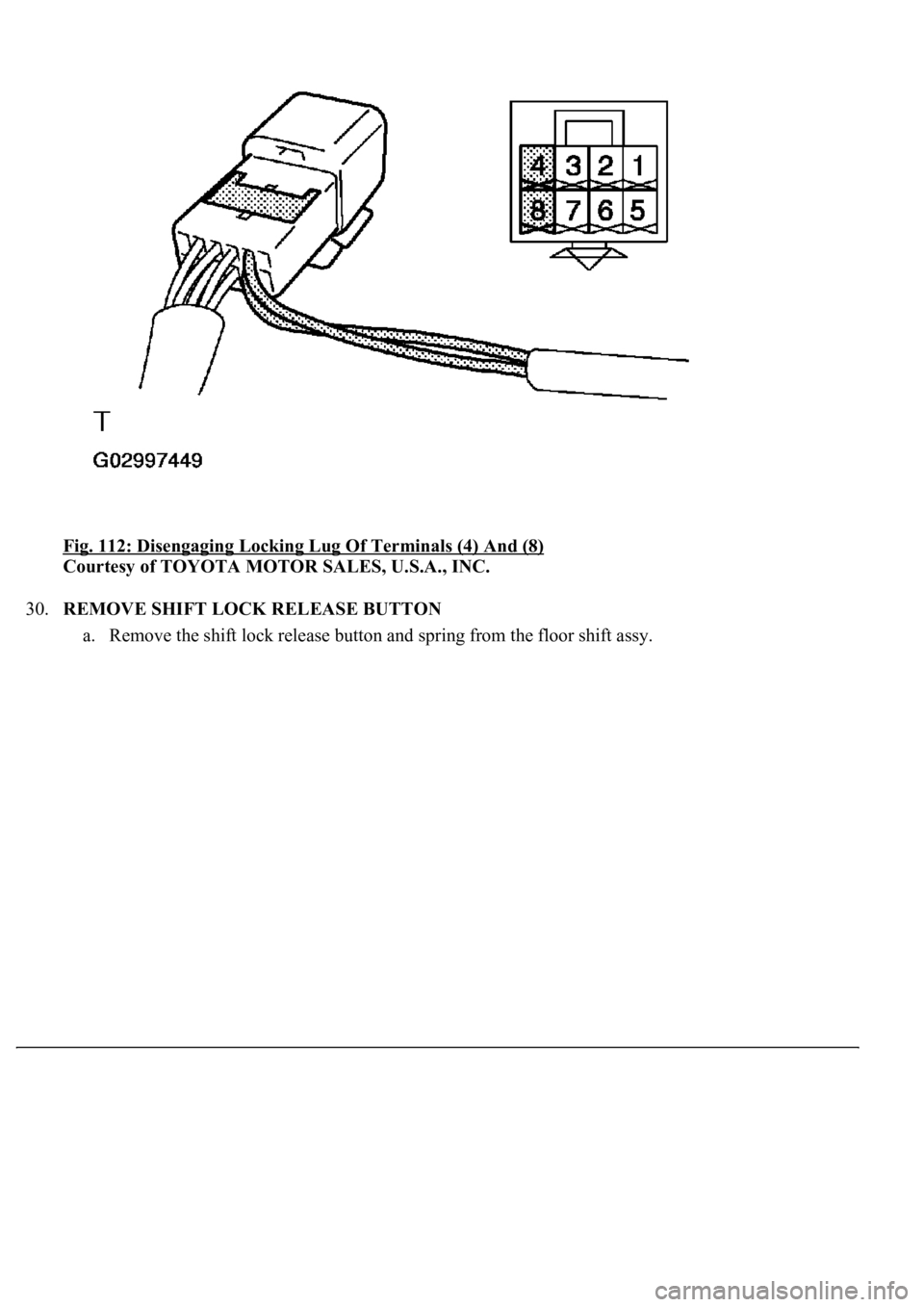

LEXUS LS430 2003 Factory Repair Manual Fig. 112: Disengaging Locking Lug Of Terminals (4) And (8) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 30.REMOVE SHIFT LOCK RELEASE BUTTON a. Remove the shift lock release button and sprin g from

Page 938 of 4500

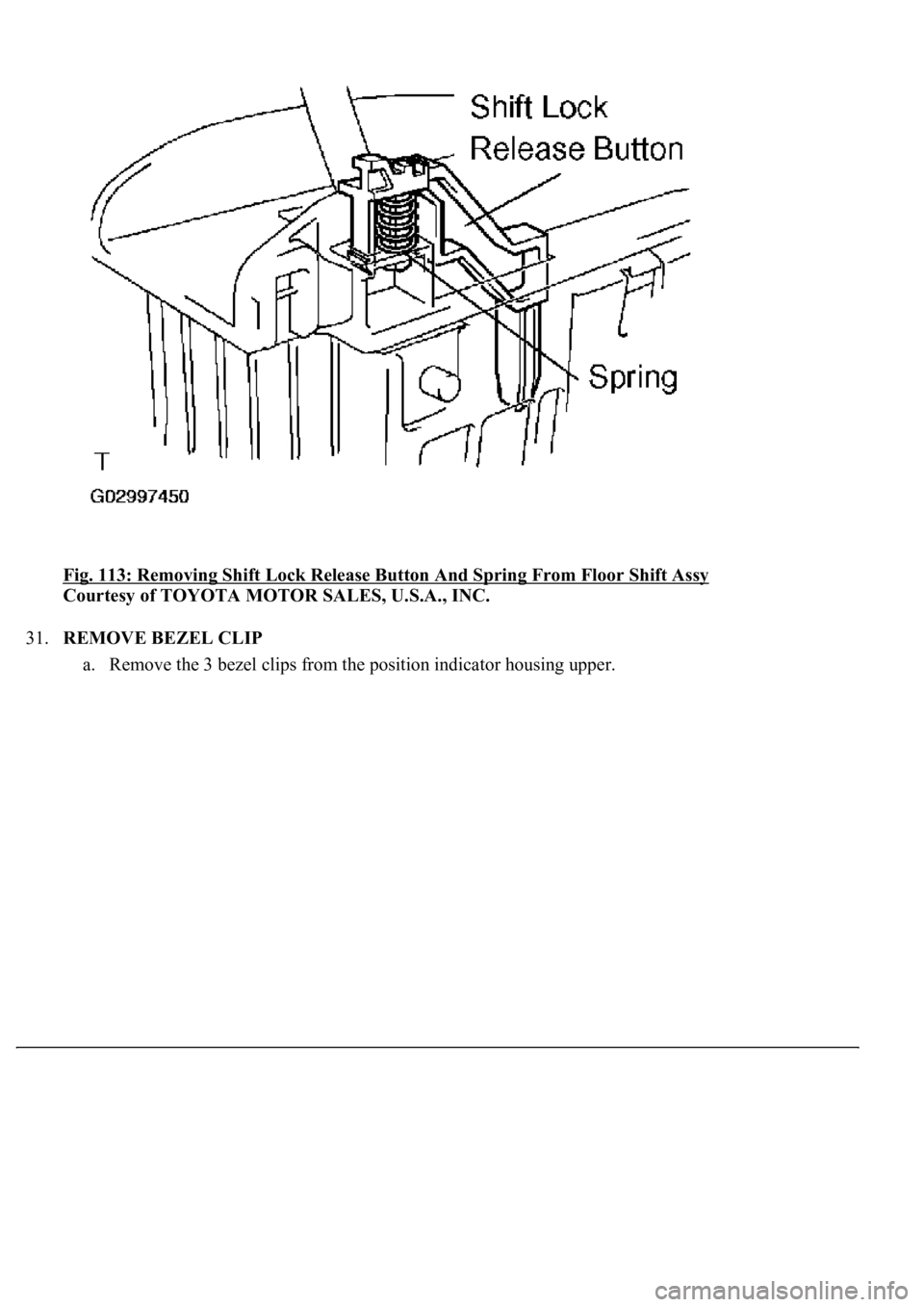

LEXUS LS430 2003 Factory Repair Manual Fig. 113: Removing Shift Lock Release Button And Spring From Floor Shift Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 31.REMOVE BEZEL CLIP a. Remove the 3 bezel clips from the position indicat

Page 939 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 940 of 4500

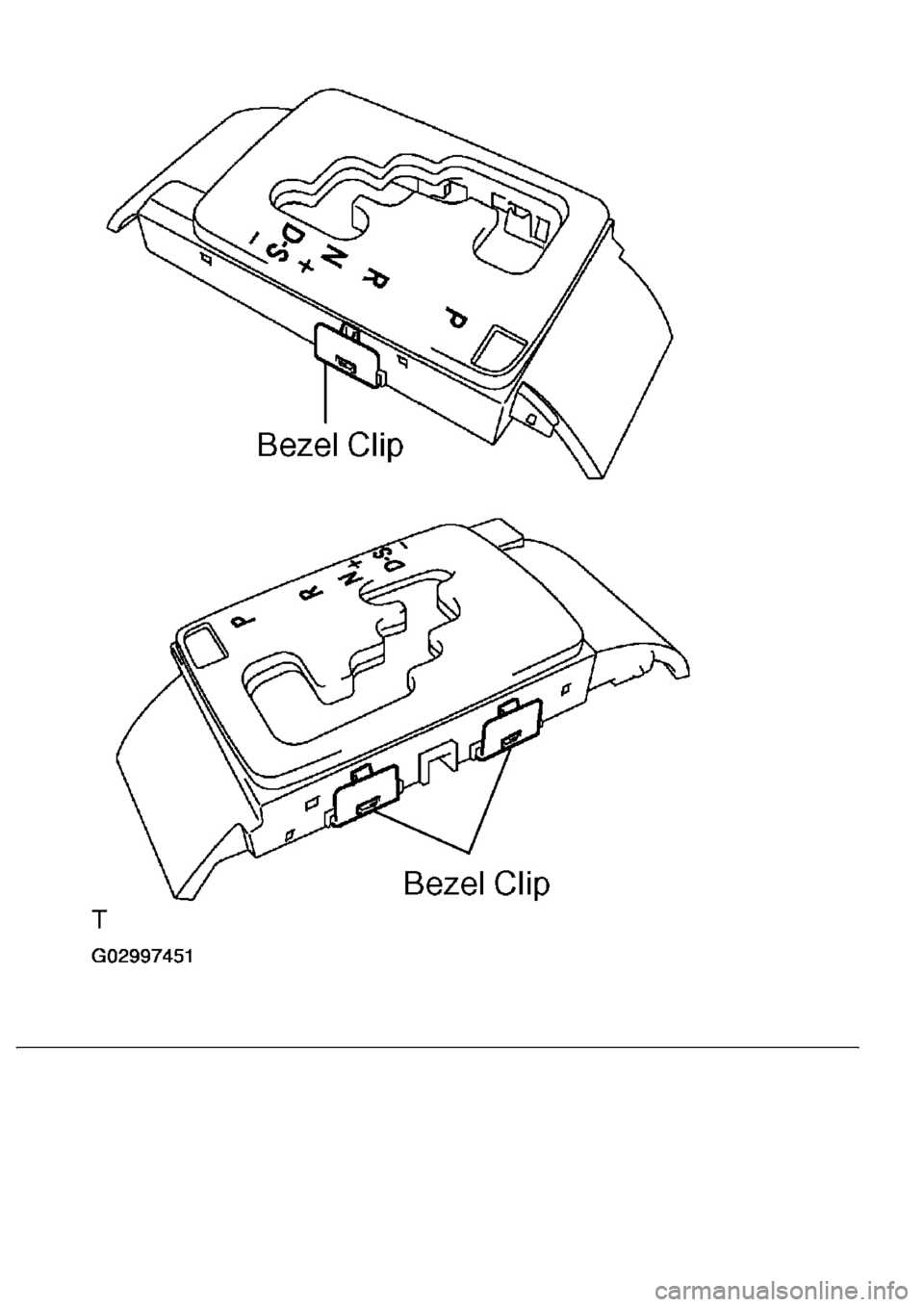

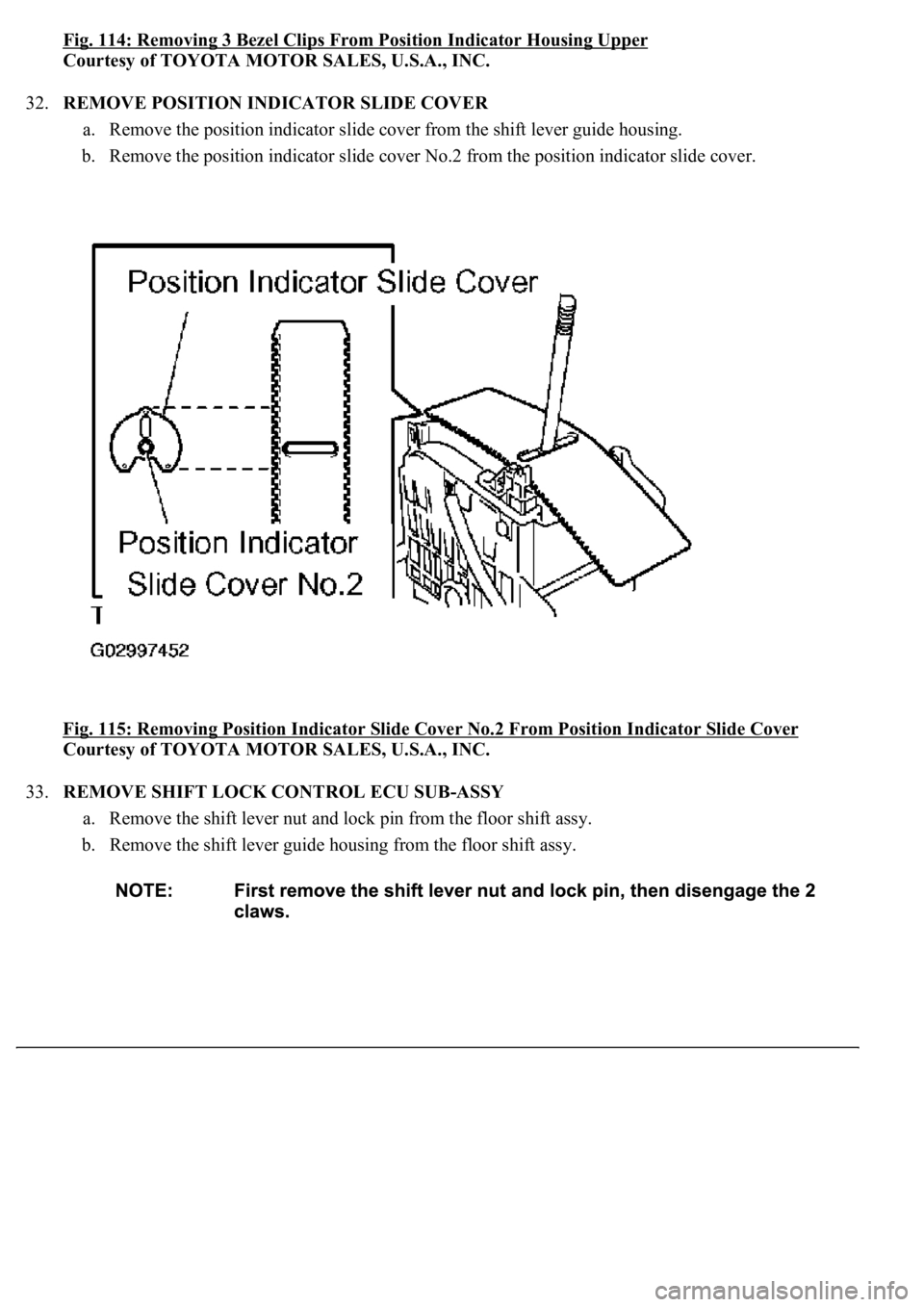

LEXUS LS430 2003 Factory Repair Manual Fig. 114: Removing 3 Bezel Clips From Position Indicator Housing Upper Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 32.REMOVE POSITION INDICATOR SLIDE COVER a. Remove the position indicator slide c

Page 941 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 116: Removing Shift Lever Nut And Lock Pin From Floor Shift Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Remove the 2 screws and shift lock control ECU sub-ass y.

Page 942 of 4500

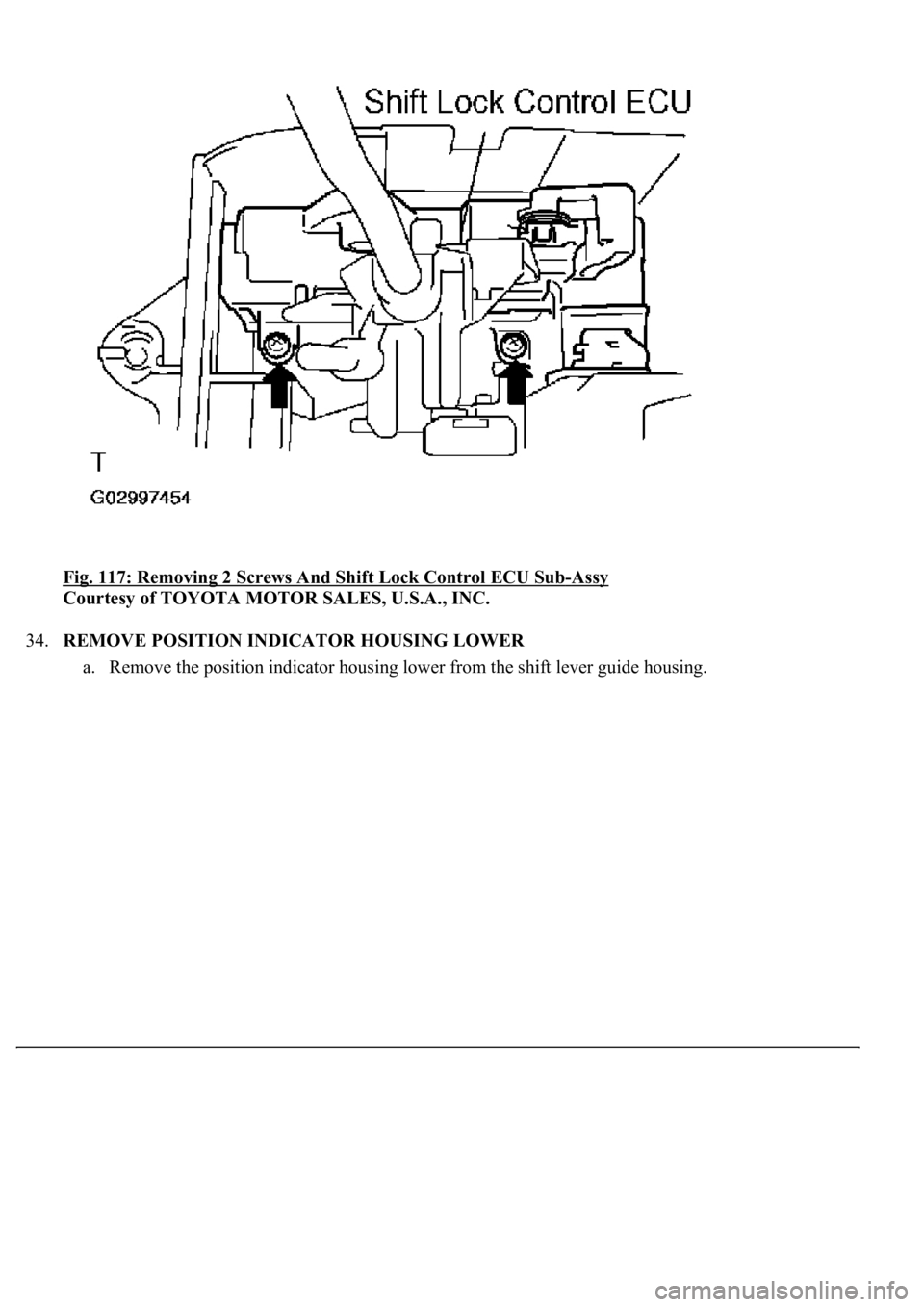

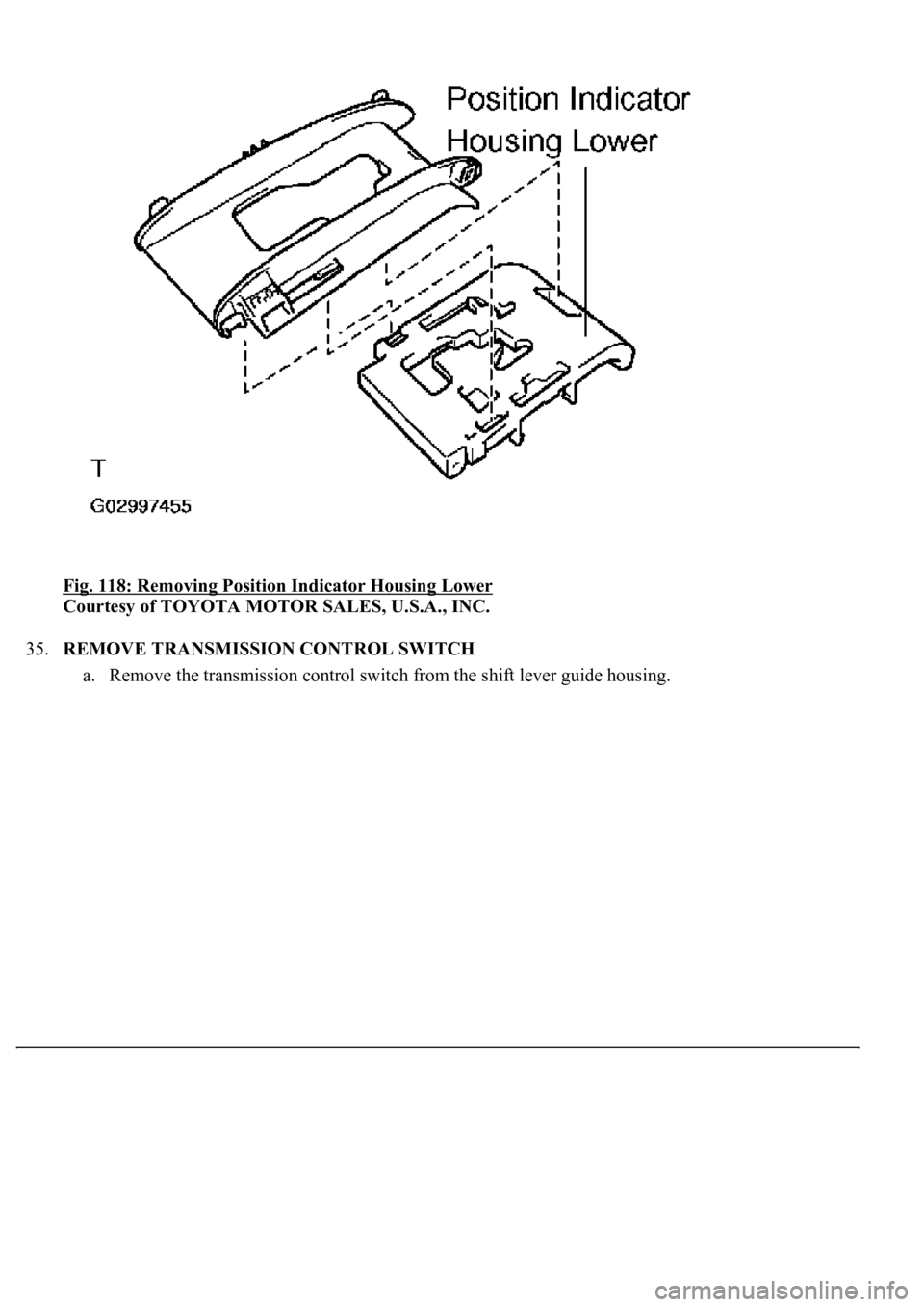

LEXUS LS430 2003 Factory Repair Manual Fig. 117: Removing 2 Screws And Shift Lock Control ECU Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 34.REMOVE POSITION INDICATOR HOUSING LOWER a. Remove the position indicator housin g low

Page 943 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300140014001b001d000300350048005000520059004c0051004a0003003300520056004c0057004c005200510003002c00510047004c004600440057005200550003002b005200580056004c0051004a0003002f0052005a004

Page 944 of 4500

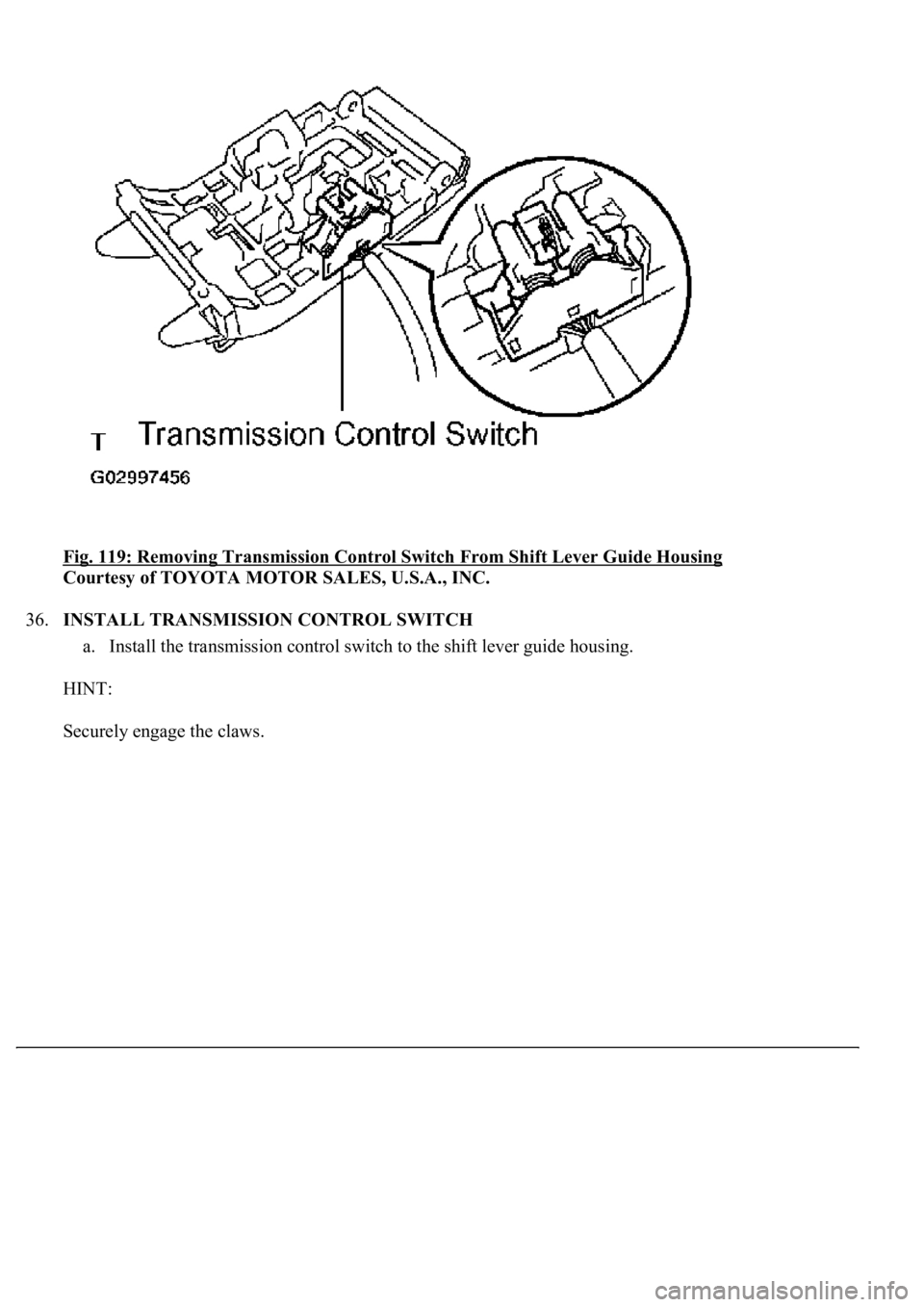

LEXUS LS430 2003 Factory Repair Manual Fig. 119: Removing Transmission Control Switch From Shift Lever Guide Housing Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 36.INSTALL TRANSMISSION CONTROL SWITCH a. Install the transmission control
