51005200030044004500510052005500500044004f004c0057[ies in any of the other circuits, check
and replace the ECM.
HINT:
*1: When the circuit on which mark *1 is attached is a malfunction, DTC could be output (see
DIAGNOSTIC TROUBLE CODE CHART
).

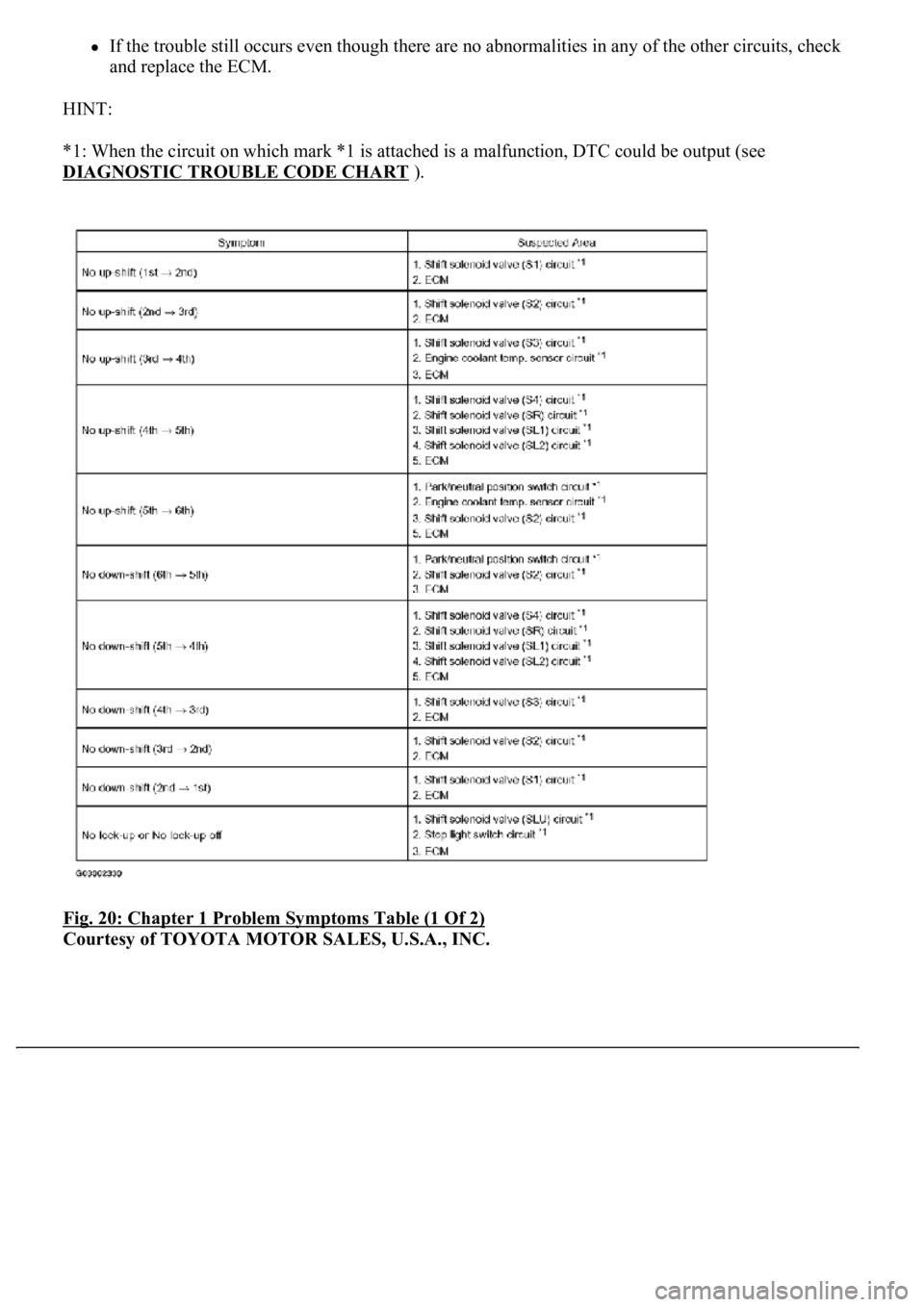

Fig. 20: Chapter 1 Problem Symptoms Table (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 2698 of 4500
Fig. 21: Chapter 1 Problem Symptoms Table (2 Of 2)
Page 2699 of 4500
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.Chapter 2: On-Vehicle Repair and Off-Vehicle Repair
(See A761E OVERHAUL
article for mechanical repair information.)
Page 2700 of 4500

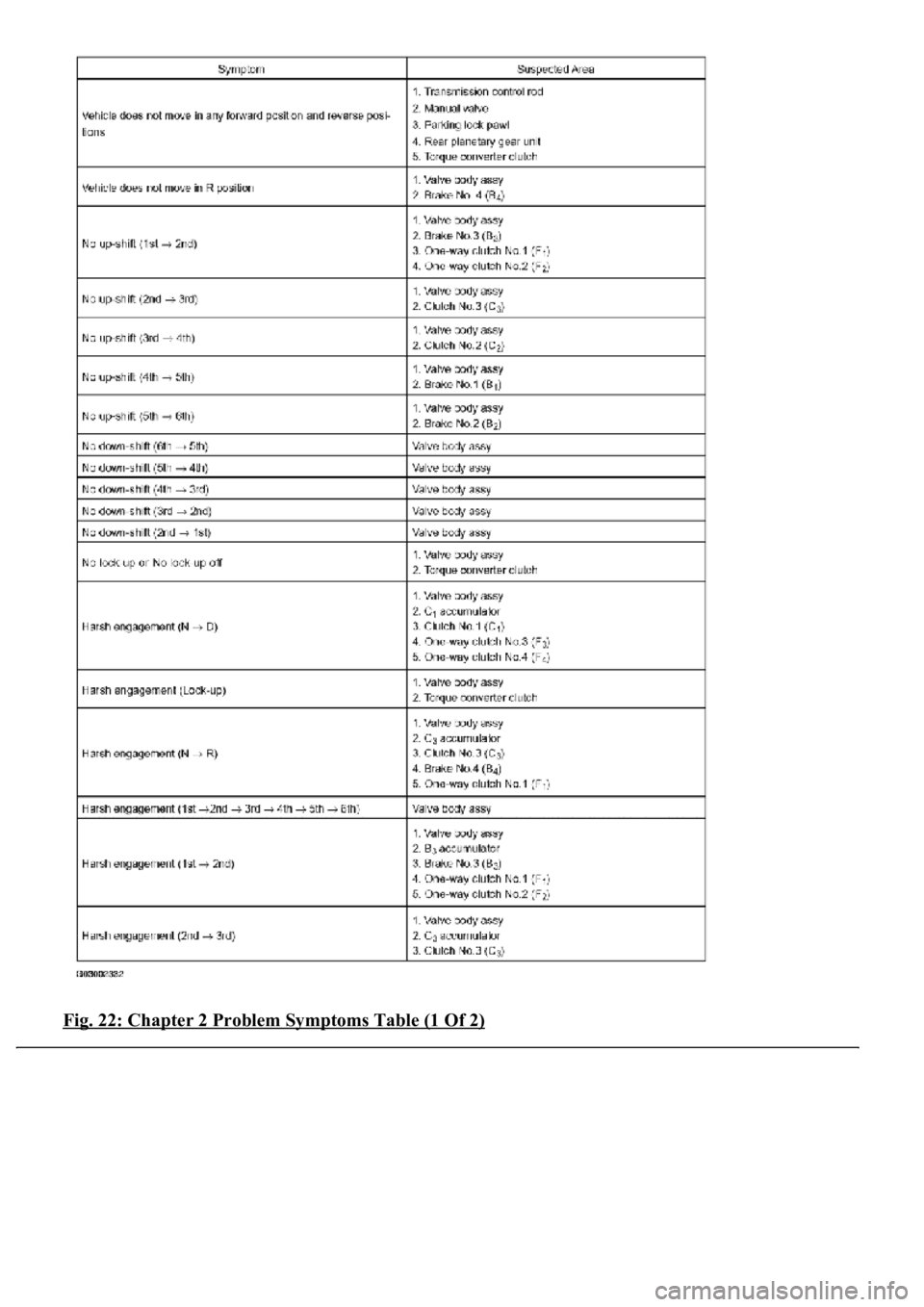

Fig. 22: Chapter 2 Problem Symptoms Table (1 Of 2)
Page 2701 of 4500
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 23: Chapter 2 Problem Symptoms Table (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 2702 of 4500
TERMINALS OF ECM
1.ECM
Fig. 24: Identifying ECM Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
Each ECM terminal's standard voltage is shown in the table below.
In the table, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the
terminals to inspected. The standard voltage between the terminals is shown under "Specific Condition".
Use the illustration above as a reference for the ECM terminals.
Page 2703 of 4500
Page 2704 of 4500
Fig. 25: Identifying ECM Terminals Reference Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Waveform 1
Fig. 26: Identifying Waveform 1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Reference:
WAVEFORM 1 REFERENCE TABLE
Waveform 2
TerminalSLT+ - SLT-
Tool setting5V/DIV, 1ms/DIV
Vehicle conditionEngine idle speed
