Page 3905 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 115: Removing Visor Holder Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 35.REMOVE VANITY LAMP ASSY LH a. Using a screwdriver, disengage the 2 claws and remove the lens. HINT: Tape the screwd

Page 3906 of 4500

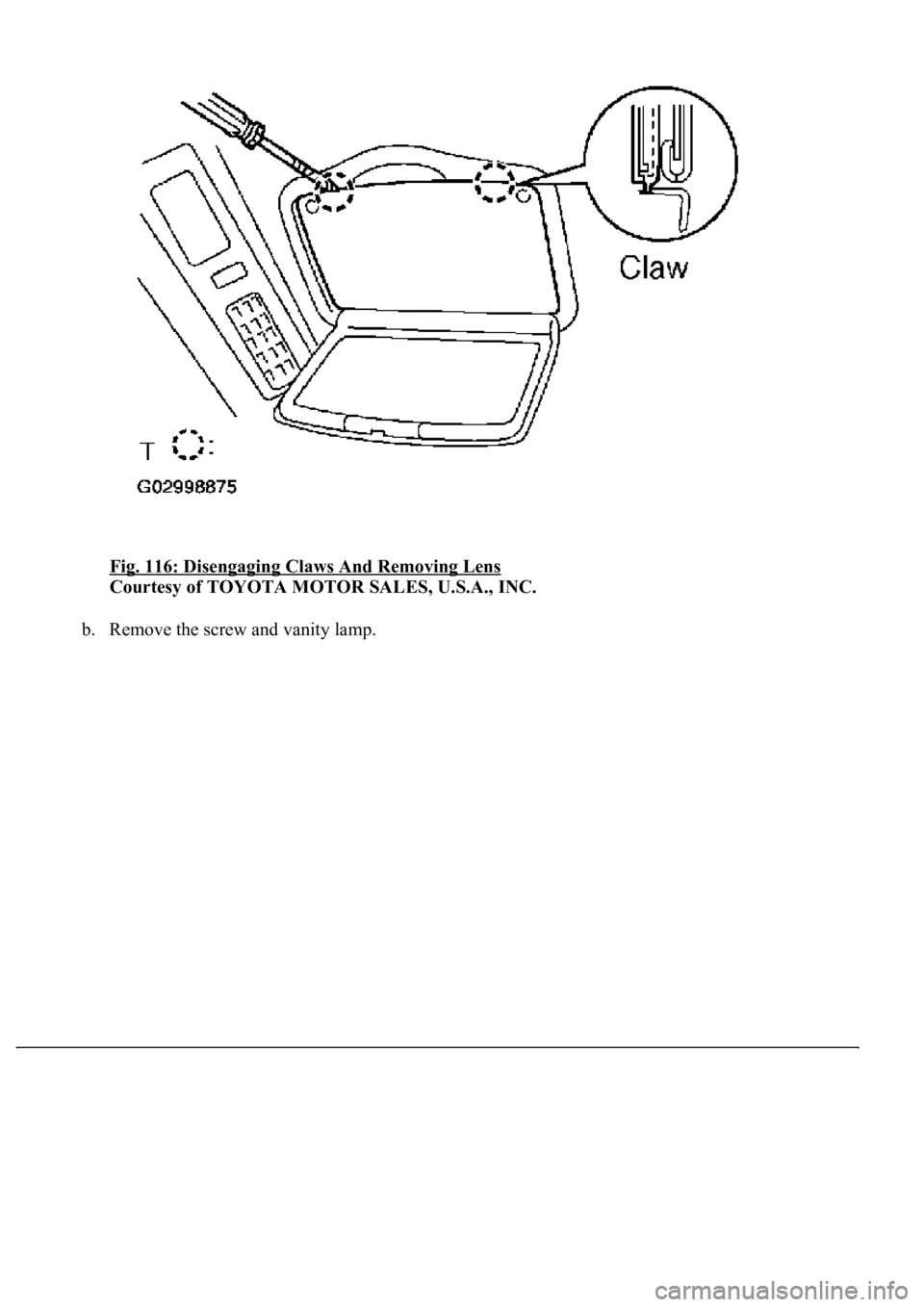

LEXUS LS430 2003 Factory Repair Manual Fig. 116: Disengaging Claws And Removing Lens Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the screw and vanity lamp.

Page 3907 of 4500

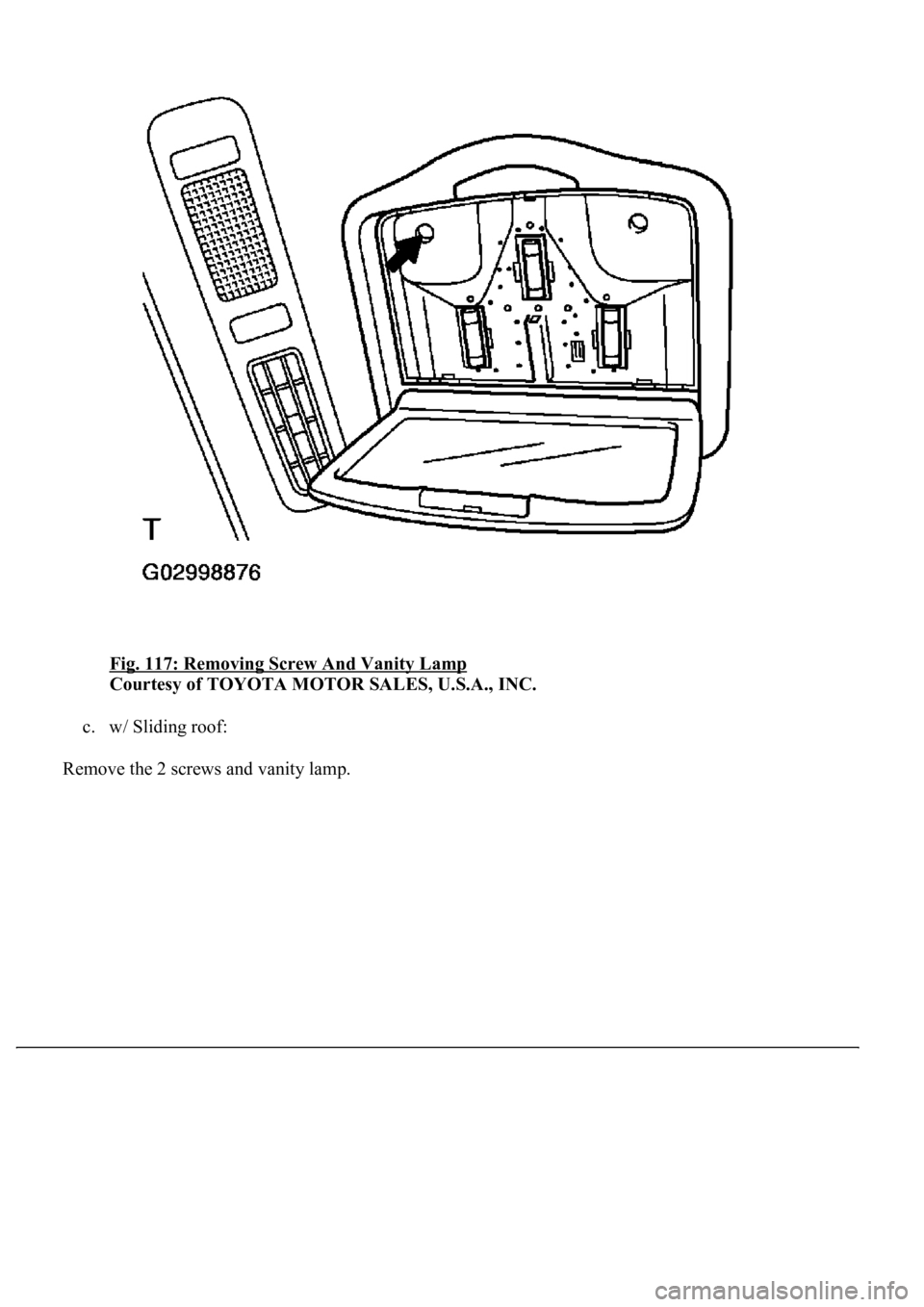

LEXUS LS430 2003 Factory Repair Manual Fig. 117: Removing Screw And Vanity Lamp Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. w/ Sliding roof: Remove the 2 screws and vanit y lamp.

Page 3908 of 4500

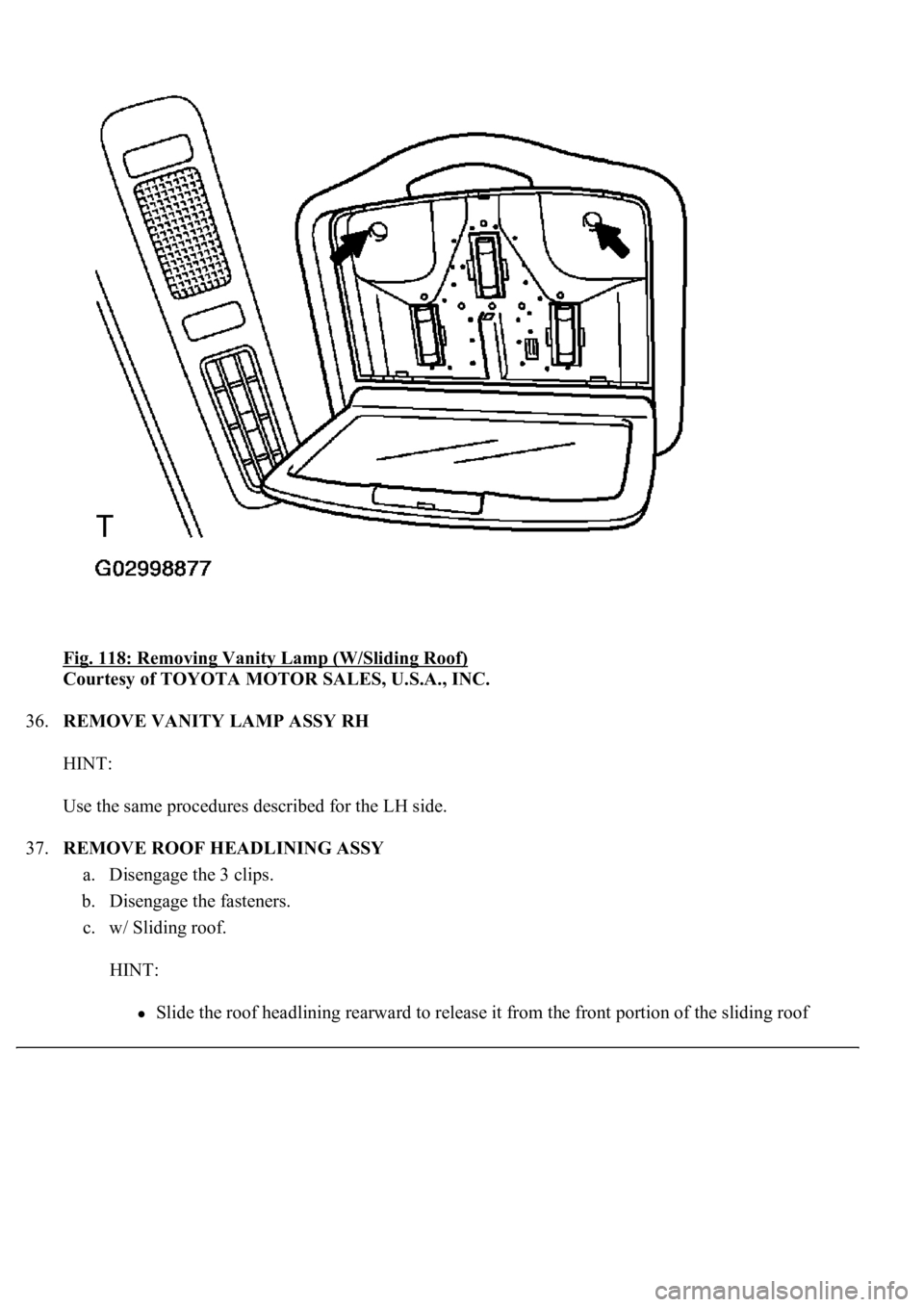

LEXUS LS430 2003 Factory Repair Manual Fig. 118: Removing Vanity Lamp (W/Sliding Roof) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 36.REMOVE VANITY LAMP ASSY RH HINT: Use the same procedures described for the LH side. 37.REMOVE ROOF

Page 3909 of 4500

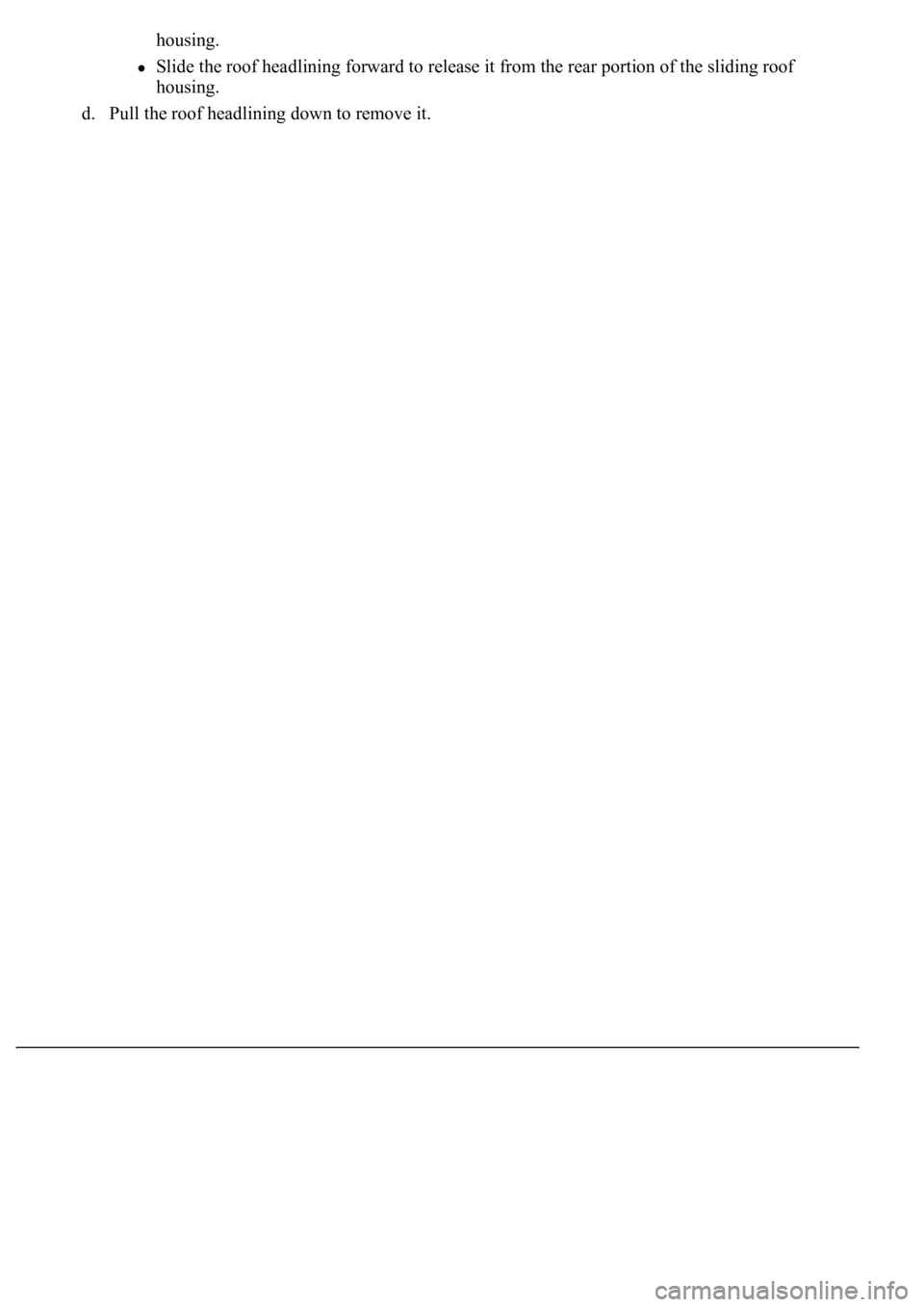

LEXUS LS430 2003 Factory Repair Manual housing. Slide the roof headlining forward to release it from the rear portion of the sliding roof housing. d. Pull the roof headlinin g down to remove it.

Page 3910 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 119: Removing Roof Headlining Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3911 of 4500

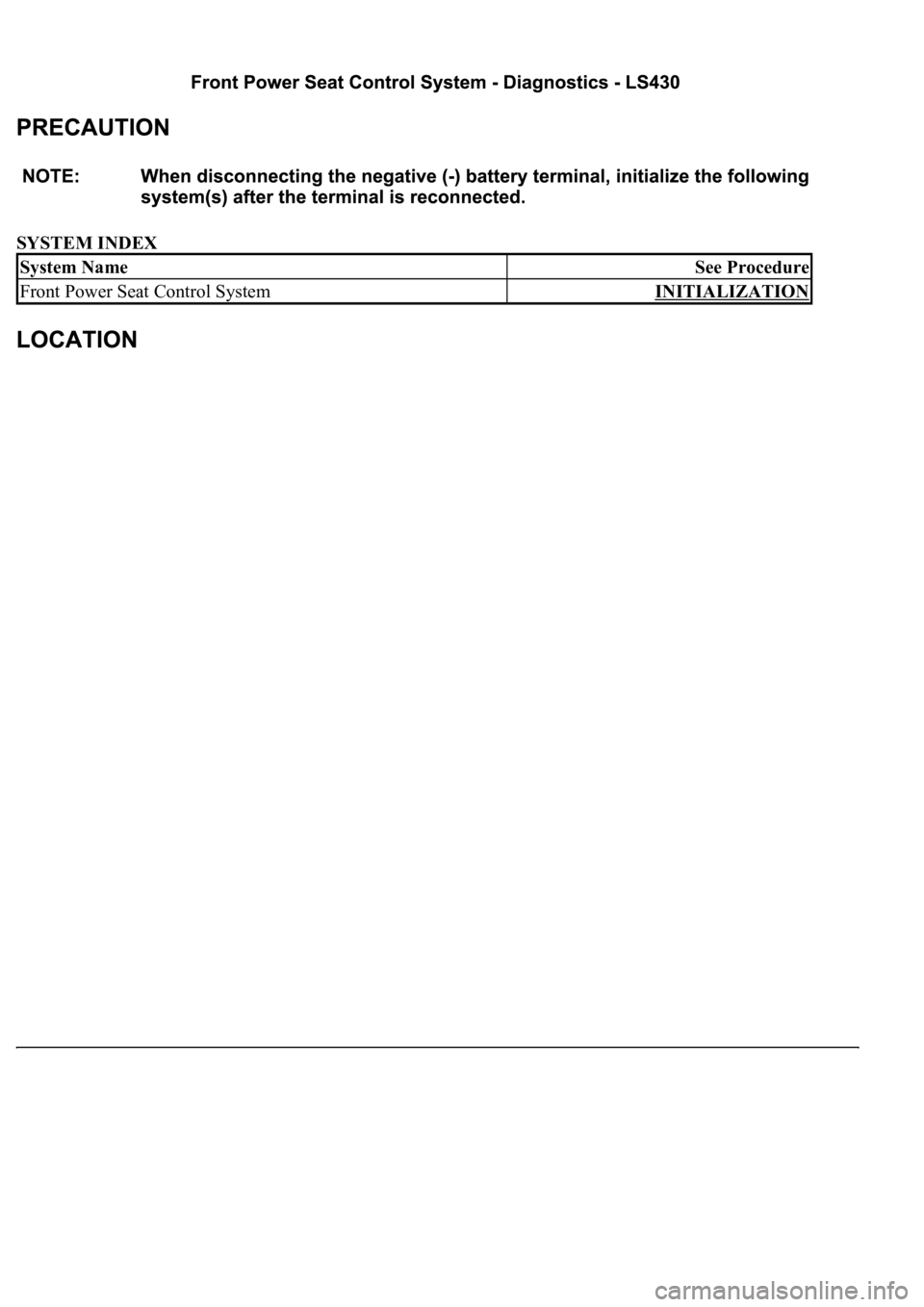

LEXUS LS430 2003 Factory Repair Manual SYSTEM INDEX System NameSee Procedure Front Power Seat Control SystemINITIALIZATION

Page 3912 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 1: Locating Front Power Seat Control System Components (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
