Page 3081 of 4500

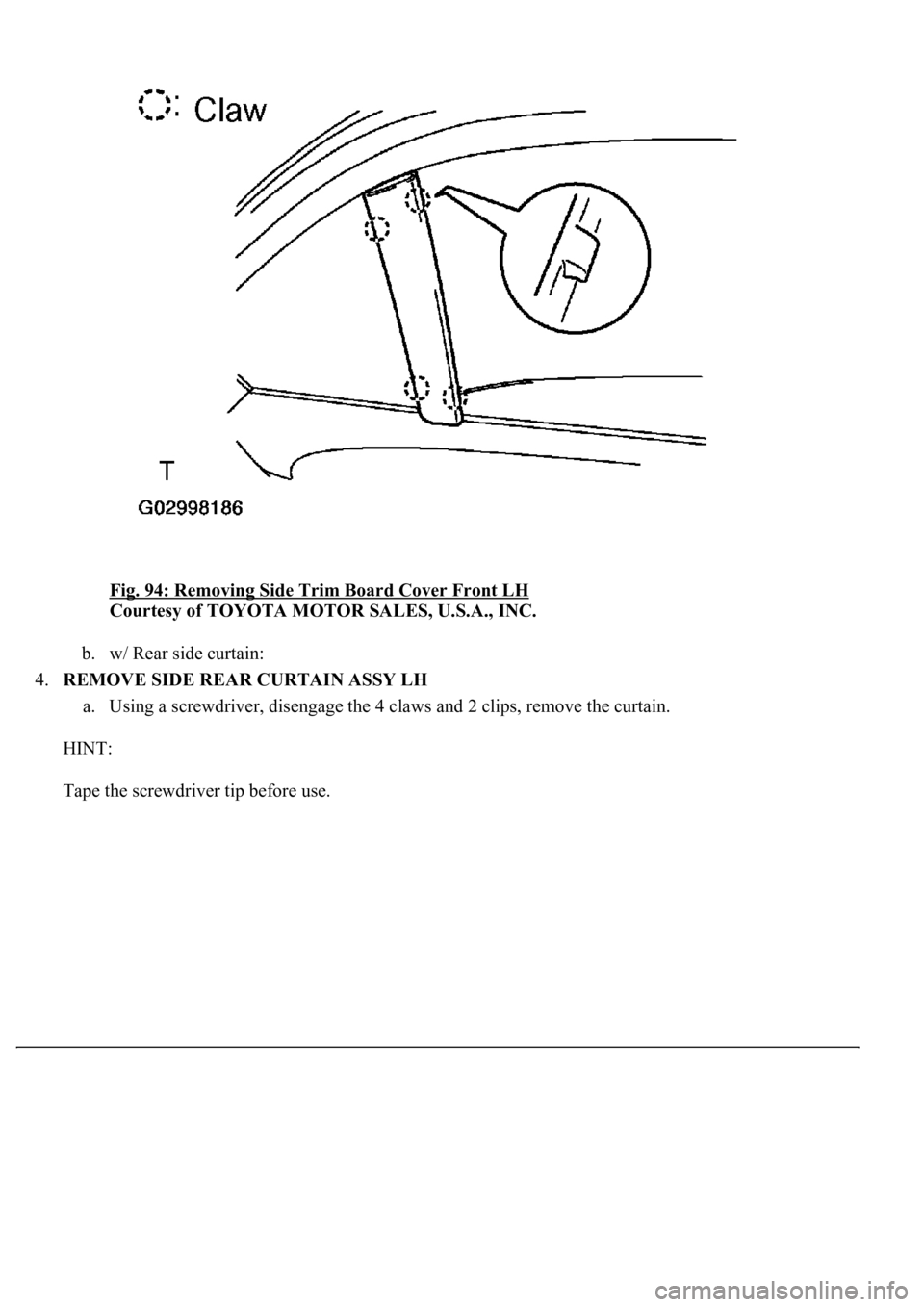

LEXUS LS430 2003 Factory Repair Manual Fig. 94: Removing Side Trim Board Cover Front LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. w/ Rear side curtain: 4.REMOVE SIDE REAR CURTAIN ASSY LH a. Using a screwdriver, disengage the 4 c

Page 3082 of 4500

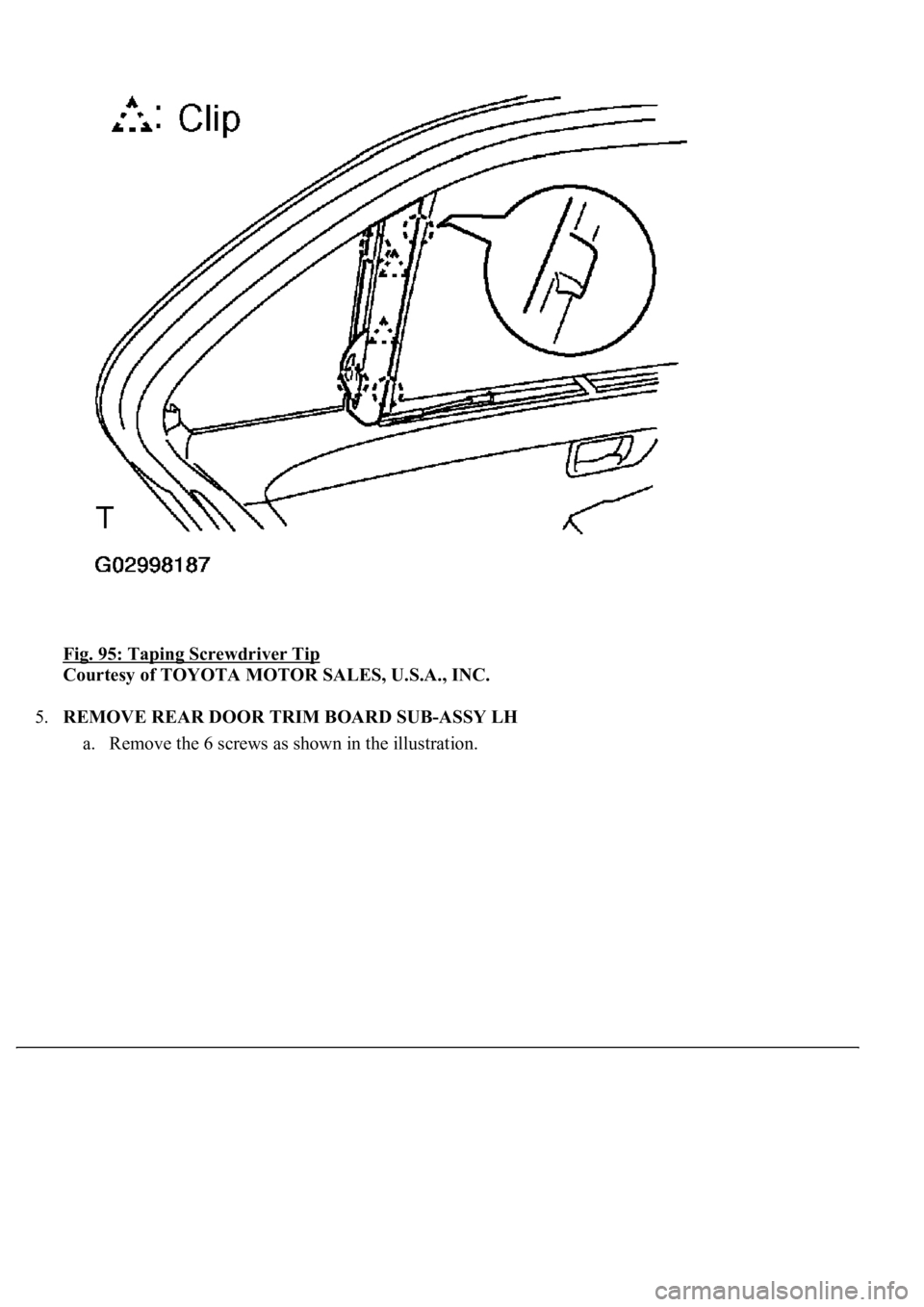

LEXUS LS430 2003 Factory Repair Manual Fig. 95: Taping Screwdriver Tip Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.REMOVE REAR DOOR TRIM BOARD SUB-ASSY LH a. Remove the 6 screws as shown in the illustration.

Page 3083 of 4500

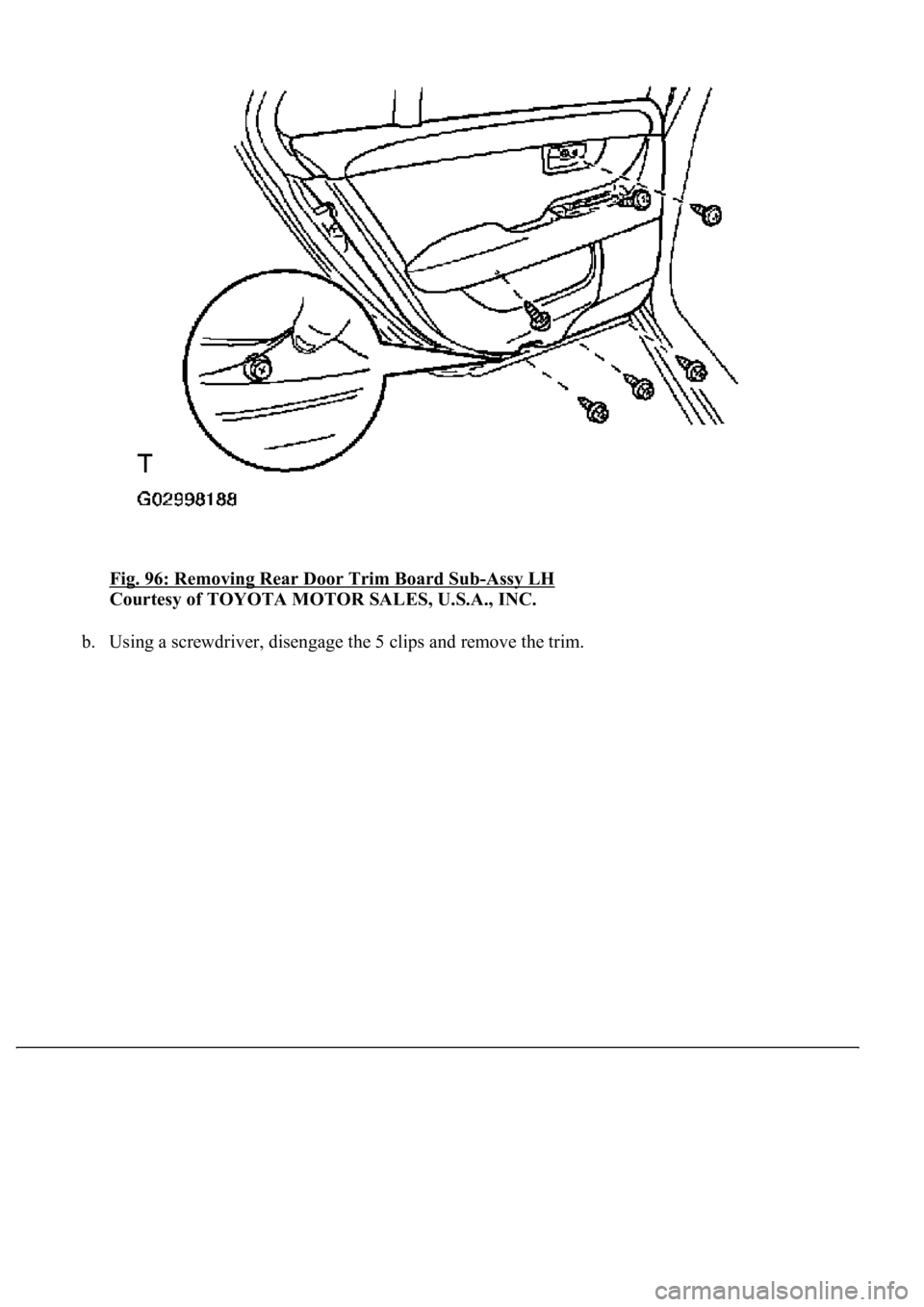

LEXUS LS430 2003 Factory Repair Manual Fig. 96: Removing Rear Door Trim Board Sub-Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b.Using a screwdriver, disengage the 5 clips and remove the trim.

Page 3084 of 4500

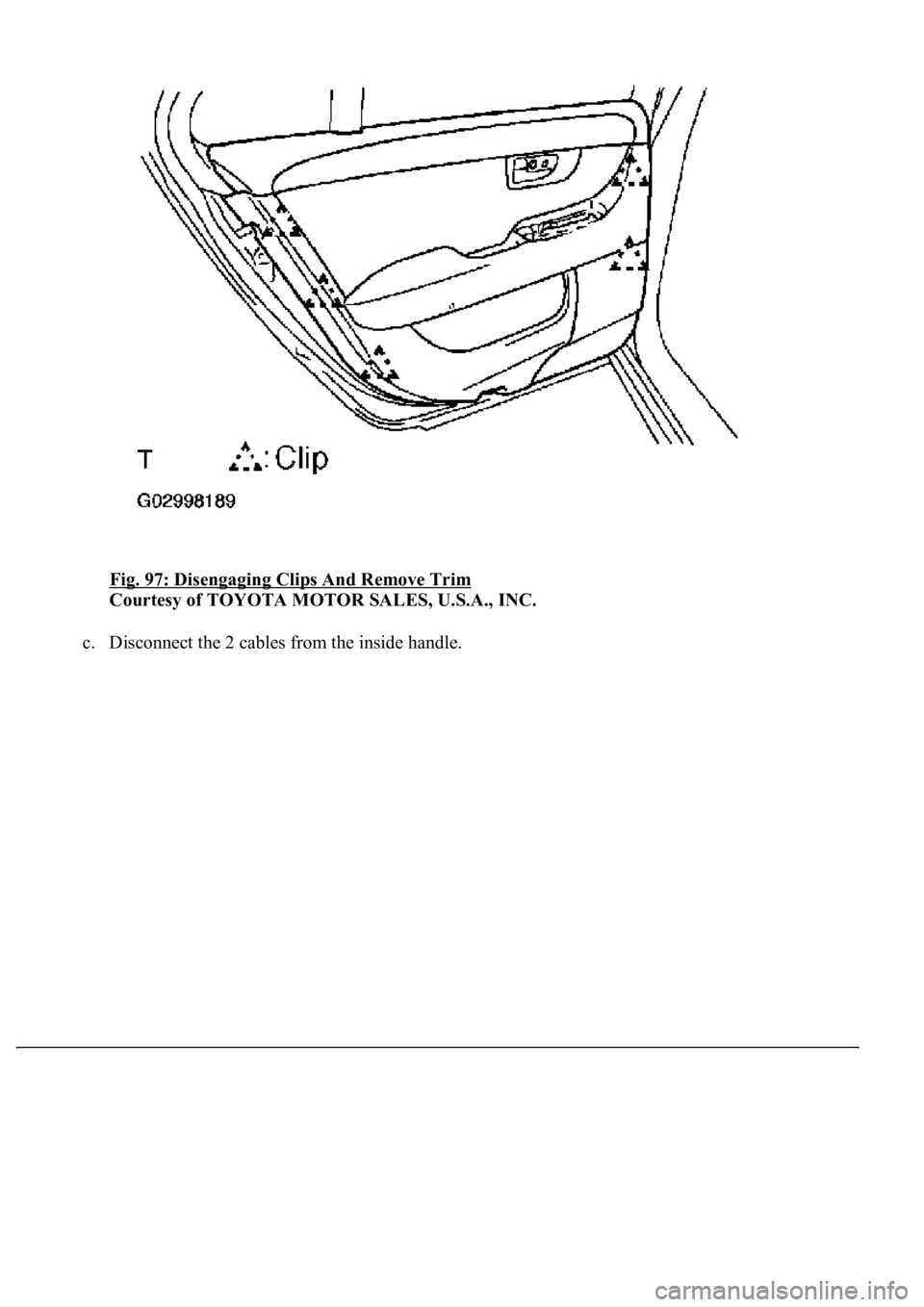

LEXUS LS430 2003 Factory Repair Manual Fig. 97: Disengaging Clips And Remove Trim Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Disconnect the 2 cables from the inside handle.

Page 3085 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 98: Disconnecting Cables From Inside Handle Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Remove the screw. e. Using a screwdriver, disengage the 2 claws and remove the inside door handle.

Page 3086 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 99: Removing Seat Memory Switch Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. h. w/ Rear side curtain: Remove the 4 screws and curtain.

Page 3087 of 4500

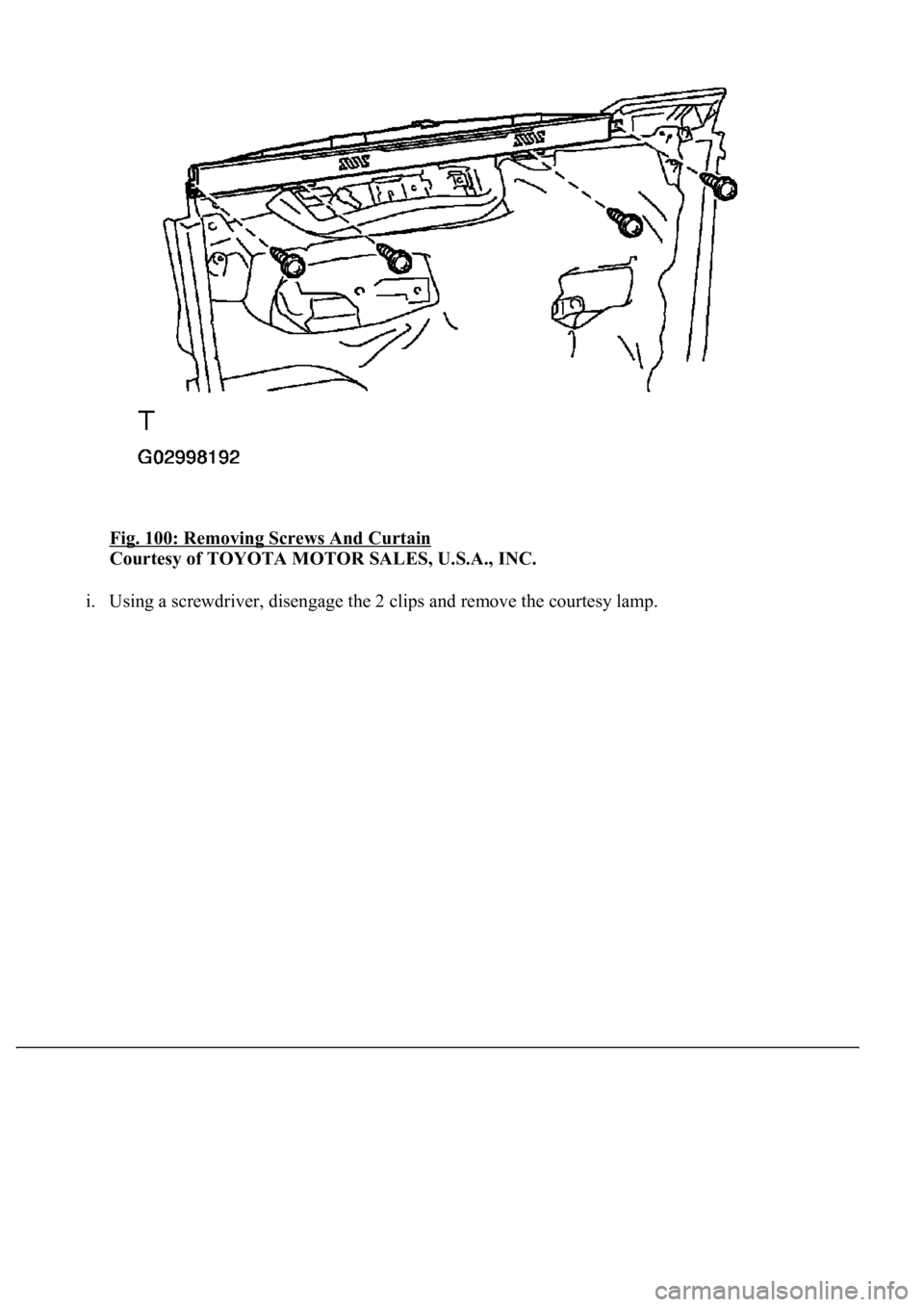

LEXUS LS430 2003 Factory Repair Manual Fig. 100: Removing Screws And Curtain Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. i. Usin g a screwdriver, disengage the 2 clips and remove the courtesy lamp.

Page 3088 of 4500

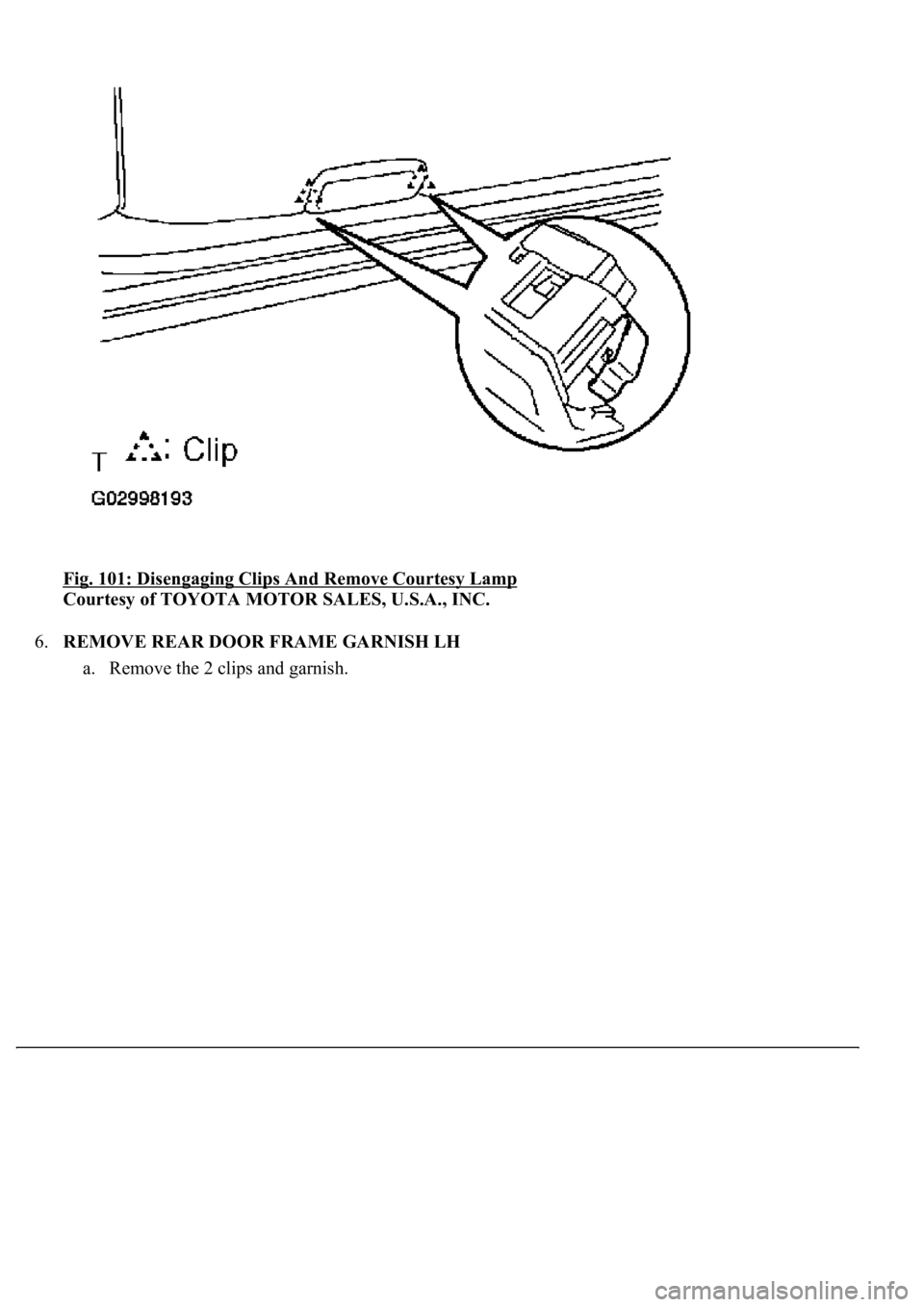

LEXUS LS430 2003 Factory Repair Manual Fig. 101: Disengaging Clips And Remove Courtesy Lamp Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.REMOVE REAR DOOR FRAME GARNISH LH a. Remove the 2 clips and garnish.
