OVERHAUL
1.DISCONNECT BATTERY NEGATIVE TERMINAL
2.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2 (SEE REPLACEMENT
)
3.REMOVE CHOKE KNOB HOLE COVER (SEE REPLACEMENT
)
4.REMOVE GLOVE COMPARTMENT PLATE (SEE REPLACEMENT
)
5.REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE REPLACEMENT
)
6.REMOVE INSTRUMENT PANEL FINISH PANEL (SEE REPLACEMENT
)
7.REMOVE INSTRUMENT CLUSTER FINISH PANEL (SEE REPLACEMENT
)
8.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (SEE REPLACEMENT
)
9.REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER (SEE REPLACEMENT
)
10.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (SEE REPLACEMENT
)
11.REMOVE COIN BOX ASSY (SEE REPLACEMENT
)
12.REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER (SEE
REPLACEMENT
)
13.REMOVE CIGAR LIGHTER HOLE BEZEL (SEE REPLACEMENT
)
14.REMOVE INSTRUMENTAL CLUSTER FINISH PANEL END (SEE REPLACEMENT
)
15.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 (SEE REPLACEMENT
)
16.REMOVE REAR CONSOLE ARMREST ASSY (SEE REPLACEMENT
)
17.REMOVE CONSOLE BOX PLATE (SEE REPLACEMENT
)
18.REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (SEE REPLACEMENT
)
19.REMOVE CONSOLE BOX (SEE REPLACEMENT
)
20.REMOVE CONSOLE BOX DUCT NO.1 (SEE REPLACEMENT
)
21.SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
a. Remove the nut and separate the floor shift gear shifting rod sub-assy.
22.REMOVE FLOOR SHIFT ASSY
a. Disconnect the connector.
b. Disconnect the indoor electrical key oscillator connector. (w/smart key)
Page 930 of 4500

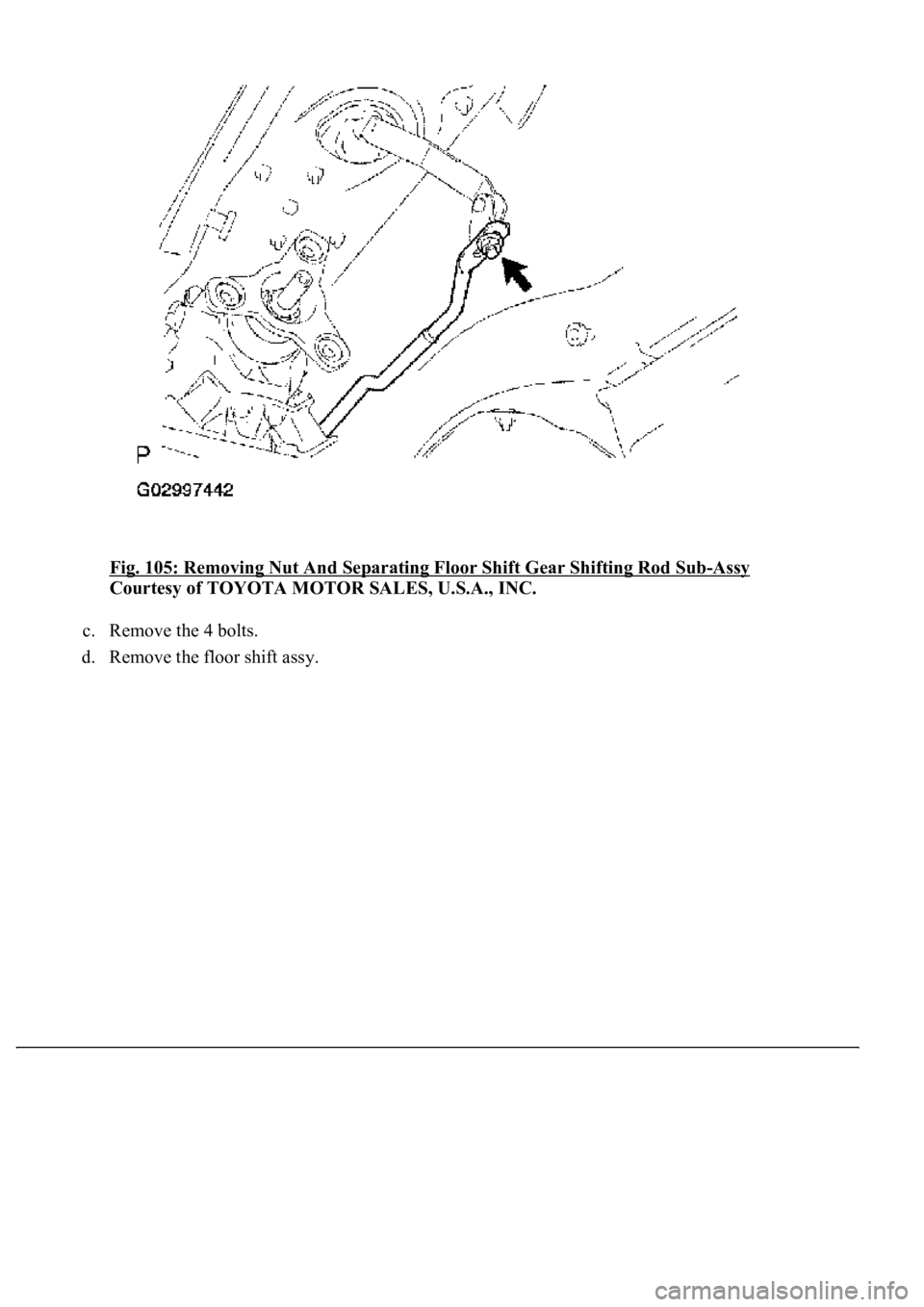

Fig. 105: Removing Nut And Separating Floor Shift Gear Shifting Rod Sub-Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the 4 bolts.
d. Remove the floor shift ass
y.
Page 931 of 4500
Fig. 106: Removing 4 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
23.REMOVE INDOOR ELECTRICALLY KEY OSCILLATOR (W/SMART KEY)
a. Remove the 2 screws, and then remove the indoor electrical key oscillator from the shift lever plate.
24.REMOVE SHIFT LOCK RELEASE BUTTON COVER
a. Using a small screwdriver, remove the shift lock release button cover.
25.REMOVE SHIFT LEVER KNOB SUB-ASSY
a. Remove the shift lever knob sub-assy.
Page 932 of 4500

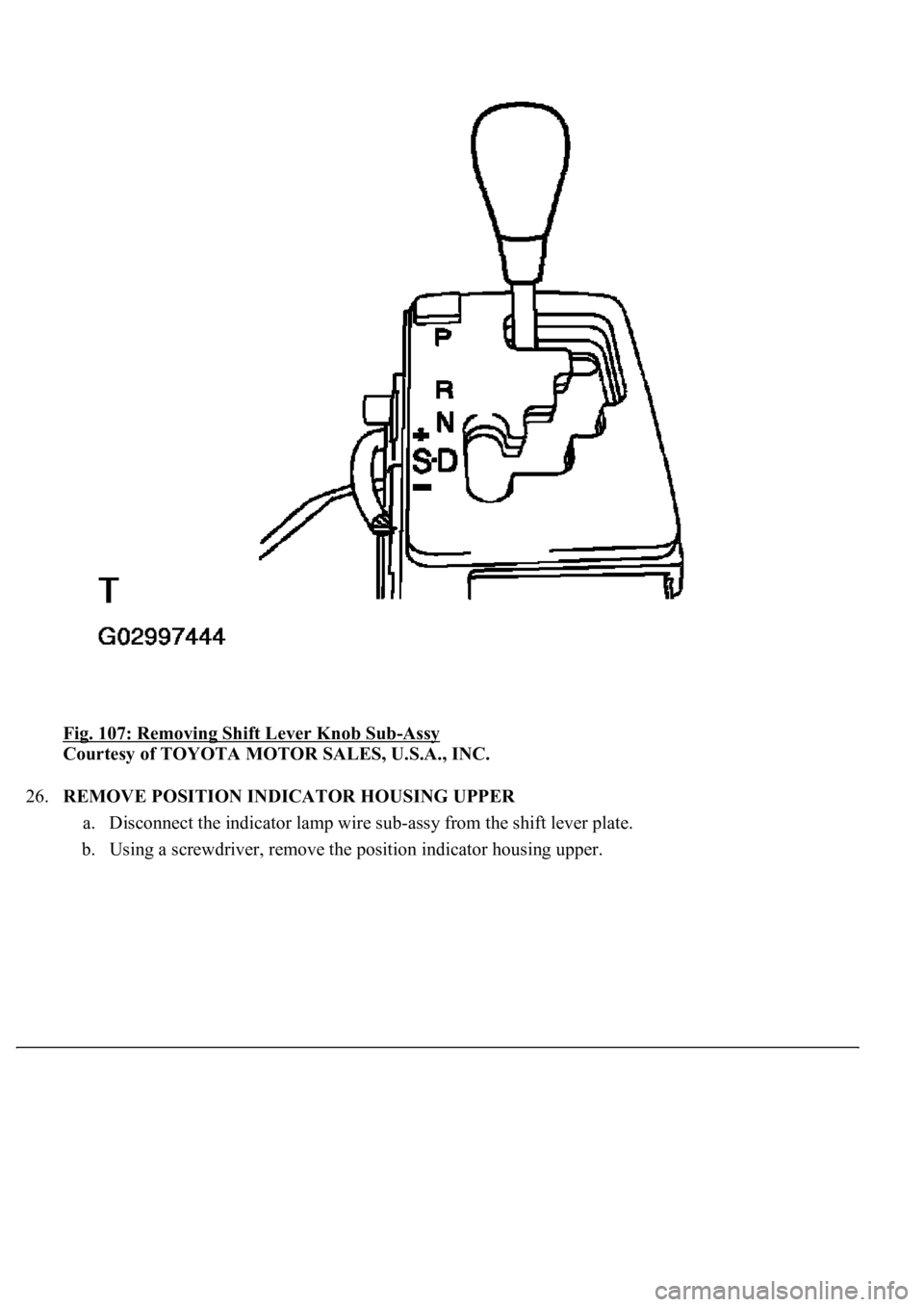

Fig. 107: Removing Shift Lever Knob Sub-Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.REMOVE POSITION INDICATOR HOUSING UPPER
a. Disconnect the indicator lamp wire sub-assy from the shift lever plate.
b. Using a screwdriver, remove the position indicator housing upper.
Page 933 of 4500
<0029004c004a0011000300140013001b001d000300350048005000520059004c0051004a0003003300520056004c0057004c005200510003002c00510047004c004600440057005200550003002b005200580056004c0051004a0003003800530053004800
55[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.REMOVE POSITION INDICATOR LENS
a. Using a screwdriver, remove the position indicator lens from the position indicator housing upper.
Page 934 of 4500

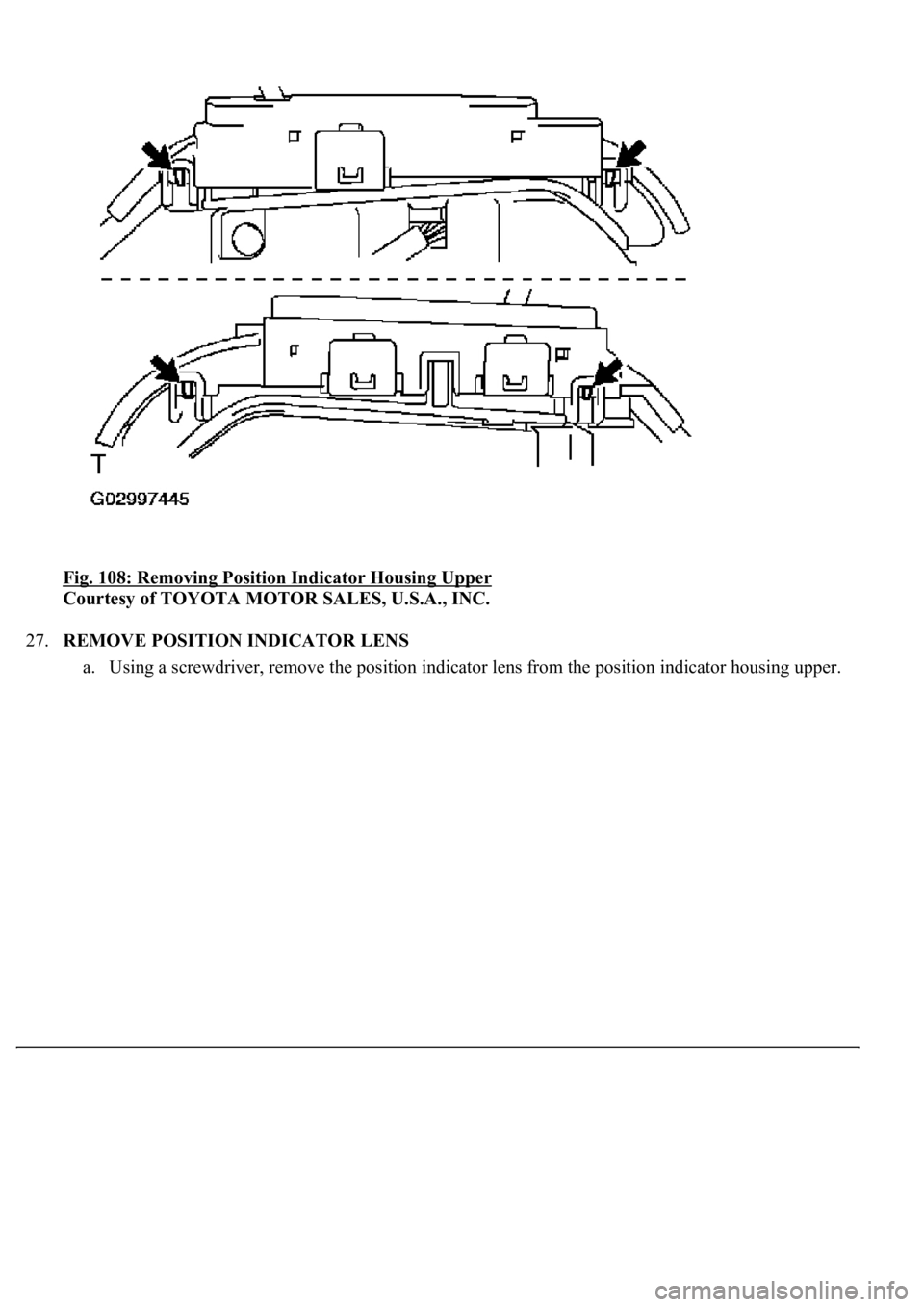

Fig. 109: Removing Position Indicator Lens From Position Indicator Housing Upper
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
28.REMOVE INDICATOR LAMP WIRE SUB-ASSY
a. Remove the indicator lamp wire sub-assy from the position indicator lens.
b. Remove the position indicator bulb from the indicator lamp wire sub-assy.
c. Remove the position indicator bulb cap from the position indicator bulb.
Page 935 of 4500

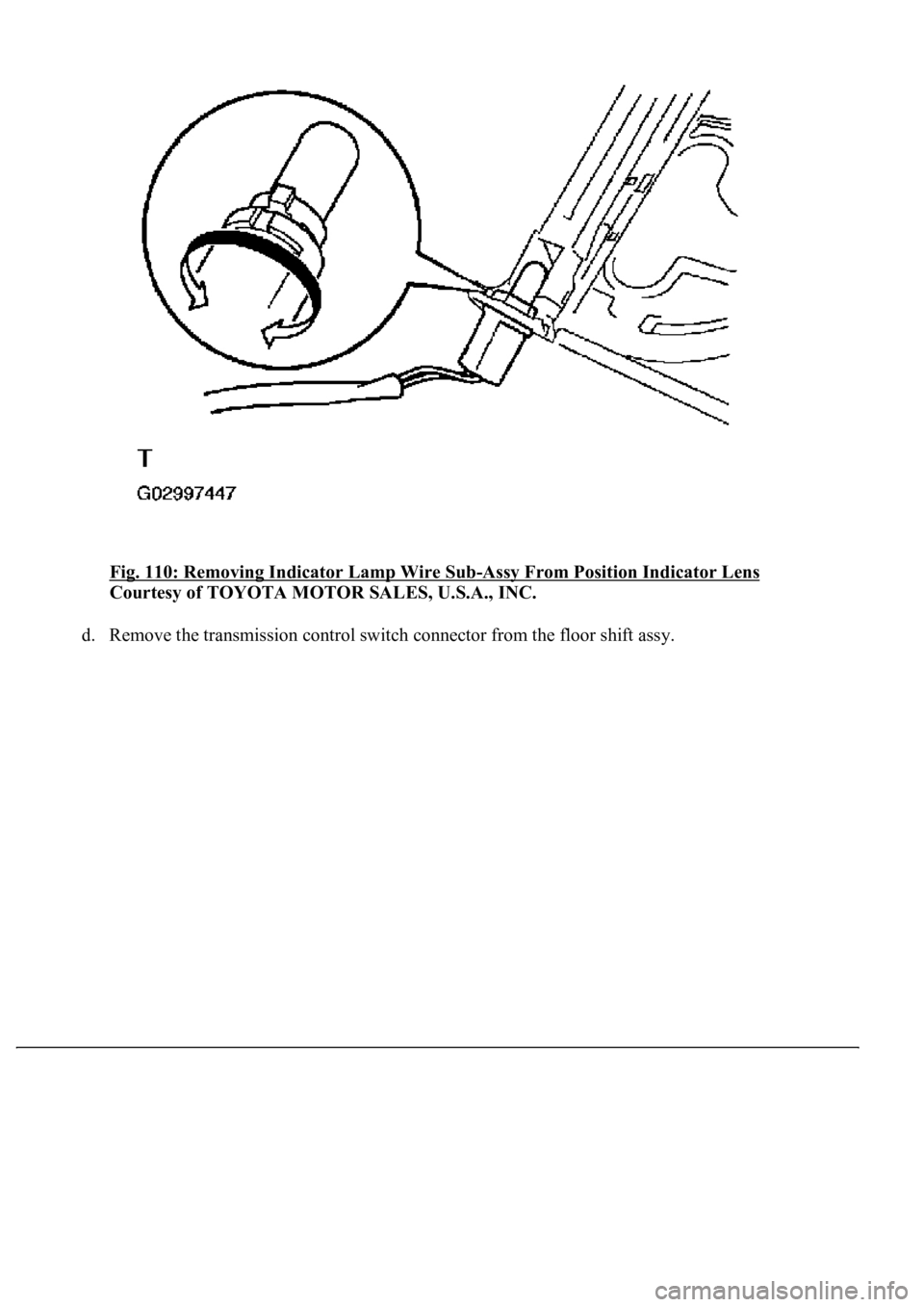

Fig. 110: Removing Indicator Lamp Wire Sub-Assy From Position Indicator Lens
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Remove the transmission control switch connector from the floor shift ass
y.
Page 936 of 4500

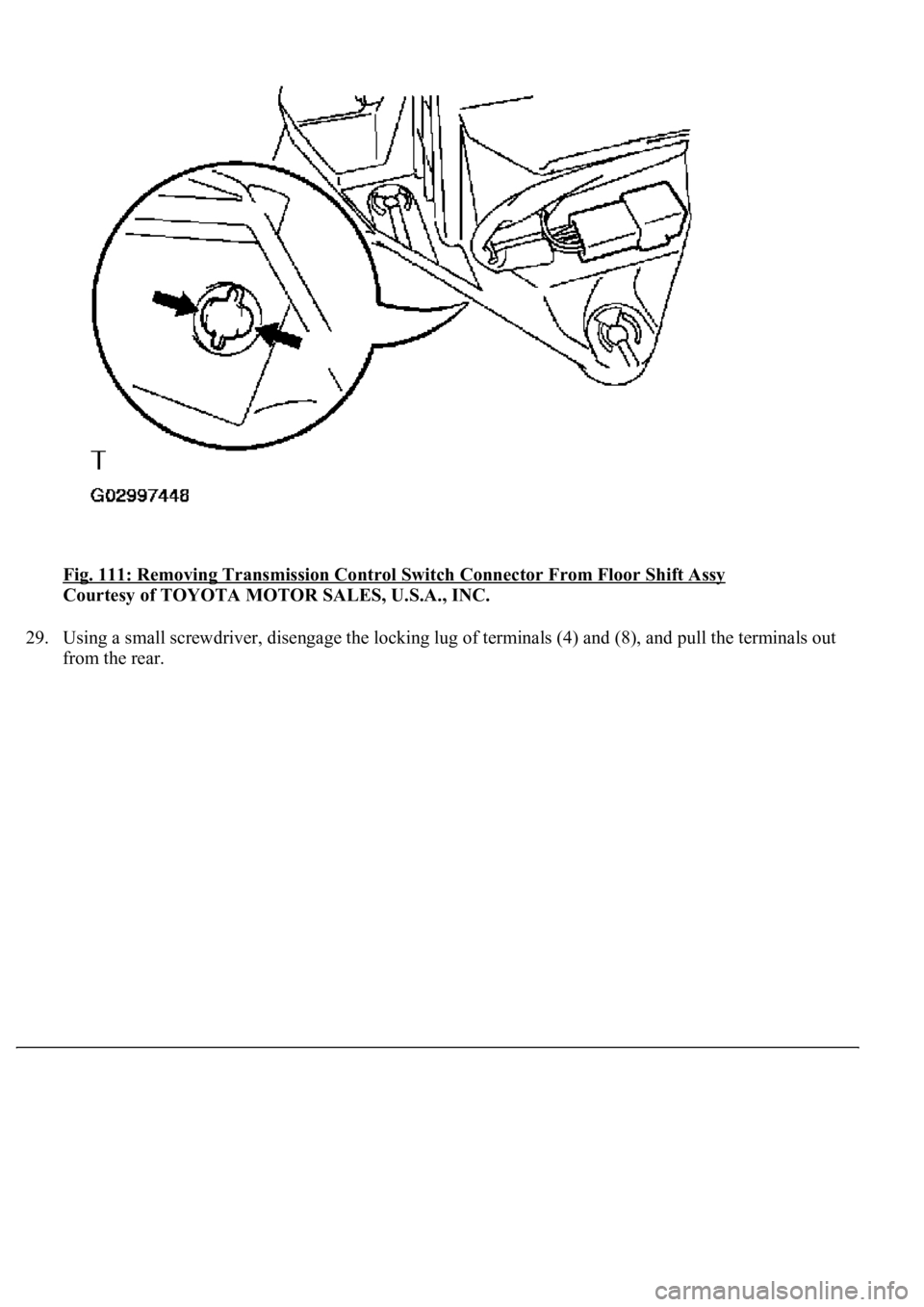

Fig. 111: Removing Transmission Control Switch Connector From Floor Shift Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
29. Using a small screwdriver, disengage the locking lug of terminals (4) and (8), and pull the terminals out
from the rear.
