LEXUS LS430 2003 Factory Repair Manual Fig. 23: Removing Clips And Luggage Compartment Trim Cover Assy RH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.REMOVE NAVIGATION ECU W/BRACKET (W/ LEXUS NAVIGATION SYSTEM) (See REPLACEMENT )

Page 658 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 24: Removing Nuts And Stereo Component Tuner Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.REMOVE STEREO COMPONENT TUNER ASSY W/BRACKET (W/ LEXUS NAVIGATION SYSTEM) a. Disconnect the co

Page 659 of 4500

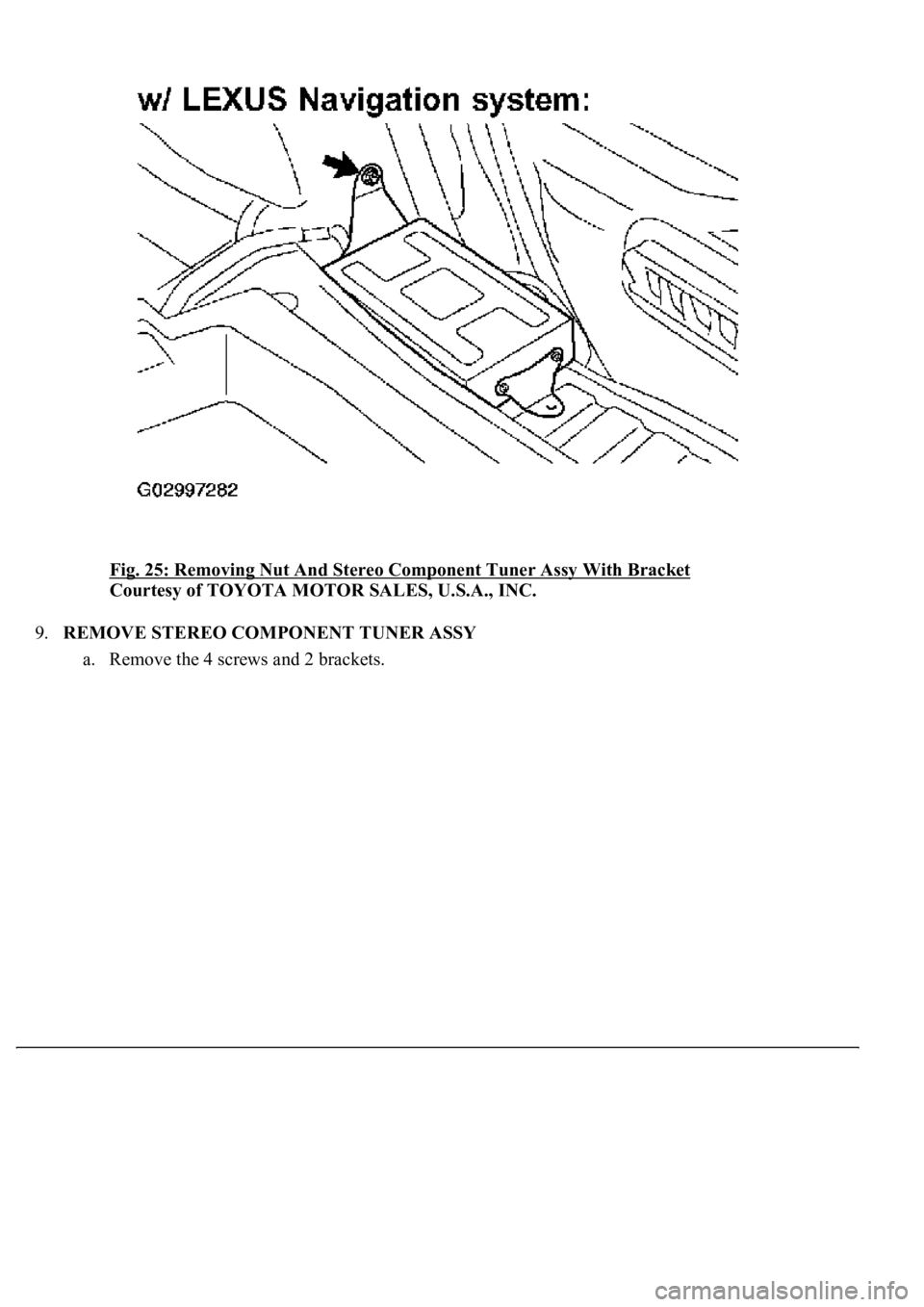

LEXUS LS430 2003 Factory Repair Manual Fig. 25: Removing Nut And Stereo Component Tuner Assy With Bracket Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.REMOVE STEREO COMPONENT TUNER ASSY a. Remove the 4 screws and 2 brackets.

Page 660 of 4500

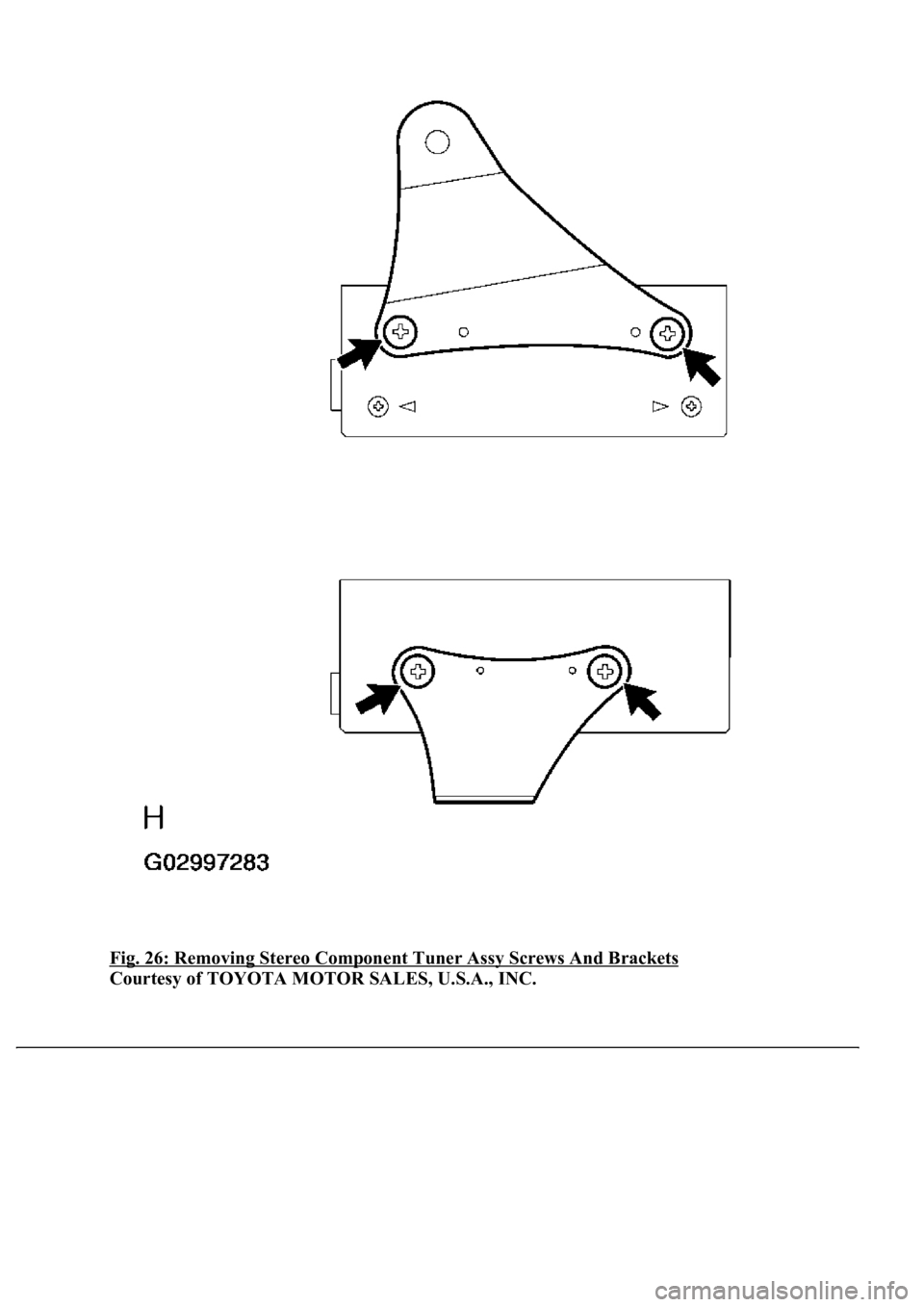

LEXUS LS430 2003 Factory Repair Manual Fig. 26: Removing Stereo Component Tuner Assy Screws And Brackets Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 661 of 4500

LEXUS LS430 2003 Factory Repair Manual REPLACEMENT HINT: See COMPONENTS See LOCATION Installation is in the reverse order of removal. 1.REMOVE REAR COMBINATION LAMP SERVICE COVER RH (See OVERHAUL ) 2.REMOVE REAR COMBINATION LAMP

Page 662 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 27: Identifying Television Camera Assy Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: See COMPONENTS See LOCATION . Installation is in the reverse order of removal.

Page 663 of 4500

LEXUS LS430 2003 Factory Repair Manual a. Disconnect the connector and remove the bolt. b. Pull out the television camera ECU along the stereo component amplifier assy guide toward the rear of the vehicle to remove it. If the televisi

Page 664 of 4500

LEXUS LS430 2003 Factory Repair Manual REPLACEMENT HINT: See COMPONENTS . See LOCATION . Installation is in the reverse order of removal. 1.REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See step 18 on OVERHAUL ) 2.REMOVE DECK TRIM SIDE
