Page 1185 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 209: Installing Shoe Return Tension Spring Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 19.CHECK PARKING BRAKE INSTALLATION a. Make sure that all the parts are installed properly. If not, re

Page 1186 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 210: Checking Parking Brake Installation Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 20.INSTALL REAR DISC a. Align the matchmarks on the disc and rear axle hub.

Page 1187 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 211: Aligning Matchmarks On Disc And Rear Axle Hub Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 21.ADJUST PARKING BRAKE SHOE CLEARANCE a. Remove the hole plug. b. Turn the shoe adjuster and

Page 1188 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 212: Installing Hole Plug Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 22.INSTALL REAR DISC BRAKE CALIPER ASSY LH a. Temporarily tighten the brake caliper with the 2 new bolts. b. Pulling the

Page 1189 of 4500

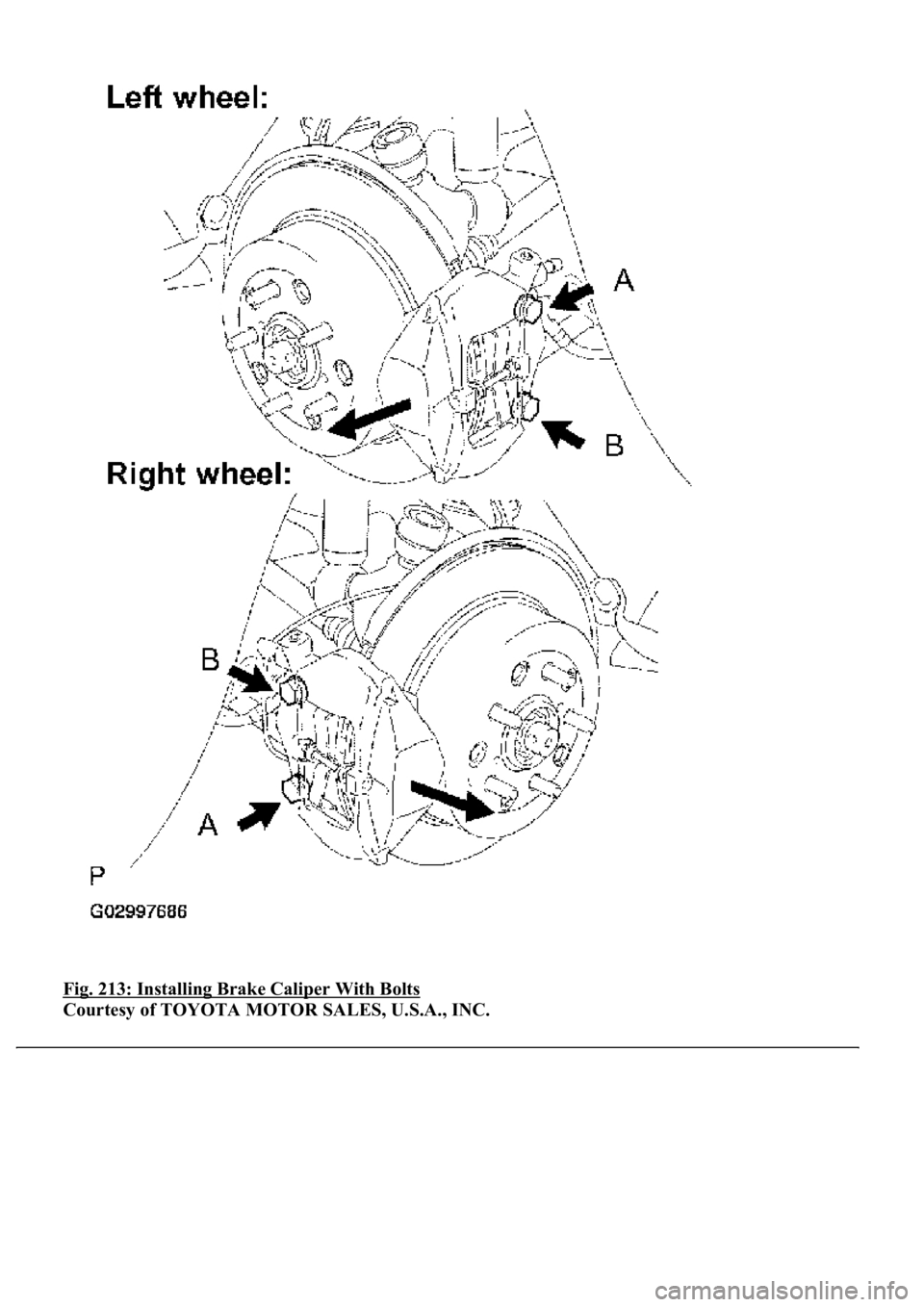

LEXUS LS430 2003 Factory Repair Manual Fig. 213: Installing Brake Caliper With Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 1190 of 4500

LEXUS LS430 2003 Factory Repair Manual 23.INSTALL REAR WHEEL Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf) 24.SETTLING PARKING BRAKE SHOES AND DISC a. Drive the vehicle at approximately 50 km/h (31 mph) on a safe, level and dry road. b.

Page 1191 of 4500

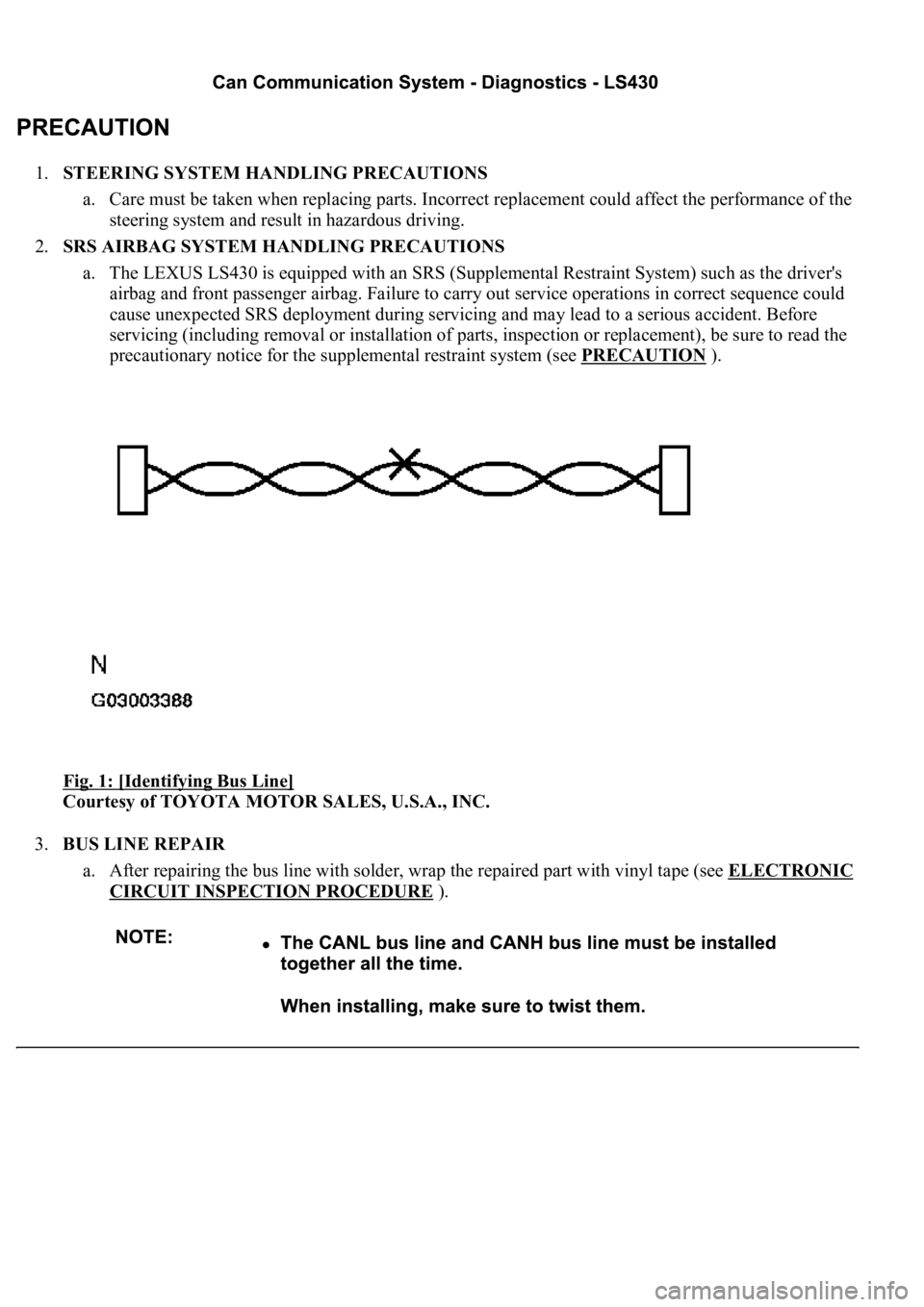

LEXUS LS430 2003 Factory Repair Manual 1.STEERING SYSTEM HANDLING PRECAUTIONS a. Care must be taken when replacing parts. Incorrect replacement could affect the performance of the steering system and result in hazardous driving. 2.SRS

Page 1192 of 4500

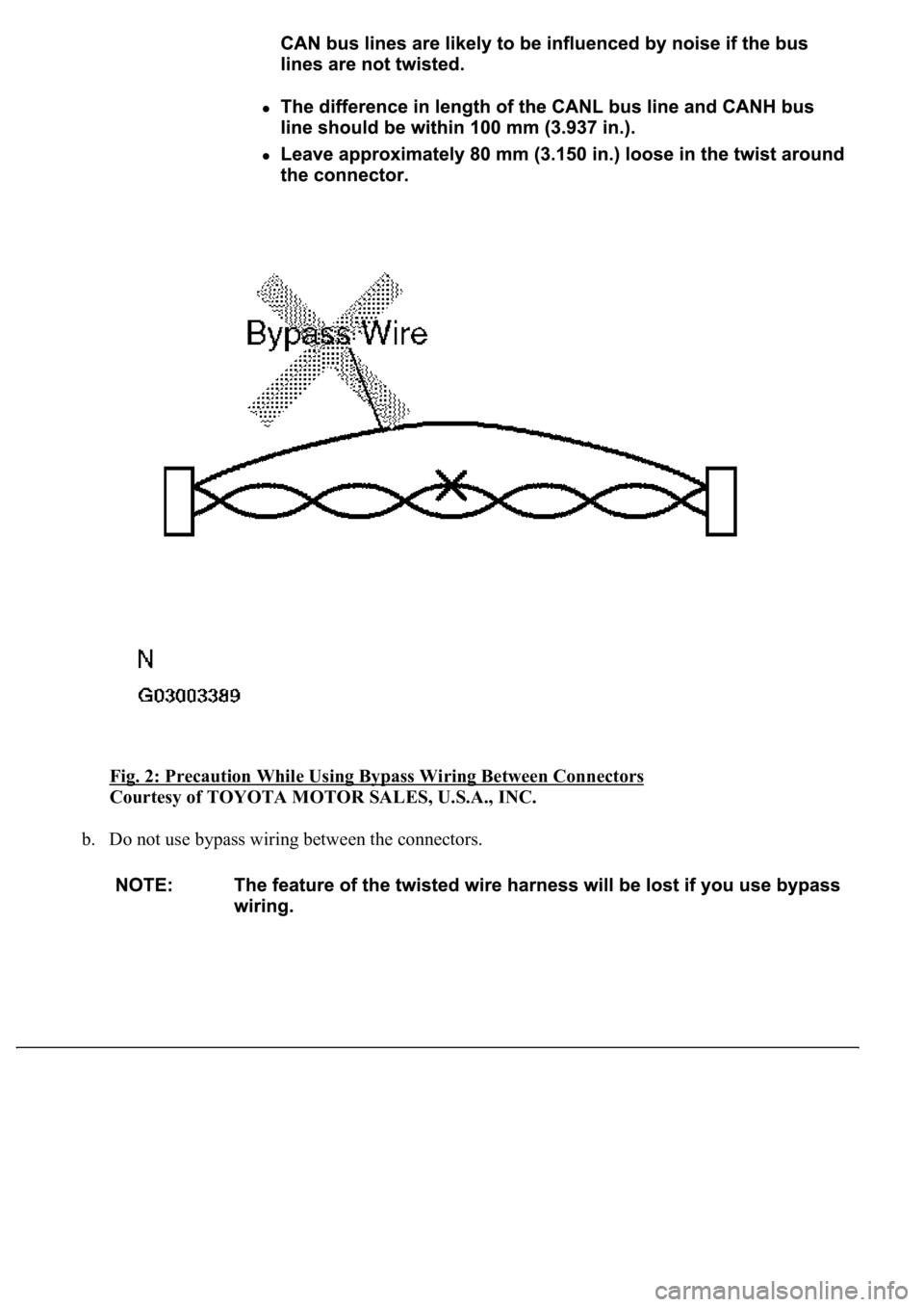

LEXUS LS430 2003 Factory Repair Manual Fig. 2: Precaution While Using Bypass Wiring Between Connectors Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Do not use bypass wiring between the connectors.
