Page 4193 of 4500

LEXUS LS430 2003 Factory Repair Manual PRECAUTION 1.DO NOT HANDLE REFRIGERANT IN AN ENCLOSED AREA OR NEAR NAKED FLAME Fig. 1: Identifying Precaution For Handling Refrigerant Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 2.ALWAYS WEAR E

Page 4194 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 2: Identifying Precaution For Liquid Refrigerant Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. If liquid refrigerant gets in your eyes or on your skin: a. Wash the area with lots of cool water.

Page 4195 of 4500

LEXUS LS430 2003 Factory Repair Manual compressor burnout may occur. Necessary care should be taken to avoid this. Fig. 3: Identifying Precaution Operating Compressor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.DO NOT OPEN HIGH PRES

Page 4196 of 4500

LEXUS LS430 2003 Factory Repair Manual overheating etc. 9.DO NOT OPERATE ENGINE AND COMPRESSOR WITH NO REFRIGERANT 10.SUPPLEMENTAL RESTRAINT SYSTEM (SRS) The LEXUS LS430 is equipped with an SRS (Supplemental Restraint system) such as th

Page 4197 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 4: Identifying Air Conditioning System Components And Replacements Location (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 4198 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 5: Identifying Air Conditioning System Components And Replacements Location (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 4199 of 4500

LEXUS LS430 2003 Factory Repair Manual ON-VEHICLE INSPECTION 1.INSPECT REFRIGERANT VOLUME a. Check the sight glass on the liquid tube. Test conditions: Engine is running at 1,500 rpm Single A/C: Blower speed control switch at "H

Page 4200 of 4500

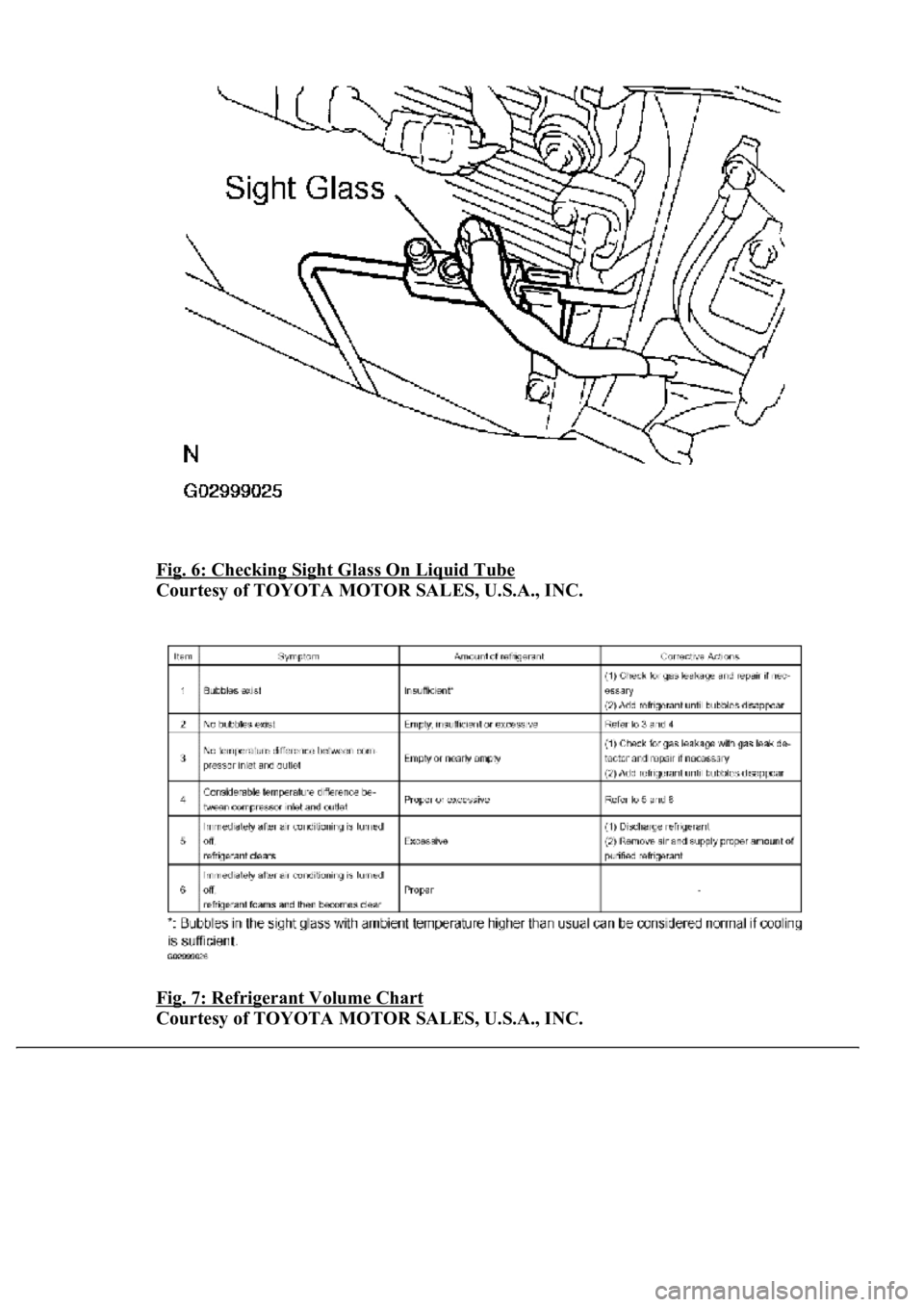

LEXUS LS430 2003 Factory Repair Manual Fig. 6: Checking Sight Glass On Liquid Tube Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Fig. 7: Refrigerant Volume Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
