LEXUS LS430 2003 Factory Repair Manual Fig. 171: Installing Hole Plug Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 72.INSTALL REAR WHEEL a. Temporarily tighten the brake caliper with the 2 new bolts. b. Sliding the brake caliper outer

Page 1146 of 4500

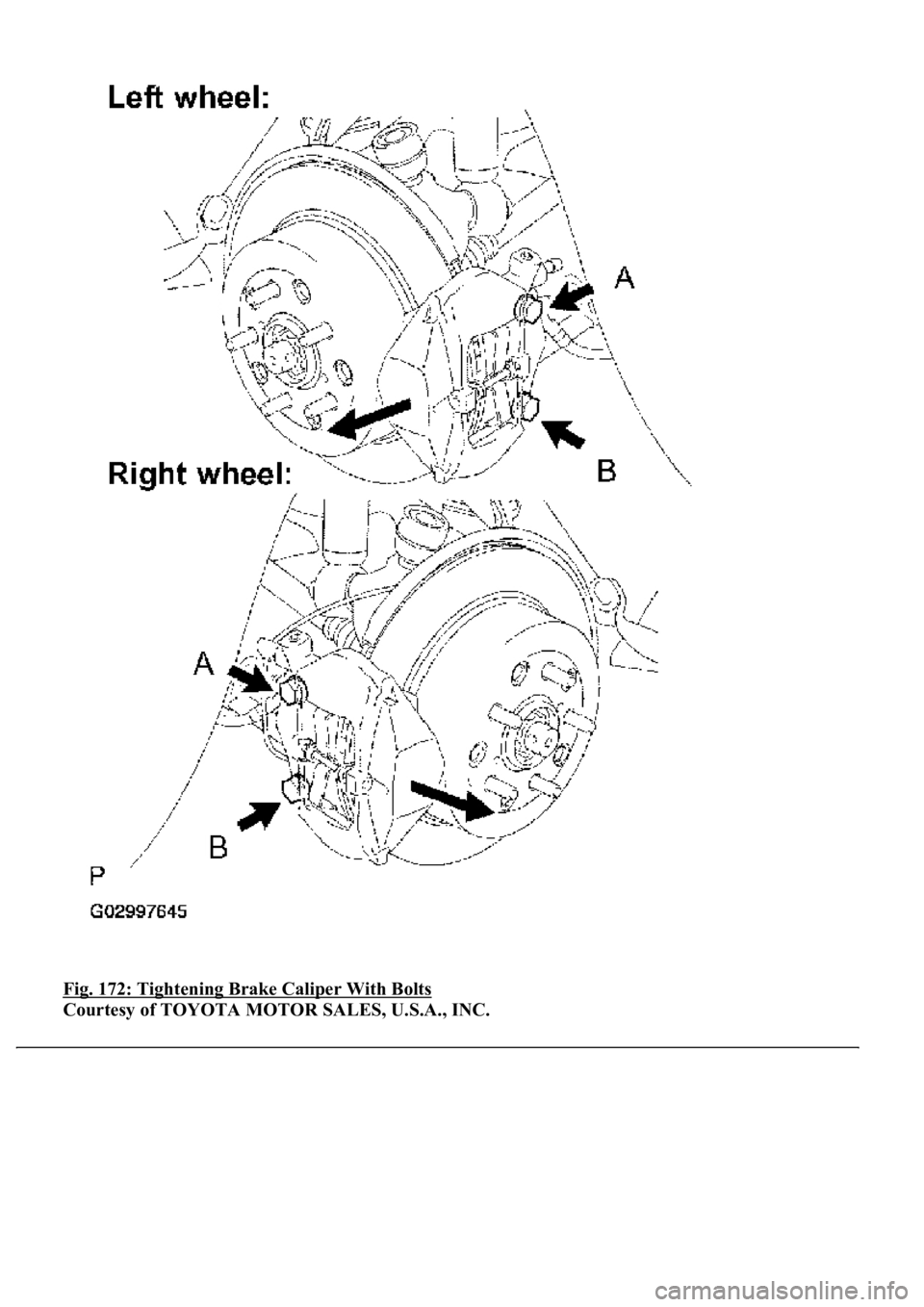

LEXUS LS430 2003 Factory Repair Manual Fig. 172: Tightening Brake Caliper With Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 1147 of 4500

LEXUS LS430 2003 Factory Repair Manual 73.INSPECT PARKING BRAKE PEDAL TRAVEL (SEE ADJUSTMENT ) 74.ADJUST PARKING BRAKE PEDAL TRAVEL (SEE ADJUSTMENT ) 75.INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2 (SEE REPLACEMENT ) 76.INSTA

Page 1148 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 173: Exploded View Of Parking Brake Cable Assy No.3 (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 1149 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 174: Exploded View Of Parking Brake Cable Assy No.3 (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT:

Page 1150 of 4500

LEXUS LS430 2003 Factory Repair Manual Use the same procedures for the parking brake cable assy No.2 and No.3. The procedures listed below are for the parking brake cable assy No.3. 1.REMOVE REAR WHEEL 2.SEPARATE REAR DISC BRAKE CALI

Page 1151 of 4500

LEXUS LS430 2003 Factory Repair Manual b. Remove the disc. HINT: If the disc cannot be removed easily, turn the shoe adjuster until the wheel turns smoothly. Fig. 176: Identifying Matchmarks On Disc And Rear Axle Hub Courtesy of TOYO

Page 1152 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a001100030014001a001a001d000300350048005000520059004c0051004a0003002500550044004e004800030036004b00520048000300350048005700580055005100030037004800510056004c005200510003003600530055004c005
