Page 4121 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 22: Connecting Hand-Held Tester DLC3 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. o. Connect SST (wire) to the injector and battery for 15 seconds, and measure the injection volume with a grad

Page 4122 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 23: Measuring Injection Volume Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1. In the condition above, disconnect the tester probes of SST (wire) from the battery and check the fuel leakage fr

Page 4123 of 4500

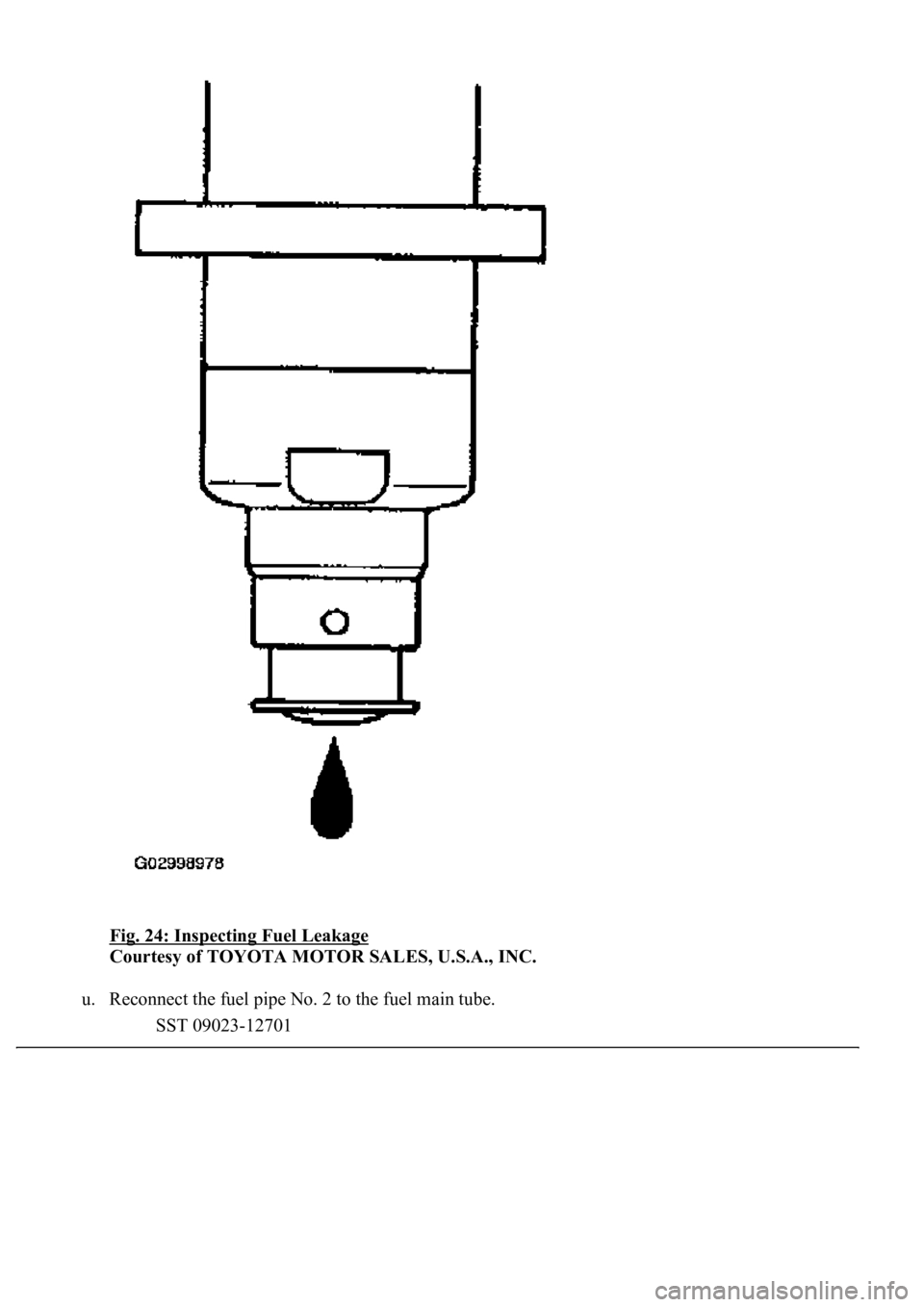

LEXUS LS430 2003 Factory Repair Manual Fig. 24: Inspecting Fuel Leakage Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. u. Reconnect the fuel pipe No. 2 to the fuel main tube. SST 09023-12701

Page 4124 of 4500

LEXUS LS430 2003 Factory Repair Manual Torque: 30 N.m (310 kgf.cm, 22 ft.lbf) HINT: Use a torque wrench with a fulcrum length of 30 cm (11.81 in.). Fig. 25: Measuring Fulcrum Length Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 2.INS

Page 4125 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300150019001d0003003000480044005600580055004c0051004a0003003500480056004c0056005700440051004600480003002500480057005a00480048005100030037004800550050004c00510044004f005600030017000

Page 4126 of 4500

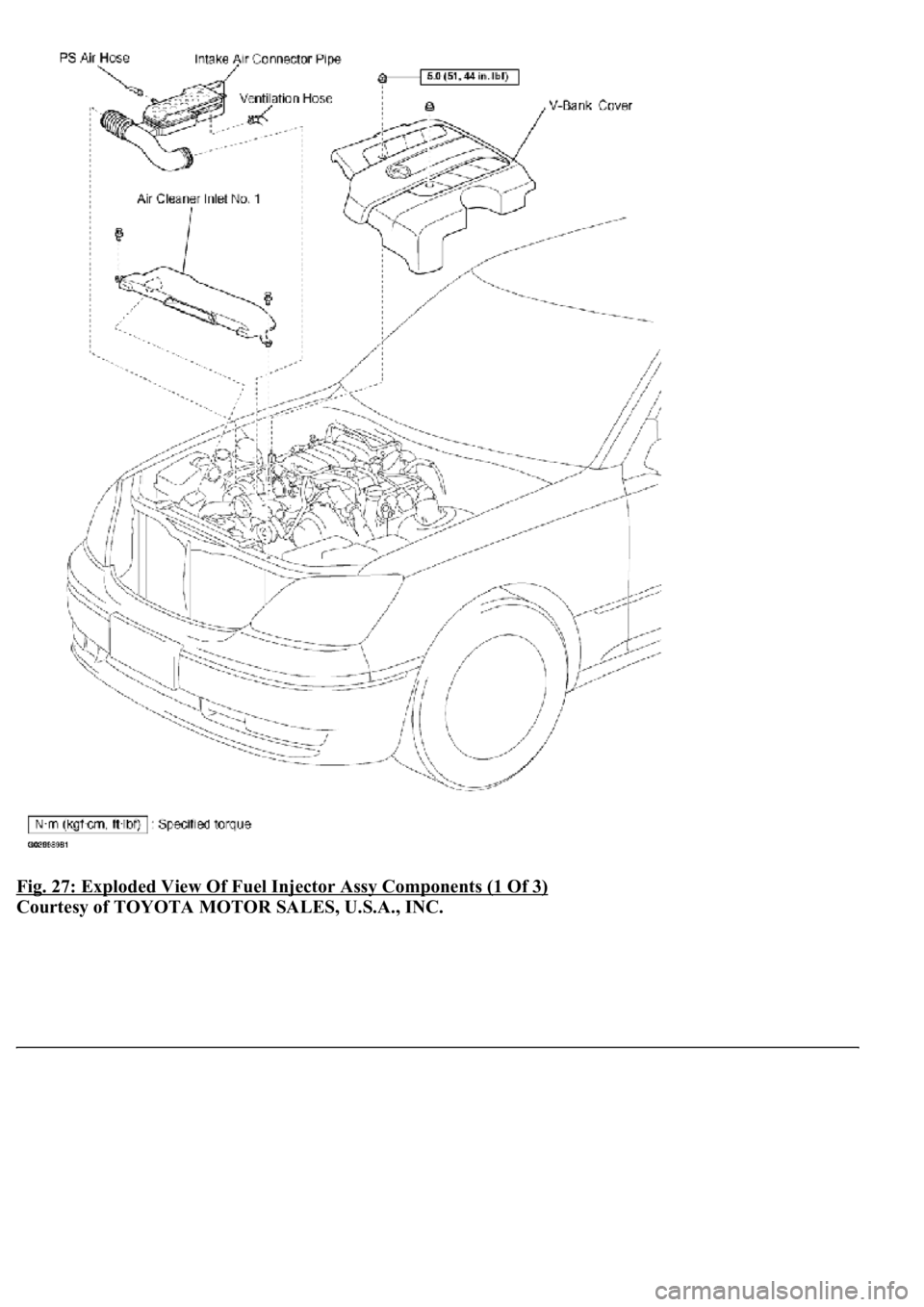

LEXUS LS430 2003 Factory Repair Manual Fig. 27: Exploded View Of Fuel Injector Assy Components (1 Of 3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 4127 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 28: Exploded View Of Fuel Injector Assy Components (2 Of 3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 4128 of 4500

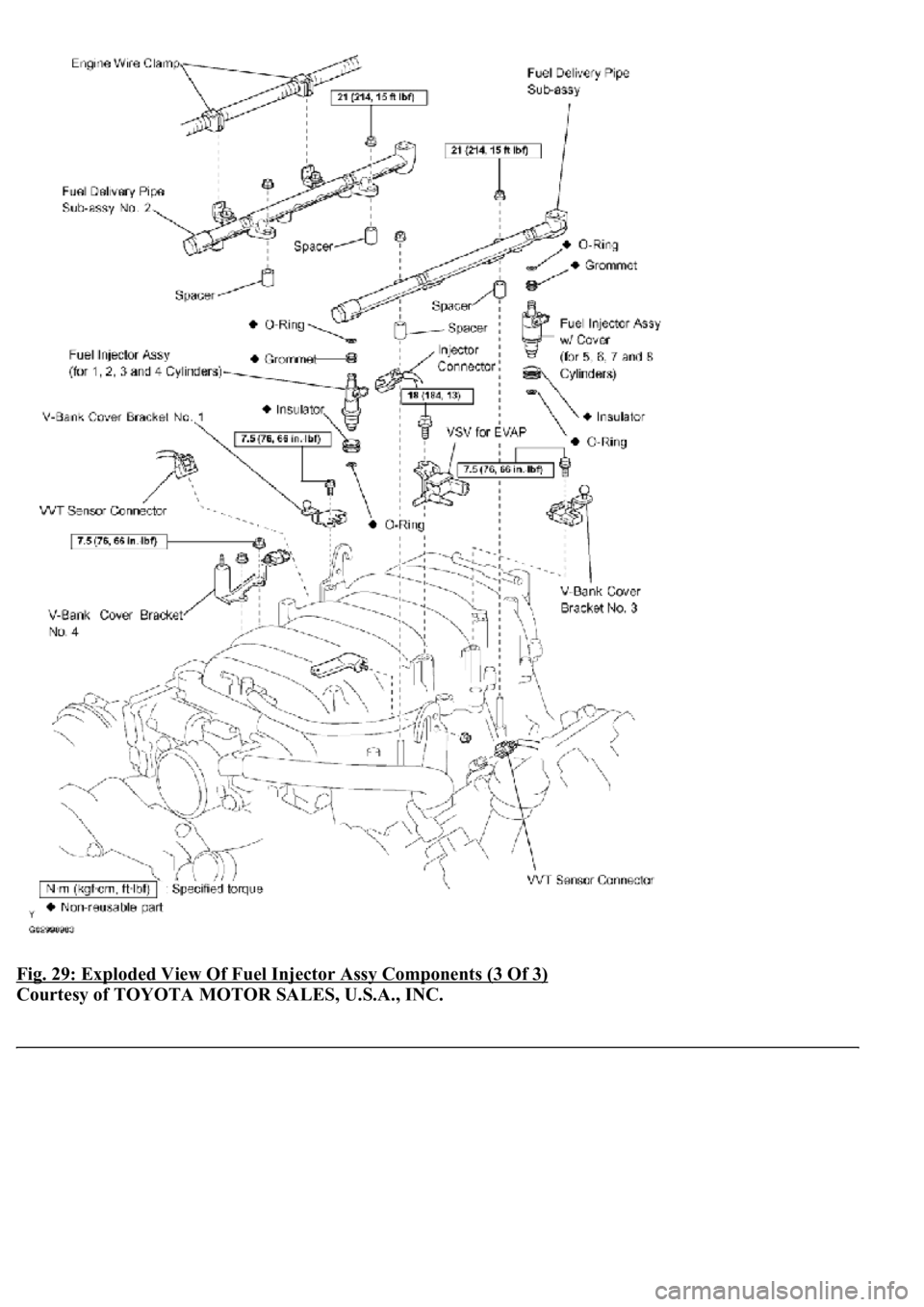

LEXUS LS430 2003 Factory Repair Manual Fig. 29: Exploded View Of Fuel Injector Assy Components (3 Of 3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
