Page 3745 of 4500
If the taper and out-of-round is greater than the maximum, replace the crankshaft.
Page 3746 of 4500

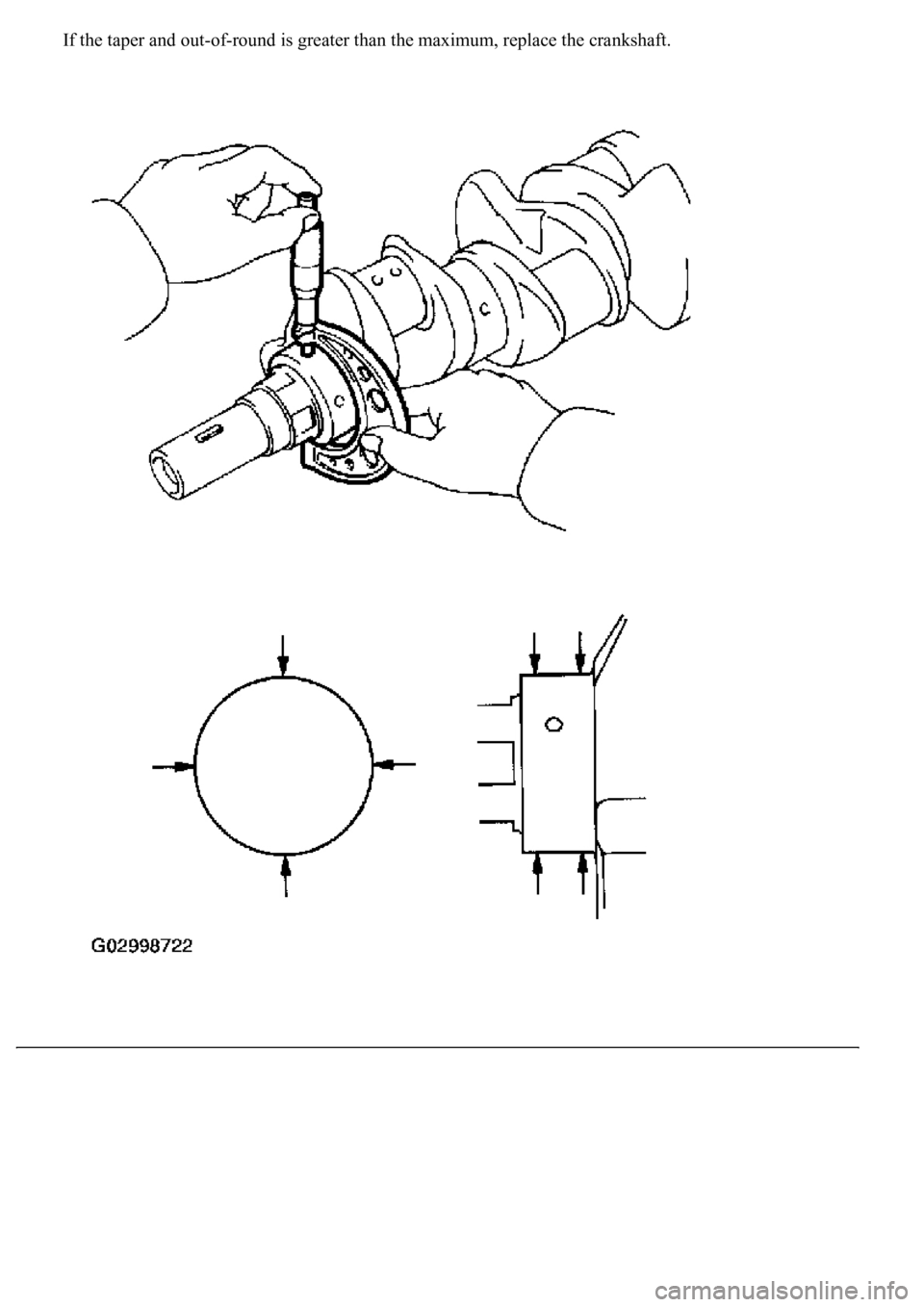

Fig. 456: Measuring Diameter Of Each Main Journal And Crank Pin Using Micrometer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
17.INSTALL STUD BOLT
Fig. 457: Identifying Stud Bolt Dimension
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
18.INSTALL STRAIGHT PIN
Fig. 458: Identifying Straight Pin Dimension
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
19.INSTALL RING PIN
Page 3747 of 4500
Fig. 459: Identifying Ring Pin Dimension
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
20.INSTALL CONNECTING ROD SMALL END BUSH
a. Align the oil holes of a new bush and the connecting rod.
Page 3748 of 4500
Fig. 460: Aligning Oil Holes Of Bush And Connecting Rod
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using SST and a press, press in the bush.
SST 09222-30010
Page 3749 of 4500

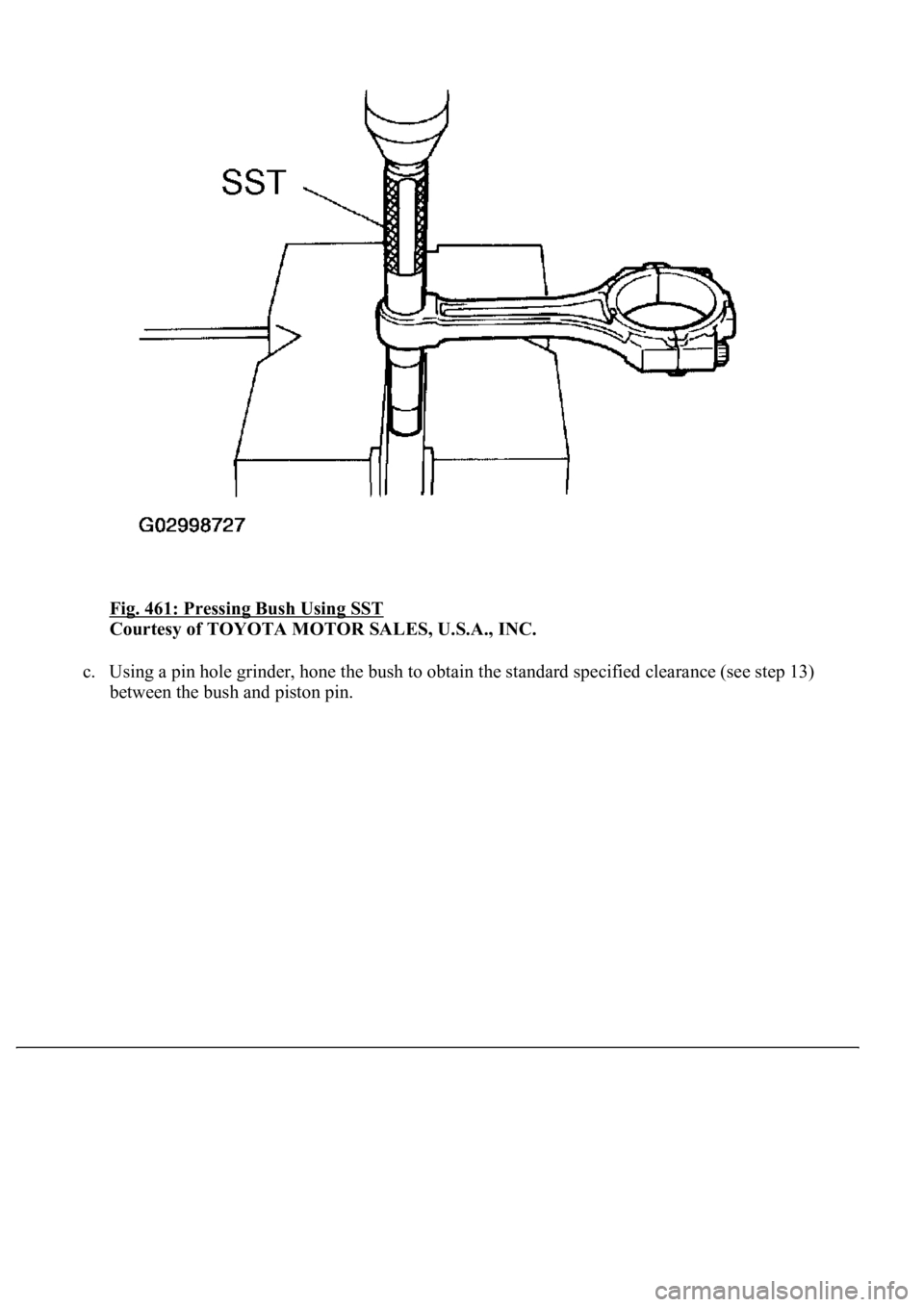

Fig. 461: Pressing Bush Using SST
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Using a pin hole grinder, hone the bush to obtain the standard specified clearance (see step 13)
between the bush and piston pin.
Page 3750 of 4500

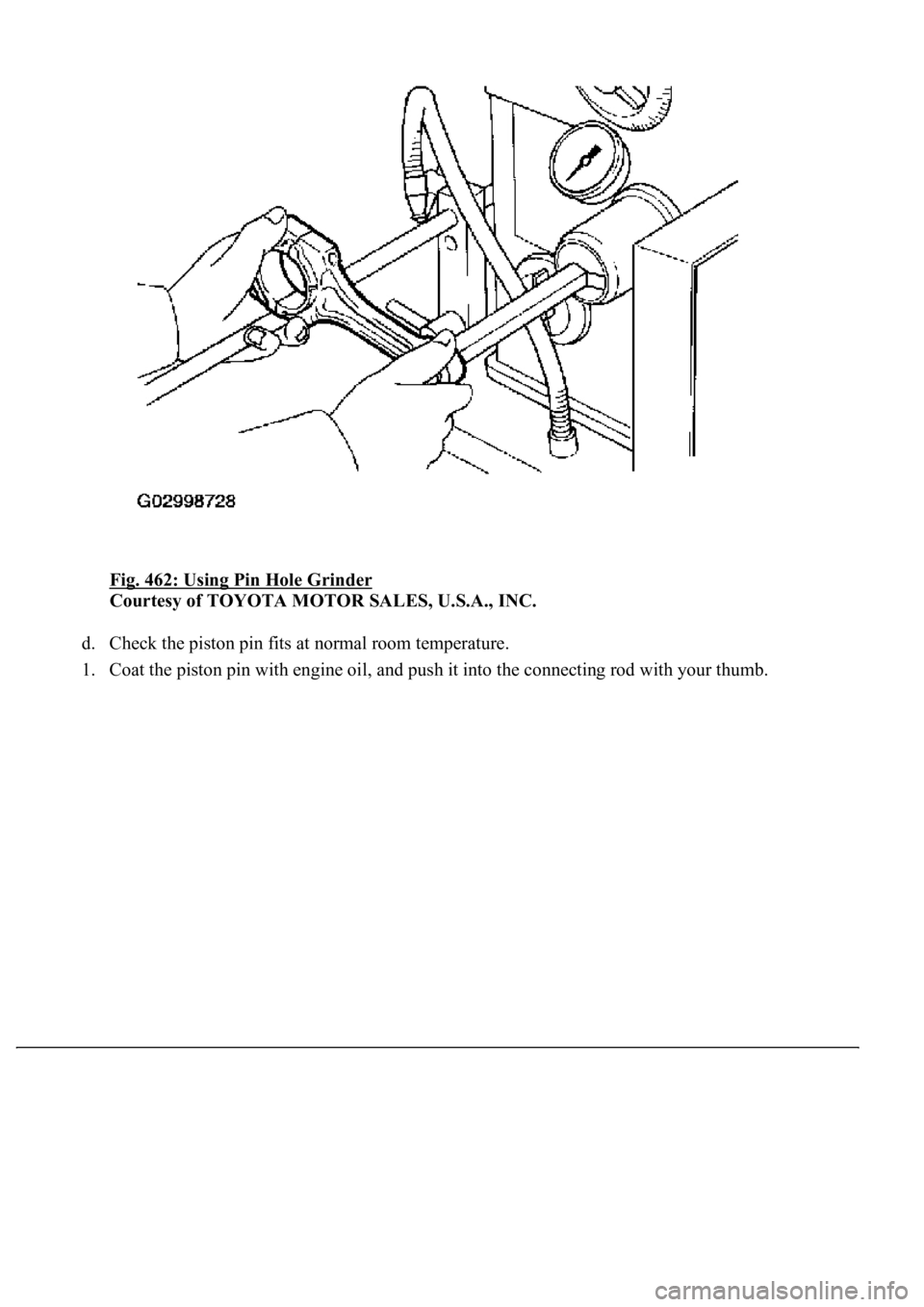

Fig. 462: Using Pin Hole Grinder
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Check the piston pin fits at normal room temperature.
1. Coat the piston pin with en
gine oil, and push it into the connecting rod with your thumb.
Page 3751 of 4500

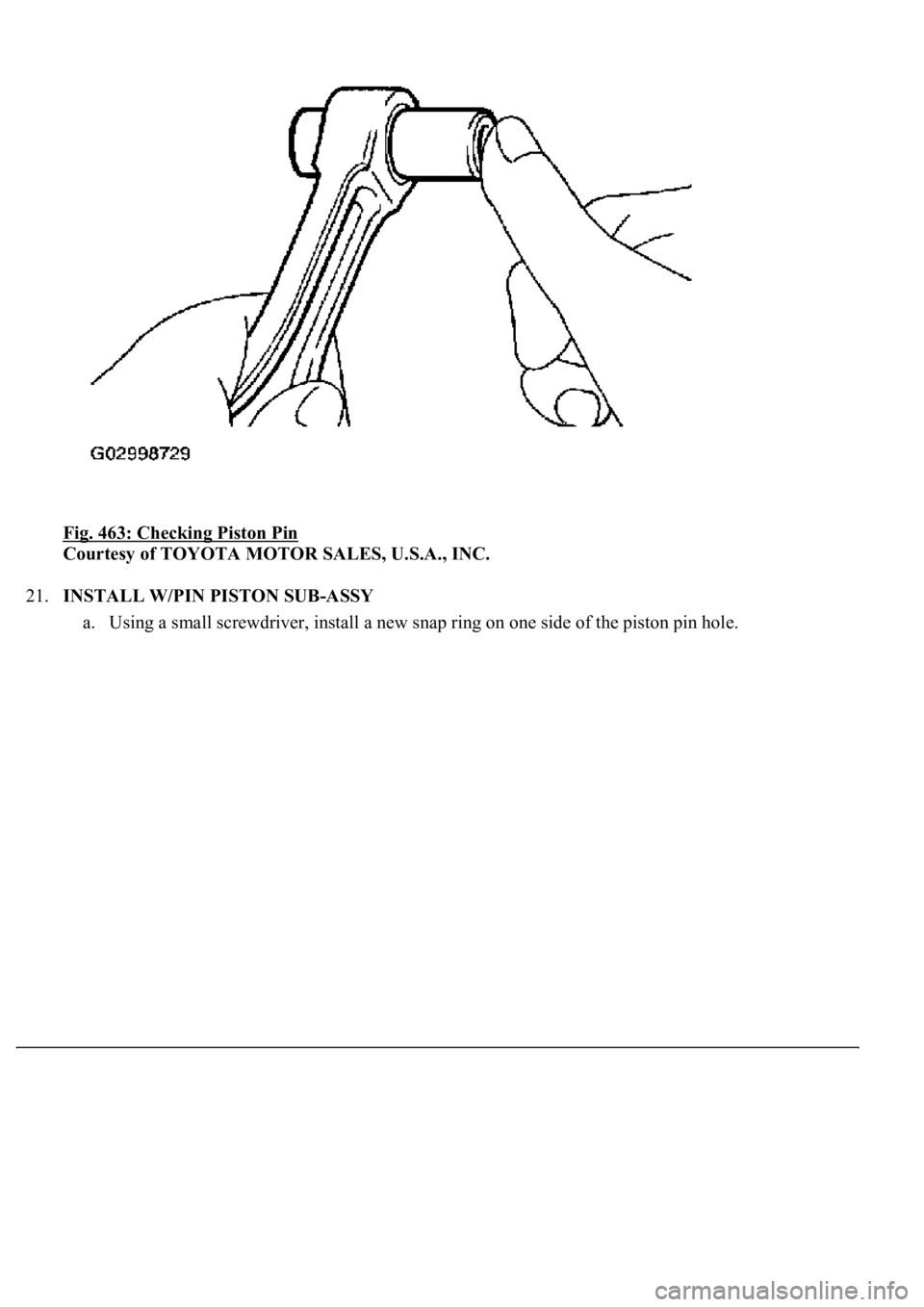

Fig. 463: Checking Piston Pin
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
21.INSTALL W/PIN PISTON SUB-ASSY
a. Using a small screwdriver, install a new snap ring on one side of the piston pin hole.
Page 3752 of 4500

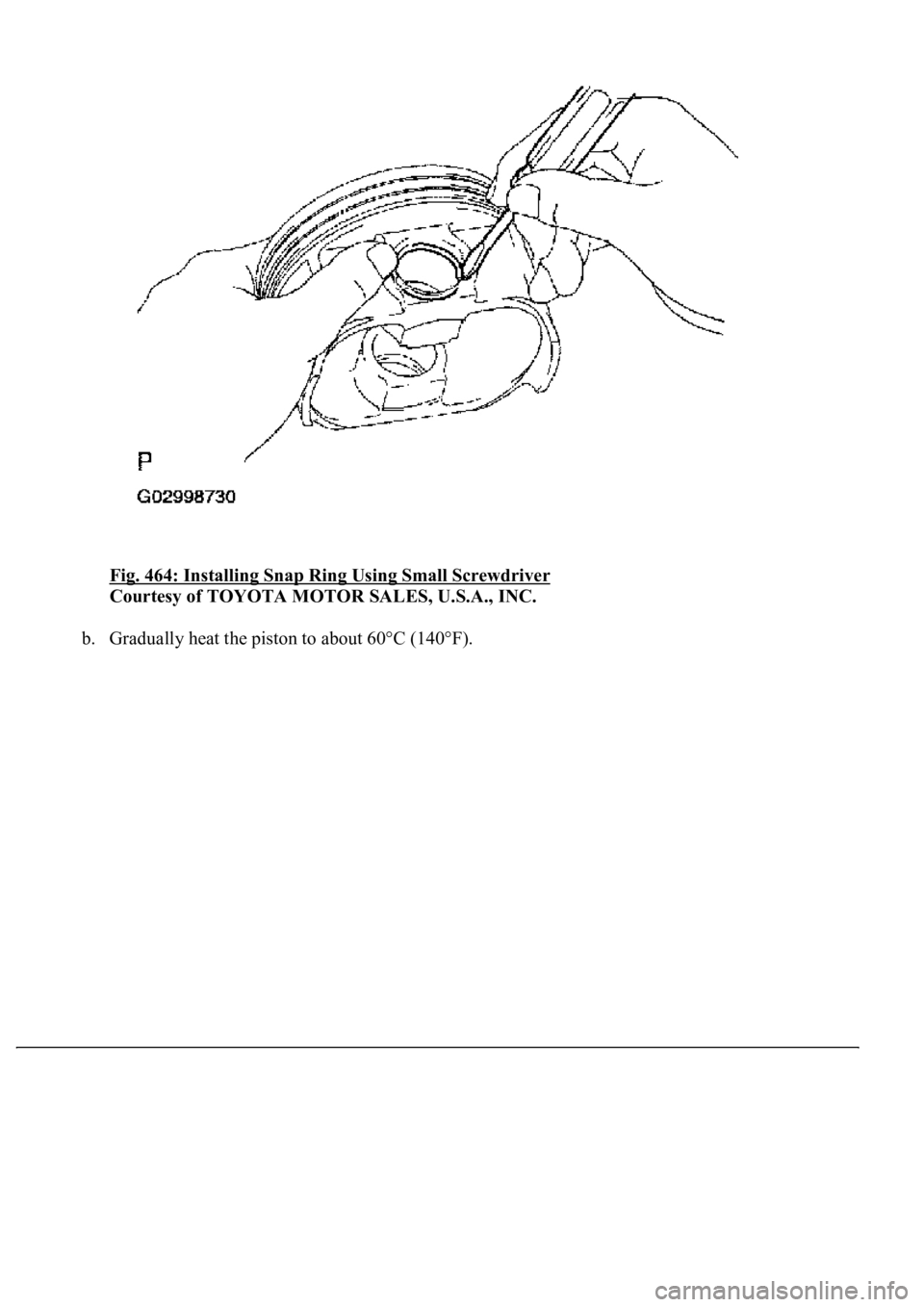

Fig. 464: Installing Snap Ring Using Small Screwdriver
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b.Gradually heat the piston to about 60°C (140°F).
