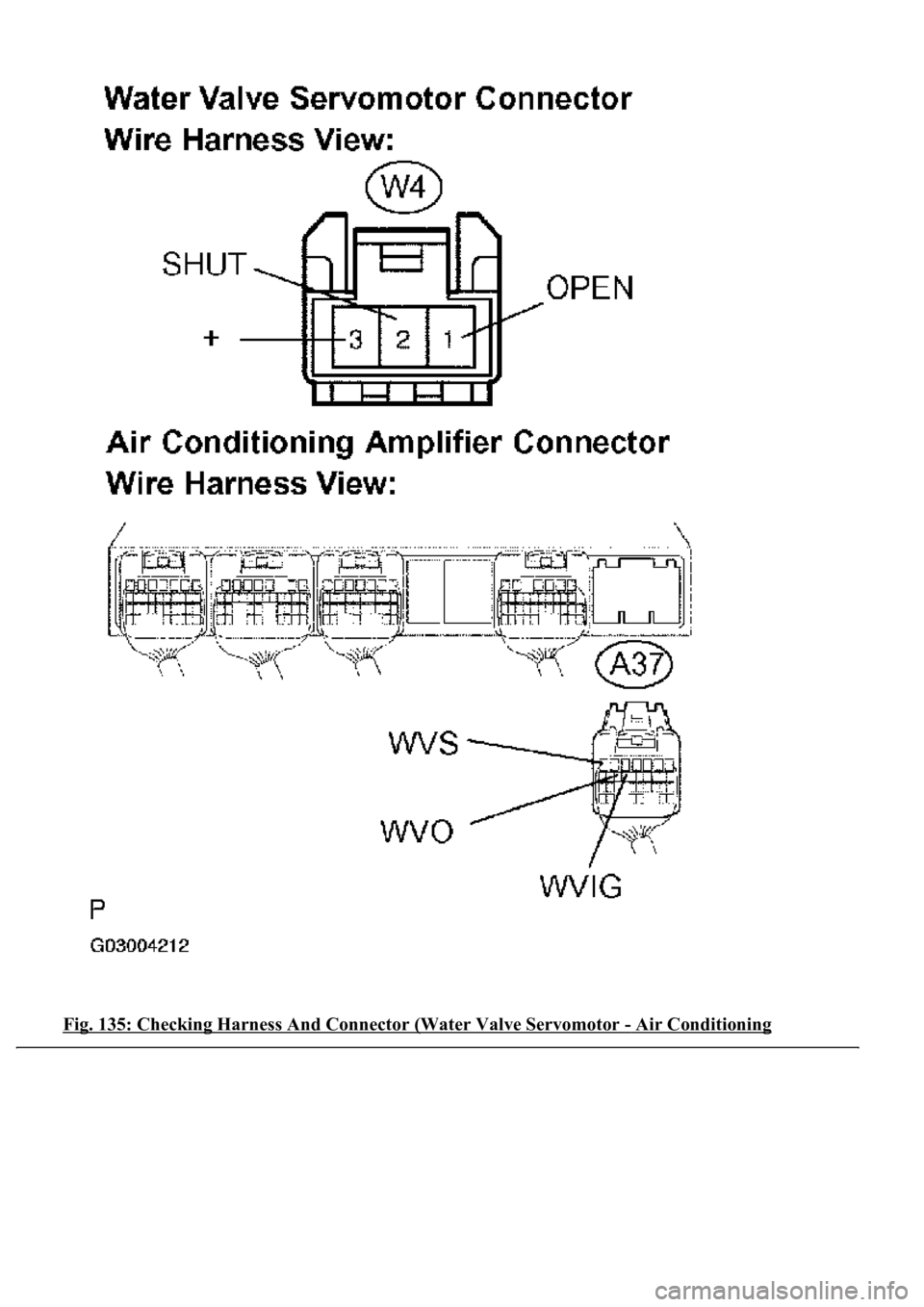

Fig. 135: Checking Harness And Connector (Water Valve Servomotor - Air Conditioning
Page 378 of 4500
Amplifier)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
This circuit turns the servomotor and changes each damper position by receiving the signals from the A/C
amplifier assy. When the AUTO switch is on, the A/C amplifier changes the mode between "FACE", "BI-
LEVEL" and "FOOT" following the temperature setting.
WIRING DIAGRAM
Page 379 of 4500
Fig. 136: Air Vent Mode Damper Control Servomotor Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.PERFORM ACTUATOR CHECK
a. Warm up the engine.
b. Set the actuator check mode (see ACTUATOR CHECK).
Page 380 of 4500
c. Press the driver temperature up switch, and change to STEP operation.
d. Press the driver temperature up switch, and check the air flow mode by hand.
DISPLAY CODE - AIR FLOW POSITION
OK:
Air flow position changes in accordance with each display code.
NG: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
OK: Go to next step
2.INSPECT AIR VENT MODE CONTROL SERVOMOTOR
a. Remove the vent mode control servomotor.
b. Measure resistance according to the value (s) in the table below:
Standard: (Driver side)
AIR VENT MODE CONTROL SERVOMOTOR (DRIVER SIDE) RESISTANCE
Display codeAir flow position
0FACE
1FACE
2FACE
3FACE
4BI-LEVEL
5BI-LEVEL
6FOOT
7FOOT
8FOOT/DEF
9DEF
Tester connectionConditionSpecified condition
A44-1 (AODr1) -A44-4 (AODB)Always24.3 to 26.3 ohms
A44-2 (AODr2) -A44-4 (AODB)Always24.3 to 26.3 ohms
A44-5 (AODr3) -A44-4 (AODB)Always24.3 to 26.3
A44-6 (AODr4) -A44-4 (AODB)Always24.3 to 26.3
Page 381 of 4500
Page 382 of 4500

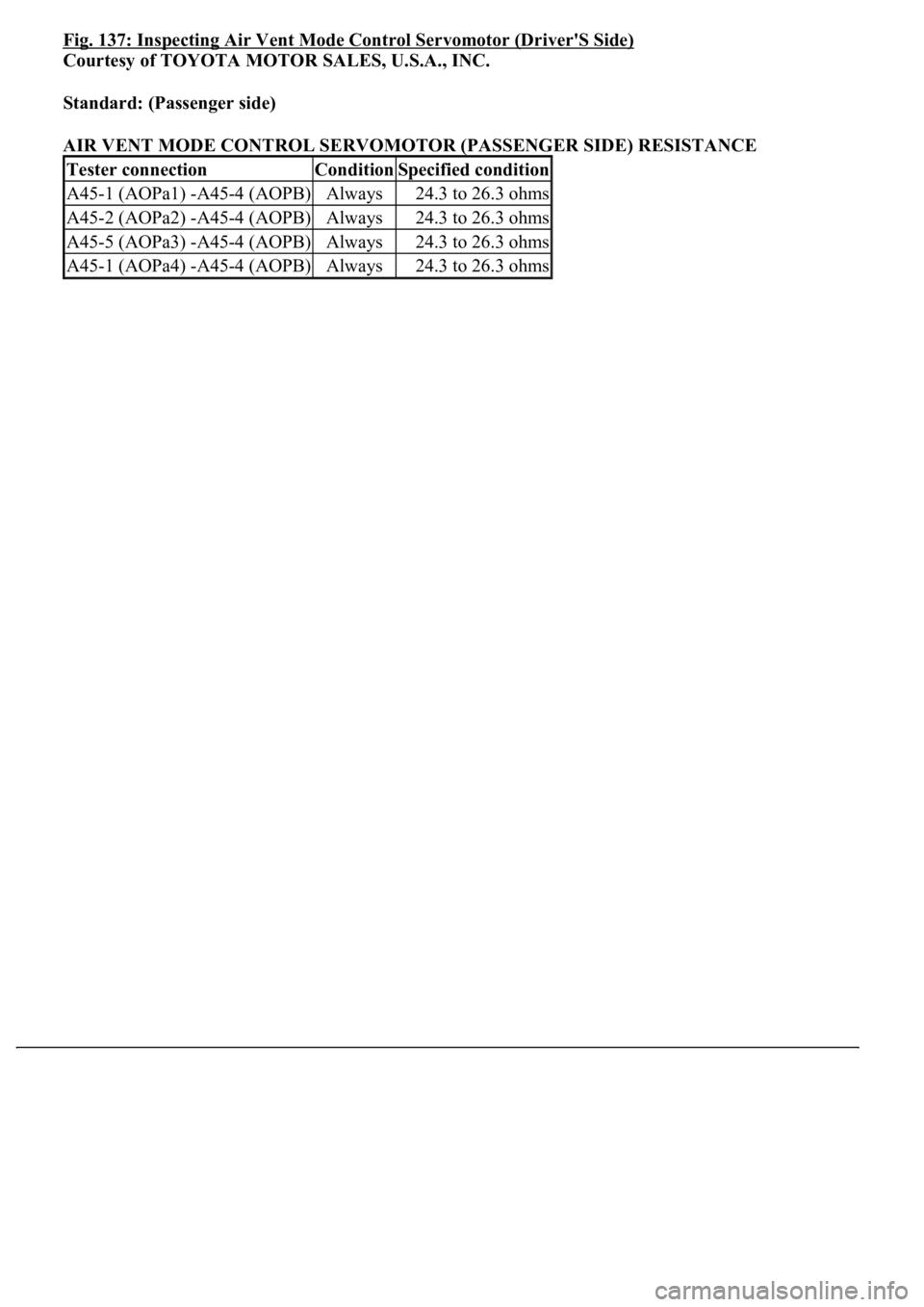

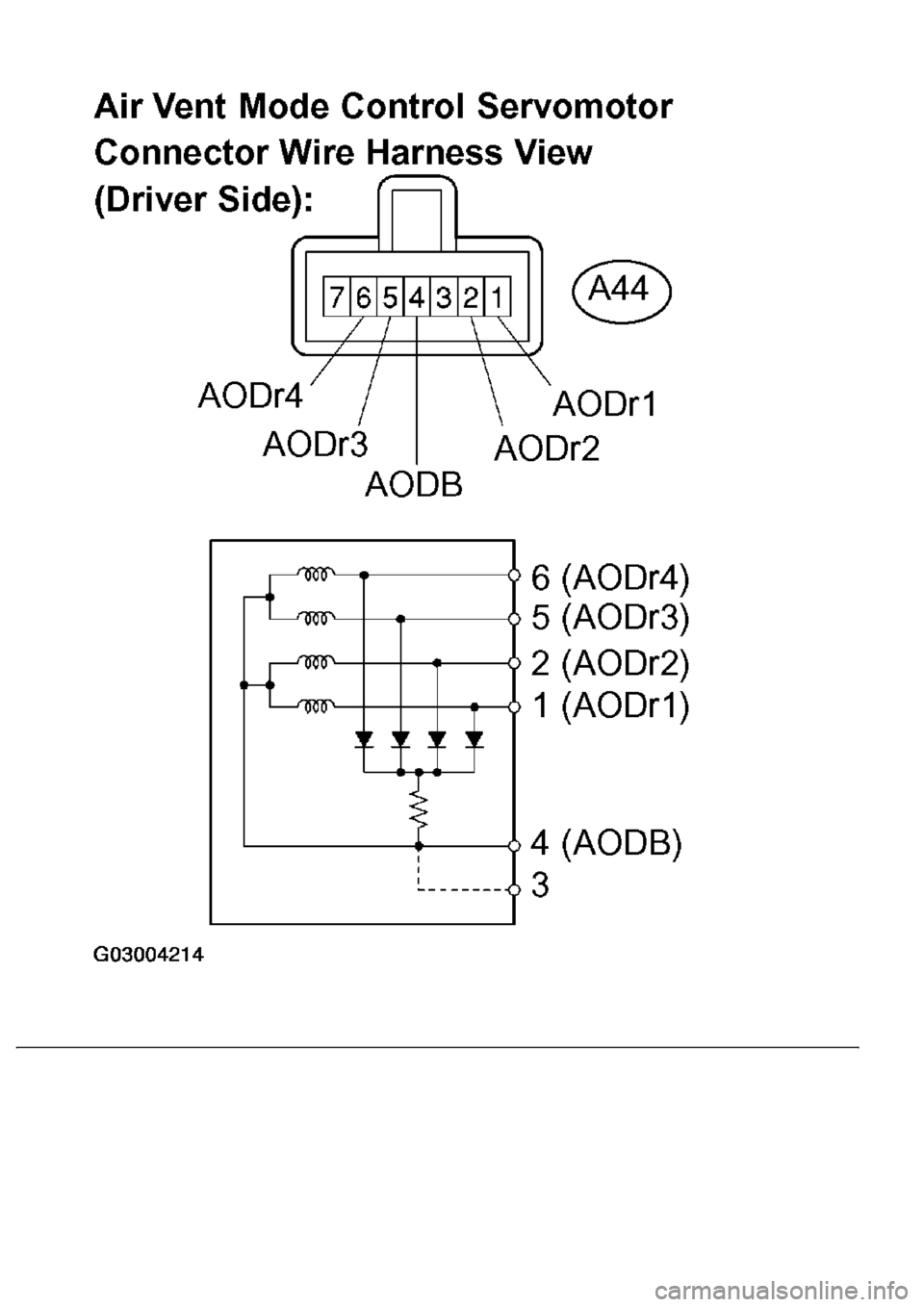

Fig. 137: Inspecting Air Vent Mode Control Servomotor (Driver'S Side)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Standard: (Passenger side)
AIR VENT MODE CONTROL SERVOMOTOR (PASSENGER SIDE) RESISTANCE
Tester connectionConditionSpecified condition
A45-1 (AOPa1) -A45-4 (AOPB)Always24.3 to 26.3 ohms
A45-2 (AOPa2) -A45-4 (AOPB)Always24.3 to 26.3 ohms
A45-5 (AOPa3) -A45-4 (AOPB)Always24.3 to 26.3 ohms
A45-1 (AOPa4) -A45-4 (AOPB)Always24.3 to 26.3 ohms
Page 383 of 4500
Fig. 138: Inspecting Air Vent Mode Control Servomotor (Passenger'S Side)
Page 384 of 4500
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE AIR OUTLET SERVOMOTOR
OK: Go to next step

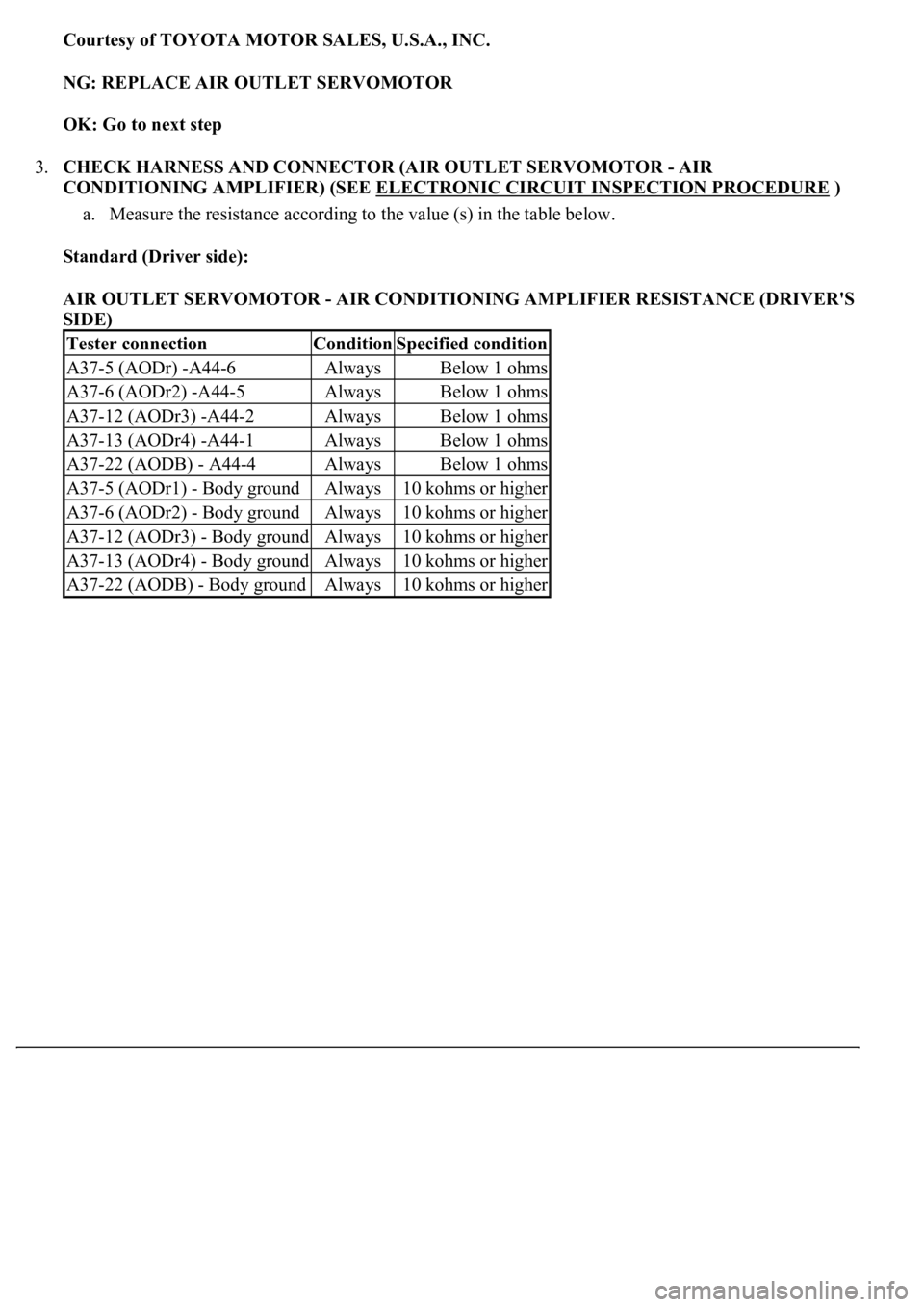

3.CHECK HARNESS AND CONNECTOR (AIR OUTLET SERVOMOTOR - AIR
CONDITIONING AMPLIFIER) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Measure the resistance according to the value (s) in the table below.
Standard (Driver side):
AIR OUTLET SERVOMOTOR - AIR CONDITIONING AMPLIFIER RESISTANCE (DRIVER'S
SIDE)
Tester connectionConditionSpecified condition
A37-5 (AODr) -A44-6AlwaysBelow 1 ohms
A37-6 (AODr2) -A44-5AlwaysBelow 1 ohms
A37-12 (AODr3) -A44-2AlwaysBelow 1 ohms
A37-13 (AODr4) -A44-1AlwaysBelow 1 ohms
A37-22 (AODB) - A44-4AlwaysBelow 1 ohms
A37-5 (AODr1) - Body groundAlways10 kohms or higher
A37-6 (AODr2) - Body groundAlways10 kohms or higher
A37-12 (AODr3) - Body groundAlways10 kohms or higher
A37-13 (AODr4) - Body groundAlways10 kohms or higher
A37-22 (AODB) - Body groundAlways10 kohms or higher
