Fig. 78: Installing Front Door Glass Run LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

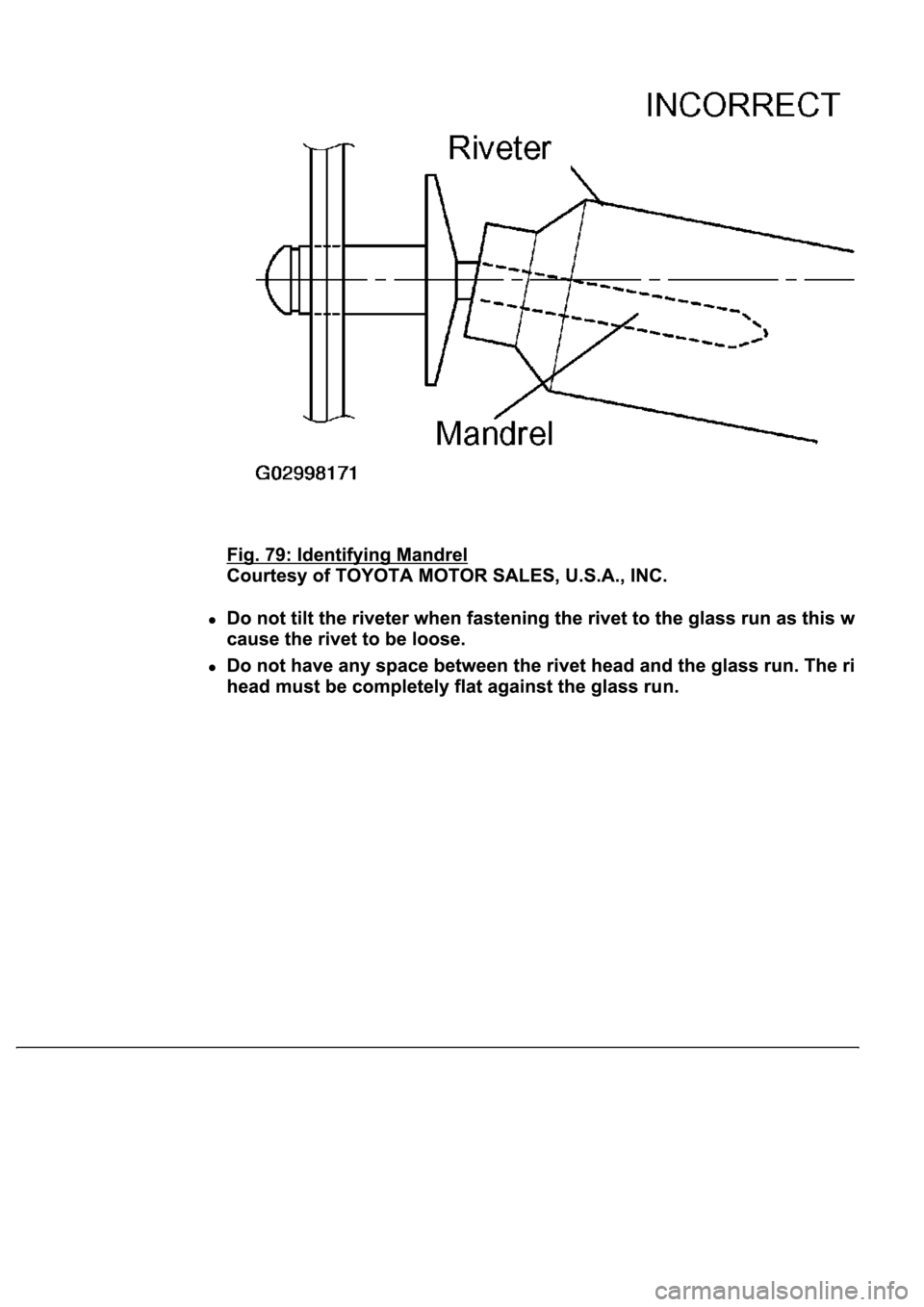

Page 3066 of 4500
Page 3067 of 4500
b. Connect the speaker connector.
Page 3068 of 4500
Fig. 81: Connecting Speaker Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
36.INSTALL OUTER REAR VIEW MIRROR ASSY LH
a. Install the mirror with the 3 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
b. Connect the mirror connector.
Page 3069 of 4500
Fig. 82: Connecting Mirror Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
37.INSTALL FRONT DOOR SERVICE HOLE COVER LH
a. Apply butyl tape to the door as shown in the illustration.
b. Install a new service hole cover.
HINT:
When installing the service hole cover, pull out the links and connectors through the service
hole cover.
There should be no wrinkles or folds after attaching the service hole cover.
After attaching the service hole cover, check the sealing quality.
c. Connect the 2 connectors and install the wire.
d. Install the door electrical key oscillator with the 2 screws.
38.INITIALIZE POWER WINDOW SYSTEM (See INITIALIZATION
)
Page 3070 of 4500
Fig. 83: Identifying Power Window System
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
COMPONENTS
Page 3071 of 4500
Fig. 84: Exploded View Of Rear Door Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
ADJUSTMENT
HINT:
Page 3072 of 4500

Before adjusting the door position for vehicles equipped with side airbags and curtain shield airbags, be
sure to disconnect the battery. After adjustment, inspect the SRS warning lamp, the side airbag system
and the curtain shield airbag system for normal operation (see DIAGNOSIS SYSTEM
). Then initialize
both systems (see INITIALIZATION
).
<00380056004800030057004b0048000300560044005000480003005300550052004600480047005800550048000300490052005500030057004b004800030035002b00030056004c0047004800030044005100470003002f002b00030056004c0047004800
1100030003[
The procedures listed below are for the LH side.
Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be
adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (w/washers) when
making adjustments.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
Fig. 85: Identifying Centering Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1.INSPECT REAR DOOR PANEL SUB-ASSY LH
a. Check that the clearance is within the standard ran
ge.
