Page 2137 of 4500

LEXUS LS430 2003 Factory Repair Manual HINT: Set the dial indicator to the rearmost position (upper side in the illustration) of the area around where the side oil seal tapped in. Approximately 0.1 mm (0.004 in.) clearance between the

Page 2138 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 98: Removing Side Gear Shaft Snap Ring On Drive Pinion Side Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d.REMOVE REAR DIFFERENTIAL SIDE GEAR SHAFT SNAP RING a. Using SST and a hammer, create

Page 2139 of 4500

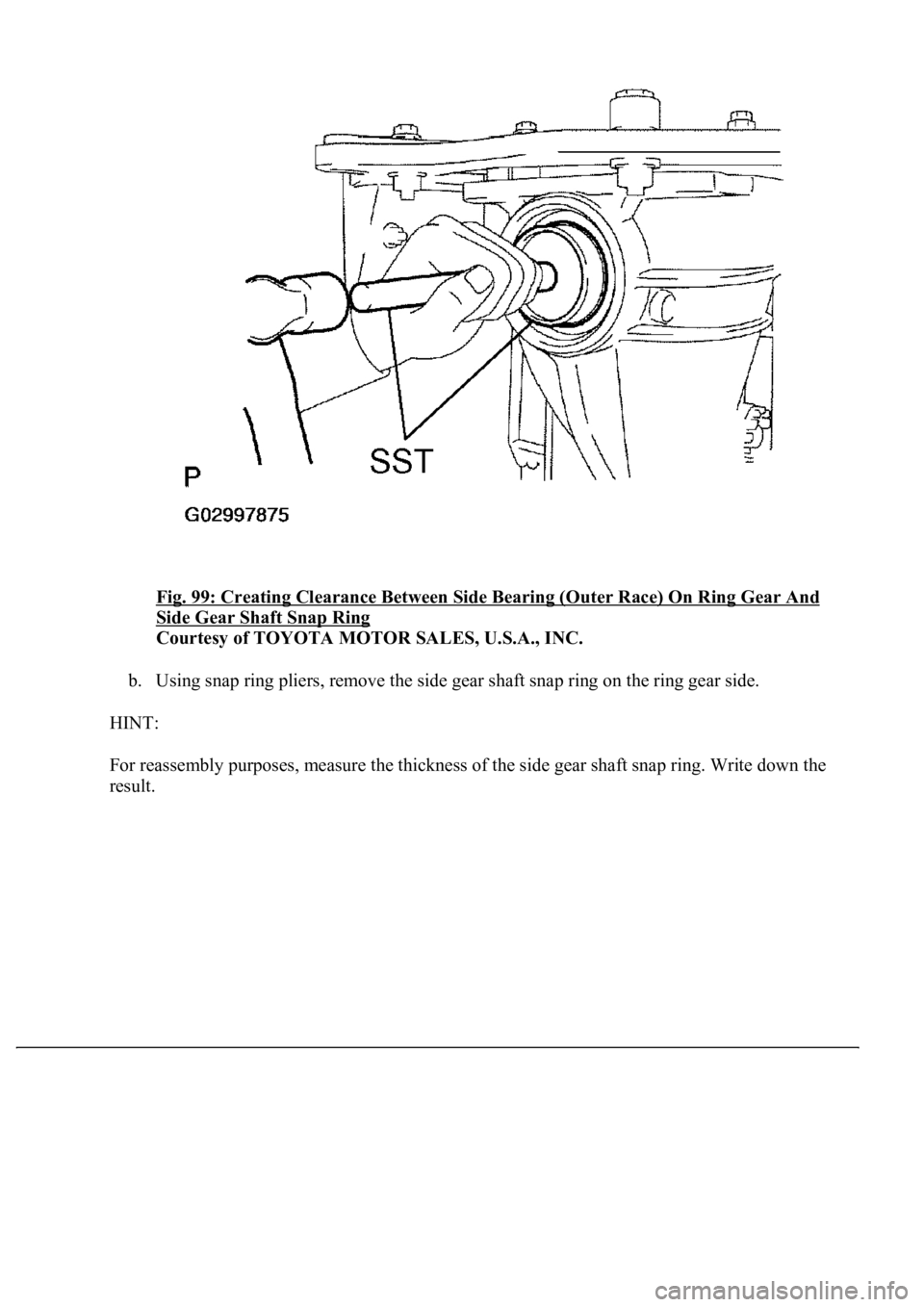

LEXUS LS430 2003 Factory Repair Manual Fig. 99: Creating Clearance Between Side Bearing (Outer Race) On Ring Gear And Side Gear Shaft Snap Ring Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Using snap ring pliers, remove the side gear

Page 2140 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 100: Removing Side Gear Shaft Snap Ring On Ring Gear Side Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e.REMOVE REAR DIFFERENTIAL CASE BEARING a. Tighten the SST bolt and push out the outer ra

Page 2141 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 101: Removing Rear Differential Case Bearing Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. f.REMOVE REAR DIFFERENTIAL CASE BEARING a. Raise the ring gear side of the differential case slightly

Page 2142 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 102: Removing Rear Differential Case Bearing Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. g.REMOVE REAR DIFFERENTIAL CASE SUB-ASSY

Page 2143 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 103: Removing Rear Differential Case Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. h.REMOVE REAR DRIVE PINION NUT a. Using SST to hold the flange, remove the nut. <003600360037000300

Page 2144 of 4500

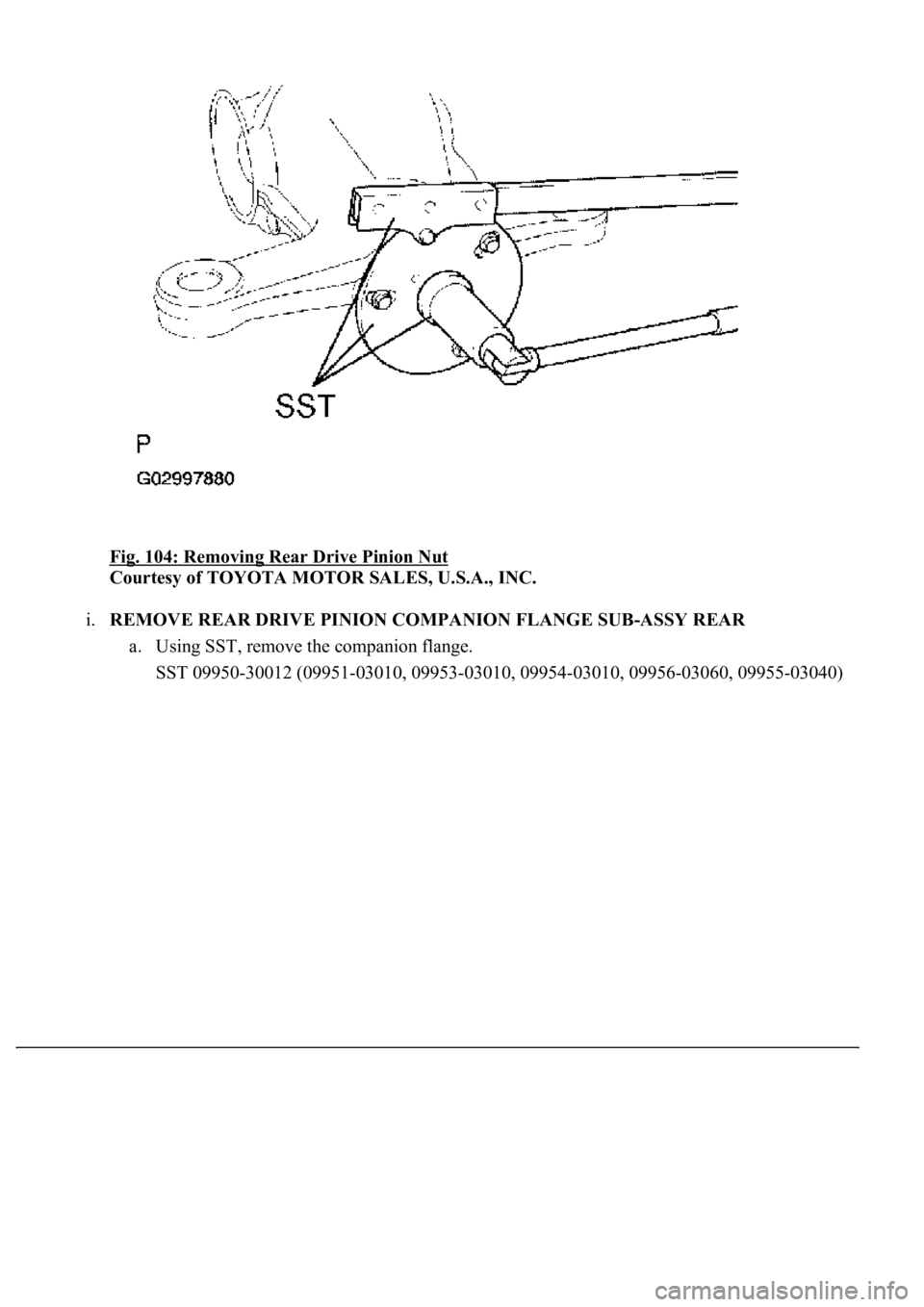

LEXUS LS430 2003 Factory Repair Manual Fig. 104: Removing Rear Drive Pinion Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. i.REMOVE REAR DRIVE PINION COMPANION FLANGE SUB-ASSY REAR a. Using SST, remove the companion flange. <0036003
