Page 1305 of 4500

LEXUS LS430 2003 Factory Repair Manual 12.CONNECT CONNECTOR a. Reconnect the skid control ECU sub bus line connector (J41) to the D-CAN J/C B side (w/o earth terminal). 13.CHECK CAN BUS LINES FOR SHORT CIRCUIT (STEERING SENSOR SUB BUS

Page 1306 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 99: Identifying DLC3 Connector terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Measure the resistance according to the value (s) in the table below. Standard: DLC3 CONNECTOR TERMI

Page 1307 of 4500

LEXUS LS430 2003 Factory Repair Manual 14.CONNECT CONNECTOR a. Reconnect the steering sensor sub bus line connector (J43) to the D-CAN J/C B side (w/o earth terminal). 15.CHECK CAN BUS LINES FOR SHORT CIRCUIT (D-CAN J/C) Fig. 100: Dis

Page 1308 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 101: Identifying DLC3 Connector terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Measure the resistance according to the value (s) in the table below. Standard: DLC3 CONNECTOR TERM

Page 1309 of 4500

LEXUS LS430 2003 Factory Repair Manual J/C) 16.CONNECT CONNECTOR a. Reconnect the suspension control ECU sub bus line connector (J38) to the D-CAN J/C A side (w/earth terminal). 17.CHECK CAN BUS LINES FOR SHORT CIRCUIT (SUSPENSION CO

Page 1310 of 4500

LEXUS LS430 2003 Factory Repair Manual OK: REPLACE SUSPENSION CONTROL ECU (SEE REPLACEMENT ) OK: REPAIR OR REPLACE SUSPENSION CONTROL ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L) 18.CONNECT CONNECTOR a. Reconnect the gateway ECU sub

Page 1311 of 4500

LEXUS LS430 2003 Factory Repair Manual DLC3 CONNECTOR TERMINALS RESISTANCE OK: REPLACE GATEWAY ECU NG: GO TO NEXT STEP REPAIR OR REPLACE GATEWAY ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L) 20.CONNECT CONNECTOR a. Reconnect the ECM

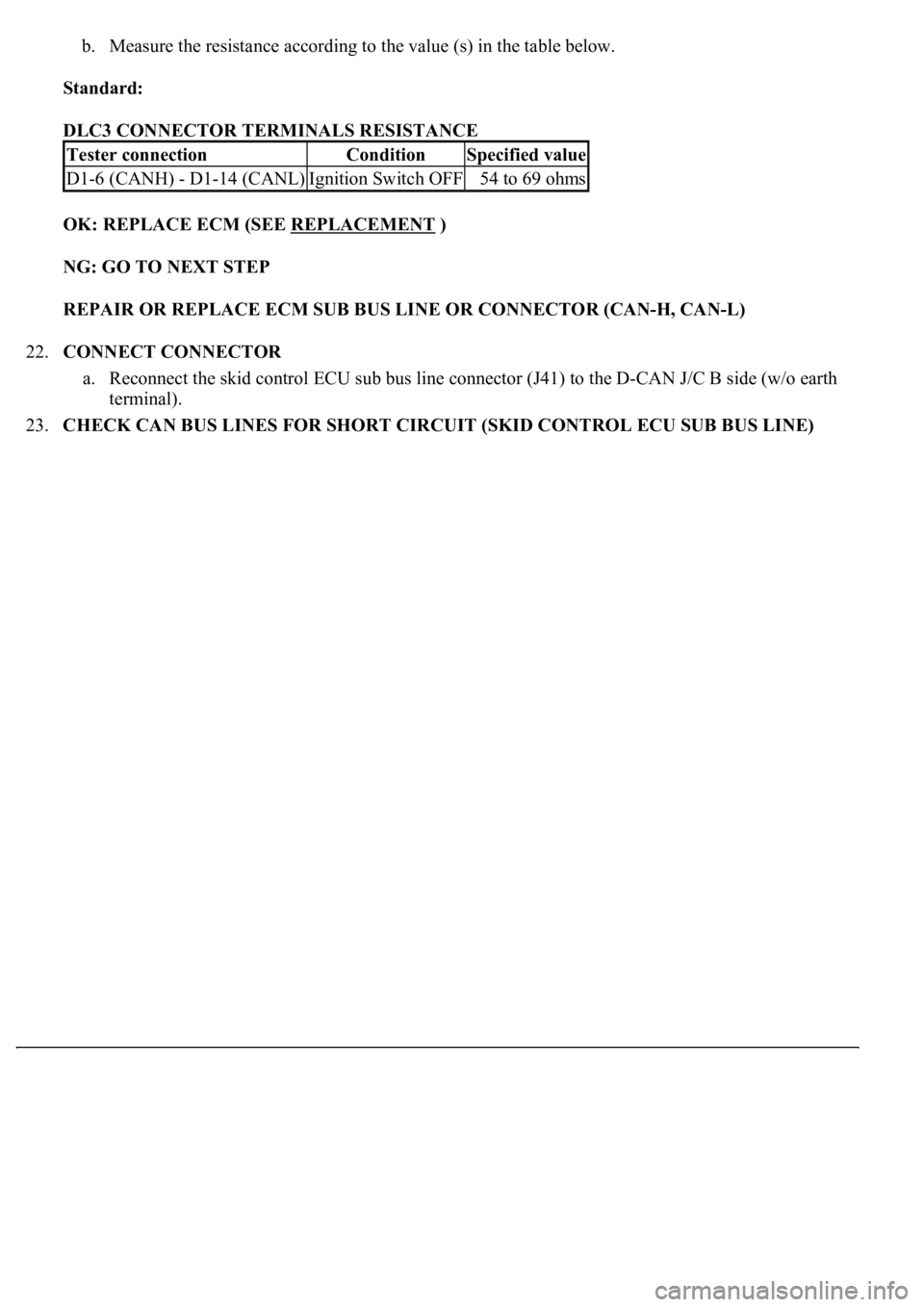

Page 1312 of 4500

LEXUS LS430 2003 Factory Repair Manual b. Measure the resistance according to the value (s) in the table below. Standard: DLC3 CONNECTOR TERMINALS RESISTANCE OK: REPLACE ECM (SEE REPLACEMENT ) NG: GO TO NEXT STEP REPAIR OR REPLAC
