Page 2801 of 4500

LEXUS LS430 2003 Factory Repair Manual There are no foreign objects on each valve and they operate smoothly. NG: REPAIR OR REPLACE TRANSMISSION VALVE BODY ASSY (See step 6 on REPLACEMENT ) OK: Go to next step 5.INSPECT TORQUE CONVERT

Page 2802 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 113: Gear Position Specification Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Gear position during fail-safe operation: If any malfunction is detected, the ECM changes into the fail-safe mode

Page 2803 of 4500

LEXUS LS430 2003 Factory Repair Manual OFF malfunction (A) TYPICAL ENABLING CONDITIONS TABLE - OFF MALFUNCTION A OFF malfunction (B) TYPICAL ENABLING CONDITIONS TABLE - OFF MALFUNCTION B TYPICAL MALFUNCTION THRESHOLDS Both of the fo

Page 2804 of 4500

LEXUS LS430 2003 Factory Repair Manual OFF malfunction (B) TYPICAL MALFUNCTION THRESHOLDS TABLE - OFF MALFUNCTION B INSPECTION PROCEDURE HINT: Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and s

Page 2805 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 115: Test Item Reference Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. HINT: This test can be conducted when the vehicle speed is 50 km/h (31 mph) or less. The 4th to 5th and 5th to 6th

Page 2806 of 4500

LEXUS LS430 2003 Factory Repair Manual HINT: If any other codes besides "P0766" are output, perform troubleshooting for those DTCs first. B: GO TO RELEVANT DTC CHART (See DIAGNOSTIC TROUBLE CODE CHART ) A: Go to next step 2.

Page 2807 of 4500

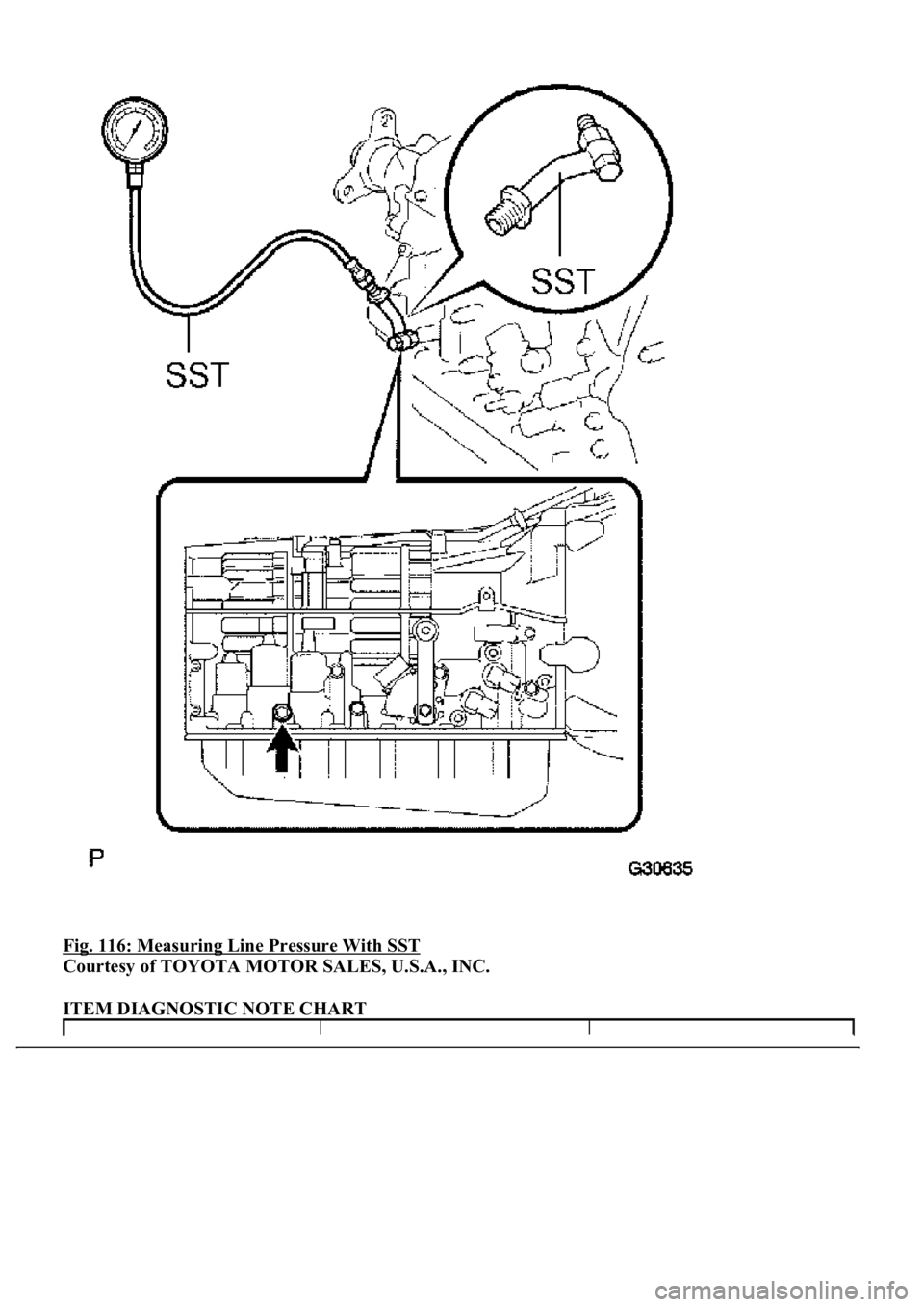

LEXUS LS430 2003 Factory Repair Manual Fig. 116: Measuring Line Pressure With SST Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. ITEM DIAGNOSTIC NOTE CHART

Page 2808 of 4500

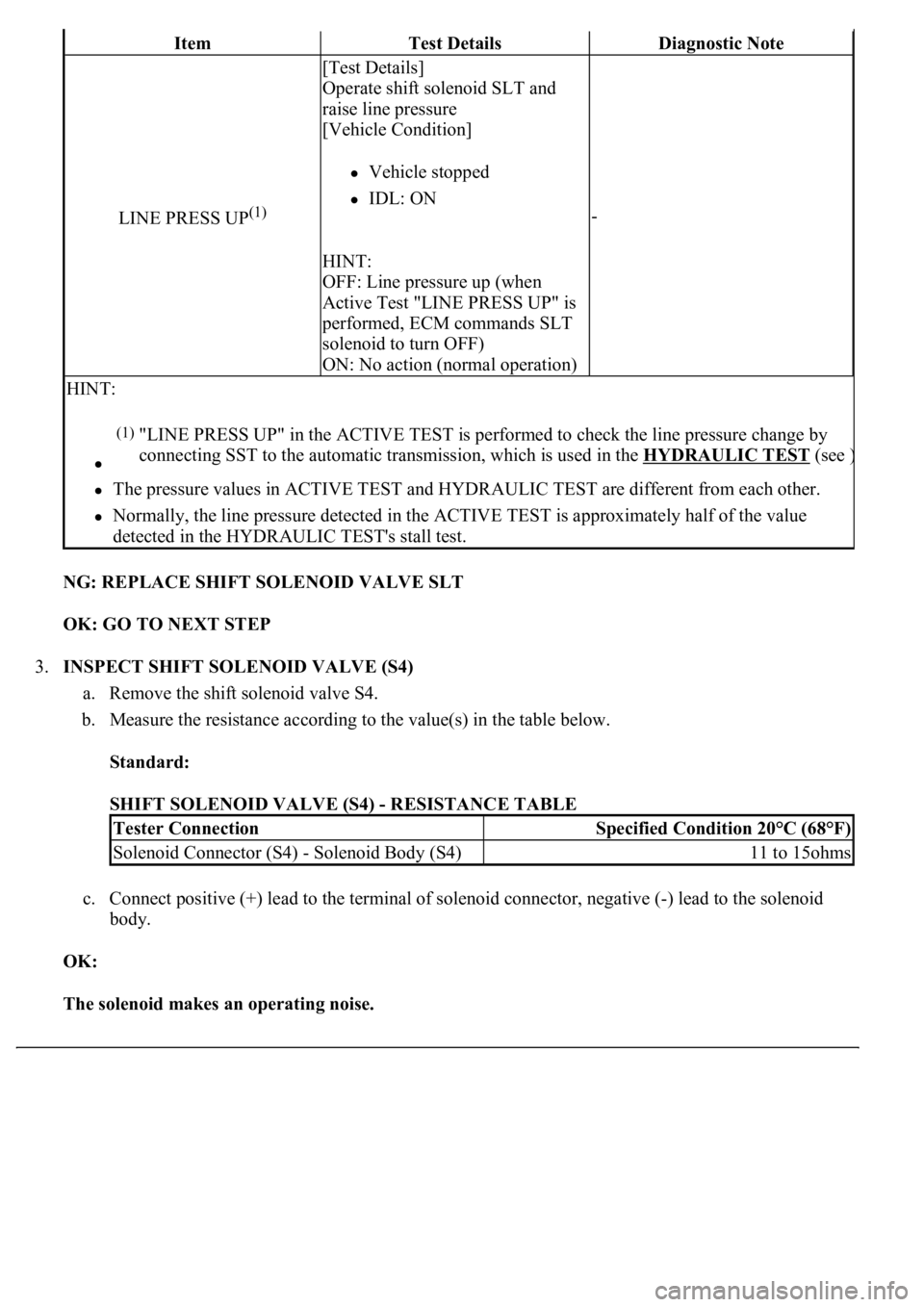

LEXUS LS430 2003 Factory Repair Manual NG: REPLACE SHIFT SOLENOID VALVE SLT OK: GO TO NEXT STEP 3.INSPECT SHIFT SOLENOID VALVE (S4) a. Remove the shift solenoid valve S4. b. Measure the resistance according to the value(s) in the ta
