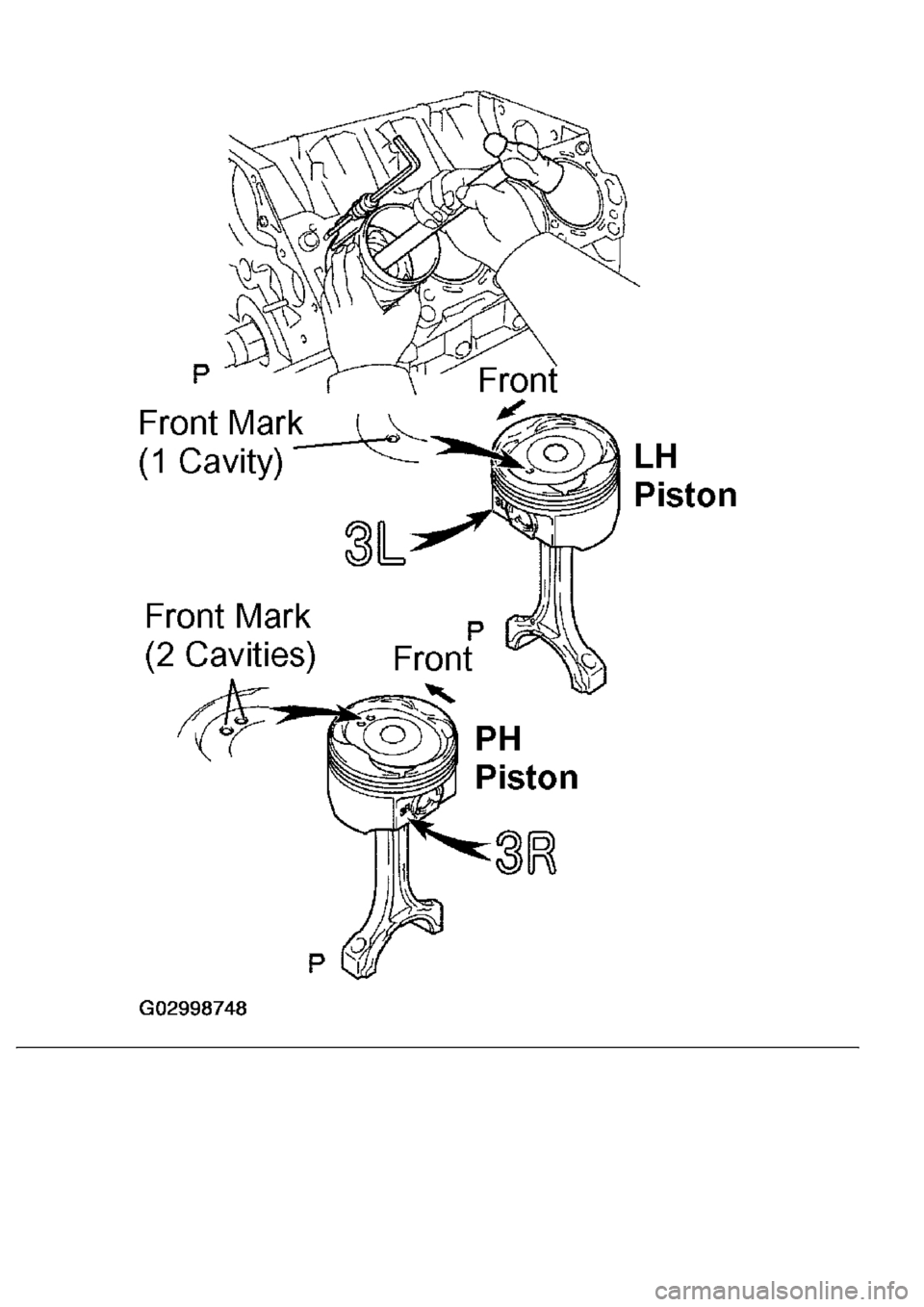

LEXUS LS430 2003 Factory Repair Manual Fig. 481: Tightening Crankshaft Bearing Cap Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 26.INSTALL PISTON AND CONNECTING ROD a. Using a piston ring compressor, push the correctly numbered pi

Page 3770 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 3771 of 4500

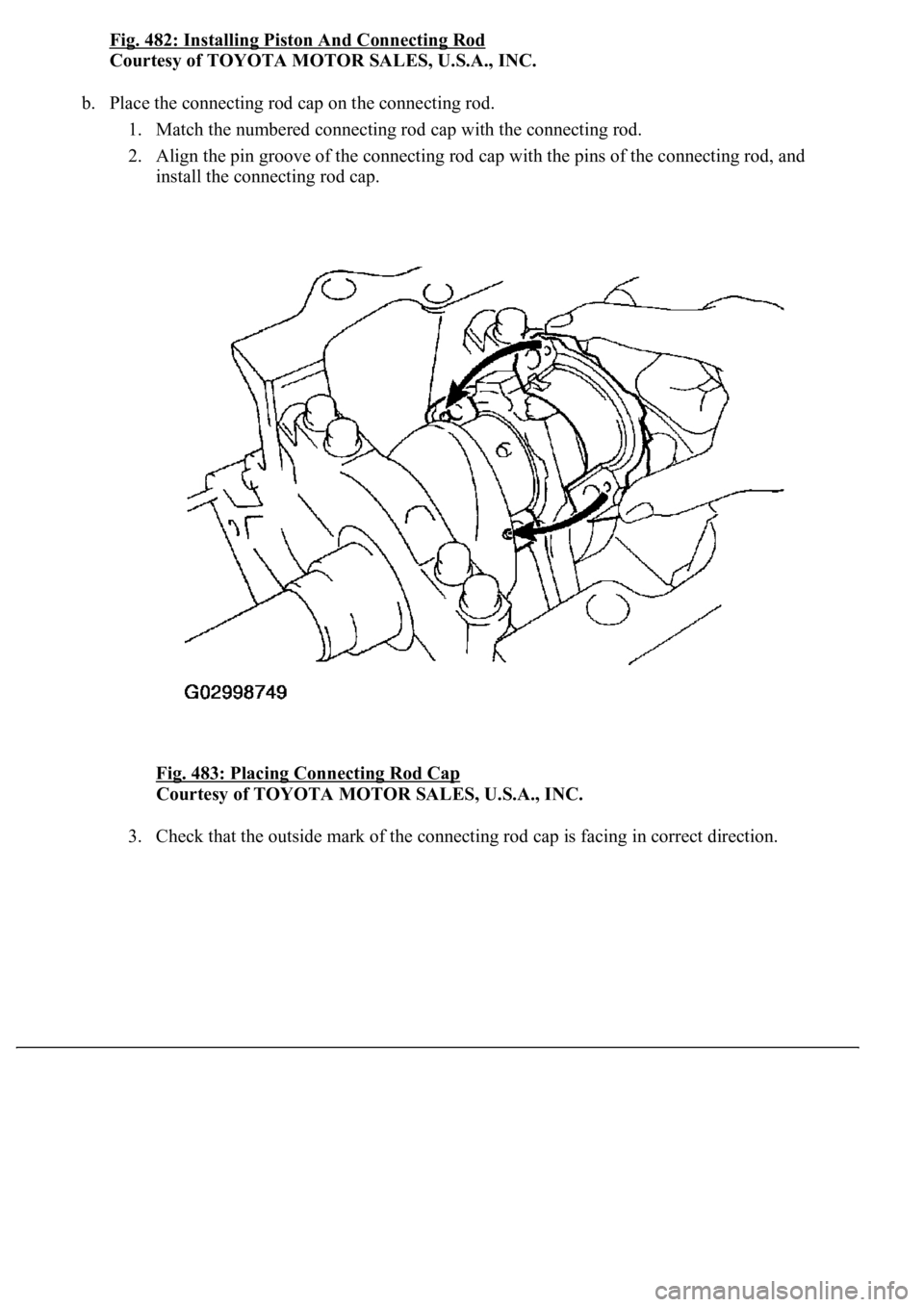

LEXUS LS430 2003 Factory Repair Manual Fig. 482: Installing Piston And Connecting Rod Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Place the connecting rod cap on the connecting rod. 1. Match the numbered connecting rod cap with the c

Page 3772 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 3773 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 484: Identifying Outside Mark Of Connecting Rod Cap Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Install the connecting rod cap bolts. HINT: The connecting rod cap bolts are tightened in 2

Page 3774 of 4500

LEXUS LS430 2003 Factory Repair Manual connecting rod cap bolts. 3. Mark the front of the connecting cap bolt with paint. 4. Retighten the cap bolts 90° as shown in the illustration. 5. Check that the painted mark is now at a 90° ang

Page 3775 of 4500

LEXUS LS430 2003 Factory Repair Manual <002c0051005600570044004f004f00030044000300510052005d005d004f004800030057004b004400570003004b00440056000300450048004800510003004600580057000300570052000300440003001500030057005200030016000300500050000

Page 3776 of 4500

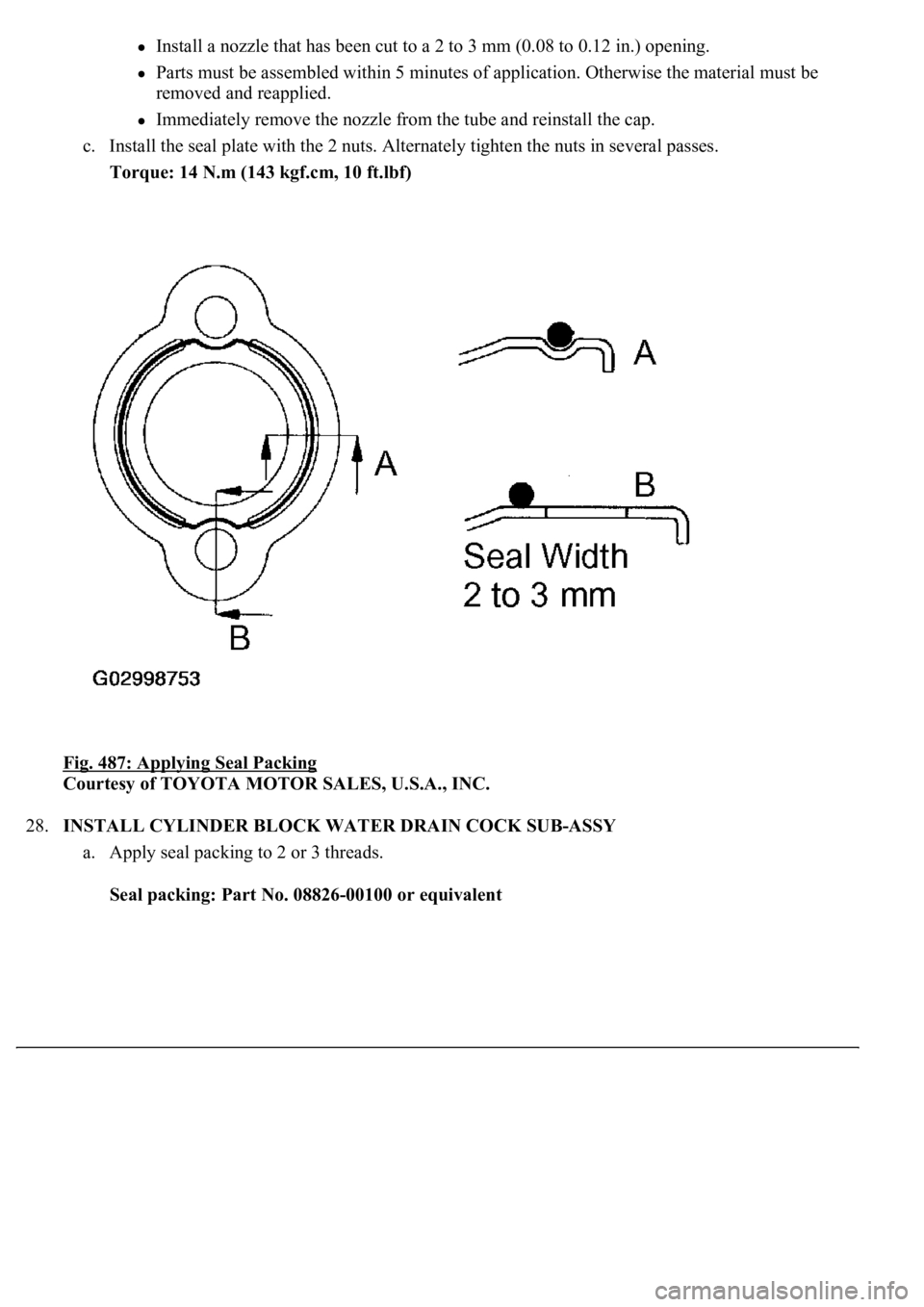

LEXUS LS430 2003 Factory Repair Manual Fig. 488: Applying Seal Packing Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Install the RH and LH drain unions. Torque: 49 N.m (500 kgf.cm, 36 ft.lbf) HINT: After appl ying the specified to
