Page 4369 of 4500

LEXUS LS430 2003 Factory Repair Manual tape up the screwdriver tip before use. c. Disconnect the connectors. 33.REMOVE FRONT PILLAR GARNISH LH (SEE REPLACEMENT ) 34.REMOVE FRONT PILLAR GARNISH RH (SEE REPLACEMENT ) 35.REMOVE FRON

Page 4370 of 4500

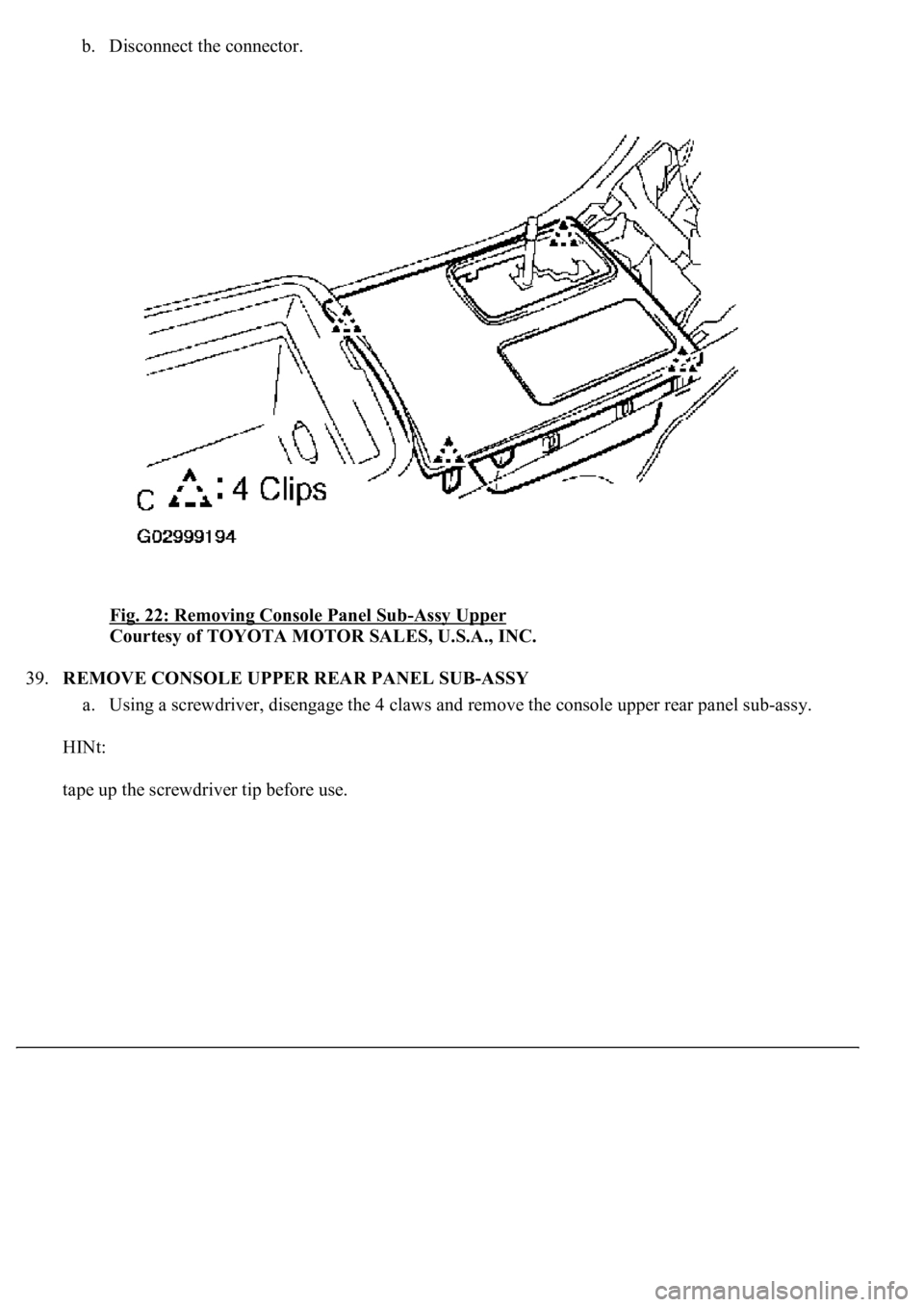

LEXUS LS430 2003 Factory Repair Manual b. Disconnect the connector. Fig. 22: Removing Console Panel Sub -Assy Upper Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 39.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY a. Using a screwdriver, diseng

Page 4371 of 4500

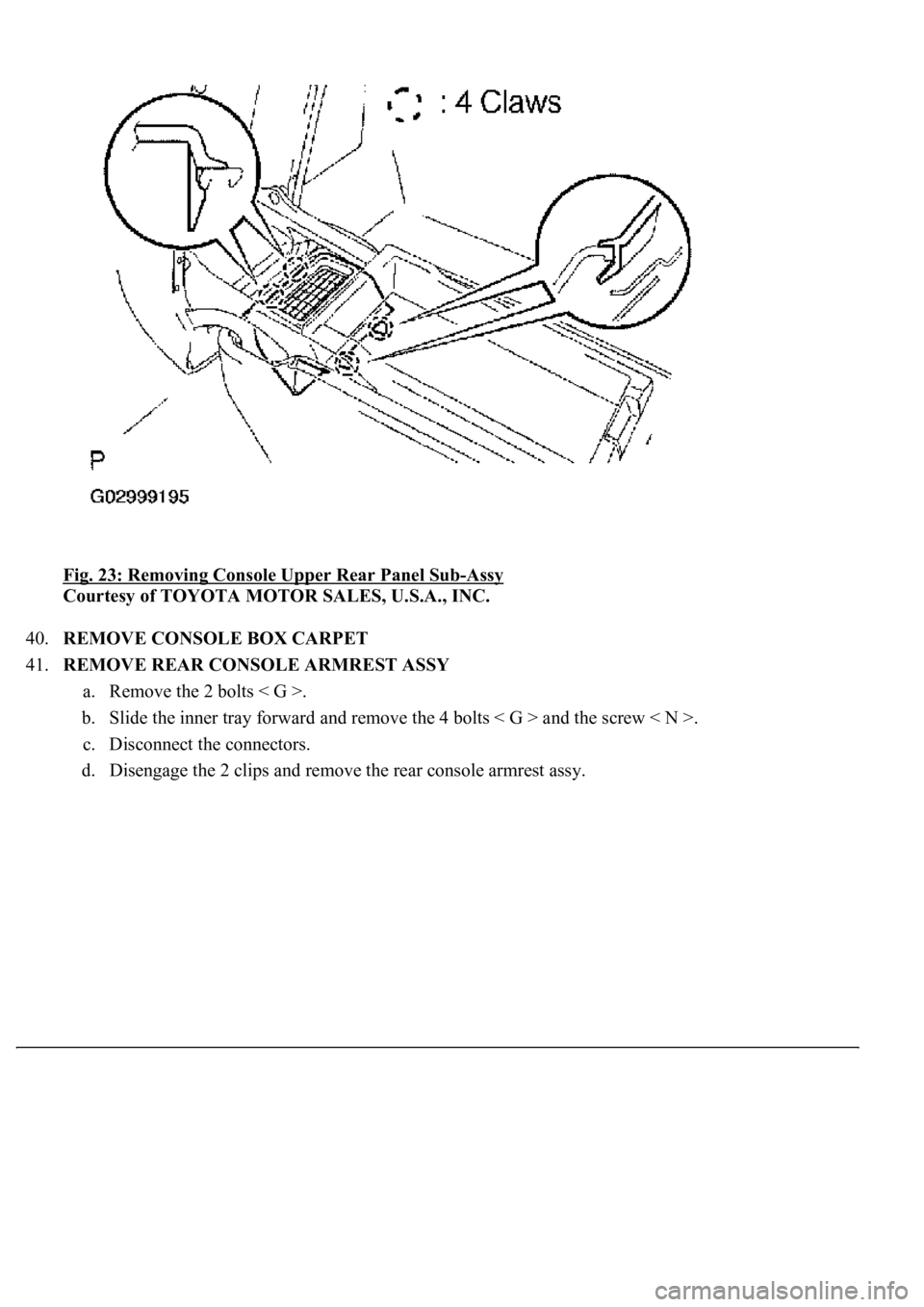

LEXUS LS430 2003 Factory Repair Manual Fig. 23: Removing Console Upper Rear Panel Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 40.REMOVE CONSOLE BOX CARPET 41.REMOVE REAR CONSOLE ARMREST ASSY a. Remove the 2 bolts < G >. b.

Page 4372 of 4500

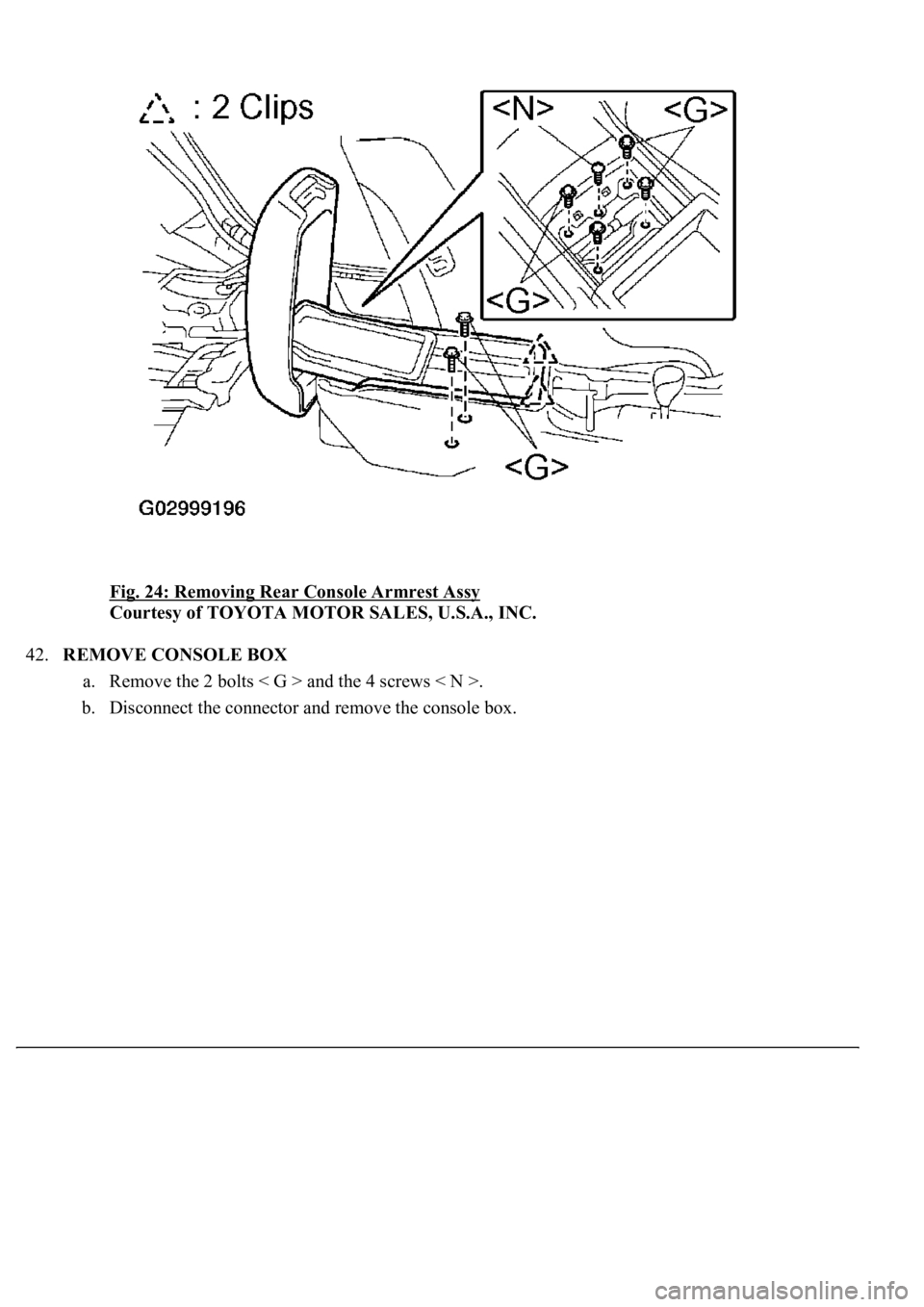

LEXUS LS430 2003 Factory Repair Manual Fig. 24: Removing Rear Console Armrest Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 42.REMOVE CONSOLE BOX a. Remove the 2 bolts < G > and the 4 screws < N >. b. Disconnect the connector and

Page 4373 of 4500

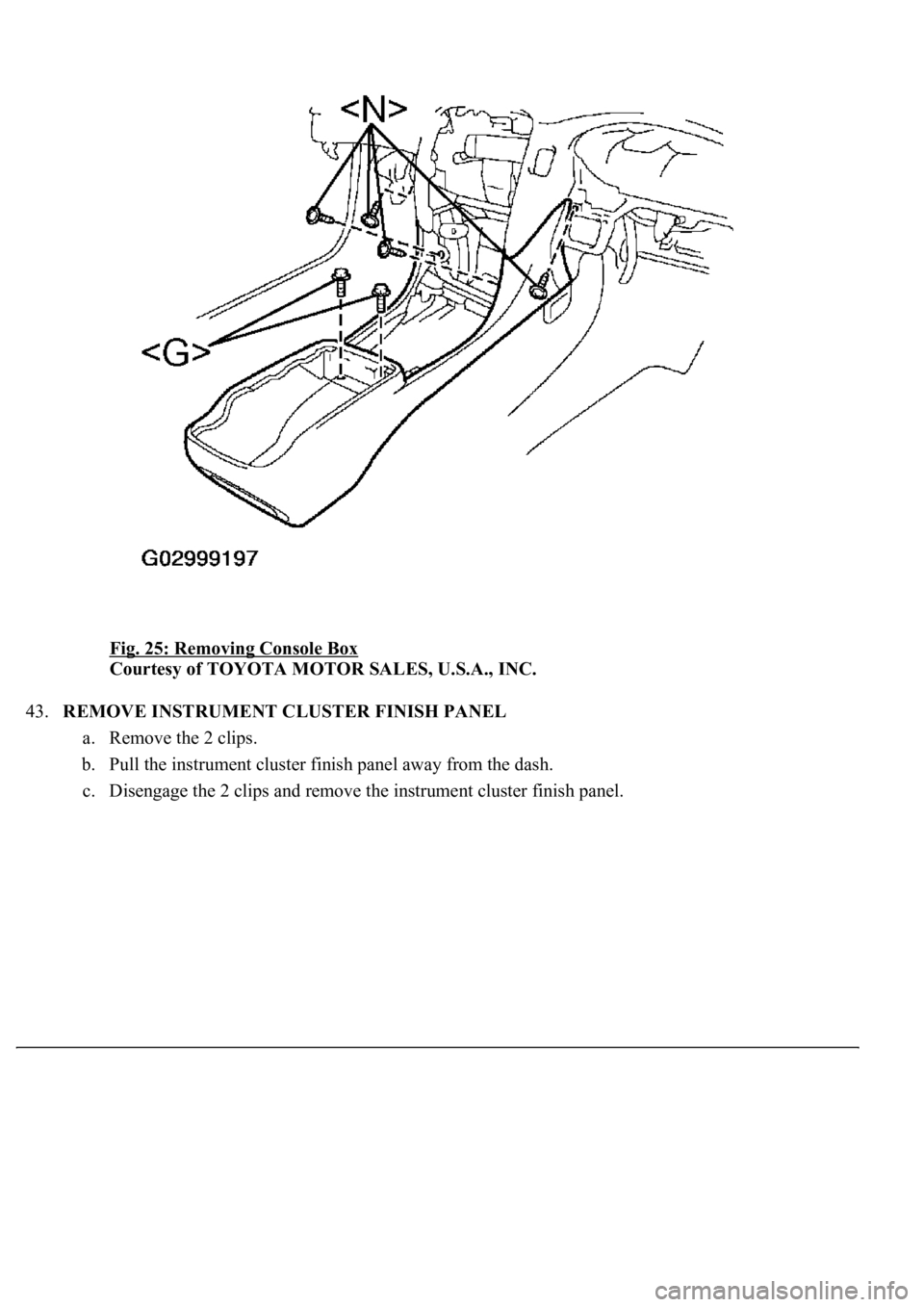

LEXUS LS430 2003 Factory Repair Manual Fig. 25: Removing Console Box Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 43.REMOVE INSTRUMENT CLUSTER FINISH PANEL a. Remove the 2 clips. b. Pull the instrument cluster finish panel away from t

Page 4374 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 26: Removing Instrument Cluster Finish Panel Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 44.REMOVE COMBINATION METER ASSY a. Remove the 4 screws. b. Disconnect the connector and remove the

Page 4375 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 27: Removing Combination Meter Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 45.DISCONNECT STARTER W/SMART SWITCH ASSY (SEE OVERHAUL ) 46.REMOVE STEERING COLUMN ASSY (SEE OVERHAUL ) SS

Page 4376 of 4500

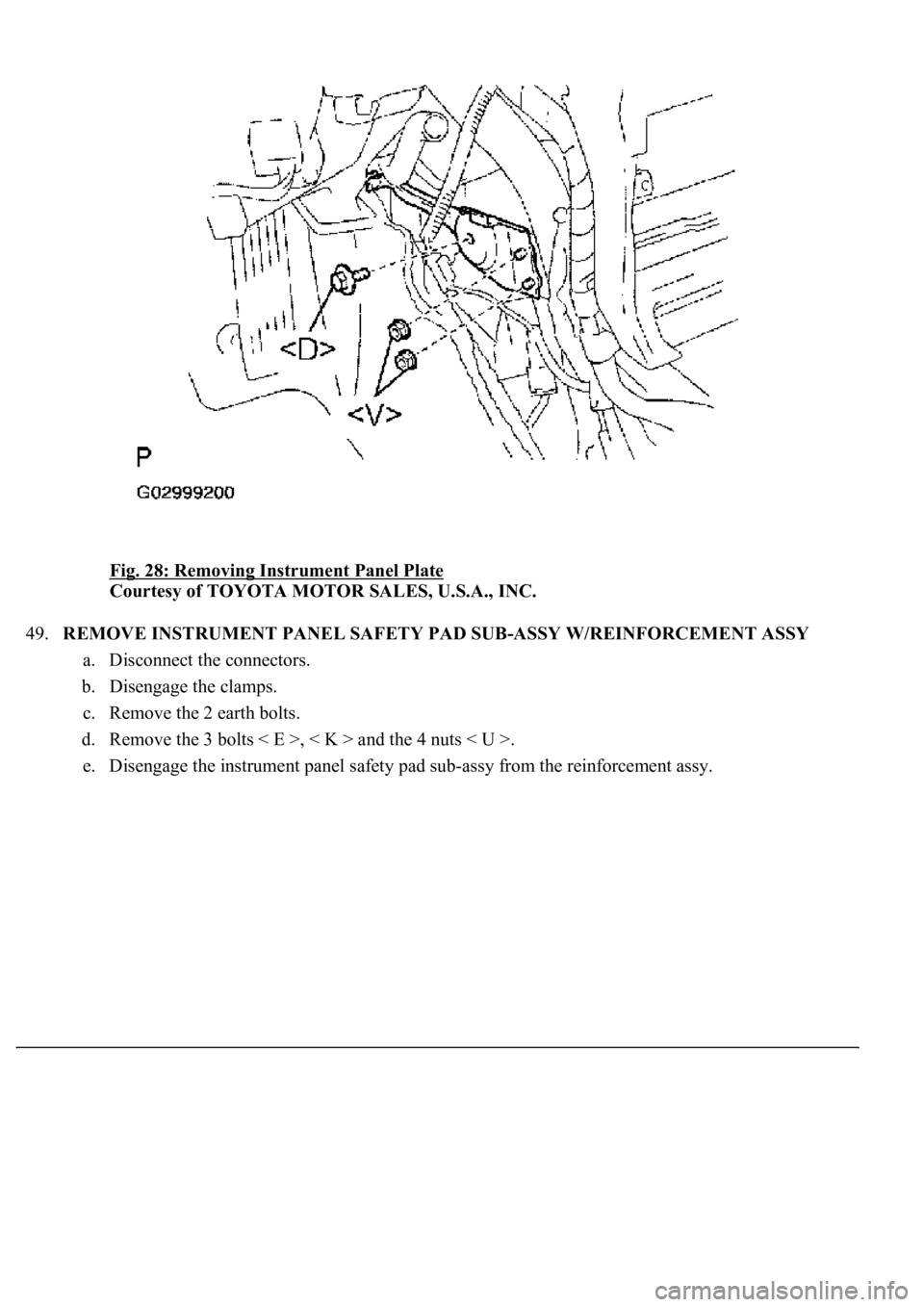

LEXUS LS430 2003 Factory Repair Manual Fig. 28: Removing Instrument Panel Plate Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 49.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/REINFORCEMENT ASSY a. Disconnect the connectors. b. Disengag
