Page 1169 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 193: Exploded View Of Parking Brake Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OVERHAUL HINT:

Page 1170 of 4500

LEXUS LS430 2003 Factory Repair Manual Use the same procedures for the RH side and LH side. The procedures listed below are for the LH side. 1.REMOVE REAR WHEEL 2.SEPARATE REAR DISC BRAKE CALIPER ASSY LH a. Remove the 2 bolts and se

Page 1171 of 4500

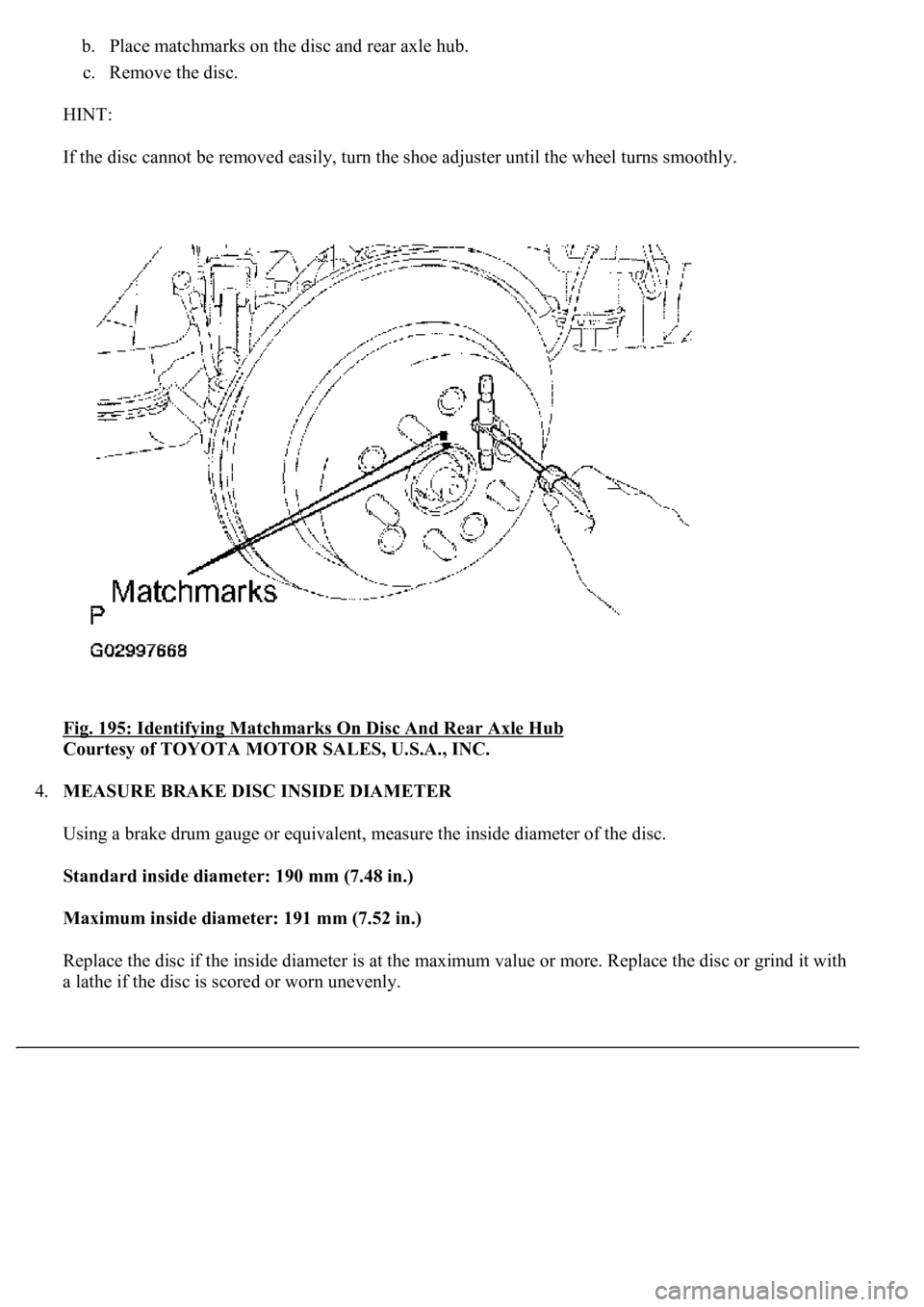

LEXUS LS430 2003 Factory Repair Manual b. Place matchmarks on the disc and rear axle hub. c. Remove the disc. HINT: If the disc cannot be removed easily, turn the shoe adjuster until the wheel turns smoothly. Fig. 195: Identifying Ma

Page 1172 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 196: Measuring Inside Diameter Of Disc Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING a. Using SST, remove the brake shoe return tension spring.

Page 1173 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a001100030014001c001a001d000300350048005000520059004c0051004a0003002500550044004e004800030036004b00520048000300350048005700580055005100030037004800510056004c005200510003003600530055004c005

Page 1174 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 198: Removing Cap, Shoe Hold-Down Spring And Pin Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.REMOVE PARKING BRAKE SHOE ASSY LH NO.2 a. Using SST, remove the cap, shoe hold-down spring and p

Page 1175 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 199: Removing Cap, Shoe Hold-Down Spring And Pin Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.MEASURE PARKING BRAKE SHOE LINING THICKNESS a. Using a ruler, measure the thickness of the shoe

Page 1176 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 200: Measuring Thickness Of Shoe Lining Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.INSPECT BRAKE DISC AND PARKING BRAKE SHOE LINING FOR PROPER CONTACT a. Apply chalk to the inside surface
