Page 329 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT ) CIRCUIT DESCRIPTION This sensor detects the posi

Page 330 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 99: TPBDR Terminal Voltage/Damper Opening Angle Graph Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Fig. 100: DTC Detection Item Trouble Area Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 331 of 4500

LEXUS LS430 2003 Factory Repair Manual INSPECTION PROCEDURE 1.READ VALUE ON HAND-HELD TESTER a. Connect the hand-held tester to the DLC3. b. Turn the ignition switch to the ON position and push the hand-held tester main switch on. c.

Page 332 of 4500

LEXUS LS430 2003 Factory Repair Manual HINT: As the set temperature increases, the voltage decreases gradually without interruption. Result: AIR CONDITIONING AMPLIFIER (TPBDR - SG-7) TEST RESULT Fig. 102: Inspecting Air Conditioning

Page 333 of 4500

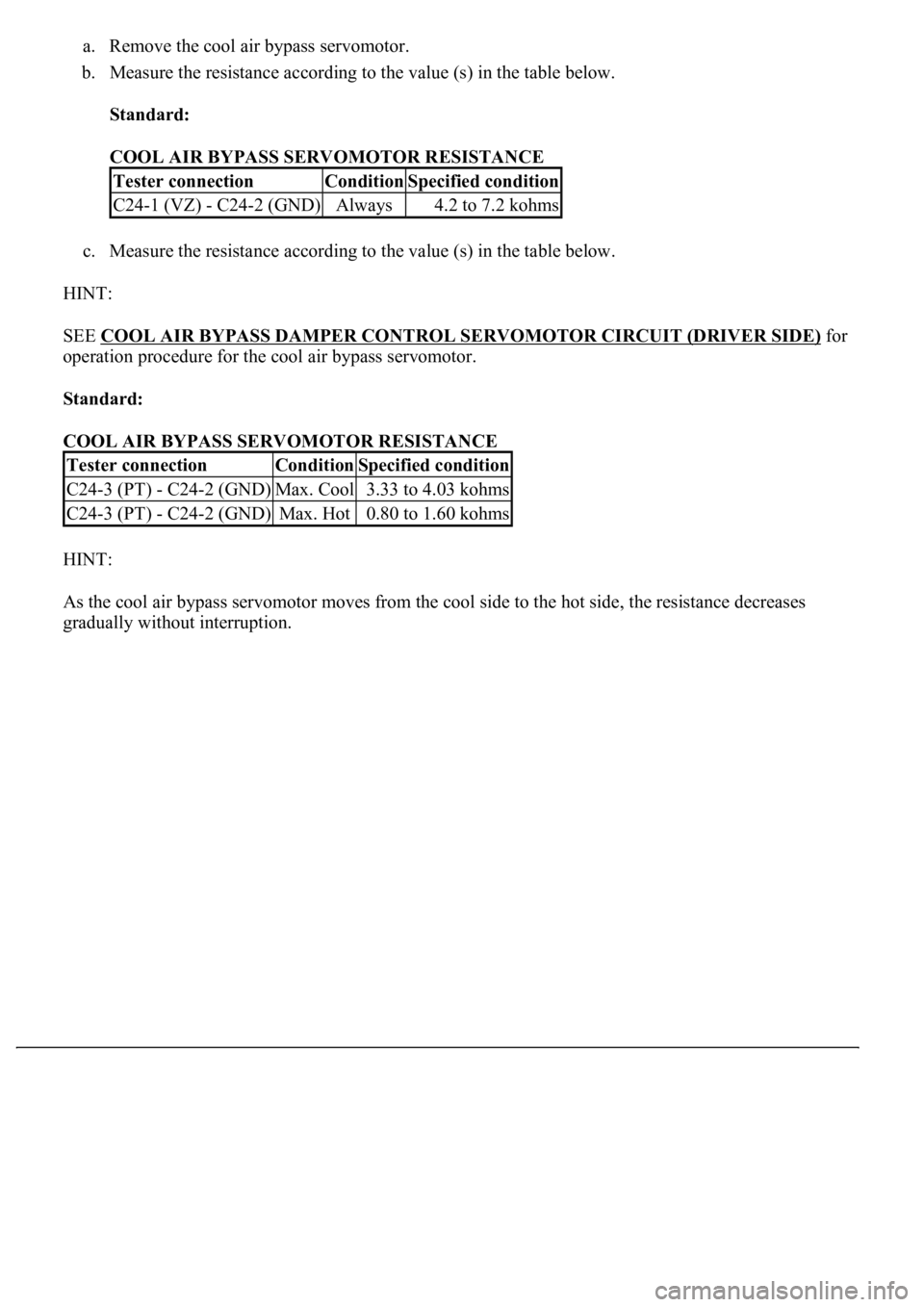

LEXUS LS430 2003 Factory Repair Manual a. Remove the cool air bypass servomotor. b. Measure the resistance according to the value (s) in the table below. Standard: COOL AIR BYPASS SERVOMOTOR RESISTANCE c. Measure the resistance accor

Page 334 of 4500

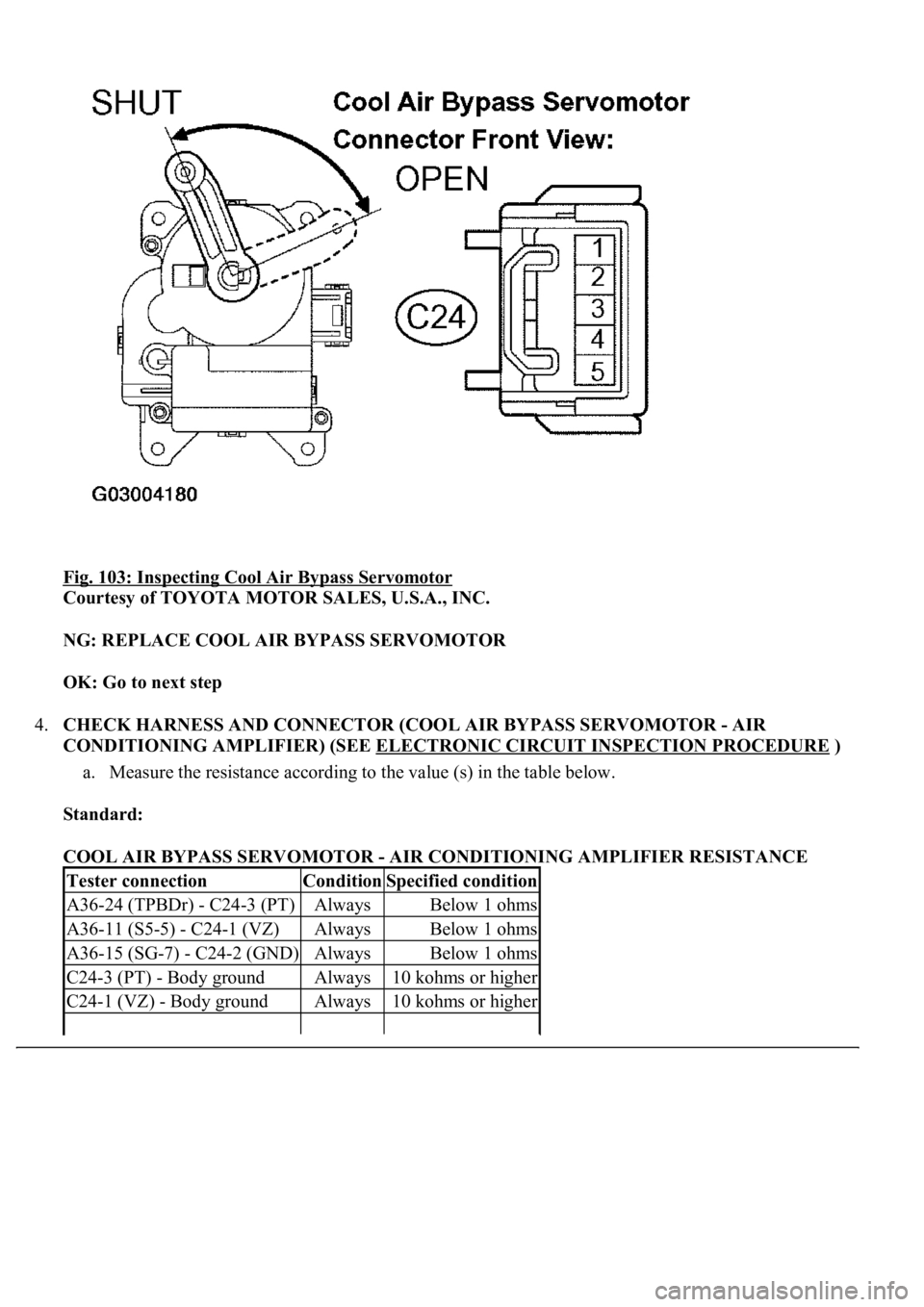

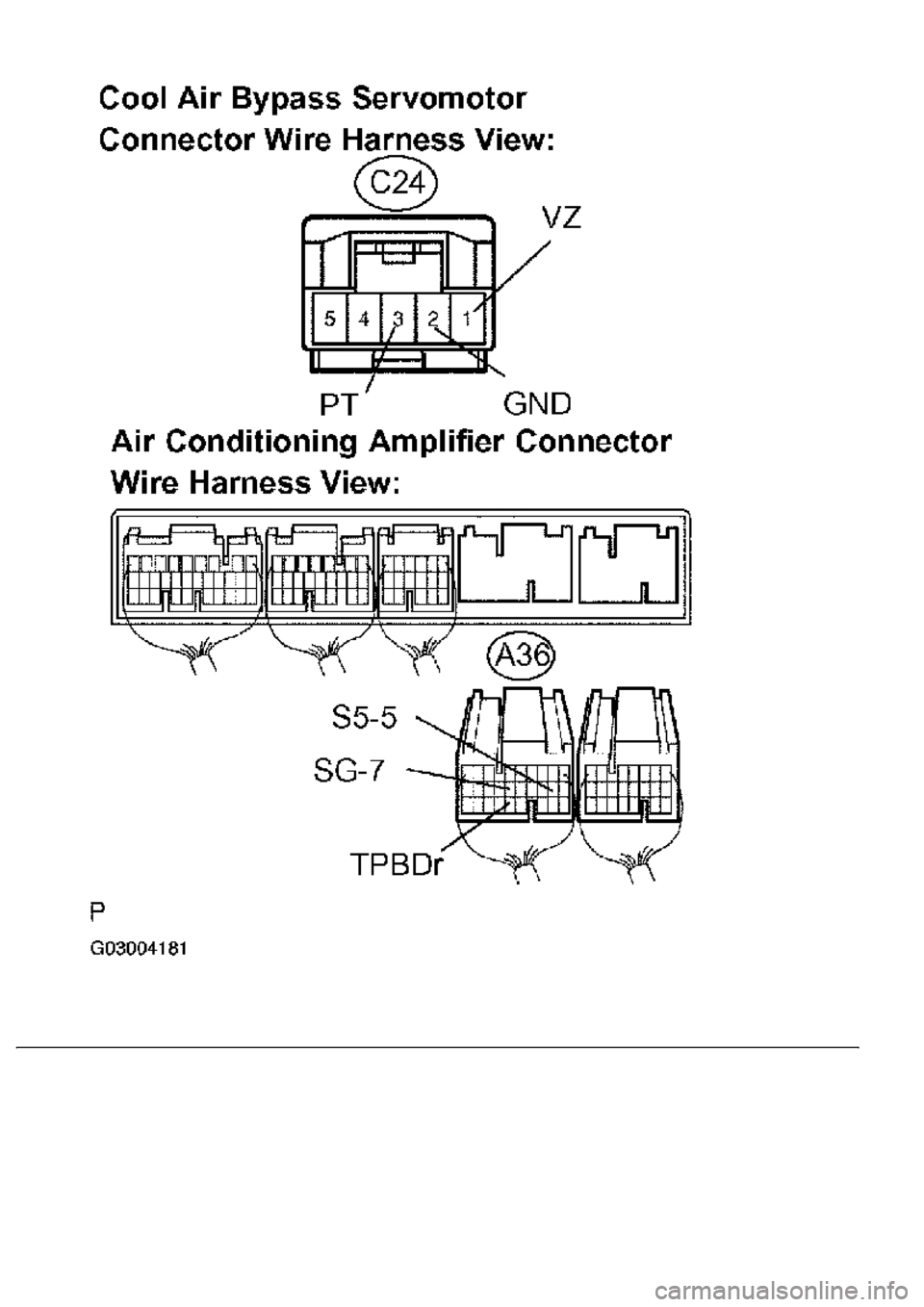

LEXUS LS430 2003 Factory Repair Manual Fig. 103: Inspecting Cool Air Bypass Servomotor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE COOL AIR BYPASS SERVOMOTOR OK: Go to next step 4.CHECK HARNESS AND CONNECTOR (COOL AIR BY

Page 335 of 4500

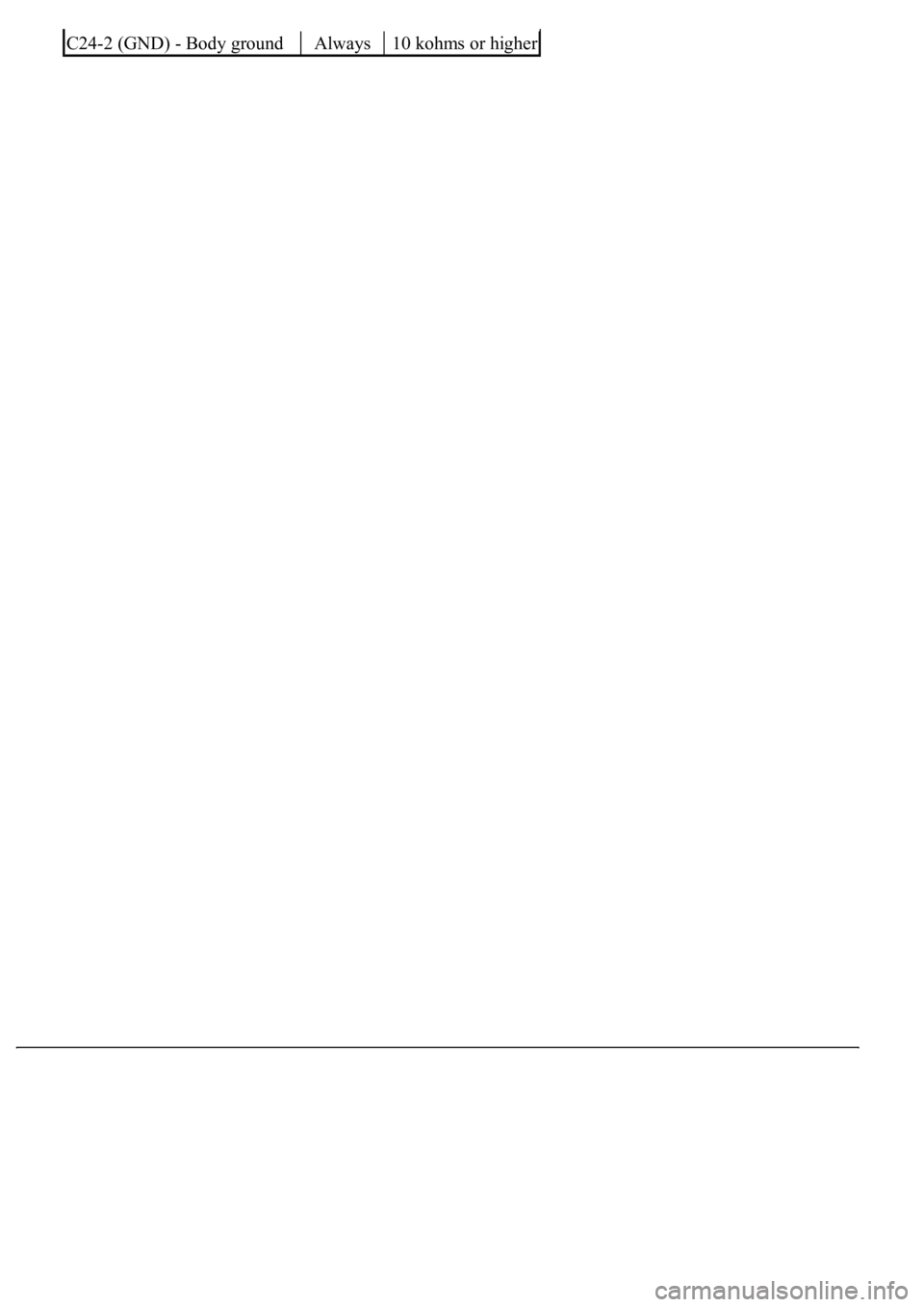

LEXUS LS430 2003 Factory Repair Manual C24-2 (GND) - Body groundAlways10 kohms or higher

Page 336 of 4500

LEXUS LS430 2003 Factory Repair Manual
