Page 1361 of 4500

LEXUS LS430 2003 Factory Repair Manual 32.CONNECT CONNECTOR a. Reconnect the yaw rate sensor sub bus line connector (J44) to the P-CAN J/C A side (w/earth terminal). 33.CHECK CAN BUS LINES FOR SHORT CIRCUIT (YAW RATE SENSOR SUB BUS LIN

Page 1362 of 4500

LEXUS LS430 2003 Factory Repair Manual NG: REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L) CIRCUIT DESCRIPTION There may be a short circuit between the CAN bus line and +B when there is resistance between ter

Page 1363 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 153: Wiring Diagram - CAN Bus Line For Short To +B (W/ LEXUS Navigation System) (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 1364 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 154: Wiring Diagram - CAN Bus Line For Short To +B (W/ LEXUS Navigation System) (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.CHECK CAN BUS LINE FOR SHORT TO +B

Page 1365 of 4500

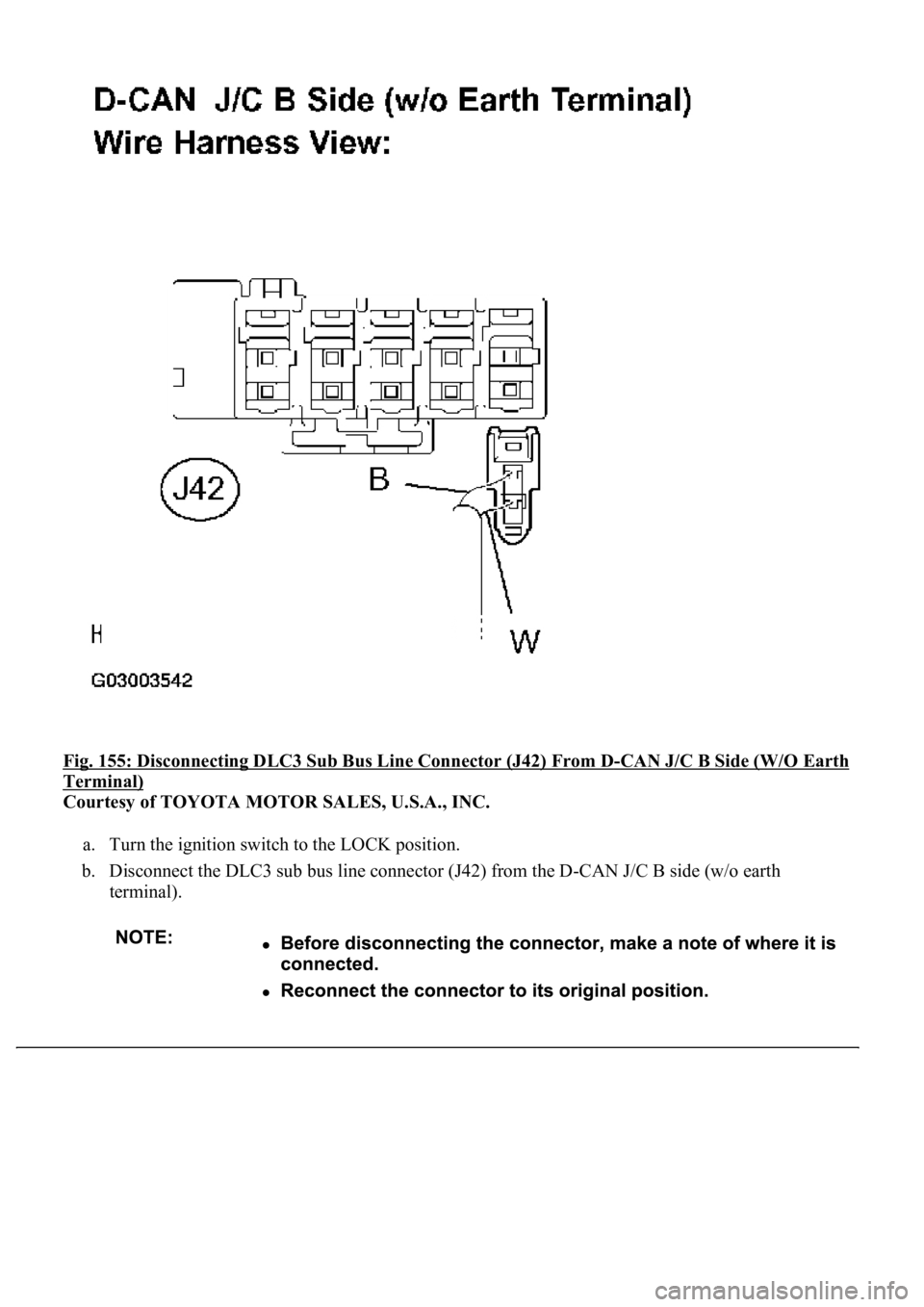

LEXUS LS430 2003 Factory Repair Manual Fig. 155: Disconnecting DLC3 Sub Bus Line Connector (J42) From D-CAN J/C B Side (W/O Earth Terminal) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. a. Turn the ignition switch to the LOCK position.

Page 1366 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 156: Identifying DLC3 Connector terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Measure the resistance according to the value (s) in the table below. Standard: DLC3 CONNECTOR TERM

Page 1367 of 4500

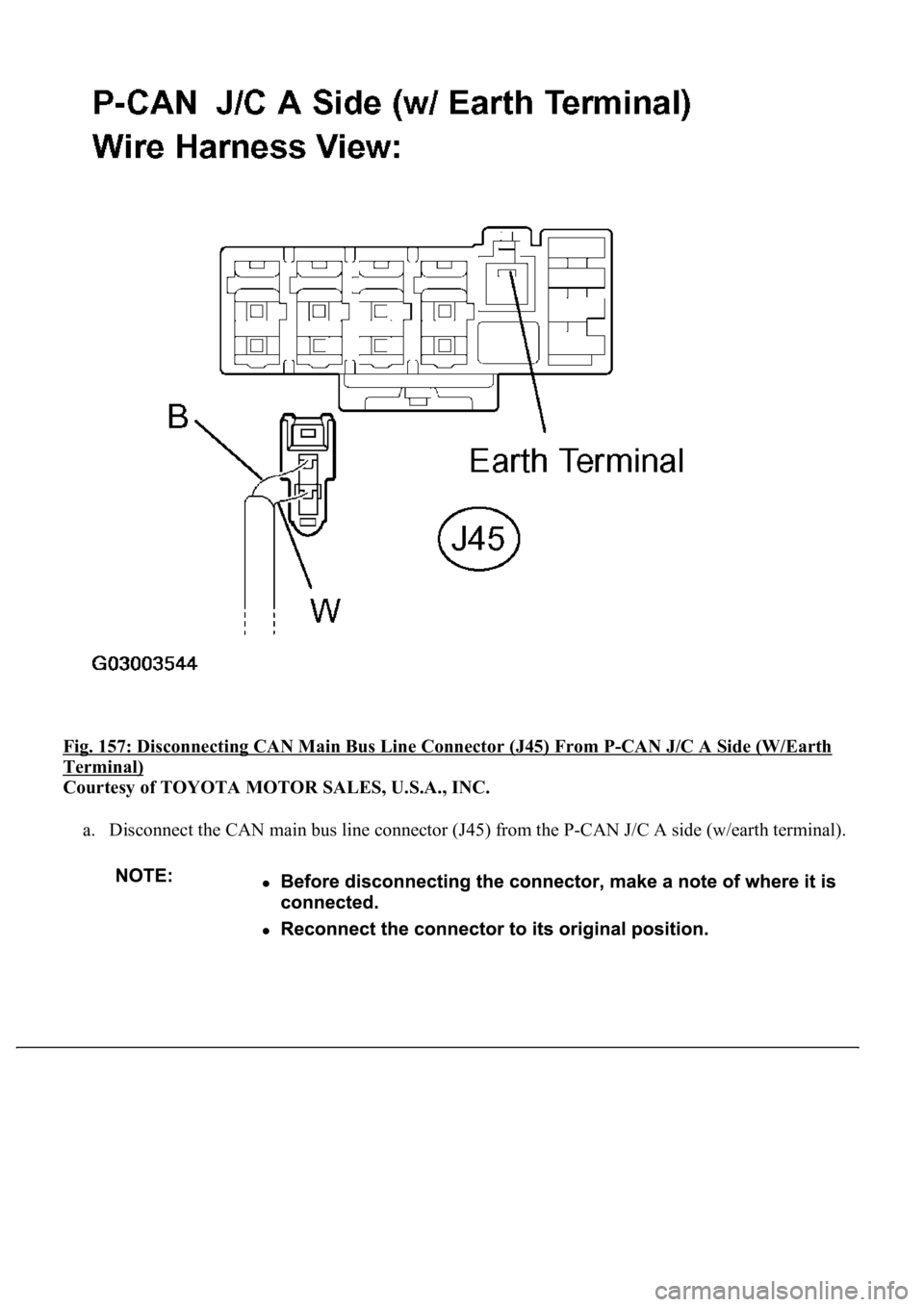

LEXUS LS430 2003 Factory Repair Manual Fig. 157: Disconnecting CAN Main Bus Line Connector (J45) From P-CAN J/C A Side (W/Earth Terminal) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. a. Disconnect the CAN main bus line connector (J45) f

Page 1368 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 158: Identifying DLC3 Connector terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Measure the resistance according to the value (s) in the table below. Standard: DLC3 CONNECTOR TERM
