Page 145 of 4500

LEXUS LS430 2003 Factory Repair Manual d. Read the value of the brake pedal load sensing switch displayed on the hand-held tester when depressing and releasing the brake pedal. Standard: BRAKE PEDAL STANDARD DESCRIPTION NG: Go to ste

Page 146 of 4500

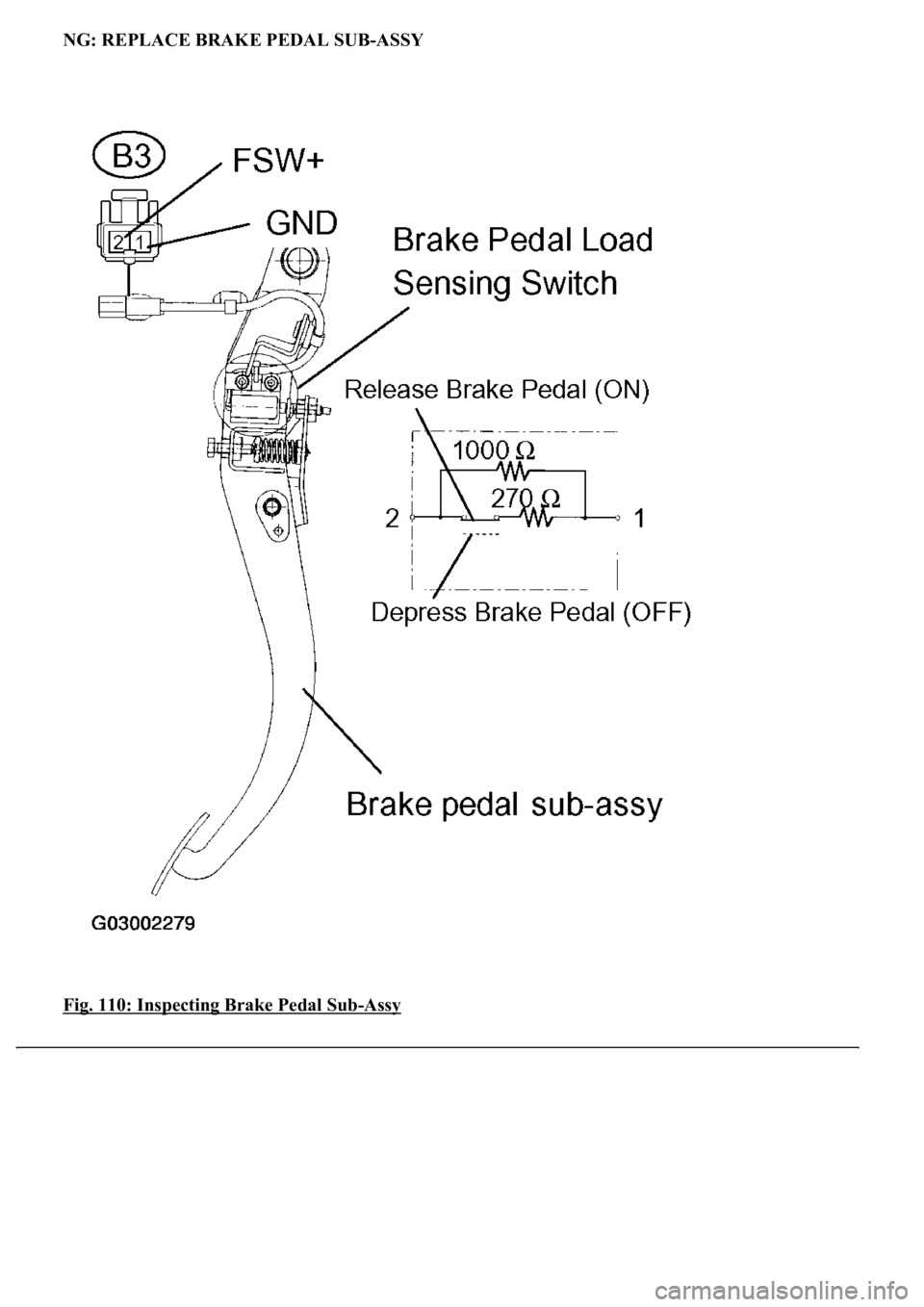

LEXUS LS430 2003 Factory Repair Manual NG: REPLACE BRAKE PEDAL SUB-ASSY Fig. 110: Inspecting Brake Pedal Sub -Assy

Page 147 of 4500

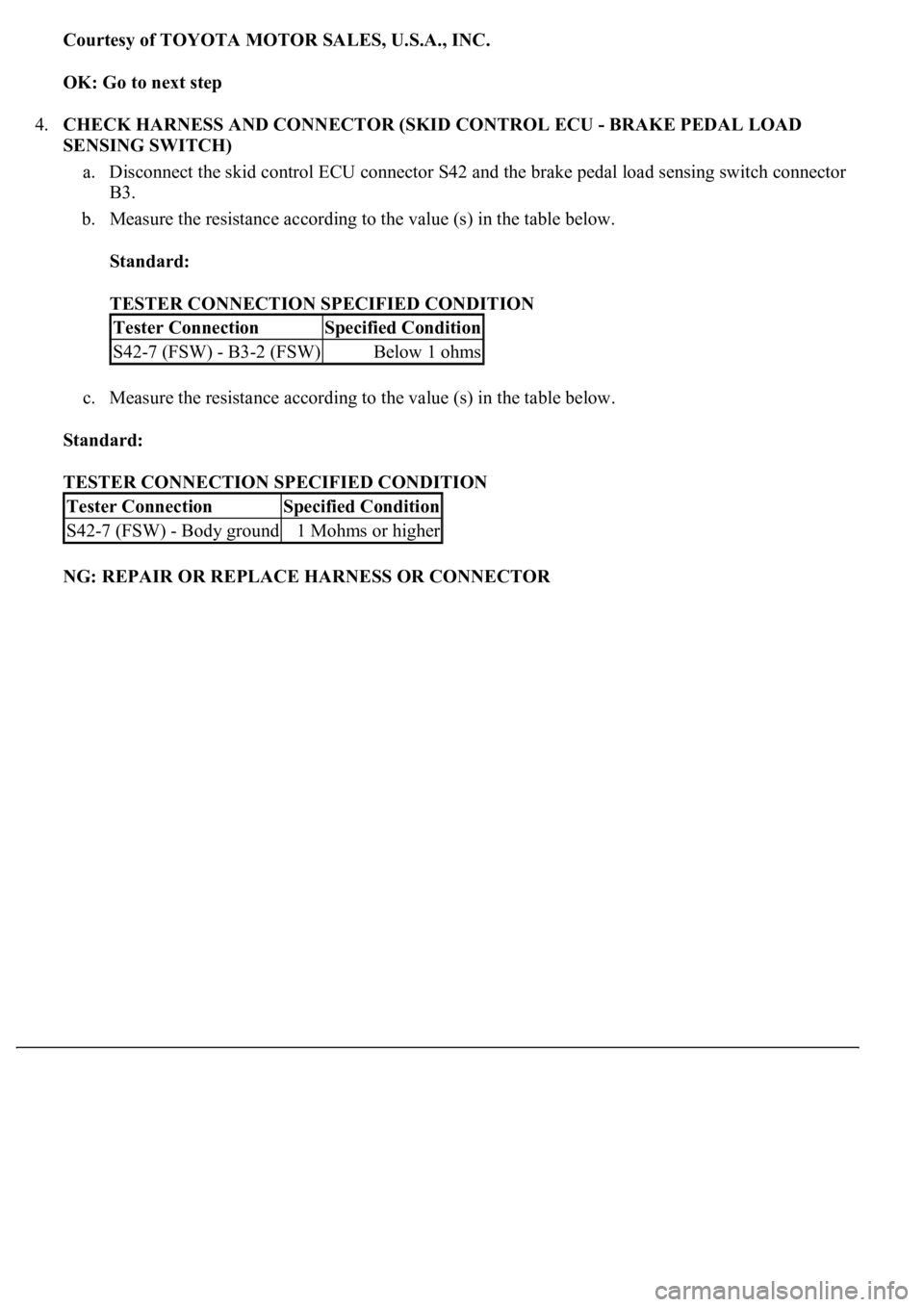

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: Go to next step 4.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - BRAKE PEDAL LOAD SENSING SWITCH) a. Disconnect the skid control ECU connector S42

Page 148 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 111: Identifying Skid Control ECU Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT ) CIRCUIT DESCRIPTION

Page 149 of 4500

LEXUS LS430 2003 Factory Repair Manual During DTC read by SST (Check Wire), if the ABS warning light remains on, trouble shoot by following this inspection flow. WIRING DIAGRAM Fig. 112: ABS Warning Light Wiring Diagram Courtesy of TO

Page 150 of 4500

LEXUS LS430 2003 Factory Repair Manual INSPECTION PROCEDURE 1.CHECK DTC a. Is DTC output for ABS, CAN and/or MPX? OK: Go to next step DTC OUTPUT DESCRIPTION B: REPAIR CIRCUIT INDICATED BY OUTPUT CODE A: Go to next step 2.INSPECT

Page 151 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a00110003001400140016001d0003002c0057004800500003003000480044005600580055004800500048005100570003002c0057004800500003003500440051004a0048000300310052005500500044004f00030026005200510047004

Page 152 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 114: Identifying Skid Control ECU Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT
