Page 4257 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 71: Identifying Blower Assy Components And Replacements Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OVERHAUL HINT:

Page 4258 of 4500

LEXUS LS430 2003 Factory Repair Manual Installation is in the reverse order of removal. See COMPONENTS . 1.DISCONNECT NEGATIVE TERMINAL CABLE FROM BATTERY 2.REMOVE FRONT DOOR SCUFF PLATE LH (See REPLACEMENT ) 3.REMOVE FRONT PILLAR

Page 4259 of 4500

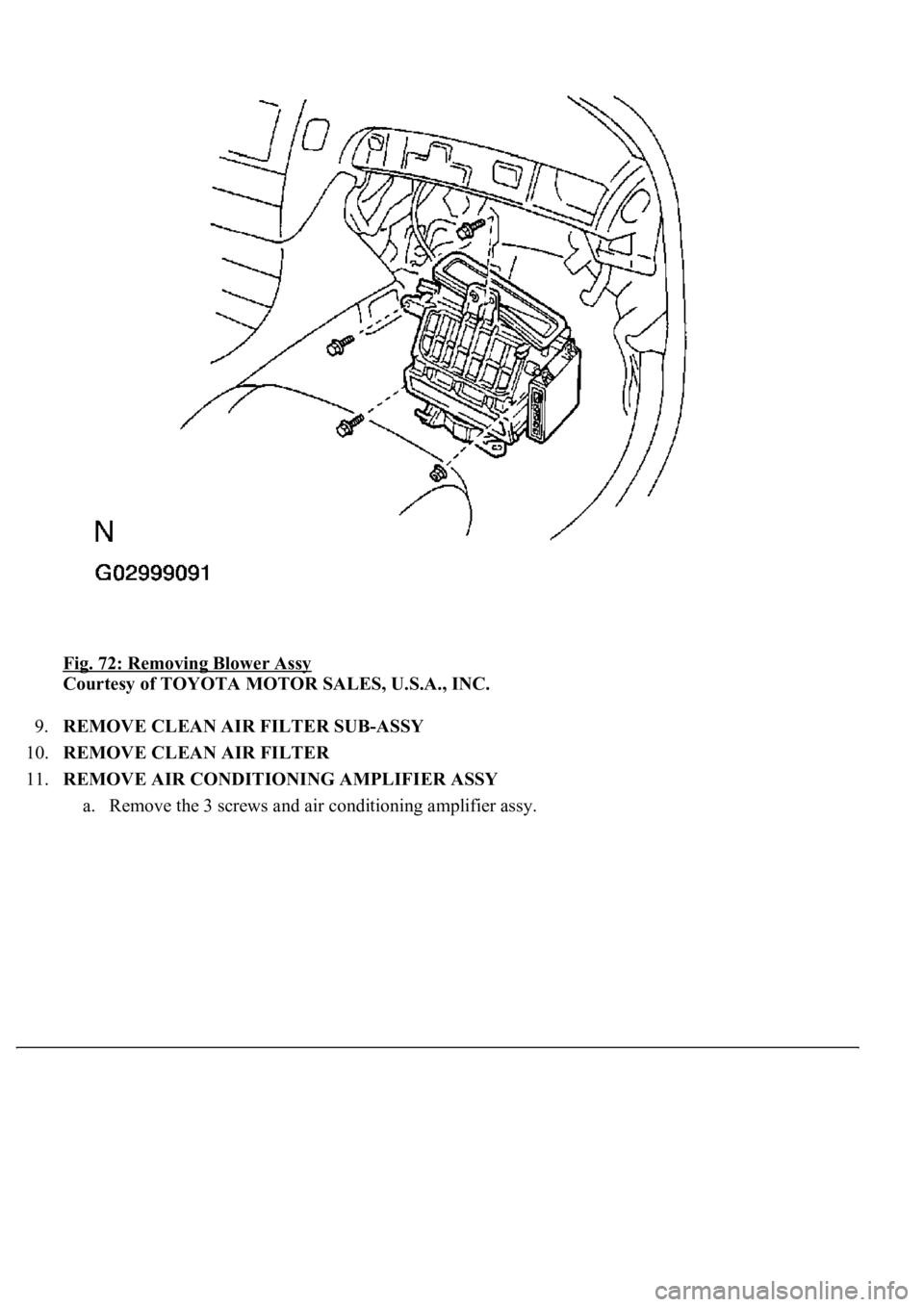

LEXUS LS430 2003 Factory Repair Manual Fig. 72: Removing Blower Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.REMOVE CLEAN AIR FILTER SUB-ASSY 10.REMOVE CLEAN AIR FILTER 11.REMOVE AIR CONDITIONING AMPLIFIER ASSY a. Remove the

Page 4260 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 73: Removing Air Conditioning Amplifier Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 12.REMOVE AIR INLET SERVOMOTOR a. Remove the 3 screws and the air inlet servomotor.

Page 4261 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 74: Removing Air Inlet Servomotor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 13.REMOVE BLOWER MOTOR ASSY (COOLING UNIT MOTOR SUB-ASSY W/FAN) a. Remove the 3 screws and blower motor assy (coo

Page 4262 of 4500

LEXUS LS430 2003 Factory Repair Manual a. Using a gas leak detector, check for leakage of refrigerant. <002c004900030057004b0048005500480003004c0056000300440051005c0003004f00480044004e0044004a0048000f0003005500480053004f00440046004800030

Page 4263 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 76: Inspecting Solenoid Of Externally Changeable Compressor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT 1.DISCONNECT NEGATIVE TERMINAL CABLE FROM BATTERY 2.EVACUATE REFRIGERANT

Page 4264 of 4500

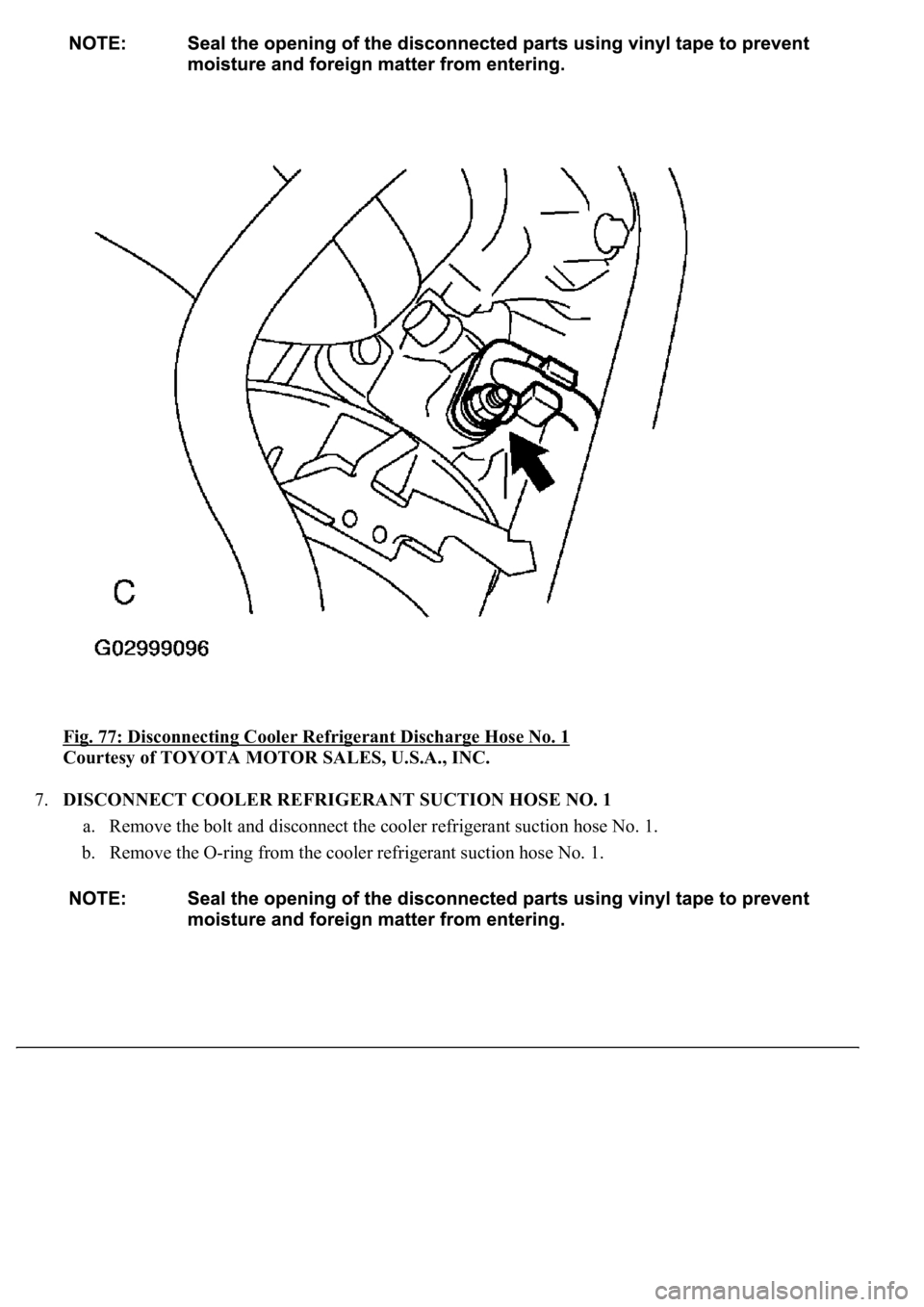

LEXUS LS430 2003 Factory Repair Manual Fig. 77: Disconnecting Cooler Refrigerant Discharge Hose No. 1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.DISCONNECT COOLER REFRIGERANT SUCTION HOSE NO. 1 a. Remove the bolt and disconnect the
