Page 577 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 95: Identifying Height Control Compressor Motor Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK:Go to next step 5.CHECK HARNES

Page 578 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 96: Identifying Height Control Compressor Motor Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 579 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 97: Identifying Air Sus Relay Location Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK:Go to next step 6.CHECK HARNESS AND CONNECTOR (AIR SUS RELA

Page 580 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 98: Identifying Air Sus Relay Location Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK:Go to next step 7.INSPECT HEIGHT CONTROL SOLENOID VALVE a.

Page 581 of 4500

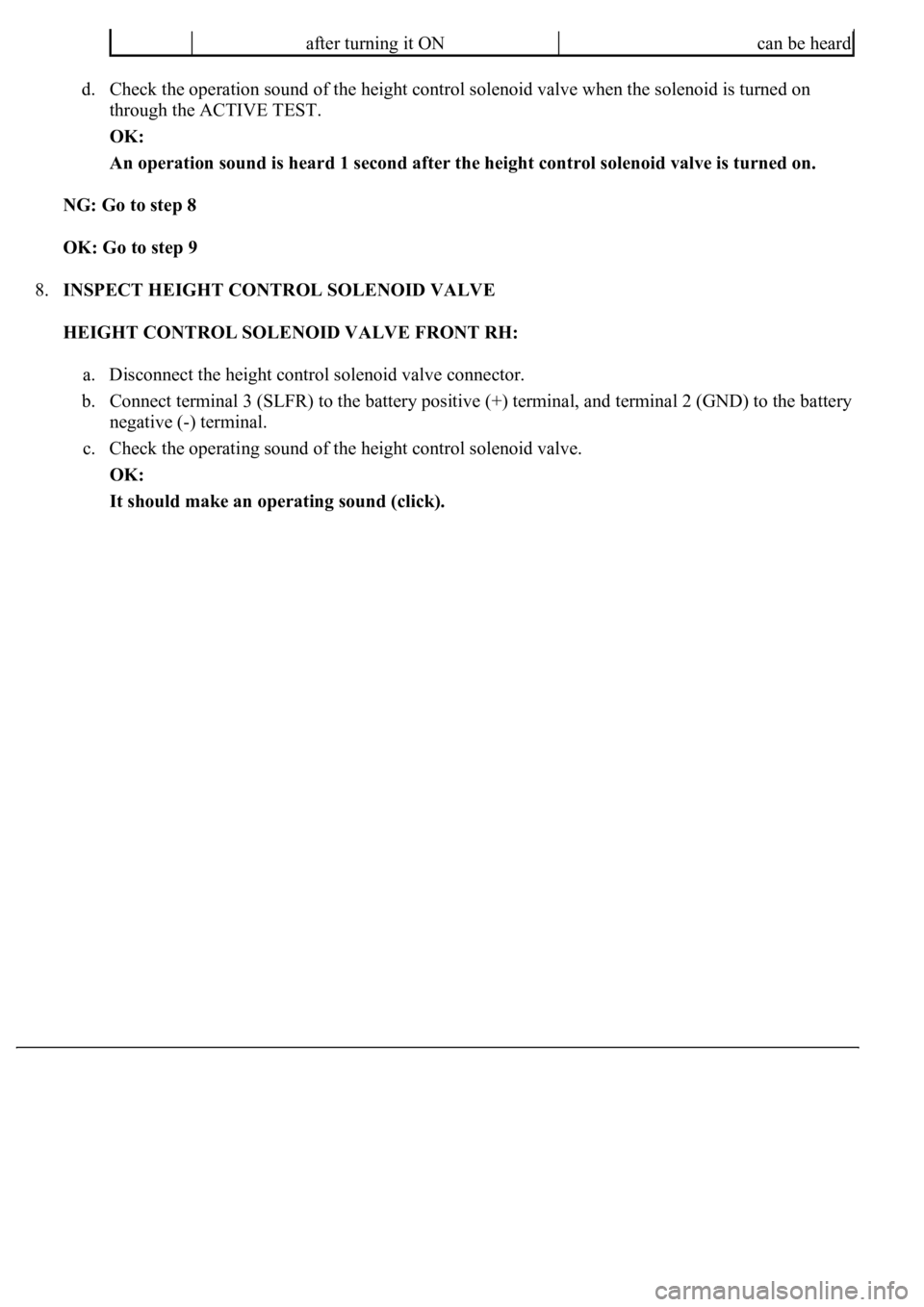

LEXUS LS430 2003 Factory Repair Manual d. Check the operation sound of the height control solenoid valve when the solenoid is turned on through the ACTIVE TEST. OK: An operation sound is heard 1 second after the height control solenoi

Page 582 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 99: Identifying Height Control Solenoid Valve Front RH Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. RESULT DESCRIPTION HINT: When a malfunction is found in the front solen

Page 583 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 100: Identifying Height Control Solenoid Valve Front LH Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. RESULT DESCRIPTION HINT: When a malfunction is found in the front sole

Page 584 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 101: Identifying Height Control Solenoid Valve Rear RH Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. RESULT DESCRIPTION HINT: When a malfunction is found in the rear soleno
