Page 3841 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 56: Installing Front Fender Outside Moulding LH (W/O Mudguard) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. f.INSTALL FRONT FENDER MUDGUARD SUB-ASSY LH (W/ MUDGUARD) a. Usin g a hexagon wrench

Page 3842 of 4500

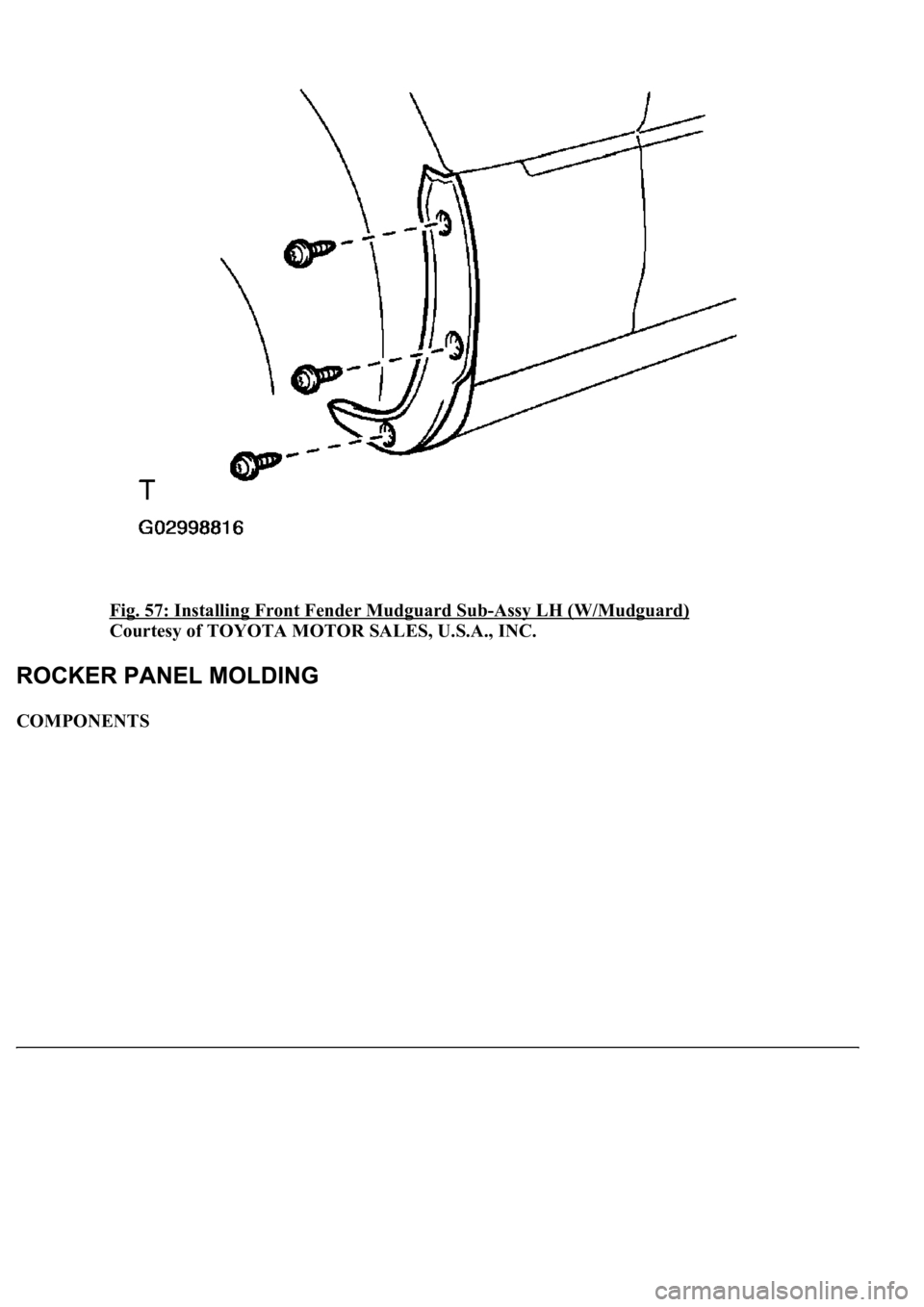

LEXUS LS430 2003 Factory Repair Manual Fig. 57: Installing Front Fender Mudguard Sub-Assy LH (W/Mudguard) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. COMPONENTS

Page 3843 of 4500

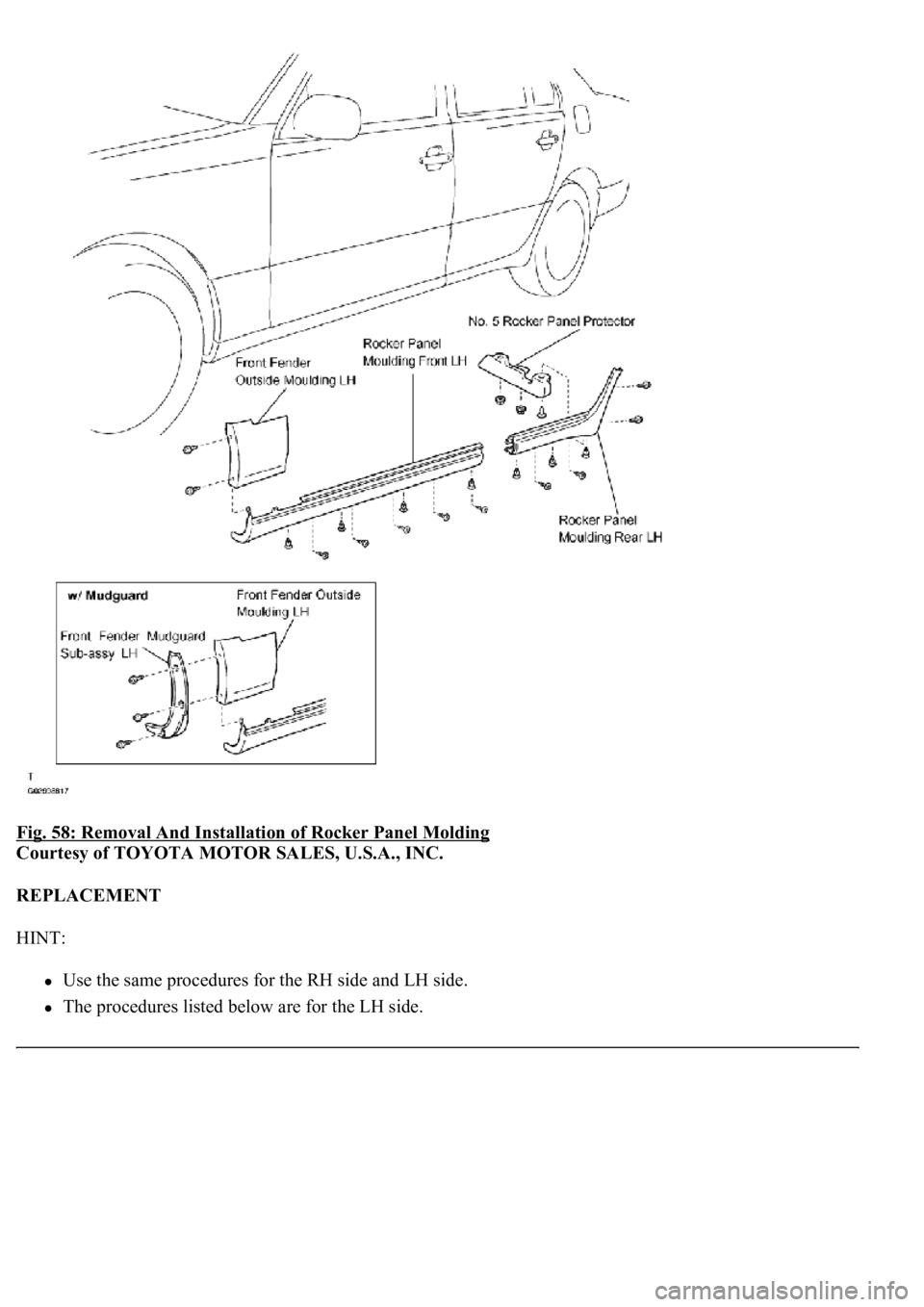

LEXUS LS430 2003 Factory Repair Manual Fig. 58: Removal And Installation of Rocker Panel Molding Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: Use the same procedures for the RH side and LH side. The procedures liste

Page 3844 of 4500

LEXUS LS430 2003 Factory Repair Manual A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ). When replacing the molding, heat the body and molding using a heat light. Hea

Page 3845 of 4500

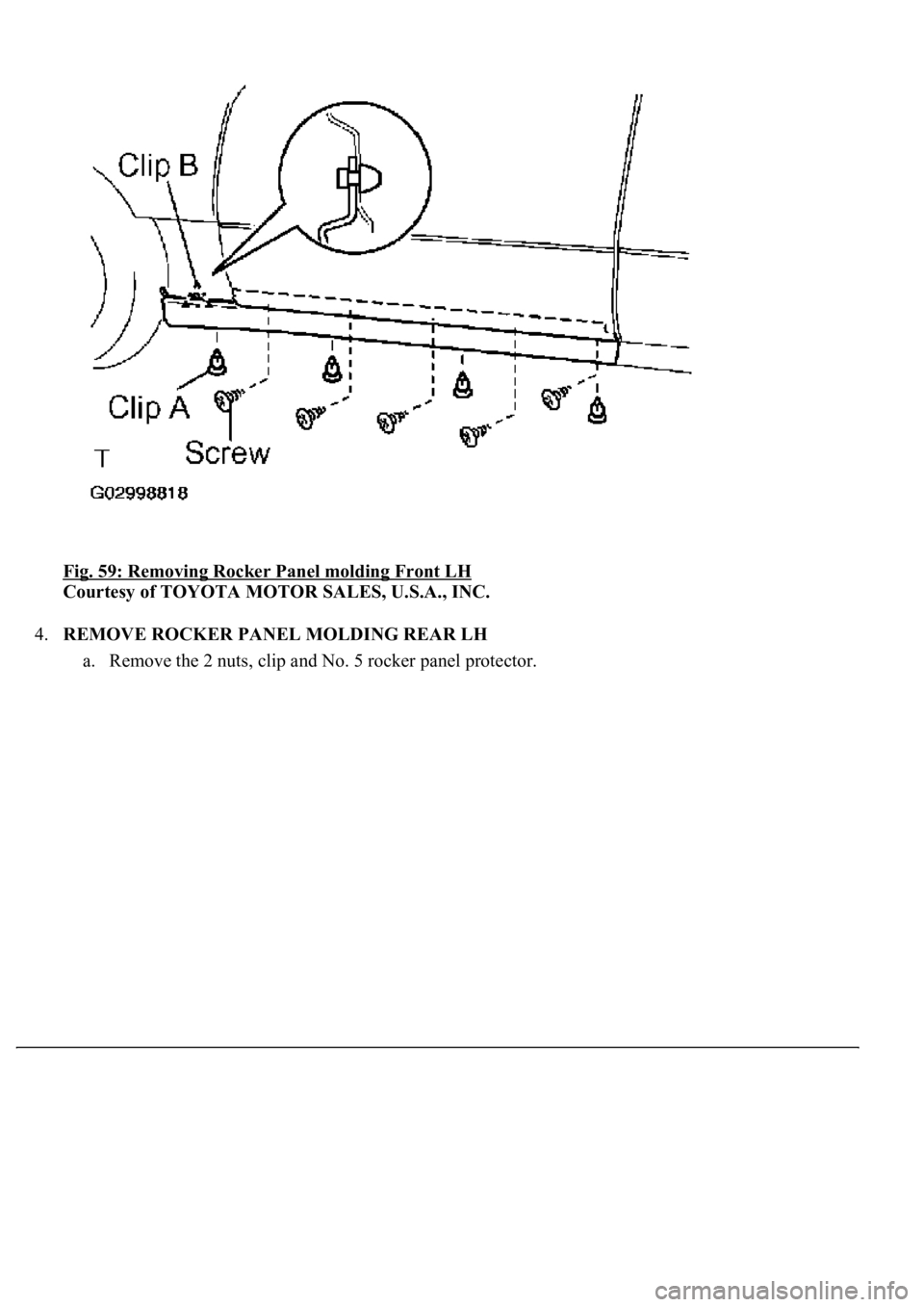

LEXUS LS430 2003 Factory Repair Manual Fig. 59: Removing Rocker Panel molding Front LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4.REMOVE ROCKER PANEL MOLDING REAR LH a. Remove the 2 nuts, clip and No. 5 rocker panel protector.

Page 3846 of 4500

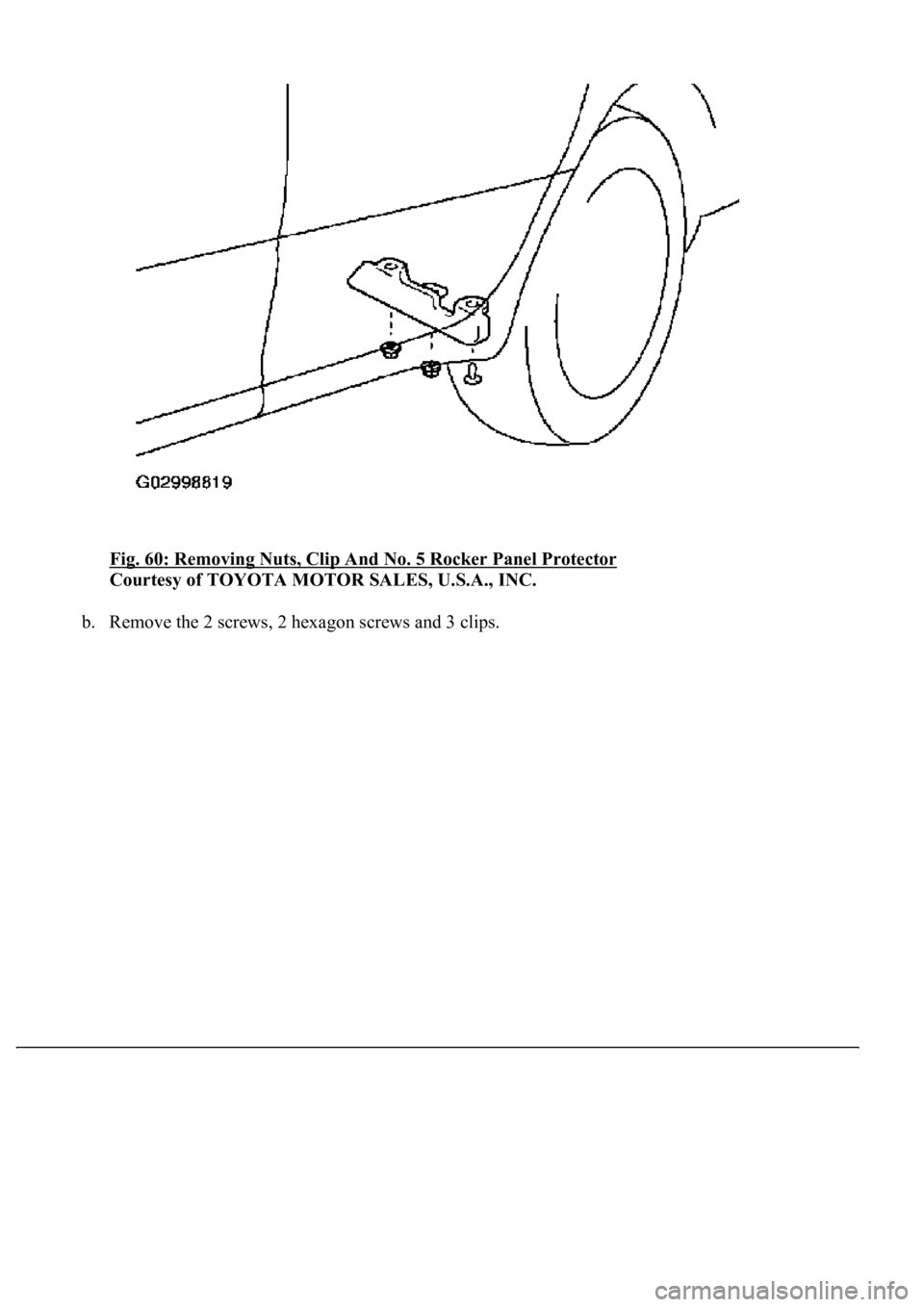

LEXUS LS430 2003 Factory Repair Manual Fig. 60: Removing Nuts, Clip And No. 5 Rocker Panel Protector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the 2 screws, 2 hexagon screws and 3 clips.

Page 3847 of 4500

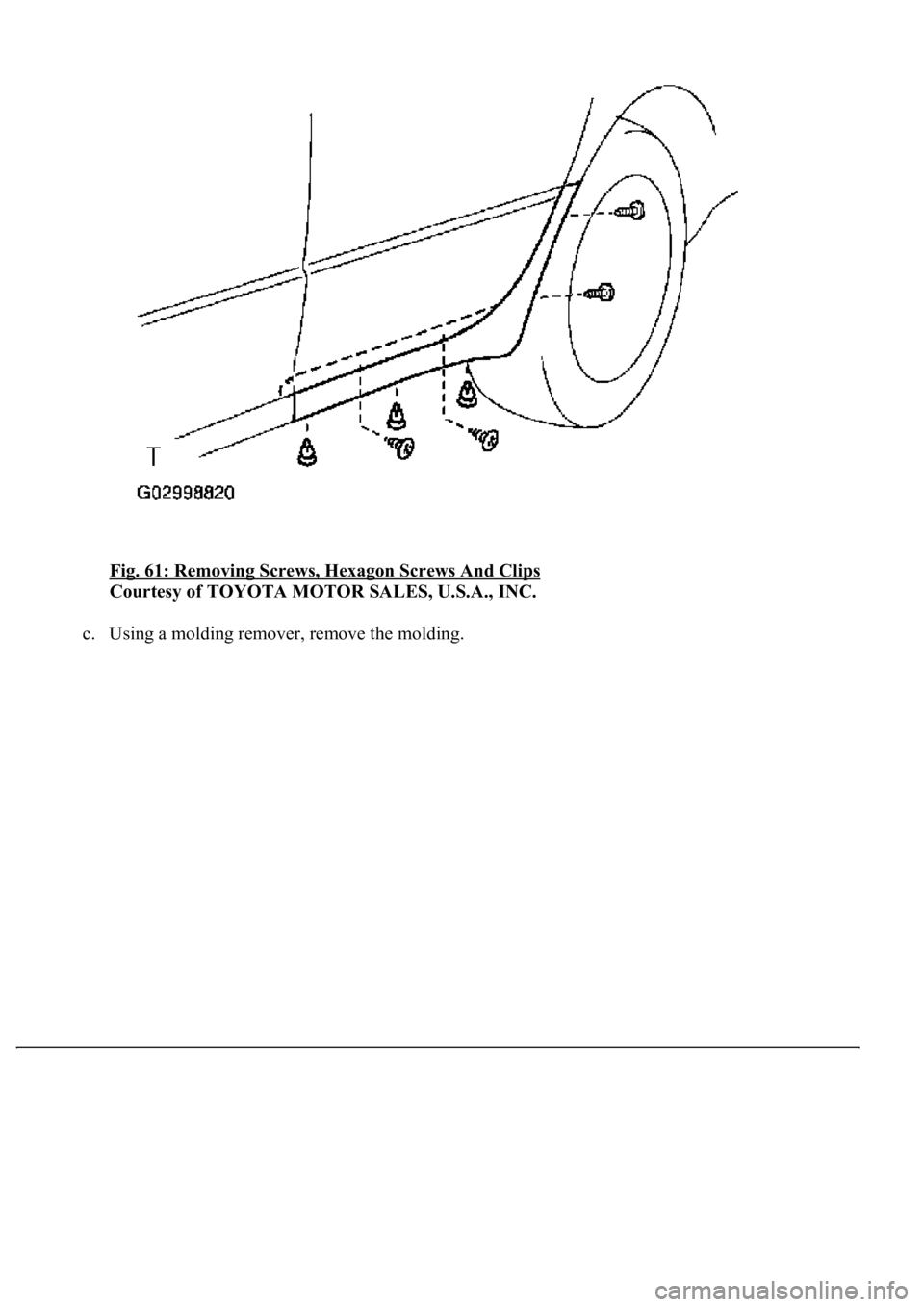

LEXUS LS430 2003 Factory Repair Manual Fig. 61: Removing Screws, Hexagon Screws And Clips Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Usin g a molding remover, remove the molding.

Page 3848 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 62: Removing Molding Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.INSTALL ROCKER PANEL MOLDING REAR LH a. Clean the body surface. 1. Using a heat light, heat the body surface. 2. Remove t
