Page 3089 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 102: Removing Rear Door Frame Garnish LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.REMOVE REAR DOOR SERVICE HOLE COVER LH a. Remove the 2 screws and door electrical key oscillator. b. R

Page 3090 of 4500

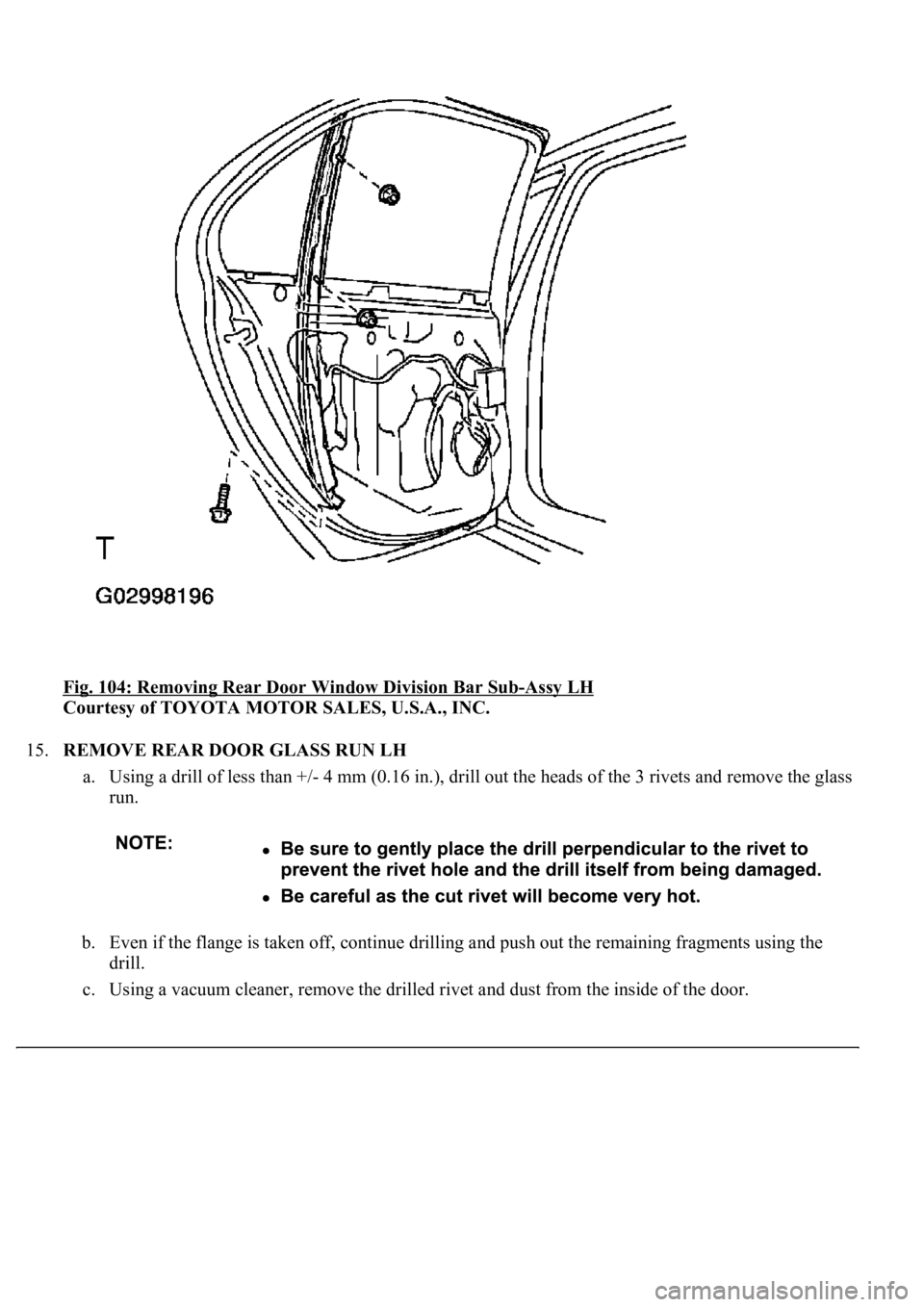

LEXUS LS430 2003 Factory Repair Manual Fig. 103: Removing Remaining Tape On Door Side Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.REMOVE REAR DOOR ECU a. Remove the 2 screws and ECU. 9.REMOVE REAR SPEAKER ASSY NO.2 (See REPLACEMENT

Page 3091 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a00110003001400130017001d000300350048005000520059004c0051004a00030035004800440055000300270052005200550003003a004c005100470052005a00030027004c0059004c0056004c0052005100030025004400550003003

Page 3092 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 105: Removing Drilled Rivet And Dust From Inside Of Door Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Remove the glass run as shown in the illustration.

Page 3093 of 4500

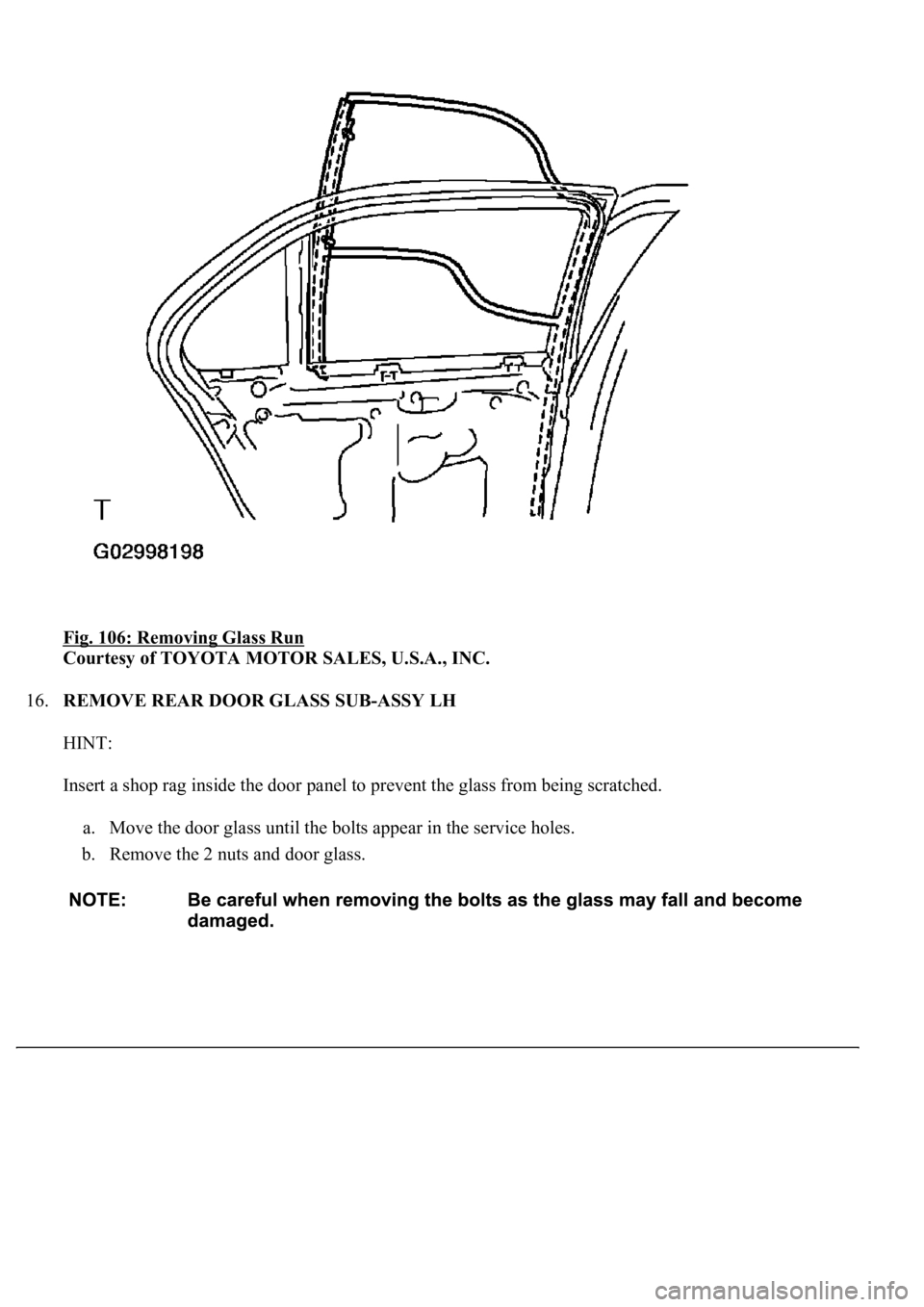

LEXUS LS430 2003 Factory Repair Manual Fig. 106: Removing Glass Run Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 16.REMOVE REAR DOOR GLASS SUB-ASSY LH HINT: Insert a shop rag inside the door panel to prevent the glass from being scratc

Page 3094 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 107: Removing Nuts And Door Glass Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 17.REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSY LH a. Disconnect the window regulator connector. b. Remove the 4

Page 3095 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300140013001b001d000300350048005000520059004c0051004a0003003a004c005100470052005a000300350048004a0058004f004400570052005500030037004b005500520058004a004b00030036004800550059004c004

Page 3096 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 109: Removing Power Window Regulator Motor Assy LH Rear Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b.Using a T25 Torx° driver, remove the 3 screws and motor.
