Page 3801 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 17: Removing Rear Bumper Arm Reinforcement LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 16.REMOVE REAR BUMPER ARM REINFORCEMENT RH HINT: Use the same procedures described for the LH side.

Page 3802 of 4500

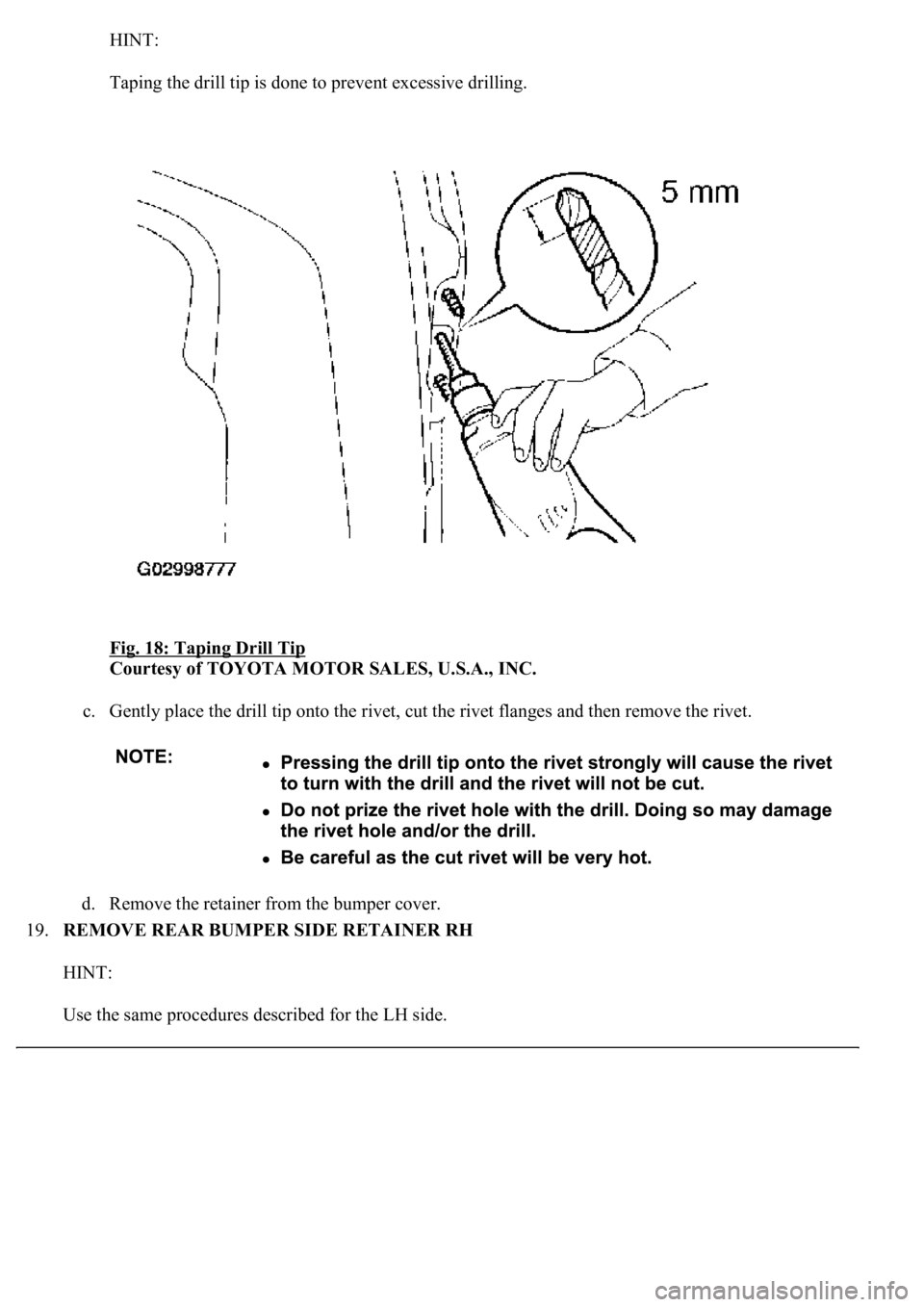

LEXUS LS430 2003 Factory Repair Manual HINT: Taping the drill tip is done to prevent excessive drilling. Fig. 18: Taping Drill Tip Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Gently place the drill tip onto the rivet, cut the rive

Page 3803 of 4500

LEXUS LS430 2003 Factory Repair Manual 20.REMOVE REAR BUMPER SIDE MOUNTING BRACKET LH a. Remove the screw and bracket. 21.REMOVE REAR BUMPER SIDE MOUNTING BRACKET RH a. Remove the screw and bracket. 22.REMOVE REAR BUMPER ARM SUPPORT

Page 3804 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 19: Installing Rear Bumper Side Retainer LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 34.INSTALL REAR BUMPER SIDE RETAINER RH HINT: Use the same procedures described for the LH side. REPL

Page 3805 of 4500

LEXUS LS430 2003 Factory Repair Manual 1.REMOVE LUGGAGE COMPARTMENT FLOOR MAT a. Remove the 4 bolts and 4 luggage compartment trim hooks No. 1. b. Remove the mat. c. Remove the 2 clips and 2 deck side trim boards. Fig. 20: Removing

Page 3806 of 4500

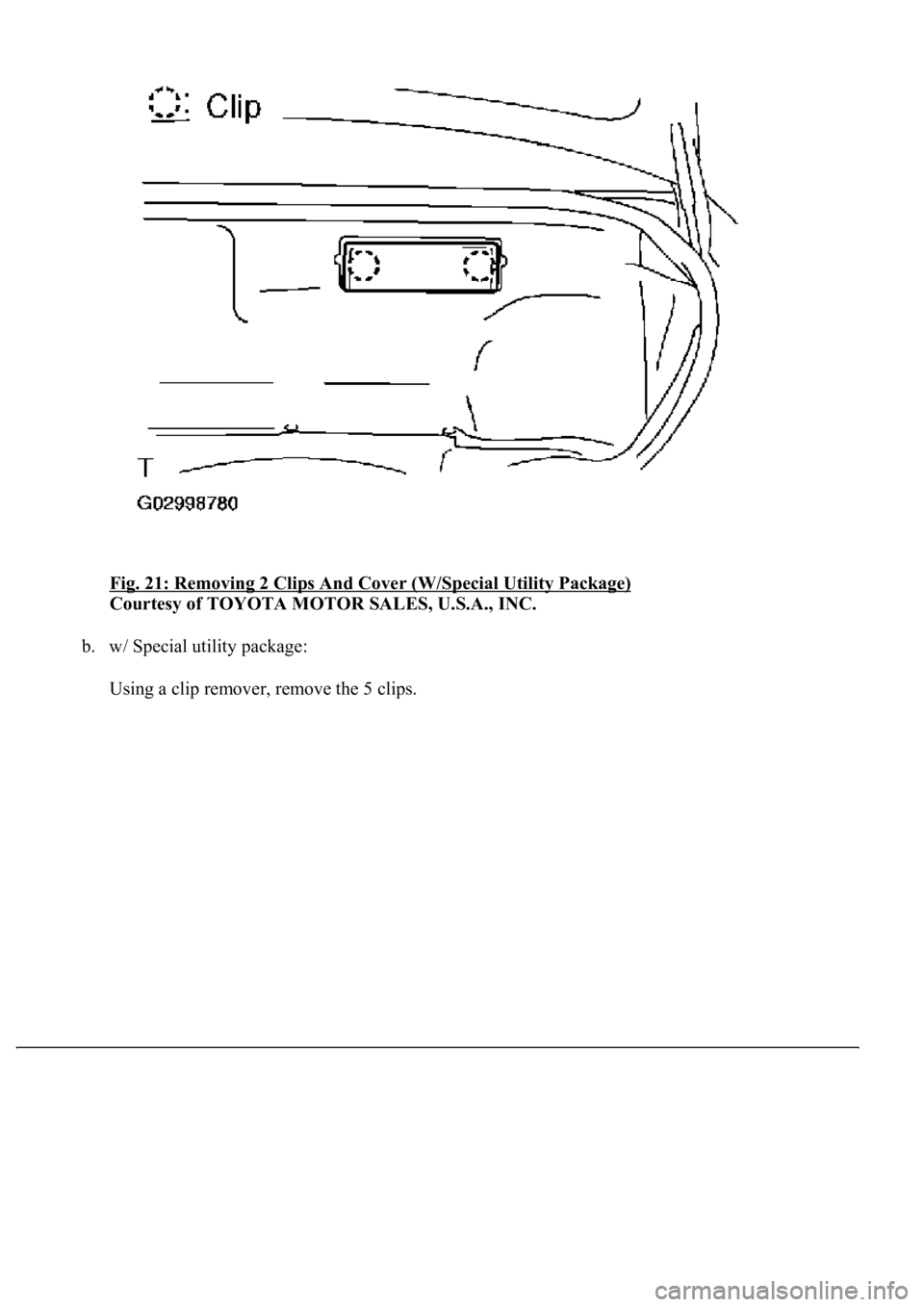

LEXUS LS430 2003 Factory Repair Manual Fig. 21: Removing 2 Clips And Cover (W/Special Utility Package) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. w/ Special utility package: Usin g a clip remover, remove the 5 clips.

Page 3807 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 22: Removing 5 Clips Using Clip Remover (W/Special Utility Package) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. w/o Special utility package: Usin g a clip remover, remove the 3 clips.

Page 3808 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 23: Removing 3 Clips Using Clip Remover (W/O Special Utility Package) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Using a screwdriver, pry out the wire harness cover. HINT: Tape the screw
