Page 3849 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 63: Applying Double-Sided Tape To Molding Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Install the molding. 1. Using a heat light, heat the body and molding. 2. Remove the peeling paper f

Page 3850 of 4500

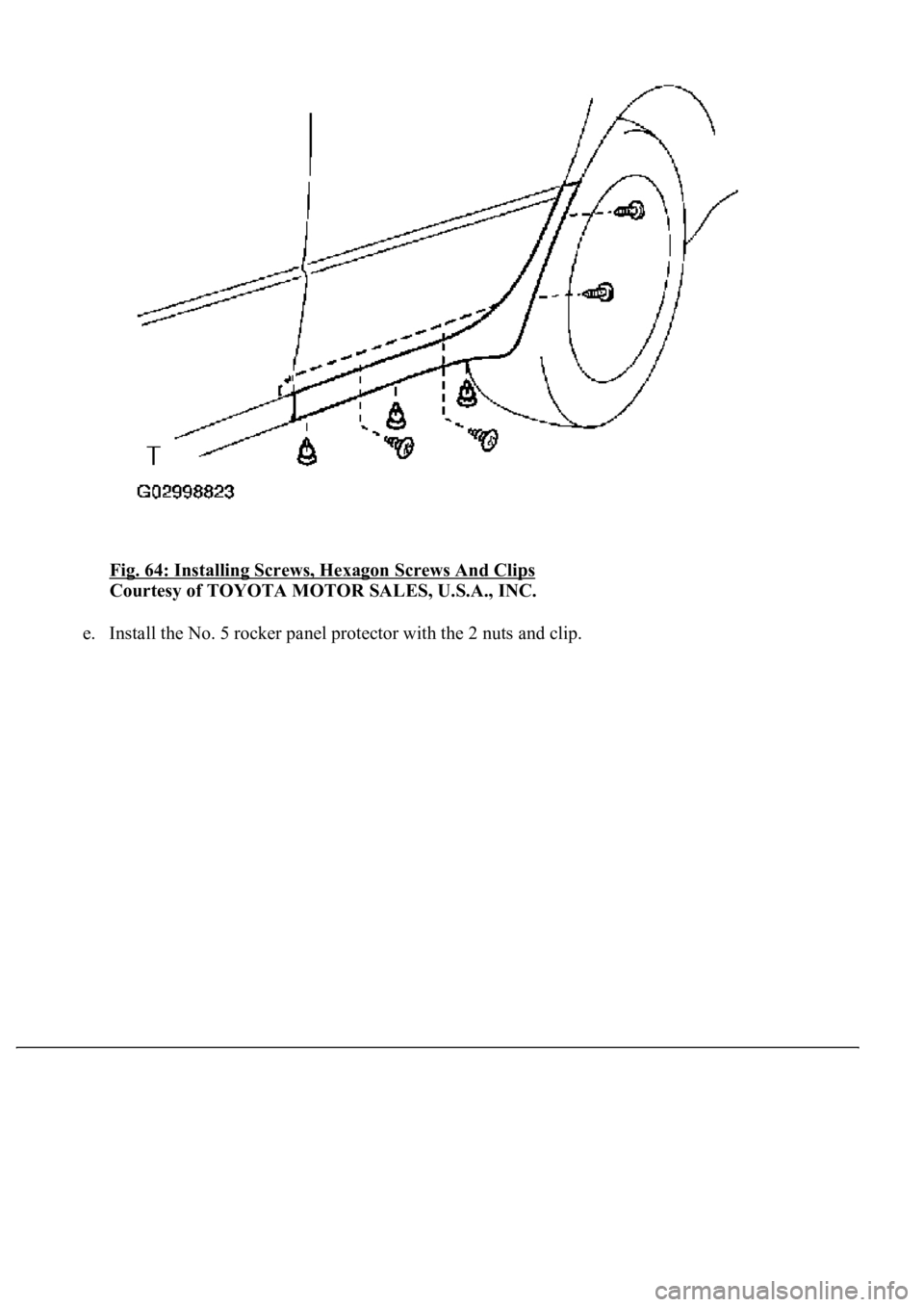

LEXUS LS430 2003 Factory Repair Manual Fig. 64: Installing Screws, Hexagon Screws And Clips Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Install the No. 5 rocker panel protector with the 2 nuts and clip.

Page 3851 of 4500

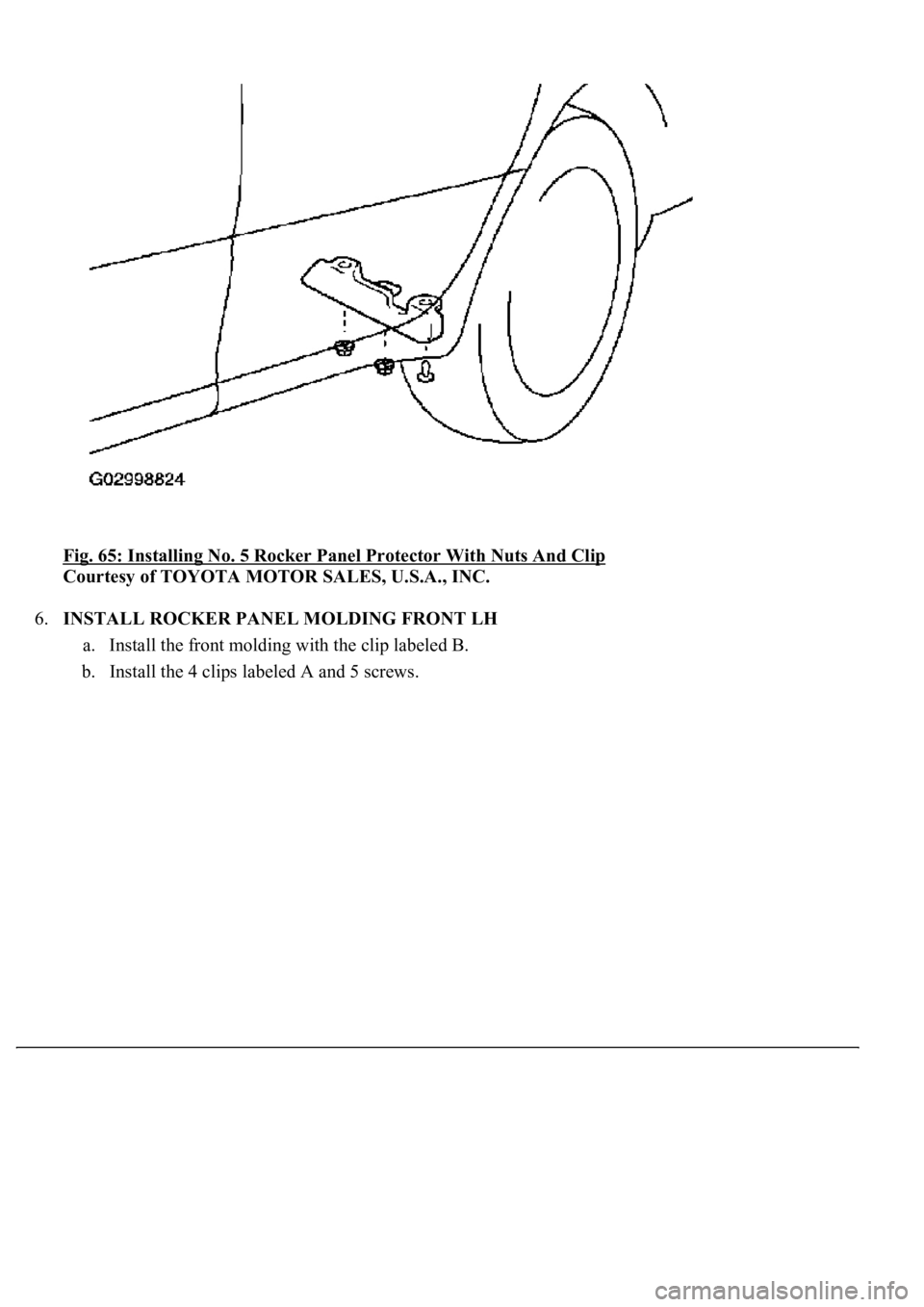

LEXUS LS430 2003 Factory Repair Manual Fig. 65: Installing No. 5 Rocker Panel Protector With Nuts And Clip Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.INSTALL ROCKER PANEL MOLDING FRONT LH a. Install the front molding with the clip l

Page 3852 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 66: Installing Rocker Panel Molding Front LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.INSTALL FRONT FENDER OUTSIDE MOLDING LH (See REPLACEMENT ) 8.INSTALL FRONT FENDER MUDGUARD SUB-ASS

Page 3853 of 4500

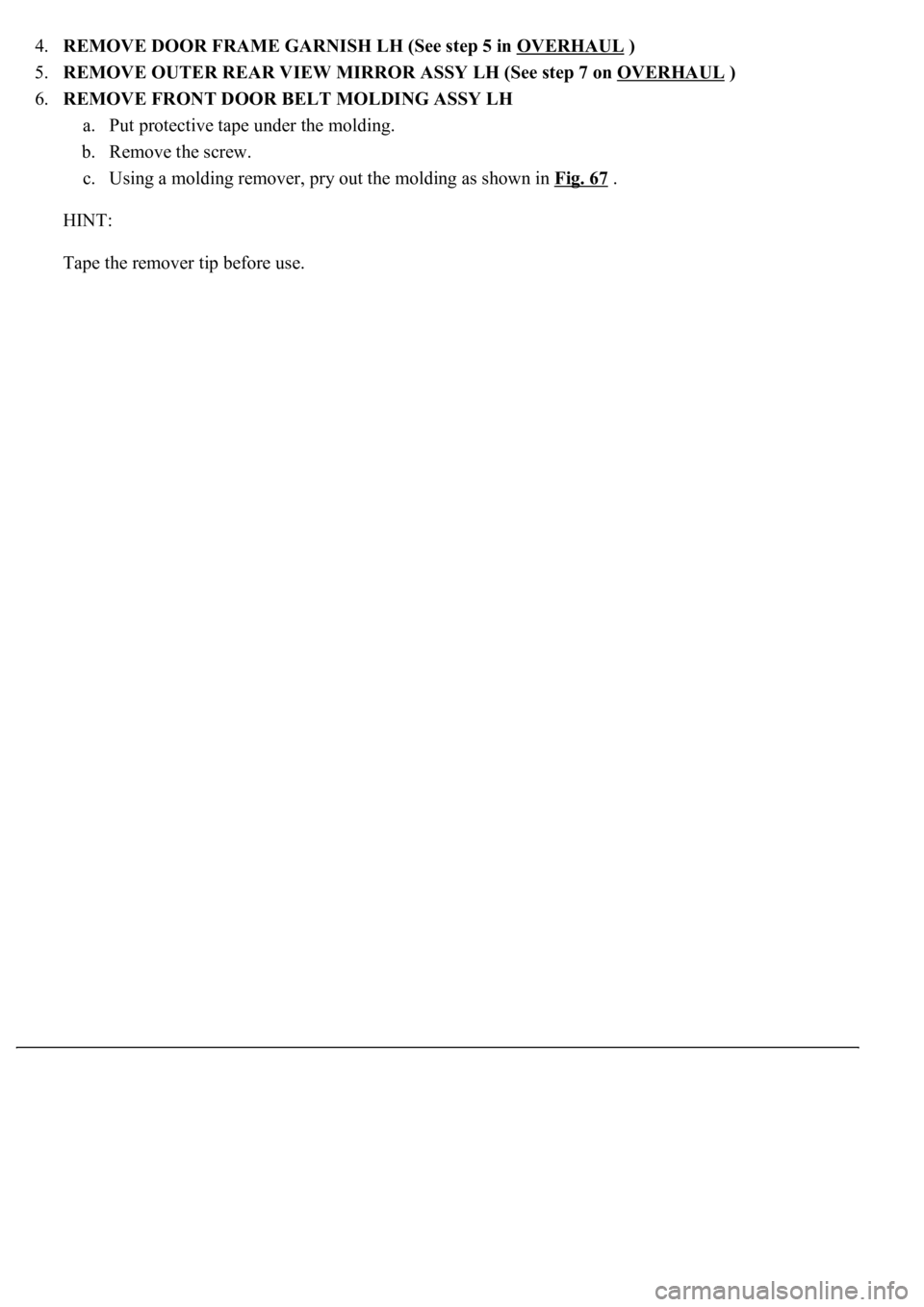

LEXUS LS430 2003 Factory Repair Manual 4.REMOVE DOOR FRAME GARNISH LH (See step 5 in OVERHAUL ) 5.REMOVE OUTER REAR VIEW MIRROR ASSY LH (See step 7 on OVERHAUL ) 6.REMOVE FRONT DOOR BELT MOLDING ASSY LH a. Put protective tape under t

Page 3854 of 4500

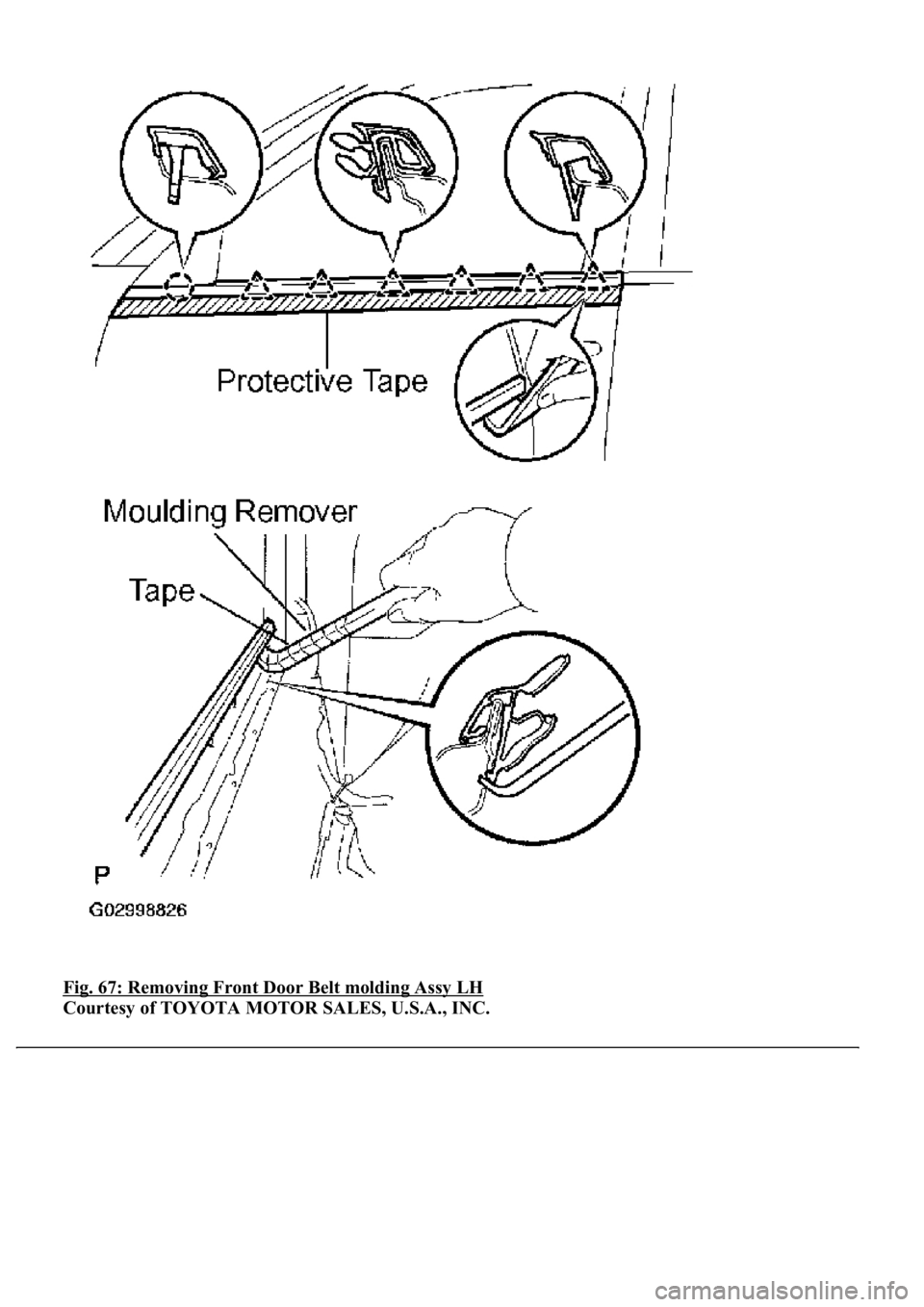

LEXUS LS430 2003 Factory Repair Manual Fig. 67: Removing Front Door Belt molding Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3855 of 4500

LEXUS LS430 2003 Factory Repair Manual REPLACEMENT HINT: The installation procedures are the removal procedures in reverse order. Use the same procedures for the RH side and LH side. The procedures listed below are for the LH side.

Page 3856 of 4500

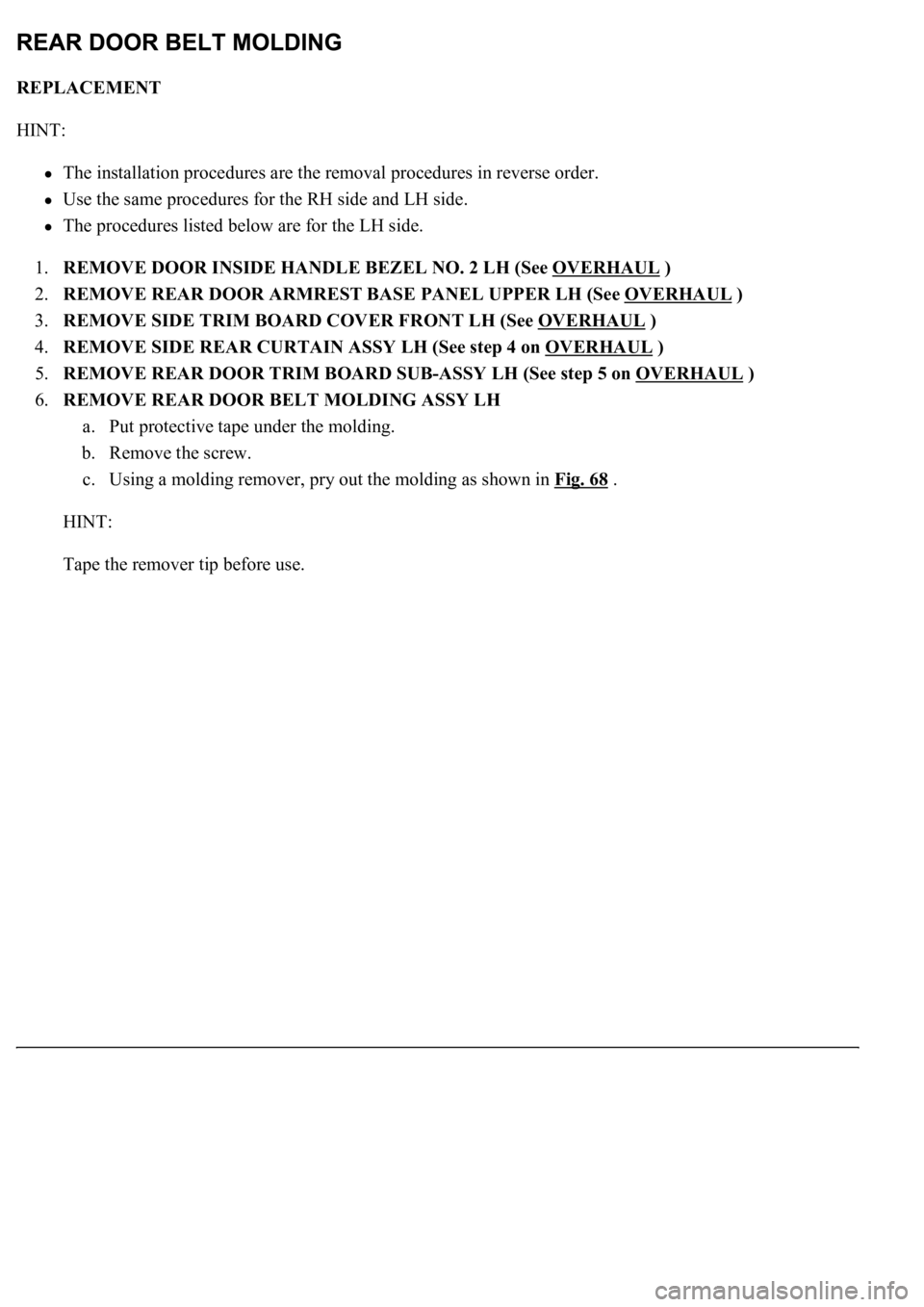

LEXUS LS430 2003 Factory Repair Manual Fig. 68: Removing Rear Door Belt Molding Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
