LEXUS LS430 2003 Factory Repair Manual Fig. 75: Identifying Stereo Component Amplifier Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: Go to step 2 OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE 2.CHECK

Page 794 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 76: Identifying Radio Receiver Assy Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 795 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 77: Identifying Stereo Components Amplifier Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: REPLACE RADIO RECEIVER ASSY (SEE REPLACEMENT

Page 796 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 78: Identifying Stereo Connector Amplifier Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. CIRCUIT DESCRIPTION This circuit sends the signal to the stereo component amplifier to mute th

Page 797 of 4500

LEXUS LS430 2003 Factory Repair Manual WIRING DIAGRAM Fig. 79: Identifying Radio Receiver Assy - Stereo Component Tuner Wiring Diagram Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.INSPECT STEREO COMPONENT TUNER

Page 798 of 4500

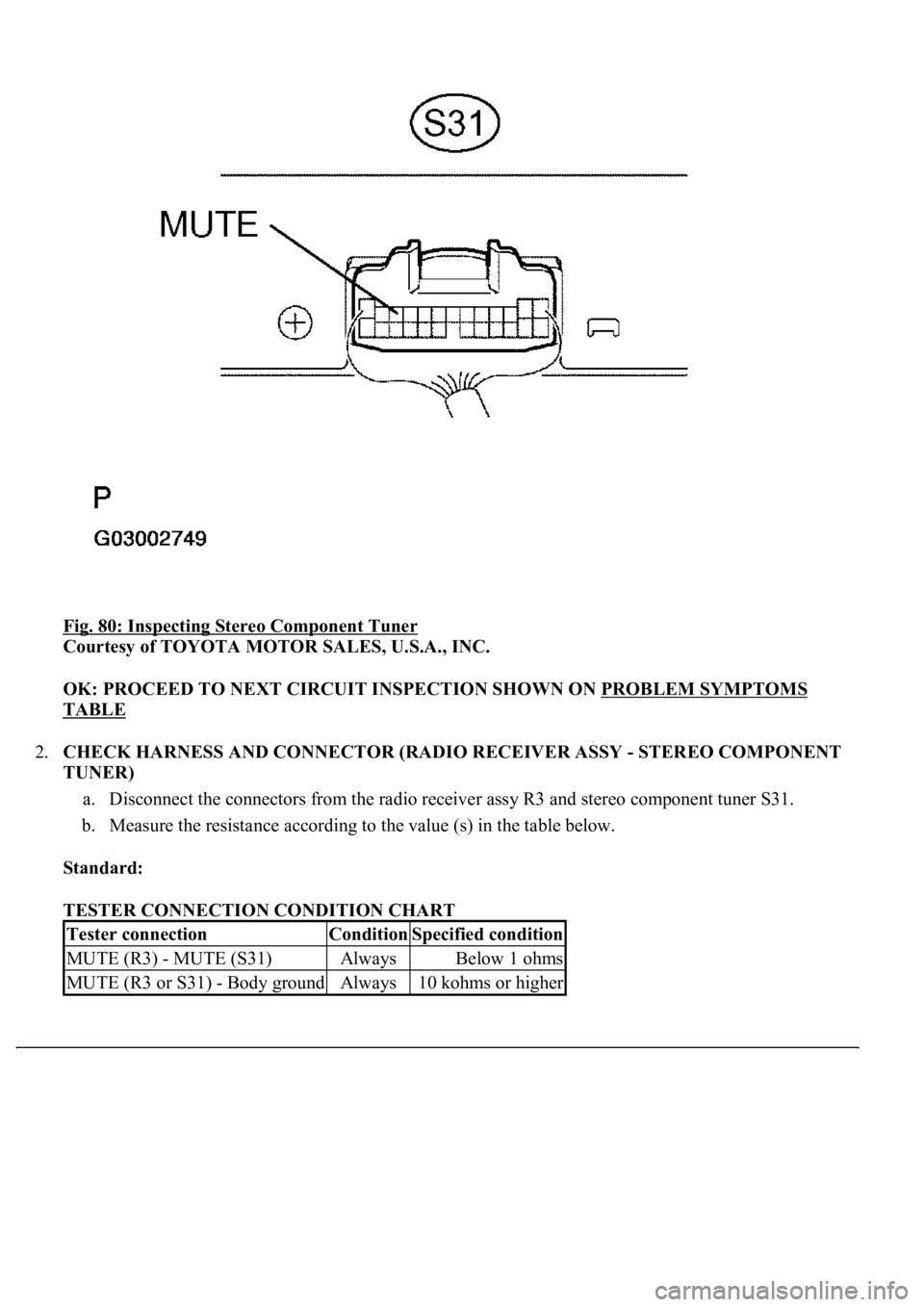

LEXUS LS430 2003 Factory Repair Manual Fig. 80: Inspecting Stereo Component Tuner Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE 2.CHECK HARNESS AND CONNECTOR (RADIO

Page 799 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 81: Identifying Radio Receiver Assy Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 800 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 82: Identifying Stereo Receiver Assy Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: REPLACE RADIO RECEIVER ASSY (SEE REPLACEMENT ) IN
