LEXUS LS430 2003 Factory Repair Manual Fig. 43: Removing Ultrasonic Sensor No. 1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: See COMPONENTS - FRONT BUMPER , COMPONENTS - REAR BUMPER . See LOCATION . Installation

Page 682 of 4500

LEXUS LS430 2003 Factory Repair Manual 1.REMOVE FRONT BUMPER COVER (See step 5 on REPLACEMENT ) 2.REMOVE REAR BUMPER COVER (See step 12 on REPLACEMENT ) 3.REMOVE ULTRASONIC SENSOR RETAINER NO. 2 a. Disconnect the connector. b. Remo

Page 683 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 45: Removing Ultrasonic Sensor No. 2 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: See COMPONENTS . See LOCATION . Installation is in the reverse order of removal.

Page 684 of 4500

LEXUS LS430 2003 Factory Repair Manual 1.REMOVE SWITCH BASE HOLE COVER (See REPLACEMENT ) 2.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO. 1 (See step 19 on REPLACEMENT ) 3.REMOVE CLEARANCE WARNING BUZZER NO. 1 a. Disconnect the co

Page 685 of 4500

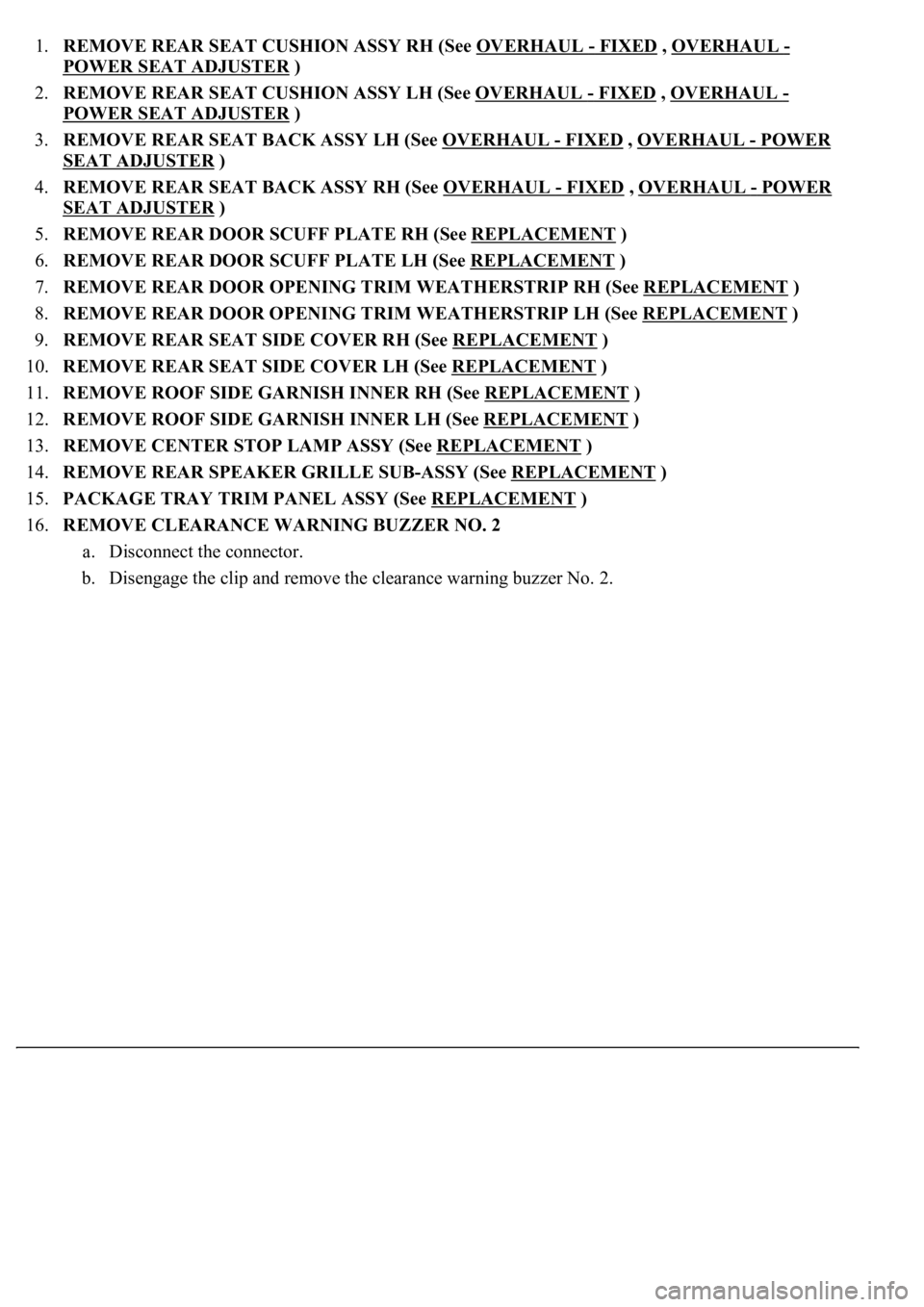

LEXUS LS430 2003 Factory Repair Manual 1.REMOVE REAR SEAT CUSHION ASSY RH (See OVERHAUL - FIXED , OVERHAUL - POWER SEAT ADJUSTER ) 2.REMOVE REAR SEAT CUSHION ASSY LH (See OVERHAUL - FIXED , OVERHAUL - POWER SEAT ADJUSTER ) 3.REMOV

Page 686 of 4500

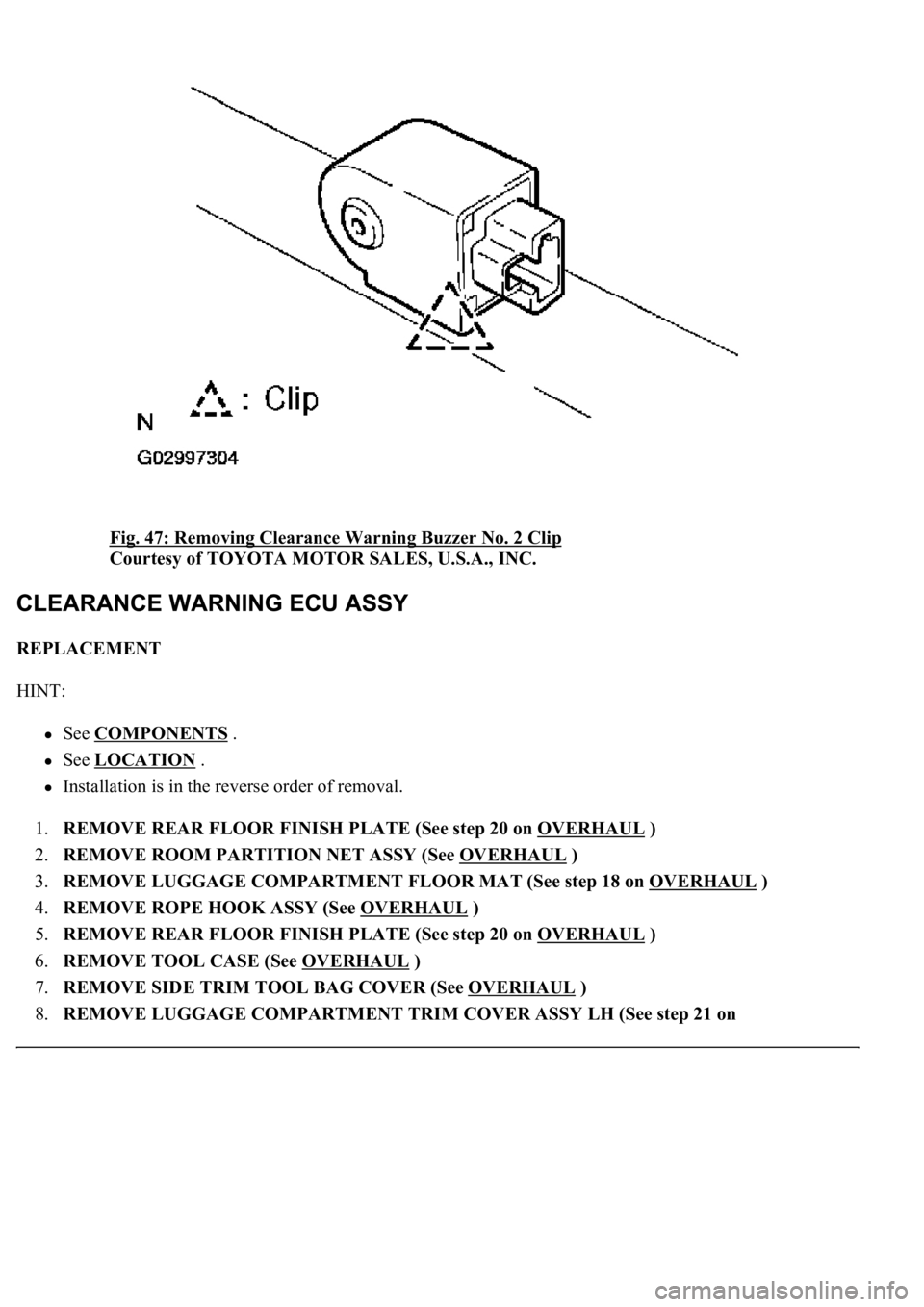

LEXUS LS430 2003 Factory Repair Manual Fig. 47: Removing Clearance Warning Buzzer No. 2 Clip Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: See COMPONENTS . See LOCATION . Installation is in the reverse order of rem

Page 687 of 4500

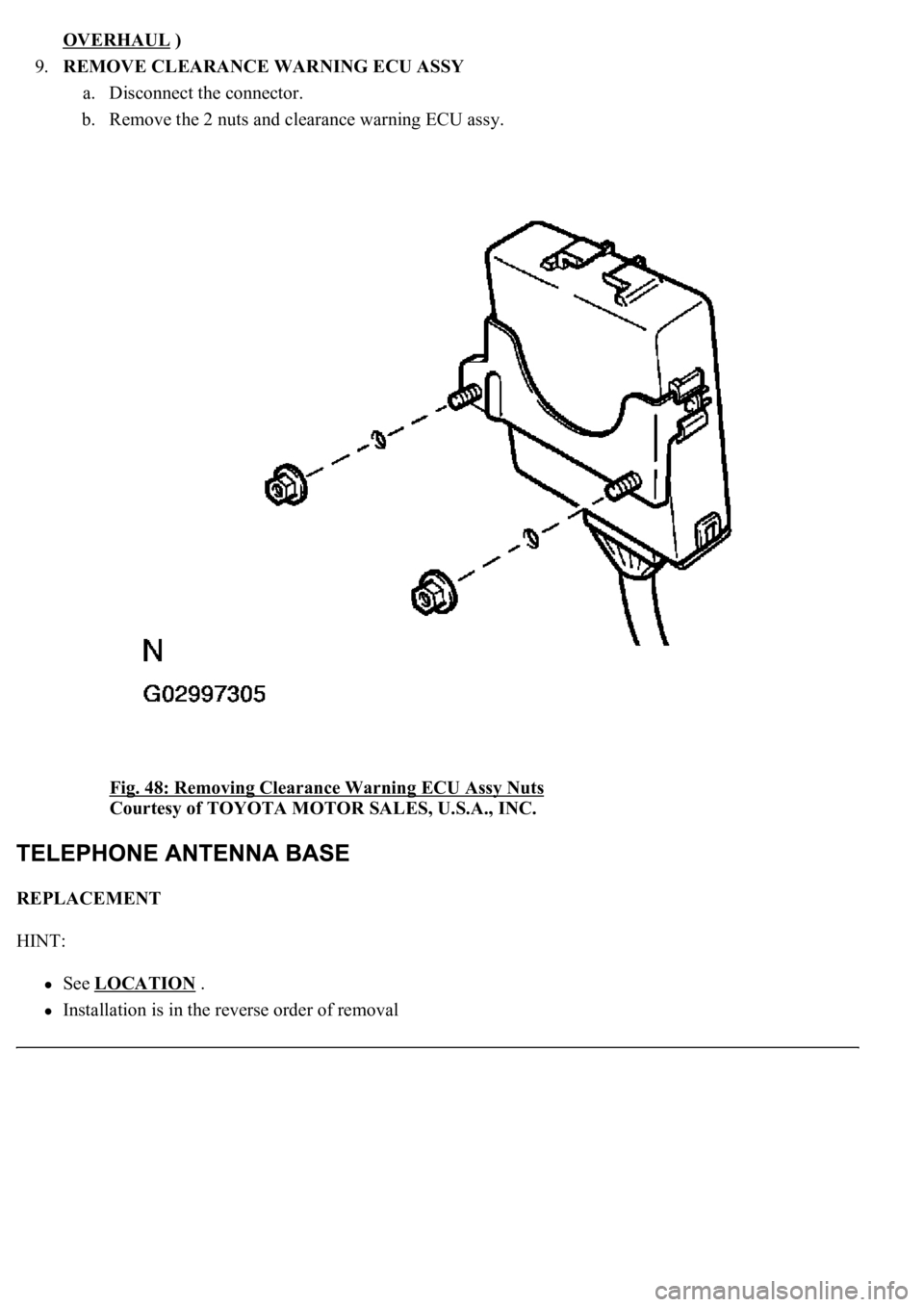

LEXUS LS430 2003 Factory Repair Manual OVERHAUL ) 9.REMOVE CLEARANCE WARNING ECU ASSY a. Disconnect the connector. b. Remove the 2 nuts and clearance warning ECU assy. Fig. 48: Removing Clearance Warning ECU Assy Nuts Courtesy of T

Page 688 of 4500

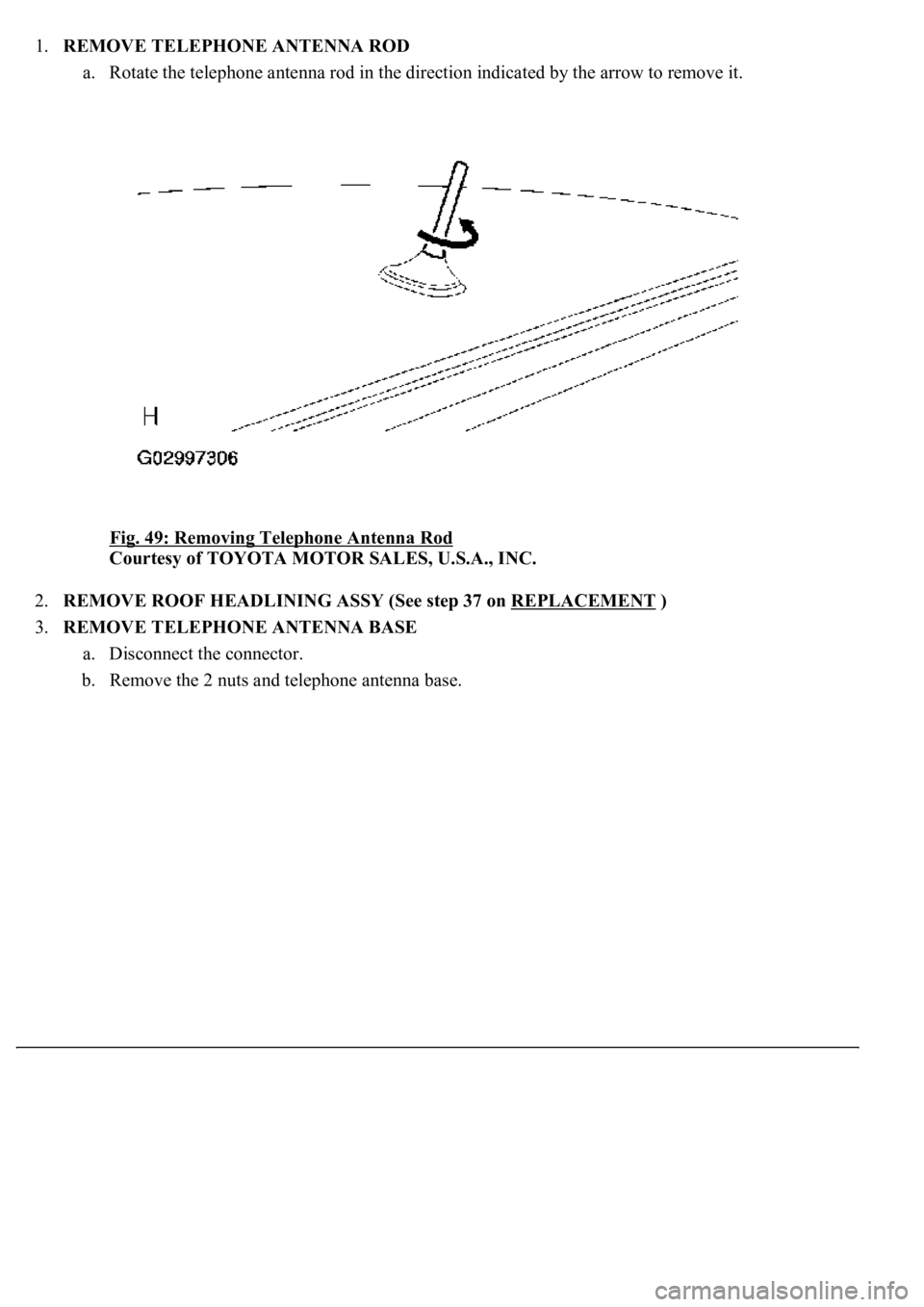

LEXUS LS430 2003 Factory Repair Manual 1.REMOVE TELEPHONE ANTENNA ROD a. Rotate the telephone antenna rod in the direction indicated by the arrow to remove it. Fig. 49: Removing Telephone Antenna Rod Courtesy of TOYOTA MOTOR SALES, U.S
