LEXUS LS430 2003 Factory Repair Manual REPLACEMENT 1.WORK FOR PREVENTING GASOLINE FROM SPILLING OUT (See PRECAUTION ) 2.DISCONNECT BATTERY NEGATIVE TERMINAL 3.DRAIN FUEL (See PRECAUTION ) 4.REMOVE SEPARATE TYPE REAR SEAT CUSHION A

Page 4138 of 4500

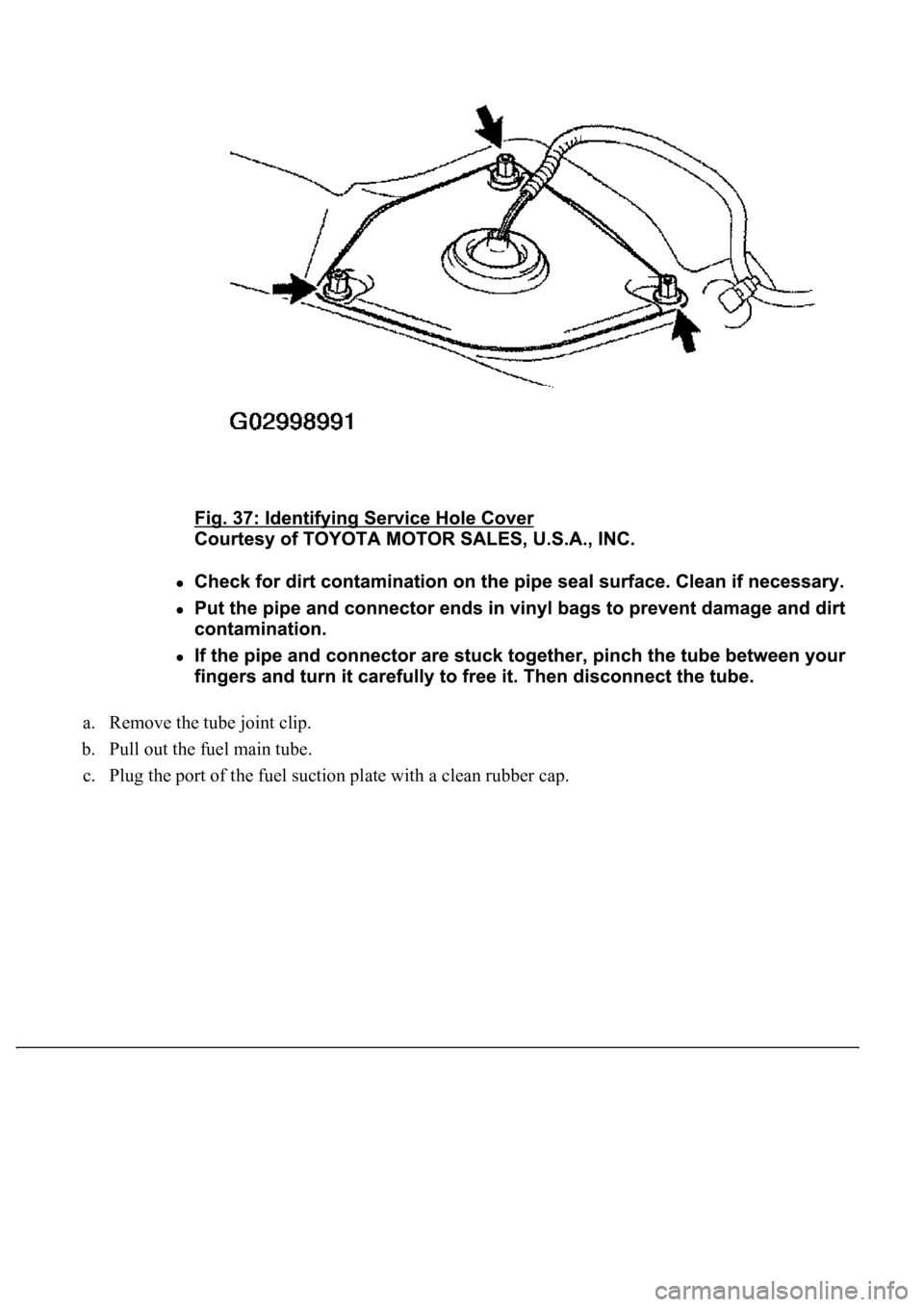

LEXUS LS430 2003 Factory Repair Manual a. Remove the tube joint clip. b. Pull out the fuel main tube. c. Plu g the port of the fuel suction plate with a clean rubber cap.

Page 4139 of 4500

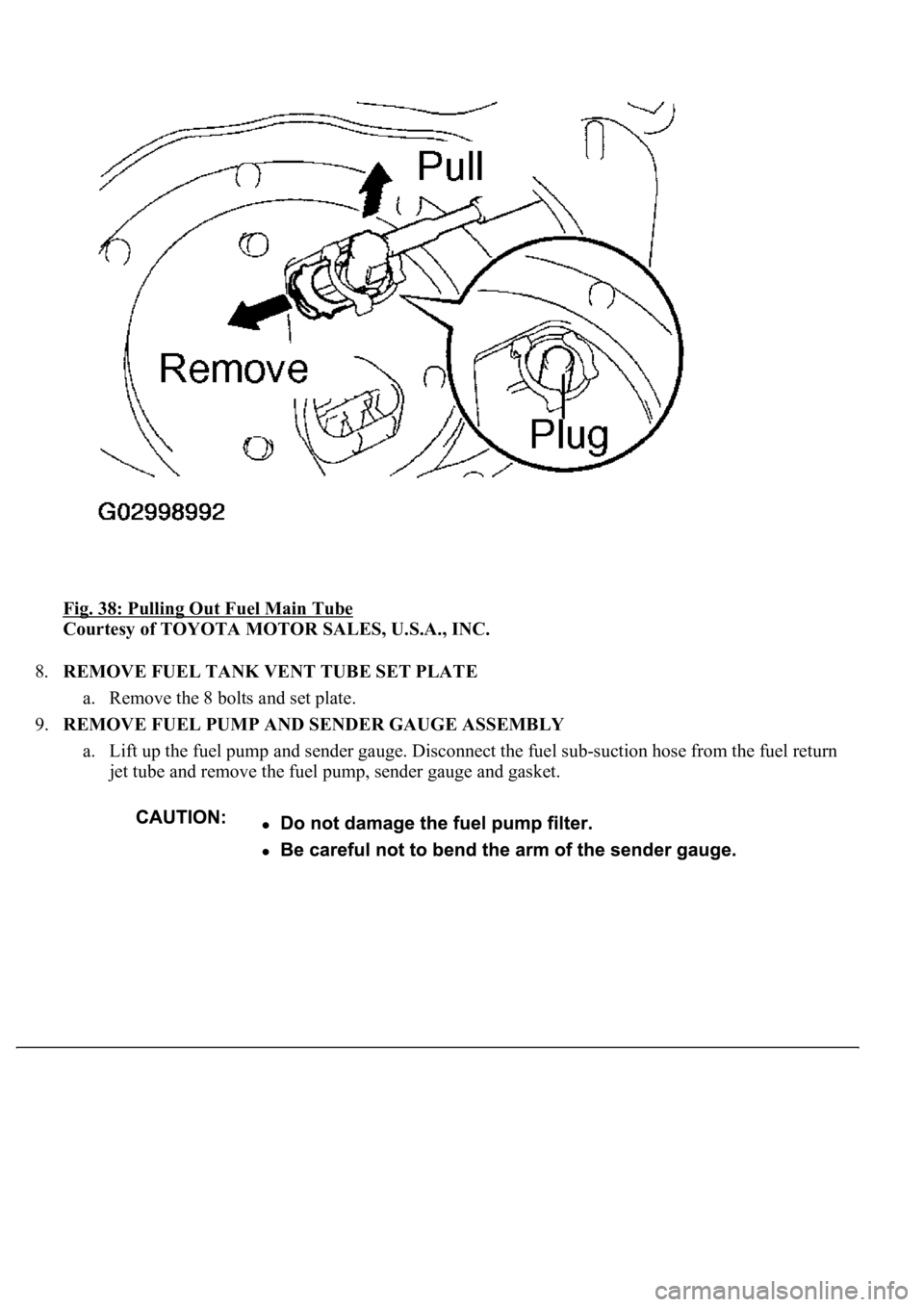

LEXUS LS430 2003 Factory Repair Manual Fig. 38: Pulling Out Fuel Main Tube Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.REMOVE FUEL TANK VENT TUBE SET PLATE a. Remove the 8 bolts and set plate. 9.REMOVE FUEL PUMP AND SENDER GAUGE AS

Page 4140 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 39: Disconnecting Fuel Sub-Suction Hose Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.REMOVE FUEL SUCTION SUPPORT NO.2 a. Using 2 screwdrivers, disconnect the 3 snap claws from the claw hole

Page 4141 of 4500

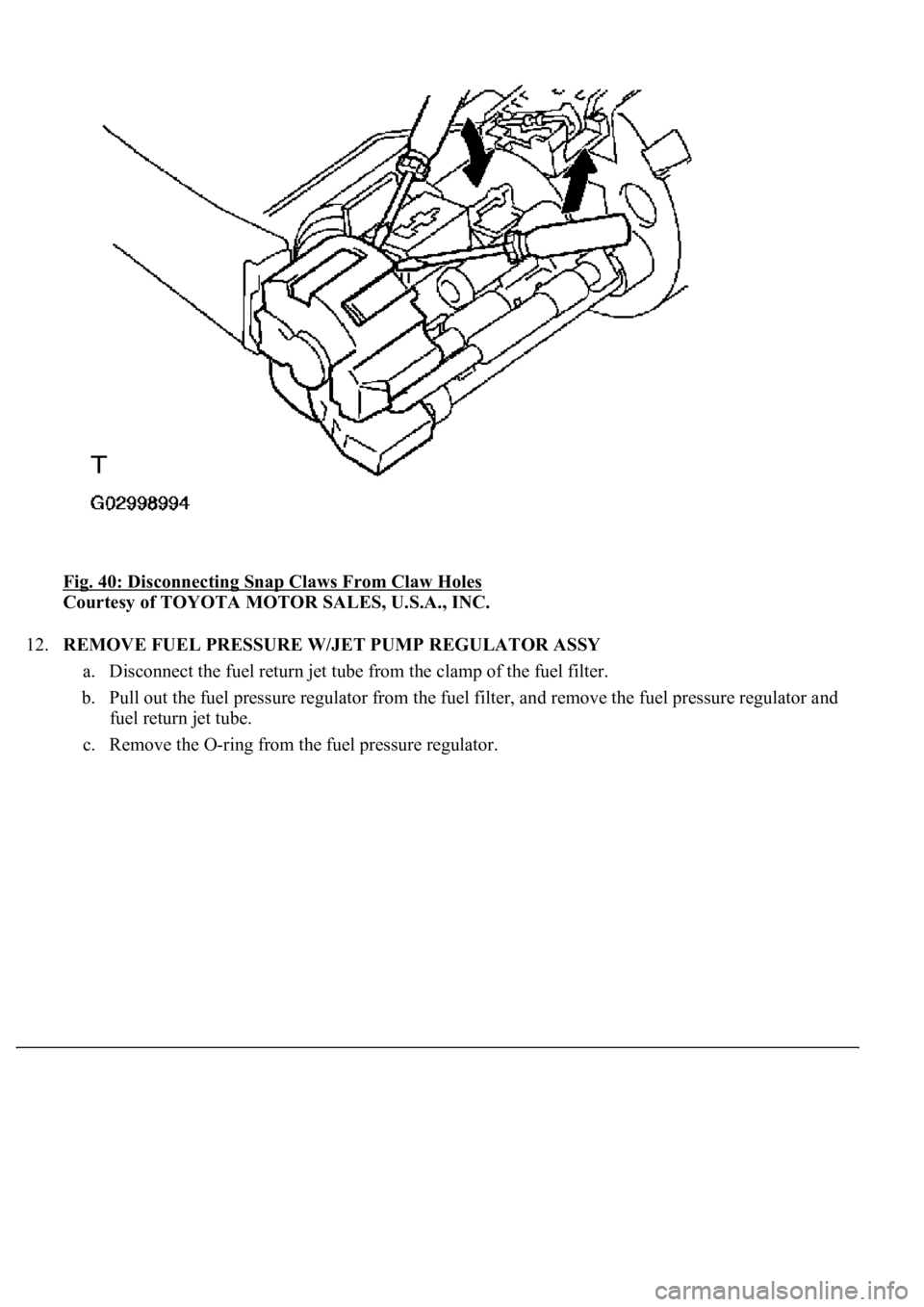

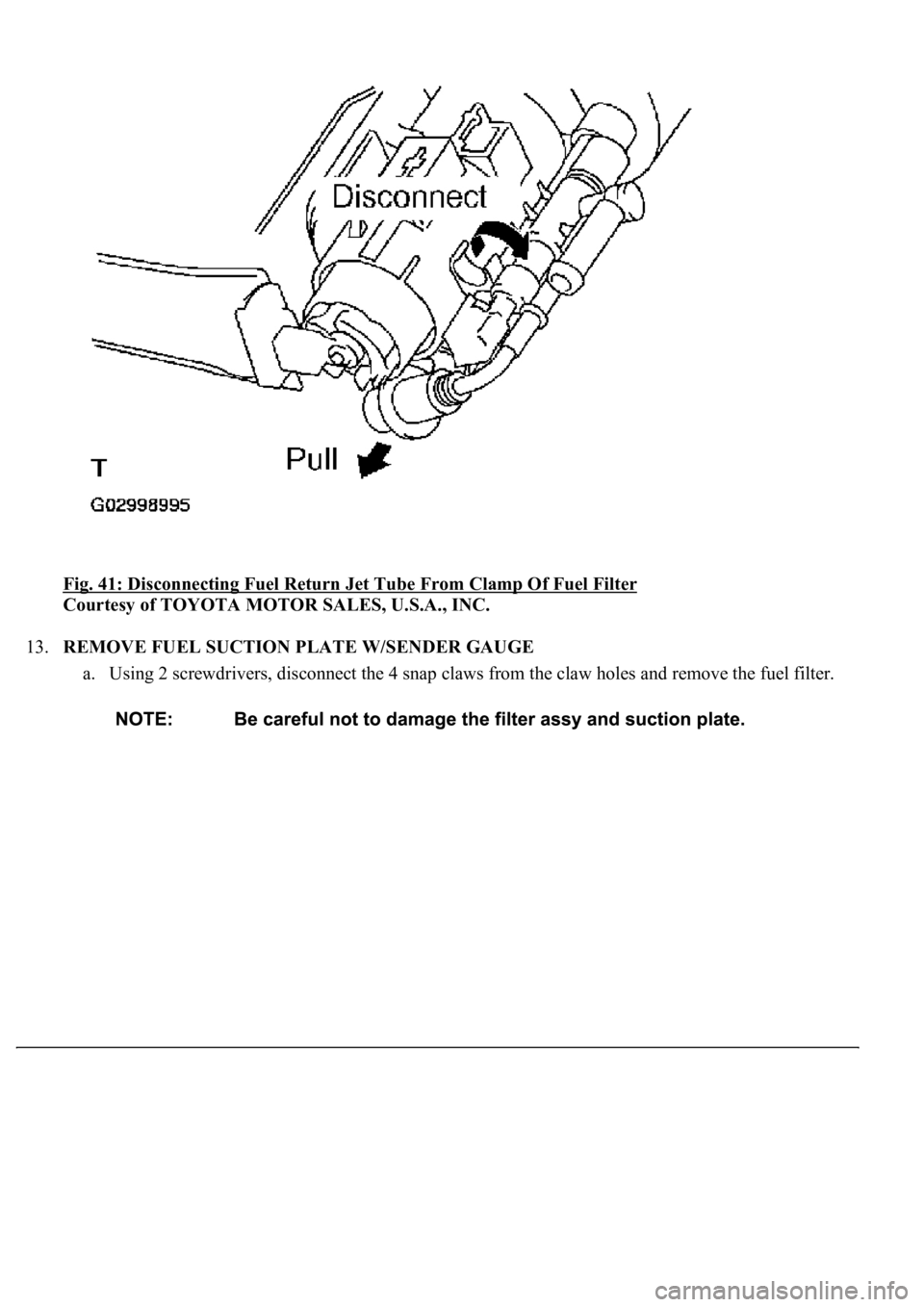

LEXUS LS430 2003 Factory Repair Manual Fig. 40: Disconnecting Snap Claws From Claw Holes Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 12.REMOVE FUEL PRESSURE W/JET PUMP REGULATOR ASSY a. Disconnect the fuel return jet tube from the clam

Page 4142 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 41: Disconnecting Fuel Return Jet Tube From Clamp Of Fuel Filter Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 13.REMOVE FUEL SUCTION PLATE W/SENDER GAUGE a. Using 2 screwdrivers, disconnect th

Page 4143 of 4500

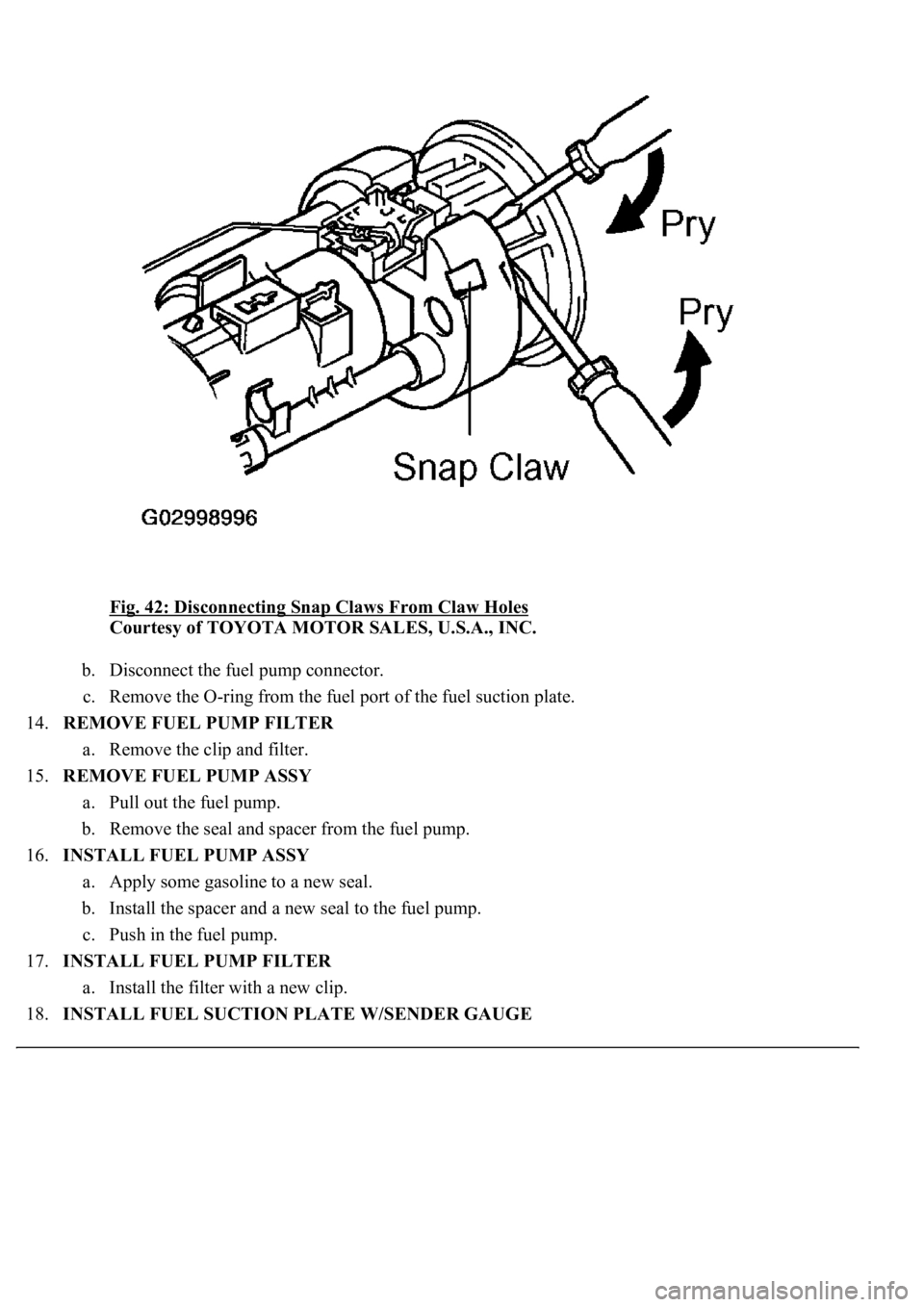

LEXUS LS430 2003 Factory Repair Manual Fig. 42: Disconnecting Snap Claws From Claw Holes Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Disconnect the fuel pump connector. c. Remove the O-ring from the fuel port of the fuel suction pl

Page 4144 of 4500

LEXUS LS430 2003 Factory Repair Manual a. Apply a light coat of gasoline to a new O-ring, and install it to the fuel port of the fuel suction plate. b. Connect the fuel pump connector. c. Push the fuel filter, and attach the 4 snap claw
